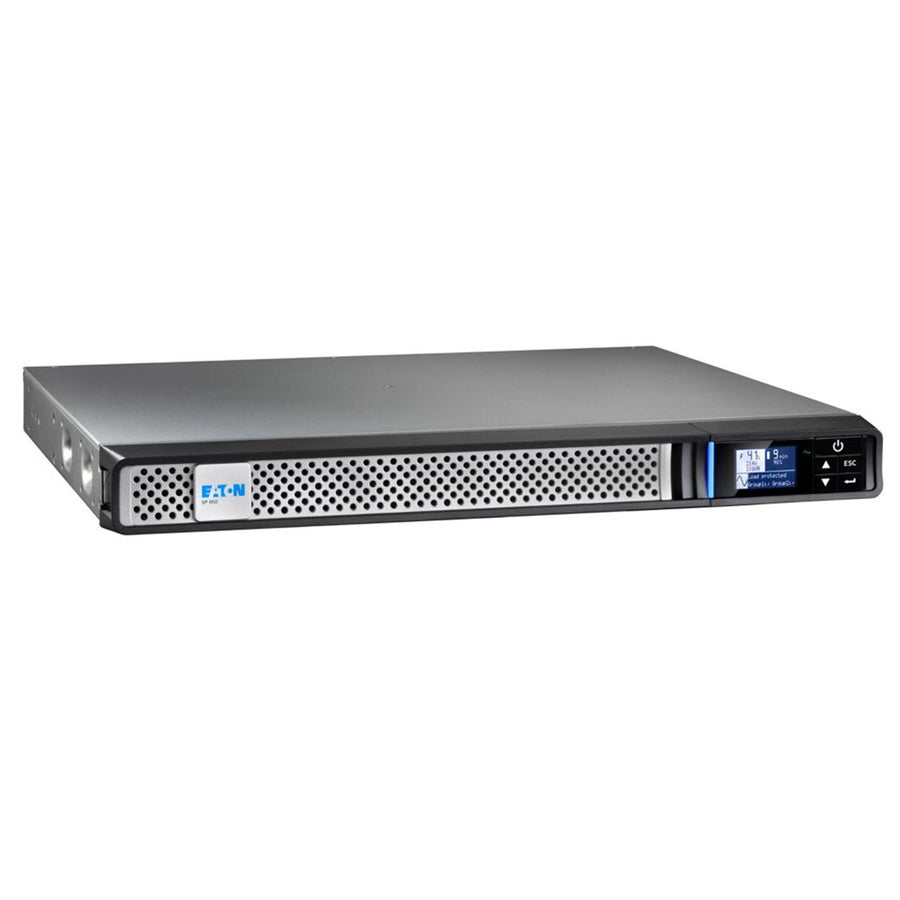

EATON 5P650IRG2 - 5P 650VA/520W 1U Rack Mount Line Interactive UPS w/ LCD Display
Features
Secure, smart, and integrated
The Eaton 5P Gen 2 UPS together with thecybersecuredgigabit network card (included in the Netpack versions), meet stringent cybersecurity standards.
Remote managementfeatures offer secure UPS configuration and firmware updates, while the Brightlayer Software Suite provides seamless integration with virtualization environments and cloud services, ensuring continuous service and integrity.
Power and efficiency in a compact design
Enhance your operations with the Eaton 5P Gen 2 UPS, delivering up to 1350 Watts-22% more powerthan its predecessor and 35% above competitors-in a compact 1U form factor.
It ensures stable, high-quality output for sensitive equipment and increased efficiency,reducing energy consumption and costs
Intelligent load segment controlprioritises critical devicesand optimises battery runtime.
Optimized battery management, easy maintenance, total flexibility
Benefit from a prolonged battery life (up to 50%) andmachine learning predictivemaintenance with Eaton's ABM+ technology.
User hot-swappable batteries and intuitive battery replacement wizard through graphical LCD display.
Whether with the 1U rack format or a compact tower option, the Eaton 5P Gen 2UPS fits to your space requirements, ensuring compatibility for various setups.
- Works adequately in situations where the supply is prone to sags and surges
- 520 W load capacity - backup power for your valuable electronics
- 650 VA load capacity provides sufficient backup during power failures
Specifications
Technical Specifications
| Product Name | Eaton 5P Gen2 UPS |
|---|---|
| Catalog Number | 5P650IRG2 |
| Product Length/Depth | 361 mm |
| Product Height | 43.2 mm |
| Product Width | 438 mm |
| Product Weight | 8.6 kg |
| Compliances | LVD Directive (CB)EMC DirectiveRoHS DirectiveWEEE DirectivePackaging DirectiveBatteries Directive |
| Certifications | IEC/EN 62040-1IEC/EN 62040-2IEC/EN 62040-3UL 1778CSA-C22.2CEUKCACmUkrKCCcTUVusBIS |
| Topology | Line-interactive |
| Form factor | Rack |
| Rack size | 1U |
| Construction type | 482.6 mm (19 inch) device |
| Color | Black/silver |
| Enclosure | Black/silver |
| VA rating | 650 VA |
| Wattage | 520 W |
| Rack mounting kit | Yes |
| Auto shutdown function | Yes |
| Primary frequency - max | 70 Hz |
| Primary frequency - min | 47 Hz |
| Input connection | C14 |
| Input nominal voltage | 230V default (200/208/220/230/240V) |
| Nominal frequency | 50-60 Hz |
| Input frequency range | 47-70 Hz (50 Hz system), 56.5-70 Hz (60 Hz system), 40 Hz in low sensitivity mode |

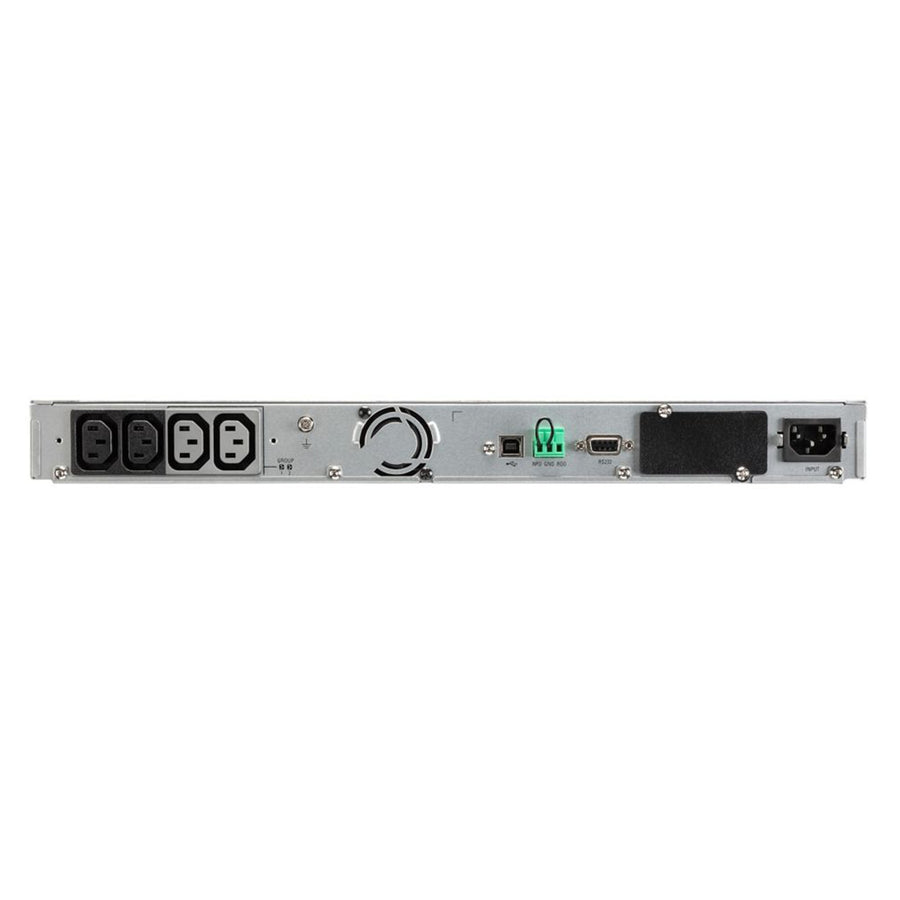

| Receptacle | (4) C13 |
| Number of Outputs C13 | 4 |
| Output waveform | Sine wave |
| Voltage | 230V |
| Output nominal voltage | 230V default (200/208/220/230/240V) |
| Feed type | 1 |
| Voltage type | AC |
| Battery management | ABM or constant voltage charging method (user selectable), automatic battery test, deep discharge protection |
| Battery replacement | User replaceable |
| Battery rating | 6 V / 9 Ah |
| Battery type | Lead-acid maintenance-free (replaceable) |
| Extended battery capability | No |
| Runtime at half load | 7 min |
| Communication | USB port (HID compliant)Serial port (RS232)Mini-terminal block for remote On/Off and Remote Power OffDry contacts (2 outputs, optocoupler, RJ) |

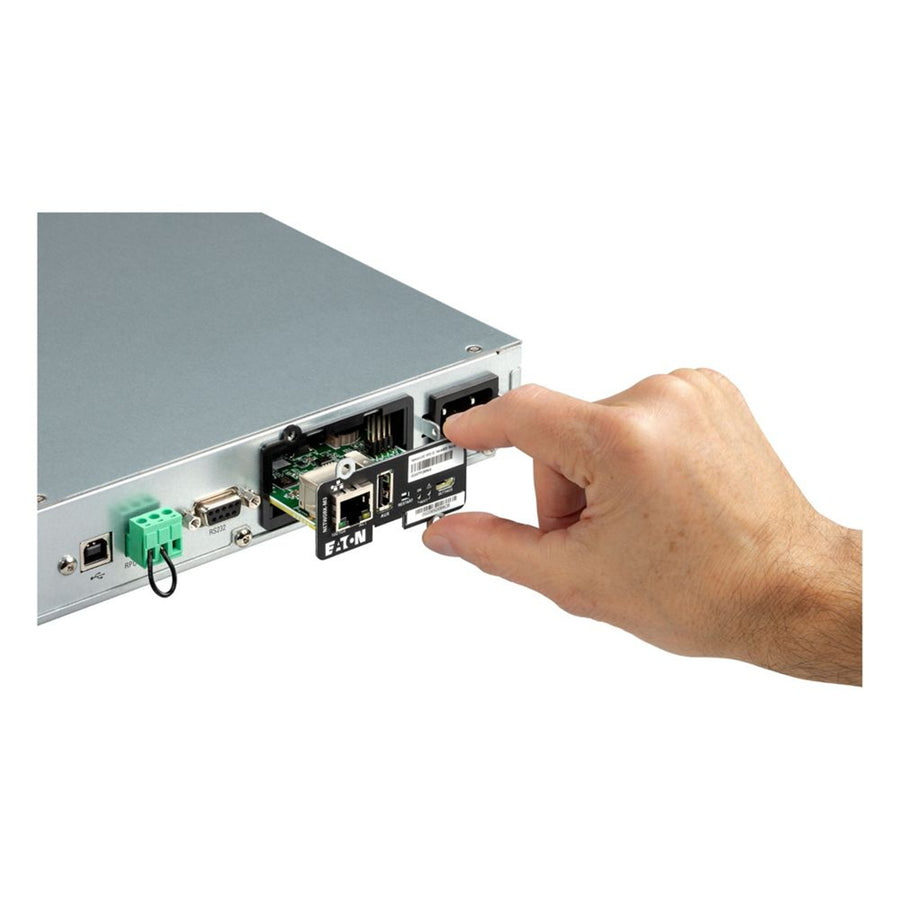

| Expansion slots | One slot for optional communication card |
| Ethernet interface | No |
| Includes network card | No |
| Software compatibility | Eaton Brightlayer Software suite |

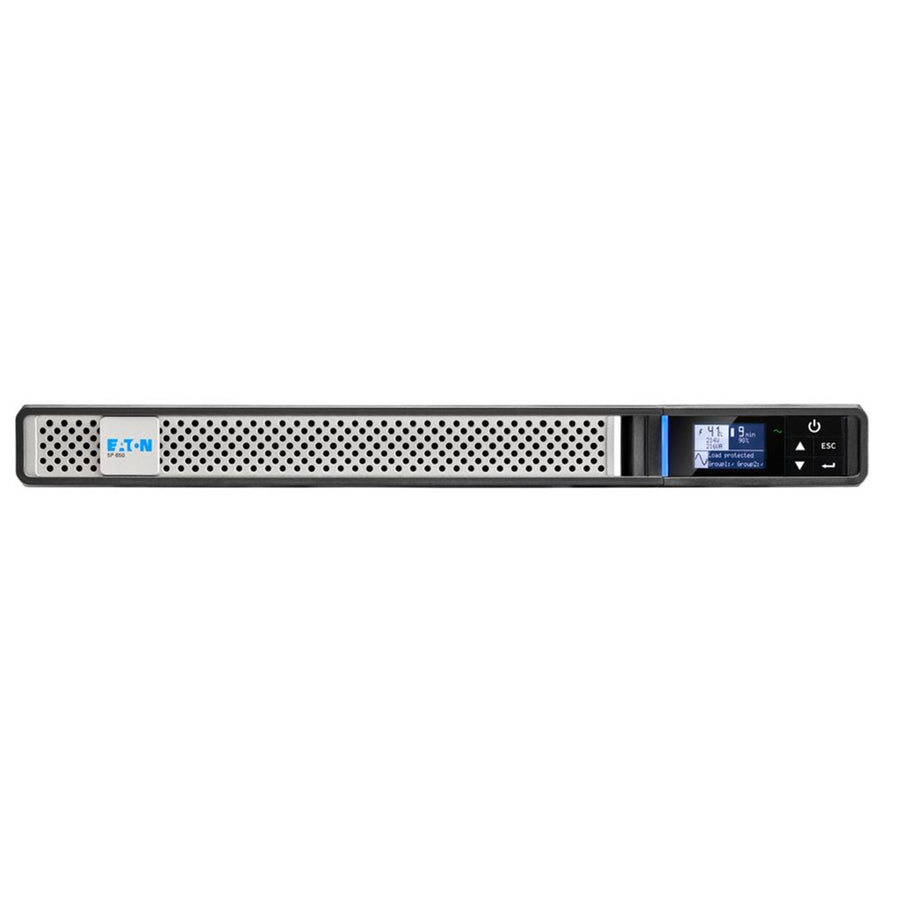

| User interface | Multilingual graphical LCD display |
| Type of interface | Other |
| Potential free switch contact | Yes |
| Altitude | 3000 m |
| BTU Rating | Online: 53, Battery: 461 BTU/hr |
| Noise level | <35 dB at 1 meter |
| Relative humidity | 0-90% non-condensing |
| Temperature range | 0° to 40°C (32° to 104°F) |
| Input voltage - max | 294 V |
| Input voltage - min | 150 V |
| Output voltage - max | 240 V |
| Output voltage - min | 200 V |
| Secondary frequency - max | 60 Hz |
| Secondary frequency - min | 50 Hz |
| Battery quantity | 2 |
| Efficiency at max. load | 97 |
| Input voltage range | 160-294 V (adjustable to 150 V-294 V) |
| Output frequency | 50/60 Hz |
| Output power factor | 0,8 |
| Output voltage range | 230 V (+6%/-10%) |
| Phase (input) | 1 |
| Phase (output) | 1 |
| Runtime at full load | 1 |
| Communication interface | RS232USB |
| Power consumption | 16 W |
| USB interface | Yes |
| With communication interface RS-232 | Yes |
| Brand | EATON |
|---|---|
| Product Type | Power & Charging > UPS & Power Distribution > UPS |
| Weight | 4.626 kg |
| Warranty |
|---|
