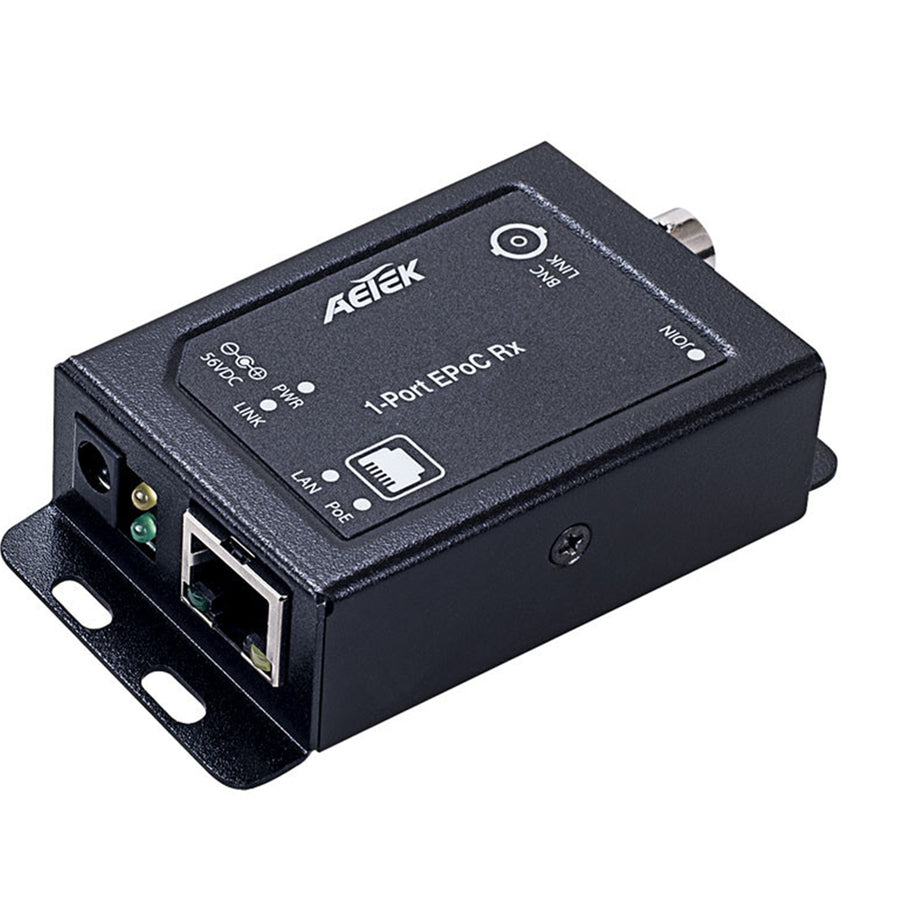

AETEK Ethernet & Power Coax RX EPoC adapter Req 56VDC
$407.47
inc GST ▲
+GST
Free shipping over $299
Genuine product
7-day returns
Features
EPoC (Ethernet & Power over Coax) line is a long-reach solution providing Fast Ethernet and PoE over RG6 coaxial cable up to 1200m(3937ft) for any brand of PoE IP camera. This product line also is often used to upgrade legacy of CCTV to IP surveillance without changing legacy RG59/RG6 coaxial cable. Furthermore, outdoor EPoC solution is a rugged and economical alternative to optical fiber. In addition, the power over coax to remote PoE IP camera is more convenient than optical fiber solution.
- One BNC coax port & one Ethernet port
- Includes 65W @ 56VDC power supply
- Wall-mount installation
- Optional 19'' 4-bay rack mount chassis (CH-100)
Applications
Specifications
Technical Specifications
| 75O Coaxial BNC Port | 1 |
|---|---|
| 10/100Mpps Ethernet RJ45 Port | 1 |
| Transmission mode | RX mode |
| MAX.(Power+Data) Distance | 9.7W @ 1200m(3937 ft) |
| Power supply | Input: 100-240 VAC Output: 65W @ 56VDC Power Adapter |
| PoE PD | - |
| PoE Pass Through | v |
| Dimensions (L x W x H) | 85.4 x 47.1 x 23 mm (3.36x1.85x0.91") |
| Weight | 0.2 kg (0.44 lb) |
| Connectors | BNCx1 , RJ45x1, DC Jackx1 |
| Operating Temperature | -20°C ~ 60°C (-28°F ~ 140°F) |
| Storage Temperature | -20°C ~ 85°C (-28°F ~ 185°F) |
| Operating Humidity | 5% ~ 95% non-condensing |
| EMC | CE, FCC, VCCI, C-Tick |
| Safety | EN60950-1, IEC60950-1 |
| Brand | Aetek |
|---|---|
| Product Type | Smart Home & Security > Security Systems |
| Weight | 0.5 kg |
