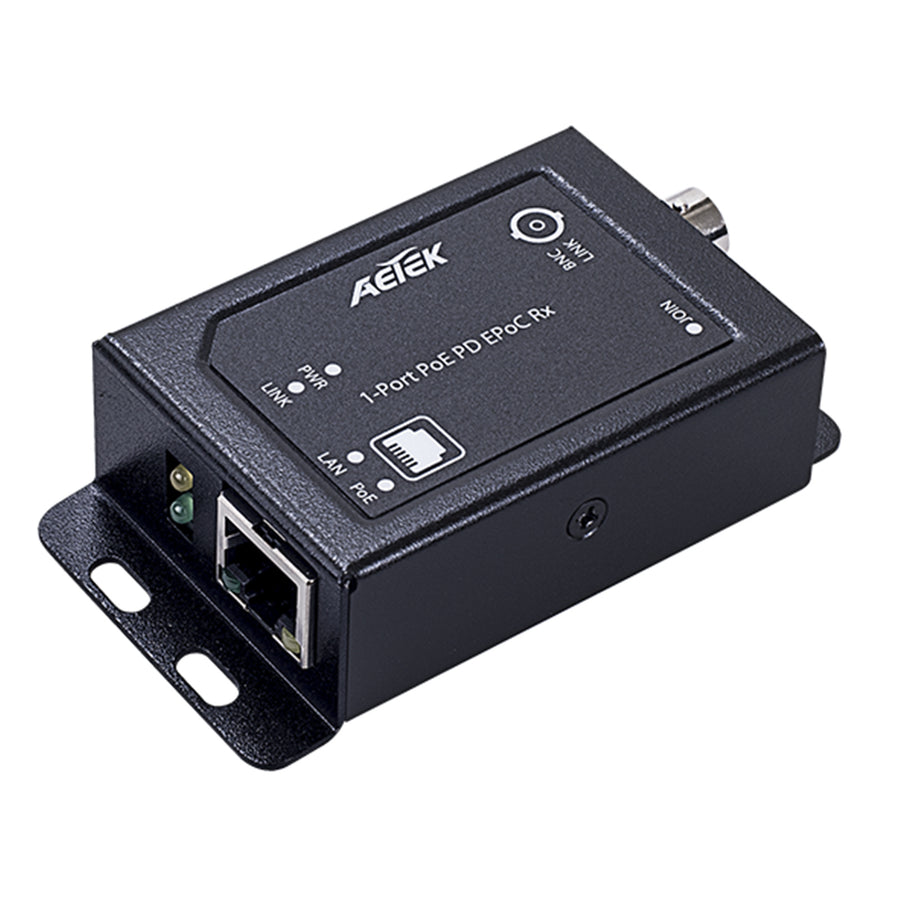

AETEK Ethernet & Power Coax RX EPoC adapter Req POE
$347.22
inc GST ▲
+GST
Free shipping over $299
Genuine product
7-day returns
Features
1-Port PoE PD EPoC RX Adapter
EPoC (Ethernet & Power over Coax) line is a long-reach solution providing Fast Ethernet and PoE over RG6 coaxial cable up to 1200m(3937ft) for any brand of PoE IP camera. This product line also is often used to upgrade legacy of CCTV to IP surveillance without changing legacy RG59/RG6 coaxial cable. Furthermore, outdoor EPoC solution is a rugged and economical alternative to optical fiber. In addition, the power over coax to remote PoE IP camera is more convenient than optical fiber solution.
- PoE pass through coax to remote PoE IP camera
- Eliminates the need for local site power supply
- Wall-mount installation
- Plug-and-Play installation
Power / Distance Chart
Applications
Specifications
Technical Specifications
| 75Ω Coaxial BNC Port | 1 |
|---|---|
| 10/100Mpps Ethernet RJ45 Port | 1 |
| Transmission mode | RX mode |
| MAX.(Power+Data) Distance | 9.7W@1200m(3937 ft) |
| PoE PD | 30W/60W/90W PoE |
| PoE Pass Through | v |
| Dimensions (L x W x H) | 85.4 x 47.1 x 23 mm (3.36x1.85x0.91") |
| Weight | 0.26 kg (0.57 lb) |
| Connectors | BNCx1 , RJ45x1 |
| Operating Temperature | -20°C ~ 60°C (-28°F ~ 140°F) |
| Storage Temperature | -20°C ~ 85°C (-28°F ~ 185°F) |
| Operating Humidity | 5% ~ 90% non-condensing |
| EMC | CE, FCC, VCCI, C-Tick |
| Safety | EN60950-1, IEC60950-1 |
| Brand | Aetek |
|---|---|
| Product Type | Smart Home & Security > Security Systems |
| Weight | 0.5 kg |
