AETEK Inside Ethernet & Power Coax TX EPoC adapter 1-2 Port

Name: AETEK Inside Ethernet & Power Coax TX EPoC adapter 1-2 Port
Brand: Aetek
SKU: XE12-120-TX
Price: 344.3 NZD
Availability: InStock

SKU: XE12-120-TX ● In Stock

$299.39

inc GST ▲ +GST

Free shipping over $299 Genuine product 7-day returns

Features

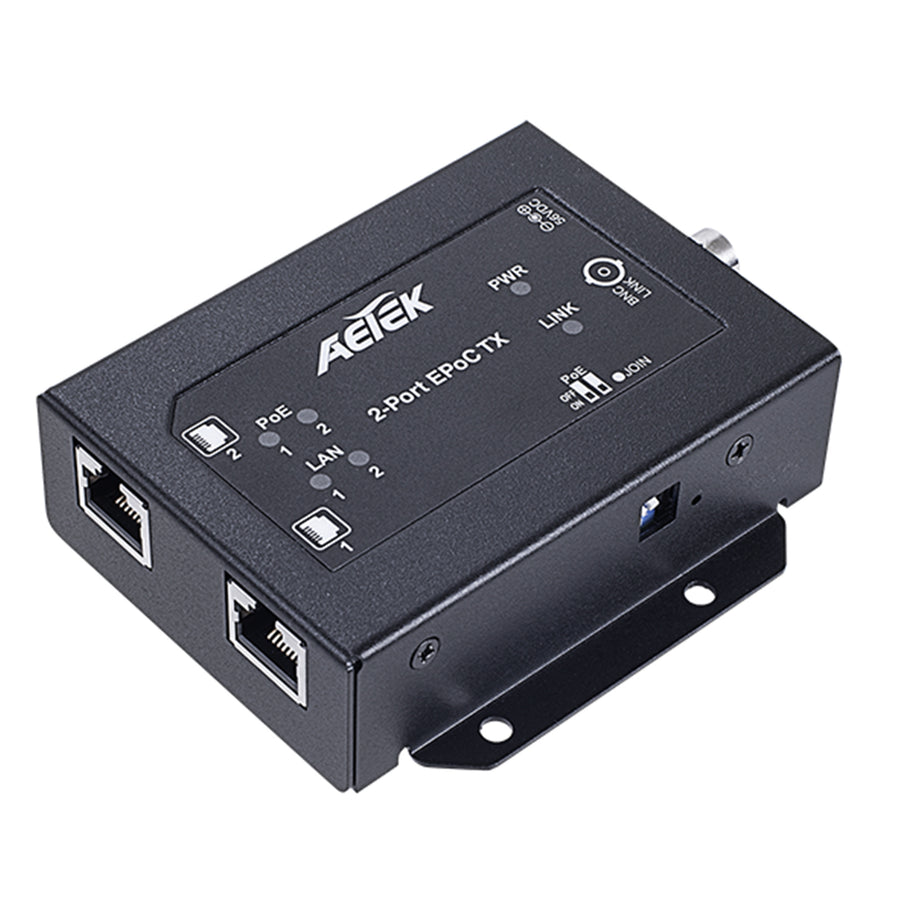

2-Port EPoC TX Adapter

EPoC (Ethernet & Power over Coax) line is a long-reach solution providing Fast Ethernet and PoE over RG6 coaxial cable up to 1200m(3937ft) for any brand of PoE IP camera. This product line also is often used to upgrade legacy of CCTV to IP surveillance without changing legacy RG59/RG6 coaxial cable. Furthermore, outdoor EPoC solution is a rugged and economical alternative to optical fiber. In addition, the power over coax to remote PoE IP camera is more convenient than optical fiber solution.

- One BNC coax port & two PoE PSE port
- TX mode
- Wall-mount installation
- Eliminates the need for power supply beside long range PoE IP camera
- Delivers up to 25 watts @500m(1640ft) shared between two PoE IP cameras

Power / Distance Chart

Applications

Specifications

Technical Specifications

75Ω Coaxial BNC Port	1
10/100Mpps Ethernet RJ45 Port	2
Transmission mode	Transmitter TX mode
MAX.(Power+Data) Distance	100Mbps, 25W@500m(1,640ft) shared between two PoE IP cameras100Mbps@2,400m(7,874ft) Data only
Cable Type	75 ohm RG59/RG6/RG11 Coax
Bandwidth	100 Mbps
Power Input	EPoC@50~57VDC, 50~57 VDC power adapter
Power Output	Passive PoE (Compliant IEEE 802.3af PoE)
Unit Power Consumption	3 watts
Dimensions (L x W x H)	103 x 86.6 x 28.9 mm (4.06x3.41x1.14")
Weight	0.26 kg (0.57 lb)
Connectors	BNC x1, RJ45 x2, DC Jack x1, PoE On/Off Switch x1
Operating Temperature	-20°C ~ 60°C (-28°F ~ 140°F)
Storage Temperature	-20°C ~ 85°C (-28°F ~ 185°F)
Operating Humidity	5% ~ 90% non-condensing
EMC	CE, FCC, VCCI, C-Tick
