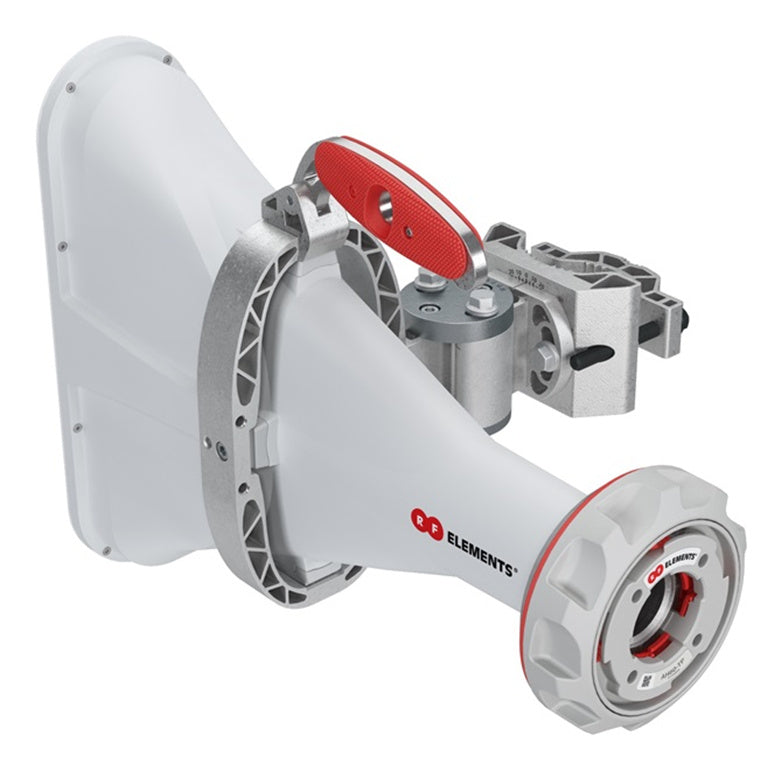

AH60-TP - RF Elements 17 dBi 60 Degree Frequency Range 5180 - 6000 MHz Asymmetrical Horn Twist Port Antenna AH60-TP
RF Elements

AH60-TP - RF Elements 17 dBi 60 Degree Frequency Range 5180 - 6000 MHz Asymmetrical Horn Twist Port Antenna AH60-TP

SKU: AH60-TP ● In Stock
$609.99
Free shipping over $299 Genuine product 7-day returns

AH60-TP

AH60-TP - RF Elements 17 dBi 60 Degree Frequency Range 5180 - 6000 MHz Asymmetrical Horn Twist Port Antenna AH60-TP

Description

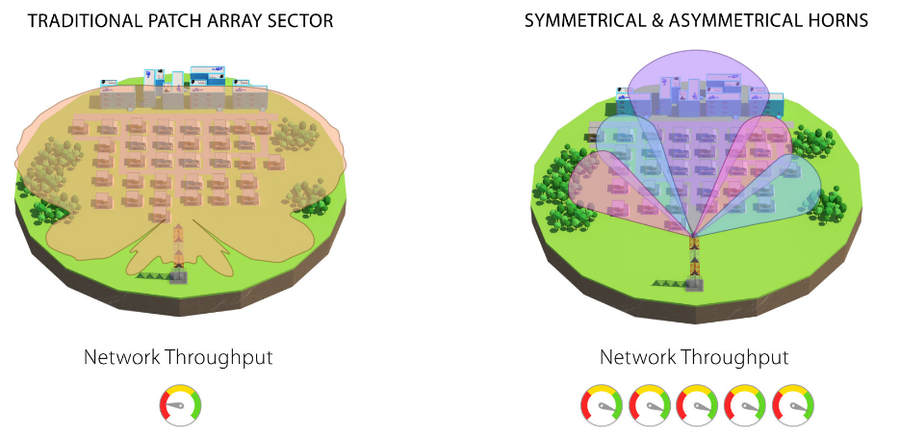

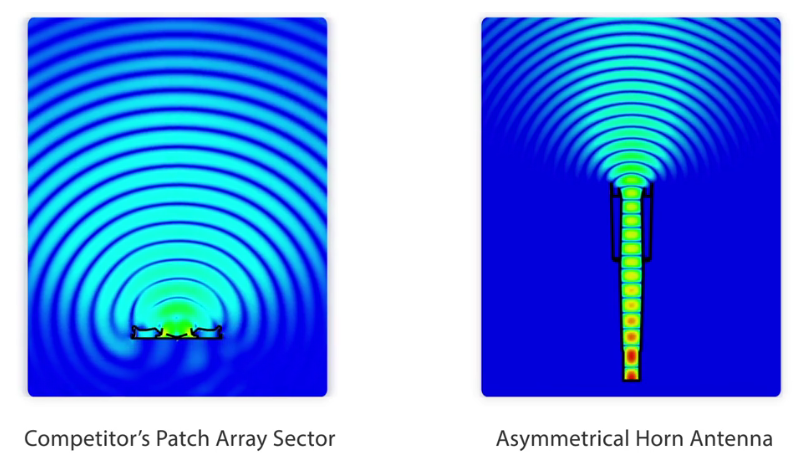

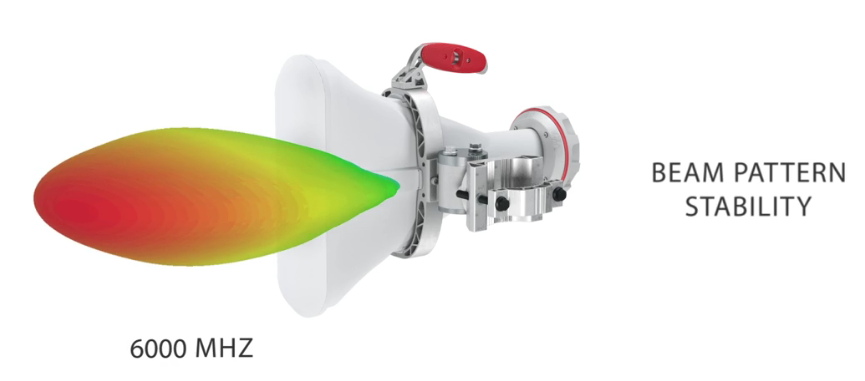

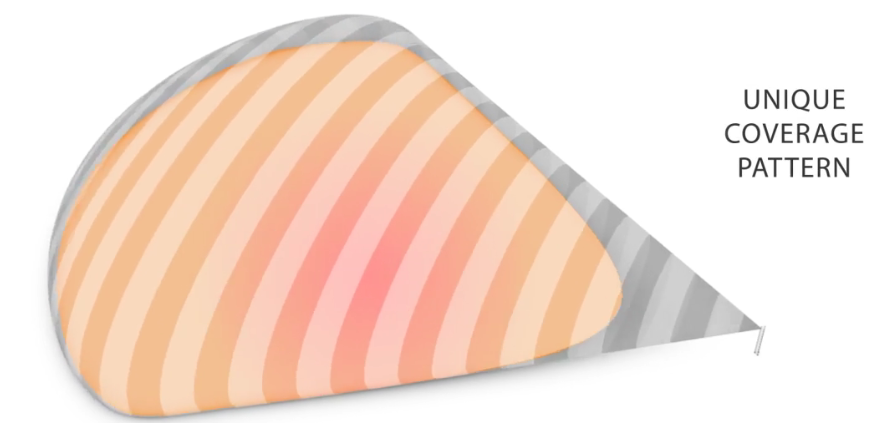

RF Elements 17 dBi 60 Degree Frequency Range 5180 - 6000 MHz Asymmetrical Horn Twist Port Antenna AH60-TP. The RF Elements 60° Asymmetrical Horn TP Antenna combines the best of both worlds - high gain of a traditional sector antenna and zero side lobes of a horn. Its radiation pattern is wide in azimuthal and narrow in elevation plane, greatly improving coverage planning options. 60° Asymmetrical Horn TP Antenna exceeds the traditional patch sector antenna thanks to high stability of gain and radiation pattern in the whole band of operation. Outstanding noise rejection and precision of radiation pattern favours 60° Asymmetrical Horn TP antenna for high-density AP clusters, in highly populated areas and dense co-location sites.

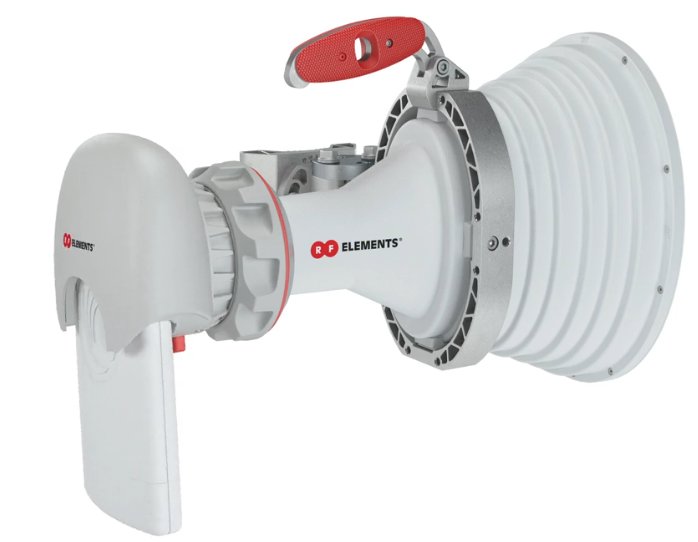

HG3-TP-A60 also features the revolutionary TwistPort connector, a patent-pending twistand-lock waveguide port. TwistPort is virtually lossless and embodies a complete shift of paradigm in wireless network scalability and convenience of deployment. 60° Asymmetrical Horn TP Antenna supports a wide range of third-party mainstream radios with our TPA TwistPort Adaptor.
Features
  • 30/60/90 degree options available
  • Compatible with RF Elements TwistPort Adaptors for Cambium, Mimosa, MikroTik and Ubiquiti Radios

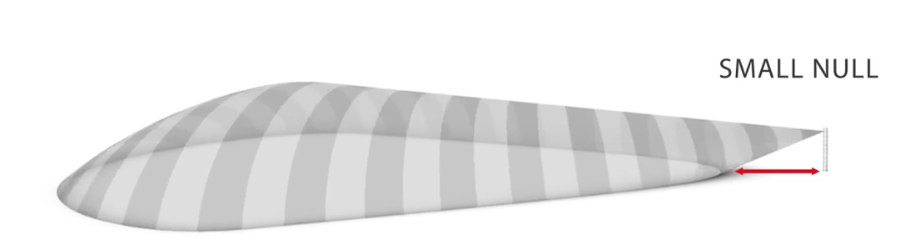

  • No Side Lobes

Specifications

Details
Manufacturer's Product Code AH60-TP
Frequency Range 5180 - 6000 MHz
Gain 17 dBi
Azimuth Beam Width -3 dB H 45° / V 42°
Elevation Beam Width -3 dB H 17° / V 16°
Azimuth Beam Width -6 dB H 60° / V 60°
Elevation Beam Width -6 dB H 25° / V 25°
Beam Efficiency 95%
Front-to-Back Ratio 27 dB
Antenna Connection TwistPort - Quick Locking Waveguide Port
Antenna Type Horn
Materials UV Resistant ABS Plastic, Polycarbonate, HDPE, Aluminium, Stainless Steel
Environmental IP55
Pole Mounting Diameter 40-80 mm
Temperature -35°C to +55°C (-31°F to +131°F)
Wind Survival 160 km/hour
Wind Load 38/90 N - Front/Side at 160 km/h (100 mi/h)
Mechanical Adjustment ± 20° Elevation, ± 20° Azimuth
Weight 4.7 kg (10.3 lbs) – single unit, 6.1 kg (13.7 lbs) – single unit incl. package
Single Unit Retail Box: 540 × 365 × 160 mm (21.2 x 14.3 x 6.3 inch)
