ANT-247 - L-Com 2.4/4.9-5.8 GHz 3 dB Dual Band Mobile Omnidirectional Antenna
L-com

ANT-247 - L-Com 2.4/4.9-5.8 GHz 3 dB Dual Band Mobile Omnidirectional Antenna

SKU: ANT-247 ● In Stock
$57.99
Free shipping over $299 Genuine product 7-day returns

ANT-247

ANT-247 - L-Com 2.4/4.9-5.8 GHz 3 dB Dual Band Mobile Omnidirectional Antenna

Description

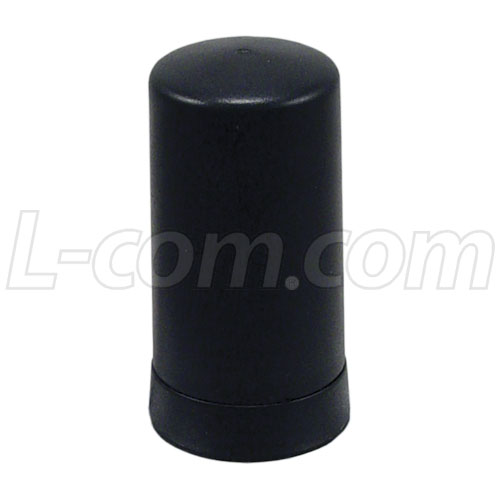

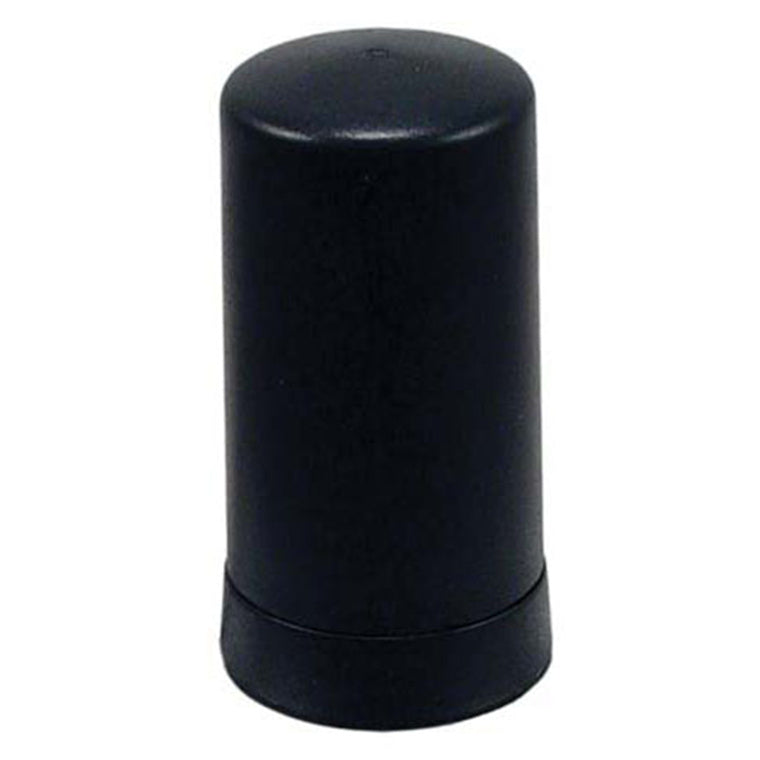

L-Com 2.4/4.9-5.8 GHz 3 dB Dual Band Mobile Omnidirectional Antenna. The L-Com HyperLink HG245803UR-NMOB is a very compact 3 dBi omnidirectional antenna designed primarily for multipoint and mobile applications in the 2.4 GHz and the 4.9-5.8 GHz frequency bands.

Measuring only 2.7 inches long, the HG245803UR-NMOB series features an aesthetic black ABS plastic radome (also available in white). It is designed with a standard TAD/NMO Motorola-type connection that allows for ease of installation to similar TAD/NMO mounting systems. Because of its near-invisible design this antenna is ideal for use on vehicles where vandal-resistance and aesthetics are important.
Features
  • Dual frequency band
  • Compact size
  • Black radome enclosed, ideal for outdoor use
  • TAD/NMO mounting
  • Fixed or magnetic mounts available

Specifications

Details
Manufacturer's Product Code HG245803UR-NMOB
Frequency Range 2400-2500MHz, 4900-5850MHz
Gain 3dBi
Polarisation Vertical
Vertical Beamwidth 80deg (2.4Ghz), 36deg (5Ghz)
Horizontal Beamwidth 270deg (2.4Ghz), 360deg (5Ghz)
Connector Type NMO
Dimensions 69x36mm
