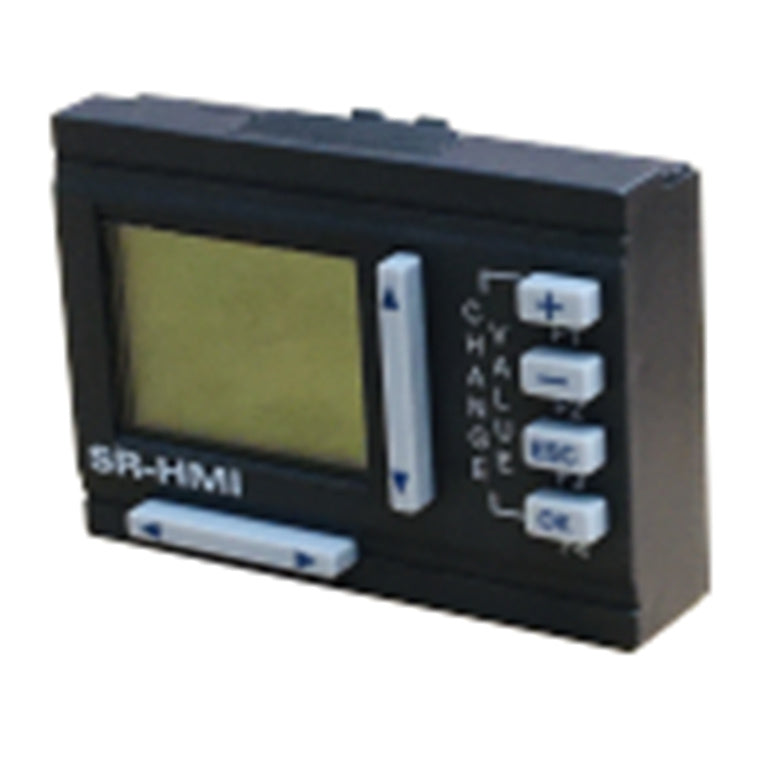

Array SR-HMI - DISPLAY PANEL

SR-HMI is different from traditional LCD, providing with 64 human-machine-interfaces. You can add HMI to display system information, alarming information, running state, parameter modification and function keys according to the actual needs. All the displaying information such as, time, input & output state, counter,timer, analogue and other information can be designed and edited by users according to the needs. And the interfaces can be added, modified and deleted easily. Also HMI can be programmed by PC.

The crystal program panel is removable, being able to be free from the machine via SR-EHC to remote program. And it can be set flexibly according to your demand. When it is needed, it can be installed quickly. And when it is not needed, it can be removed and replaced with SR-PC. SR-PC only is a decoration cover, to avoid the entrance of the dust and the danger of electrical shock. And it also reduces your cost greatly.

The SR-HMI provides 32 virtual keys. The function of the virtual keys is the same as that of the input port, and a soft start. It will display all the defined virtual keys on the panel and each virtual key as a explanation and password protection function.

System Interface: Displaying SUPERCAD time, I/O state and function keys.

Alarming Interface: Alarming information after having been triggered, a function key will provide a high pulse after being triggered, which can be used as input of logic block and function block in order to be used as a switch.

Parameters Interface: It displays the setting parameters of Counter, Timer and Analog etc.
