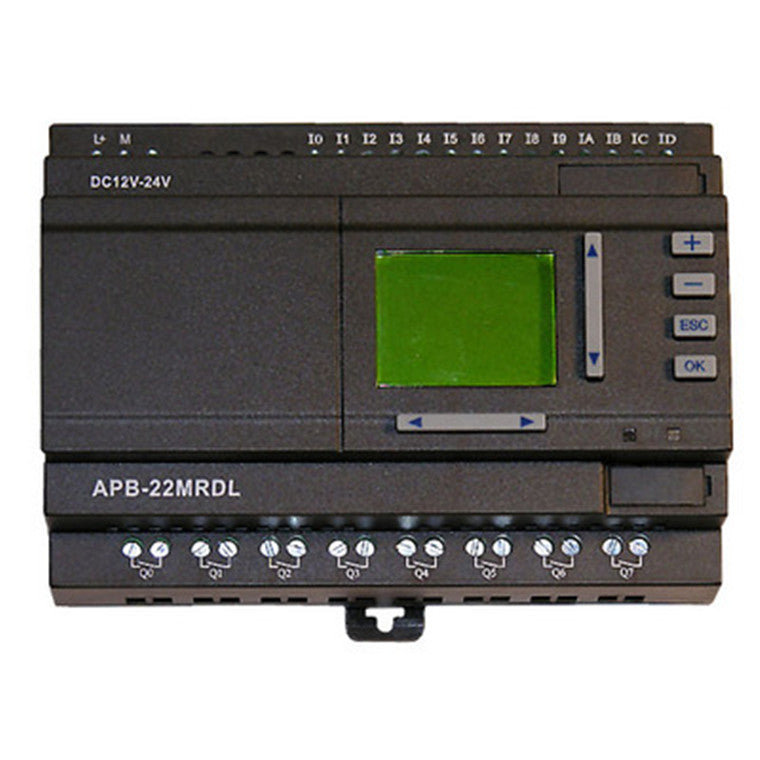

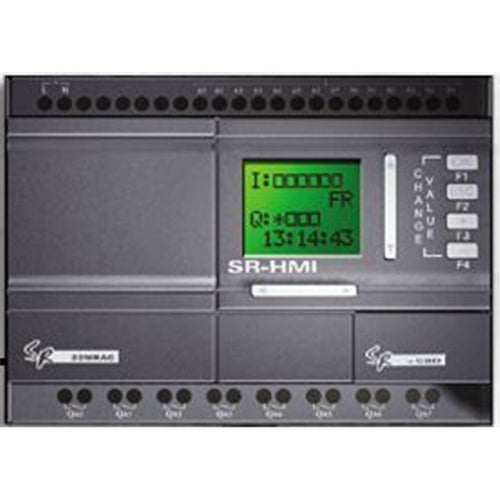

Array APB-22MRDL - PLC with LCD (DC version ) and USB programming cable

Standard DC powered APB controllers provide 22 I/O points: 14 inputs and 8 outputs.

12 of the 14 inputs may be used as digital or analog (0-10 Vdc) inputs. 4 of the inputs support high speed (10 kHz) signals.

The 8 outputs may be relay or solid state (SINK or SOURCE). 2 solid state outputs support high speed (10 kHz) signals.

The LCD Graphics Human-Machine Interface (HMI) display/keypad provides up to 64 user defined display screens. Values and alarm conditions may be displayed and the operator may enter new parameters using a flexible 8 function keypad (+, -, Up, Down, Left, Right, OK, Esc). Four of the keys provide 'soft' user programable function keys.


22 I/O points

14 digital inputs
may use 10 inputs as 0-10 Vdc analog
4 high speed (10 kHz) inputs available
8 digital outputs
Relays - 240 Vac, 10 Amp
Solid State SOURCE or SINK, 80 Vdc, 2 Amp
2 high speed (10 kHz) outputs available


Graphic HMI display/interface

108 X 64 bit mapped graphics
Display & modify process parameters and Alarms
64 user defined menu sequences
