PLC with LCD (AC version ) and USB programming cable
Array

PLC with LCD (AC version ) and USB programming cable

SKU: APB-22MRAL ● In Stock
$395.64
inc GST ▲ +GST
Free shipping over $299 Genuine product 7-day returns

You May Also Like

Array

Array APB-EXPMC - Module

$86.08
inc GST ▲ +GST
Array

Array SR-20ERA - Expansion Module

$202.60
inc GST ▲ +GST
Array

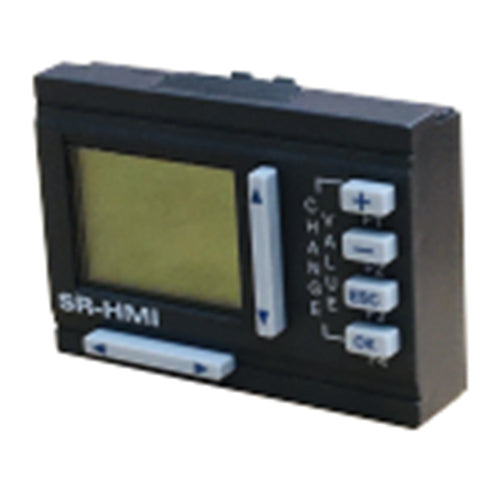

Array SR-HMI - DISPLAY PANEL

Display / AV
$33.91
inc GST ▲ +GST
Array

Array APB-22ERD - PLC DC12V-24V extension module 14 points digital input 8 points relay output

$225.21
inc GST ▲ +GST
Array

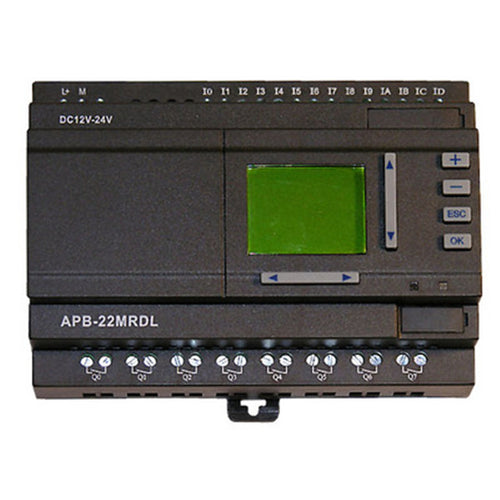

Array APB-22MRDL - PLC with LCD (DC version ) and USB programming cable

$395.64
inc GST ▲ +GST

Features

Standard AC powered APB controllers provide 22 I/O points: 14 inputs and 4 outputs.

The LCD Graphics Human-Machine Interface (HMI) display/keypad provides up to 64 user defined display screens. Values and alarm conditions may be displayed and the operator may enter new parameters using a flexible 8 function keypad (+, -, Up, Down, Left, Right, OK, Esc). Four of the keys provide 'soft' user programable function keys.

- Powerful Function Block Programming support (APBSoftware)
- Real Time monitoring of I/O and parameters over USB (APB-DUSB)
- Support for 7 I/O Expansion Units (108 Inputs, 64 Outputs)
- Modbus Interface support (APB-EXPMC)
- DIN Rail Mounting (126mm X 90 mm X 58.5 mm)
- 85 - 240 Vac Power @ 3W


22 I/O points

- 14 digital (AC) inputs
- 8 digital outputs


Graphic HMI display/interface

- 108 X 64 bit mapped graphics
- Display & modify process parameters and Alarms
- 64 user defined menu sequences

Specifications

Technical Specifications

4 inputs OFF < 40 VacON > 85 Vdc
8 Outputs Resistive Load - 240 Vac, 10 AmpInductive Load - 240 Vac, 2 Amp
Power Voltage - 100 - 240 VacRelay - 3 Watt
