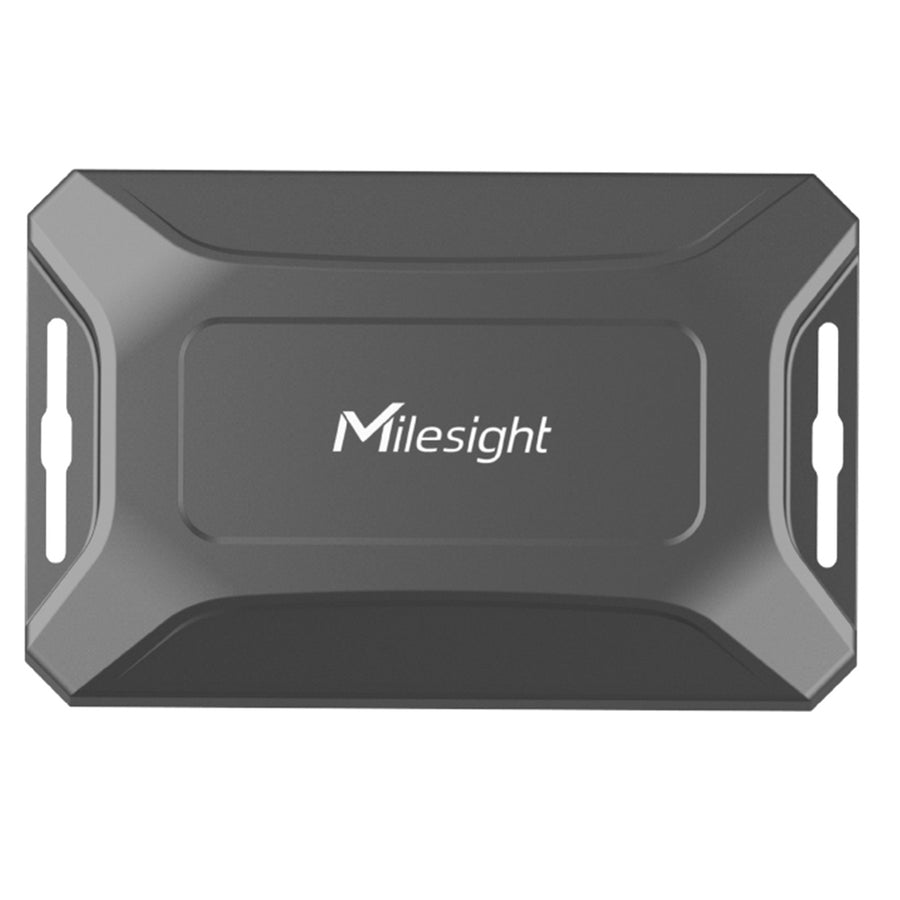

AT101-915M - Milesight AT101 LoRaWAN AU915/AS923 IoT Asset Tracker
AT101-915M - Milesight AT101 LoRaWAN AU915/AS923 IoT Asset Tracker
Features
Milesight AT101 LoRaWAN AU915/AS923 IoT Asset Tracker. The Milesight AT101 is an exceptional outdoor tracker that utilizes GNSS and Wi-Fi AP MAC Address Scanning to provide highly accurate positioning data. Additionally, it has tilt and temperature sensors for more extensive data collection and applications in various scenarios. The device is designed with IP67 and IK09 ratings to cater to different environments. The AT101 collaborates with Milesight LoRaWAN® gateway and mainstream LoRaWAN® network servers with low power consumption, allowing it to operate for over 15 years with twice-daily reports. By integrating with Milesight LoRaWAN® gateway, Milesight IoT Cloud os the Scopious Network, users can remotely and visually manage all sensor data
- Equipped with high-accurate GNSS positioning and cooperate with Wi-Fi positioning
- Built-in 3-axis accelerometer sensor to monitor device tilt status and movement
- Equipped with NTC temperature sensor enabling environmental detection
- IP67 and IK09 rating protections for harsh environment application
- Built-in replaceable batteries and works for up to over 15 years without replacement
- Anti-theft design
- UV protection suitable for outdoor environments.
- Supports Geofencing for targeted messaging to secure the assets and area
- Switchable modes - motion tracking, periodic tracking, and timing tracking
- Local Storage for 1000 historical records and supports retransmission to prevent data loss
- Built-in NFC and Bluetooth for easy configuration
- Compliant with standard LoRaWAN® gateways and network servers
- Quick and easy management with Milesight IoT Cloud or the Scopious Network
Specifications
Technical Specifications
| Model | AT101-915M |
|---|---|
| Frequency | AU915 or AS923 switchable |
| Tx Power | 20dBm |
| Sensitivity | -137dBm @300bps |
| Work Mode | OTAA/ABP Class A |
| GNSS Position Accuracy(CEP) | 5.0m (Direct Line of Sight) |
| Resolution | Longitude/Latitude: 0.0001, Altitude: 1m |
| Time To First Fix | Cold Start: 37s Average, Hot Start: 1s Average |
| Sensitivity | Tracking: -167dBm, Reacquisition: -160 dBm, Cold Start: -148dBm, Hot Start: -159 dBm |
| Wi-Fi Positioning | Indoor asset location using Wi-Fi access point scanning (device doesnot connect to Wi-Fi) |
| Wi-Fi Parameters | BSSID, RSSI |
| Wi-Fi Standard | 802.11b/g/n 2.4GHz |
| Device Motion Status | Normal/Tilt |
| Temperature Range | -40 ~ 125°C |
| Resolution | 0.1°C |
| Operation | Power On & Off NFC, Power Button (Internal) |
| Configuration | NFC, Bluetooth® 5.3 |
| Power Supply | 4 × 2700 mAh ER14505 Li-SOCl2 Replaceable Batteries |
| Battery Life(25°C) | Twice Daily Location Updates - 15+ Years, Tenth Daily LocationUpdates - 8+ Years, Hourly location updates - 4+ Years |
| Operating Temperature | -30°C ~ +70°C |
| Relative Humidity | 0 ~ 95% (Non-condensing) |
| Material & Color | PC, Black |
| Ingress Protection | IP67 |
| Impact Protection | IK09 |
| Dimension | 110 × 70 × 30 mm |
| Weight | 202g (Batteries are Included) |
| Installation | Wall Screw Mounting, 3M Tape Mounting, Cable-tie Mounting |
| Package Contents | AT101 Tracker, Mounting kit, 3M tape, Warranty card, Quick Start guide. |
