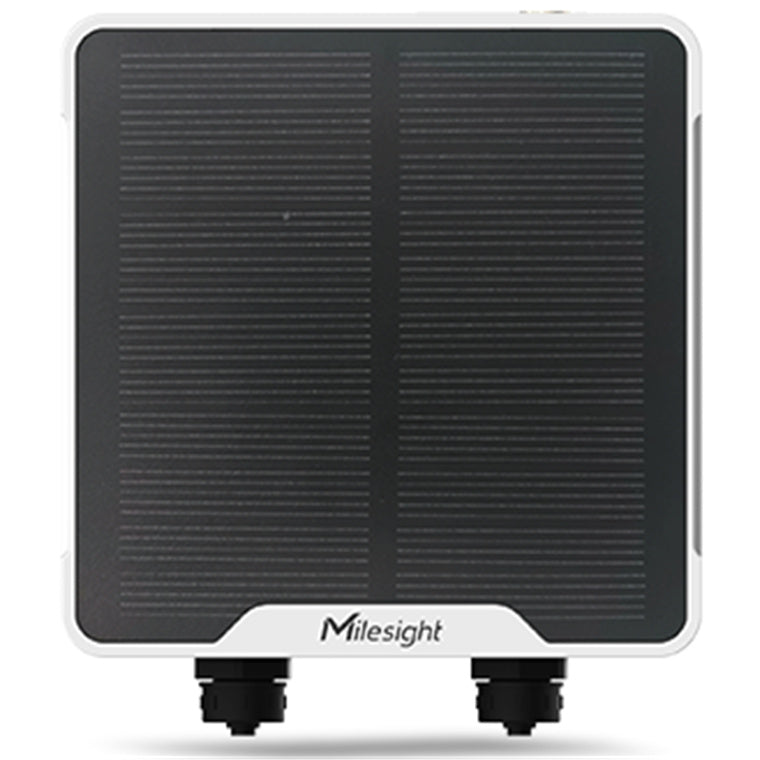

Milesight UC501 AU915/AS923 Solar Powered LoRaWan IoT Controller with GPIO/AI/RS232/RS485
Features
The Milesight UC501 is a LoRaWAN® IoT controller used for data acquisition from multiple sensors
It contains different I/O interfaces such as analog inputs, digital inputs, digital outputs, serial ports and so on, which simplify the deployment and replacement of LoRaWAN® networks.
- Easy to connect with multiple wired sensors through GPIO/AI/RS232/RS485 interfaces
- Long transmission distance up to 11km with line of sight
- Waterproof design including IP67 case and M12 connectors
- Solar powered with rechargable
- Quick wireless configuration via NFC
- Compliant with standard LoRaWAN® gateways and network servers
- Quick and easy management with Milesight IoT Cloud solution
Rich Industrial Interfaces
The UC50x Series features multiple industrial interfaces to monitor and control field sensors or devices simultaneously.
SDI-12 Interface for Environmental Data Acquisition
The UC50x Series is equipped with SDI-12 interface, making it incredibly easy to connect a wide range of instruments used for environmental monitoring. This includes weather sensors, hydrological sensors, agricultural sensors, etc. With SDI-12 support, the UC50x series expands its versatility and adaptability across multiple domains.
Flexible Power Supply Options
Solar-powered or battery-powered? It all depends on your needs.
Ultra-Rugged Enclosure for Harsh Environment
The UC50x Series is equipped with an IP67 rated enclosure and an M12 connector that offer robust protection against water ingress, corrosion, and vibrations. This combination of features ensures long-term, dependable operation in challenging all-weather environments.
Timely Alerts and Notifications
The UC50x Series enables data threshold reporting, triggering alerts and notifications when sensor readings exceed previously set thresholds. This facilitates proactive monitoring and ensures a timely response to abnormal situations, promoting prompt resolution and preventing potential issues.
Specifications
Technical Specifications
| Manufacturer's Code | UC501-915M |
|---|---|
| Frequency | AU915/AS923 |
| Tx Power | 20dbm |
| Sensitivity | -147dBm @300bps |
| Mode | OTAA/ABP |
| Interface type | M12 A-Coded Male |
| IO Ports | 2 x GPIO |
| Logic Level | Low: 0~0.9V, High: 2.5~3.3V |
| Work Mode | Digital input, digital output, pulse counter (only support on GPIO2) |
| Serial Port | 1 × RS232 or RS485 (Switchable) |
| Baud Rate | 300~230400 bps |
| Protocol | Transparent (RS232), Modbus RTU (RS485) |
| Analog Inputs | 2 × Analog input |
| Resolution | 12 bit |
| Input Range | 4~20mA or 0~10V (Switchable) |
| Power Output | 2 × 3.3 V, 2 × 5/9/12 V (Switchable) |
| Operating Temperature | -20°C to +60°C |
| Ingress Protection | IP67 |
| Dimension | 120.1 × 120.1× 55.4 mm (4.73 × 4.73 × 2.18 in) |
| Power Connector | M12 A-Coded Male |
| Power Input | Rechargeable 4900 mAh battery with solar panel |
| Power Supply | Solar powered + 2*2550mAh battery backup + 5-24 VDC |
| Mounting | Wall or Pole Mounting |
| Brand | Milesight |
|---|---|
| Product Type | Computers & Tablets > Industrial PCs & IoT > IoT Gateways |
| Weight | 0.5 kg |
