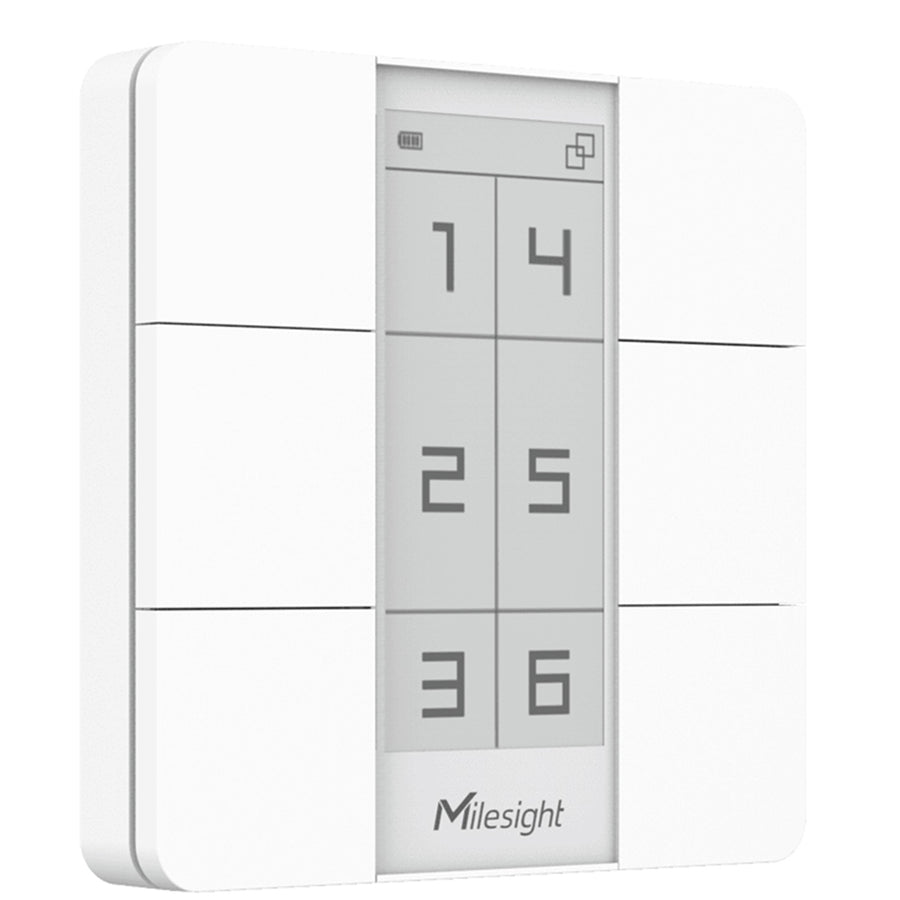

Milesight LoRaWAN AS923 6 Button Smart Scene Panel With E-Ink Display
Features
Milesight LoRaWAN IoT AS923 6 Button Smart Scene Panel With E-Ink Display. The Milesight WS156 LoRaWAN IoT Smart Scene Panel gives a multi button control panel that can activate different pre-defined scenes with one-press.
Without any additional cabling the WS156 can be installed anywhere and used to control devices via LoRaWAN® or the Milesight LoRa D2D communication protocol. Besides, it is equipped with a user-defined E-ink screen to suit different scenes.
Compliant with Milesight LoRaWAN® gateway and Milesight IoT Cloud solution the WS156 can be linked to control other Milesight devices without any development. The WS156 can be widely used for wireless control in smart offices, smart homes, etc.
- Equipped with a programmable E-ink screen for flexible display
- Up to 6 scenes settable, each scene can consist of multiple devices
- Equipped with NFC for one-touch configuration, supports card emulation mode
- Supports Milesight LoRa D2D protocol to enable ultra-low latency and direct control
- Compliant with standard LoRaWAN® gateways and network servers
- Compliant with Milesight IoT Cloud
- Easy installation
Specifications
Technical Specifications
| SKU | WS156-915M |
|---|---|
| Technology | LoRaWAN®, LoRa D2D |
| Frequency | AU915/AS923 |
| Tx Power | 16 dBm |
| Sensitivity | -137dBm |
| Mode | OTAA/ABP Class A |
| Interface Display | 2.9-Inch Black & White E-Ink Screen, 128 × 296 Pixels |
| Scene Button | 6 Buttons |
| Configuration | NFC |
| Advanced Features | LoRa D2D Controller, Screen Display Customization |
| Power Supply | 2 × 590 mAh CR2450 Lithium Coin Cell Batteries |
| Battery Life | Over 3 years (1080 min interval + 20 presses per day) |
| Ingress Protection | IP30 |
| Color & Material | White, PC + ABS (Flame-retardant) |
| Operating Temperature | -10°C to +50°C (E-Ink Screen: 0°C - 50°C) |
| Relative Humidity | = 90% (Non-condensing) |
| Dimensions | 86 × 86 × 14 mm (3.39 × 3.39 × 0.55 in) |
| Installation | Desktop, 3M Tape Mounting |
| Brand | Milesight |
|---|---|
| Product Type | Networking > Switches |
| Weight | 0.5 kg |
