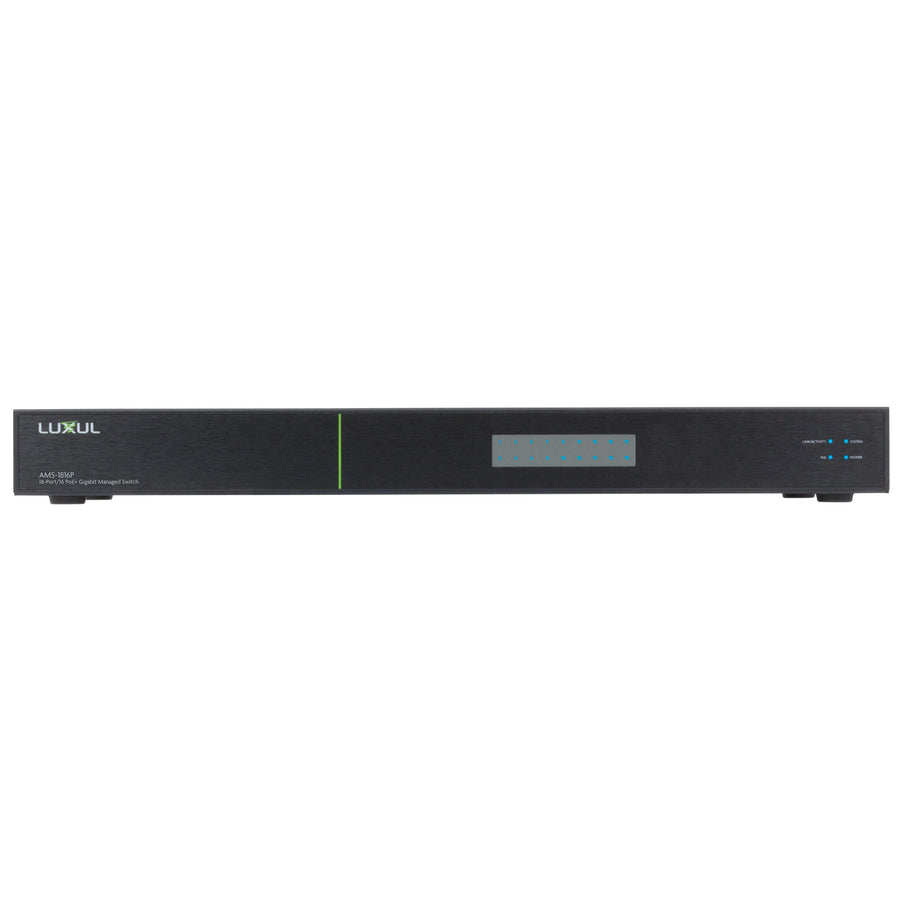

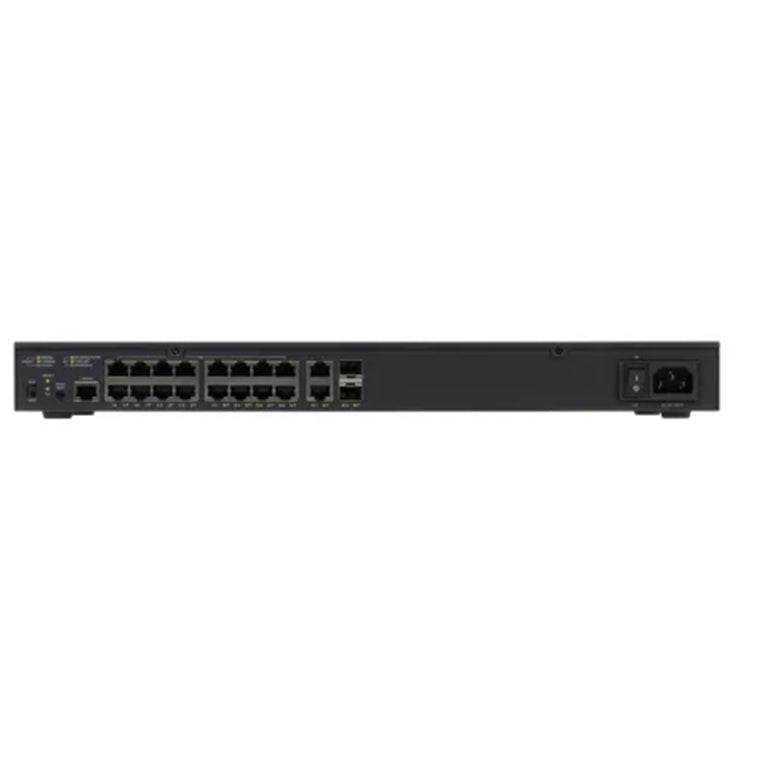

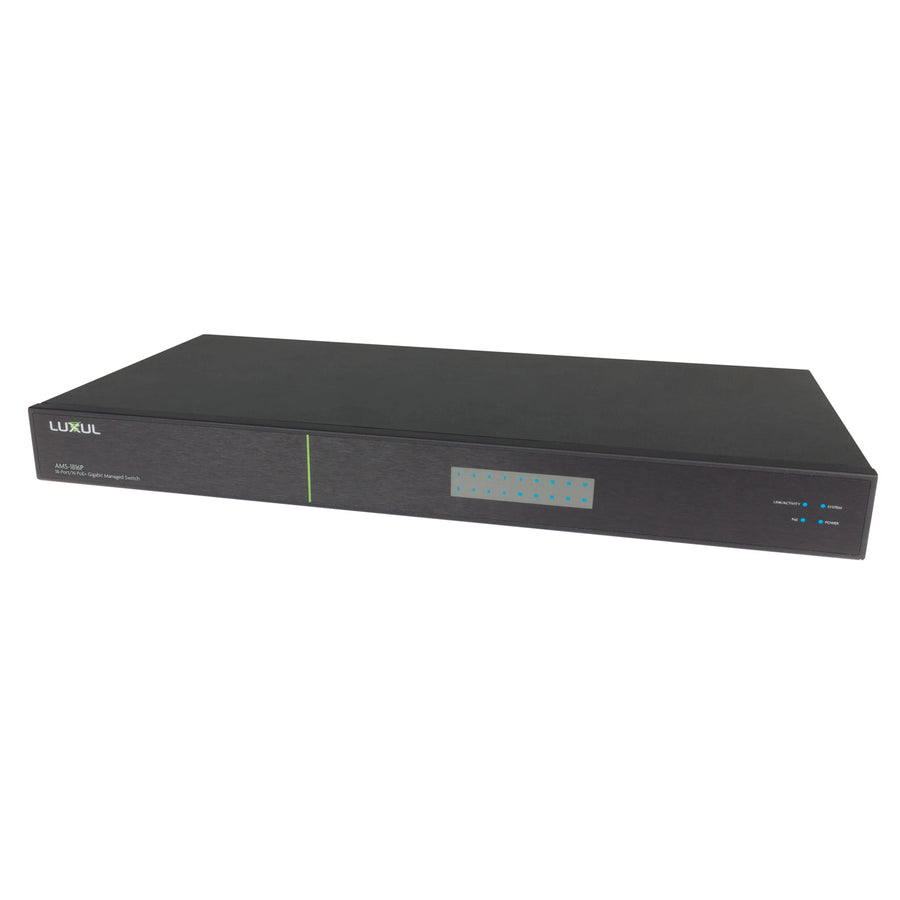

Luxul AMS-1816P - AV Series 18-Pt/16 PoE+ GbE Mngd Switch
You May Also Like
CTC Union Compact size, Non-managed 5-port 10/100-TX Copper Switch, minus 10 C to 60 C
EDIMAX GP-101ET - IEEE 802.3at Gigabit PoE+ Extender Power & Data to 100m PoE short circuit protection.
Features
The AMS-1816P is an 18-port Gigabit swtich that easily functions on its own or provides cost effective expandability via its two Gigabit SFP uplink ports to other Luxul switches in your AV rack. The 16 PoE+ ports provide a robust 185W power budget and simple power management to automation touch panels, security cameras, and other PoE powered devices. The compact rack-mountable design, selectable green/blue front facing LEDs, and variable speed fans ensure aesthetic and quiet operation. The AMS-1816P provides simple installation with powerfully intuitive management, including L2/L3 switching, 802.1Q VLAN support with trunking, and QoS prioritization support.
- PoE Self-Healing with auto-recovery and power scheduling
- 16 Gigabit 802.3af/at PoE+ ports (185W power budget)
- Two Gigabit SFP ports
- Full layer 2/3 support
- 802.1Q VLAN (with trunking) and QoS support
- User selected green and blue front facing LEDs
- Variable speed fans for quiet operation
- Plug-and-play installation with intuitive management
- Simple power management of PoE enabled devices
- Compact design in standard 19" rack-mount enclosure

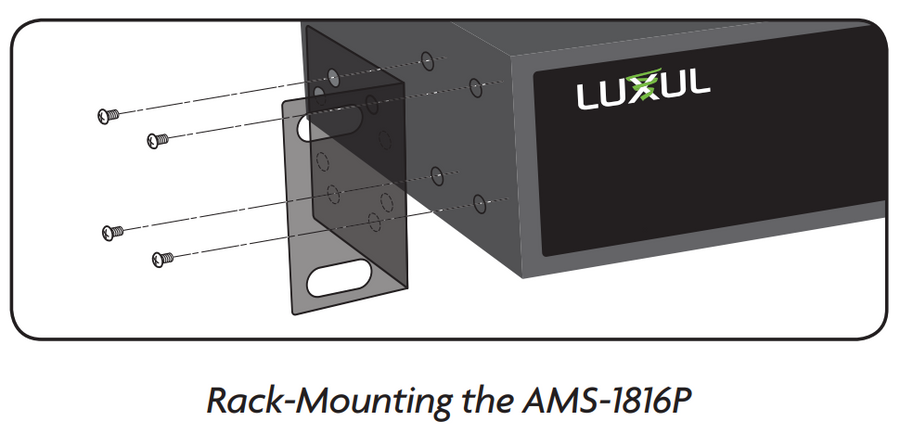

The AMS-1816P can easily be installed in a standard 19" rack
Specifications
Technical Specifications
| MPN | AMS-1816P |
|---|---|
| Standards | IEEE 802.3, IEEE 802.3u, IEEE 802.3z, IEEE 802.3ab, IEEE 802.3af,IEEE 802.1D, IEEE 802.3x, IEEE 802.1P, IEEE 802.1Q, IEEE 802.1X |
| Interface | - RJ-45- 10 Base-T: Cat.5 UTP/STP- 100 Base-TX: Cat.5 UTP/STP- 1000 Base-T: Cat.5, Cat.5e, or Cat.6 UTP/STP- Gigabit fiber uplinks on SFP ports- Ethernet cable recognition for straight-through or crossover cables |
| Surge Protection | The RJ45 port surge protection is tested to: EN61000-4-5 (for RJ45 port, surge 6KV) |
| Power Budget | 185 watts |
| Max Power Consumption | 250W |
| Power | Internal switched power, AC 100-240V, 50-60Hz input |
| VLAN | - 802.1Q max 4094 VIDs & VLAN trunking- Supports 1 management VLAN |
| Quality of Service (QoS) | - 4 queues per port- Queue handling: Strict, Weighted Round Robin (WRR)- CoS based on DCSP, 802.1P- Port-based bandwidth control |
| Operating Temperature | 32°F to 104°F (0°C to 40°C) |
| Operating Humidity | 10% to 90% (non-condensing) |
| Dimensions LxWxH in. (mm) | 17.4"(442) x 8.3"(211) x 1.75"\"(44.5) |
| Weight lbs (kg) | 5.95 (2.7) |
| Certification | FCC, IC, CE-EMC, CE-LVD, and RoHS |
| Brand | Luxul |
|---|---|
| Product Type | Networking > Switches |
| Weight | 0.5 kg |
| Warranty |
|---|
