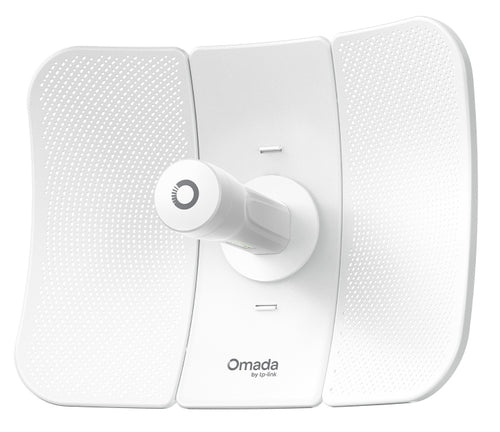

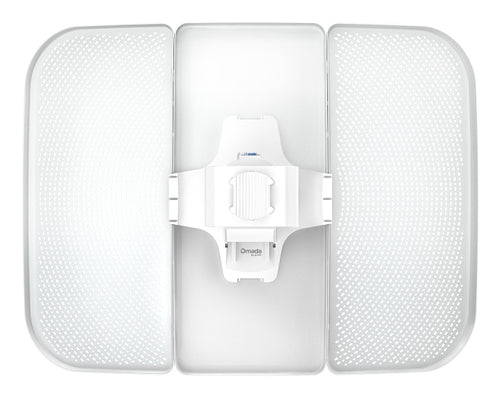

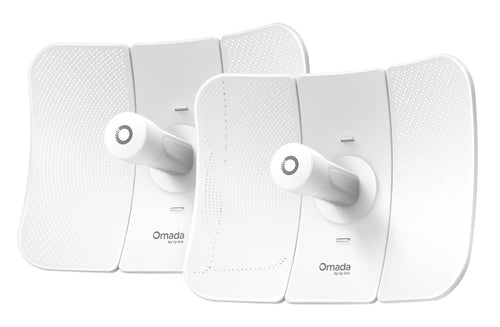

BEAM BRIDGE 5 UR KIT - TP-Link Beam Bridge 5 UR Kit 5GHz 867Mbps up to 15km
BEAM BRIDGE 5 UR KIT - TP-Link Beam Bridge 5 UR Kit 5GHz 867Mbps up to 15km
Overview
Business-Grade up to 9.3 mi (15 km) Ultra-Range Wireless Transmission: With 23dBi high-gain directional antennas.*
Plug-and-Play with Preconfigured Kit: Preconfigured for instant PtP auto-pairing, the bridges deliver instant connectivity right out of the box.
App-Guided Alignment: Visualized app-guided alignment for long-distance setups and instant speed testing for installation verification.
Simple PoE Deployment and Power Supply: 1× Gigabit PoE port supports both 802.3af PoE and Passive PoE for simplified wiring and lower deployment costs.
Designed for Outdoor Durability & Reliability: IP65 weatherproof enclosure, 6 kV lightning protection and operating range of -40 °C to +70 °C.**
Remote Monitoring & Management: Standalone mode or Omada SDN mode for remote centralized management via Web UI or App†
Technical Specifications
| Maximum transfer distance | 15000 |
|---|---|
| Antenna design | External |
| Wi-Fi | Y |
| Wi-Fi band | Single-band (5 GHz) |
| Top Wi-Fi standard | Wi-Fi 5 (802.11ac) |
| Ethernet LAN | Y |
| Ethernet LAN interface type | Gigabit Ethernet |
| Ethernet LAN data rates | 10,100,1000 |
| Ethernet LAN (RJ-45) ports | 1 |
| Security algorithms | SNMP,SSH |
| Web-based management | Y |
| Product type | Network bridge |
| Mounting type | Pole |
| Product colour | White |
| LED indicators | Y |
| Reset button | Y |
| International Protection (IP) code | IP65 |
| Network Time Protocol (NTP) client | Y |
| Power source type | PoE |
| Power consumption (max) | 15.8 |
| Operating temperature (T-T) | -40 - 70 |
| Operating temperature (T-T) | -40 - 158 |
| Operating relative humidity (H-H) | 10 - 90 |
| Storage temperature (T-T) | -40 - 70 |
| Storage relative humidity (H-H) | 5 - 90 |
| Compliance certificates | CE,Federal Communications Commission (FCC),RoHS |
| Certification | CE, FCC, RoHS |
| Width | 366 |
| Depth | 280 |
| Height | 207 |
| Weight | 1100 |
| Packaging content | • Beam Bridge 5 UR KIT • Installation Guide • Mounting Kit • Passive PoE Adapter • Power Cord |
| Package type | Box |
