-19%
DYNAMIX

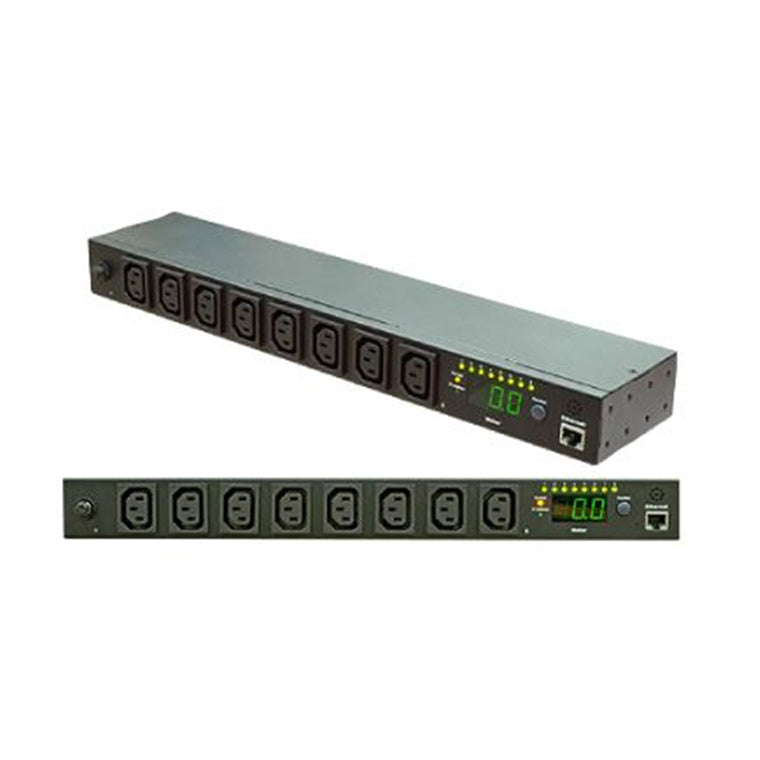

DYNAMIX RPSW-10A8 - 8 Port 10A Switched PDU. Remote Individual Outlet Control PDU Power Monitoring.
$736.51$912.49
inc GST ▲
+GST
Free shipping over $299
Genuine product
7-day returns
Features
DYNAMIX 8 Port 10A Switched PDU. Remote Individual Outlet Control & Overall PDU Power Monitoring. Output 8x 10A IEC C13, Input 1x 10A IEC C20 Socket, 3m 9 to C14 power cord included.
Switched PDU has a built-in network interface which allows an administrator to access the PDU from a remote terminal and interface with it to turn on or off outlets and control load by web and SNMP. This can be helpful if a remote machine has gone into an unresponsive state and cannot be restarted through normal means. An administrator can connect to the PDU that the machine is plugged into in order to power cycle the machine.
FEATURES
- Current metre - digital true RMS current metre
- Power monitor - remote total power monitoring by metre, web, SNMP, free bundle software
- Protocols - Http, Https, SNMP, DHCP, UDP
- Outlet control - Individual outlet control
- Power Delay - Power On/Off sequence can be defined
- Alarm thresholds - user-defined alarm thresholds for warning and overload
- Event alert - e-mail, trap, audible alarm
- 3M input power cord included
Download data sheet: PDF/rpsw10a8.pdf
Specifications
Technical Specifications
| Output | (8) IEC 320 C13 |
|---|---|
| Input | (1) IEC320 C20 Inlet; IEC320 C19 to C14 Power Cord 3M |
| Protection | (1) 10 AMP Circuit Breaker |
| SSL Indication | (1) Yellow LED |
| DHCP Indication | (1) Green LED |
| Output Status | (8) Green LED |
| Network | (1) RJ45 for Ethernet |
| Current Meter | 3 Digits Seven Segments for True RMS Meter |
| Range | 0A ~ 20 A |
| Resolution | 0.1A |
| Precision | +/-2%+/-0.1AMP |
| Nominal Voltage | 230V |
| Voltage | 200V~ 240V full range |
| Frequency | 50/60HZ full range |
| Max. Output Current | 10 Amp |
| Temperature | 0 ~ 40 Celsius degree |
| Humidity | 0% ~ 90% |
| Size | 90 x 432 x 44 mm |
| Weight | 3 kg |
| Standards | CE, EN 55022 Class A, EN 55024,EN 61000-3-2,EN 61000-3-3 C-Tick AS/NZS CISPR 22: 2006FCC Part 15 Class A, ICES-003 |
| Brand | DYNAMIX |
|---|---|
| Product Type | Power & Charging > UPS & Power Distribution > UPS |
| Weight | 6.63 kg |
| Warranty |
|---|
Note:
Warranty period is as stated above unless the manufacturer has chosen to specify a longer period.
All warranties are return to base unless otherwise specified.
