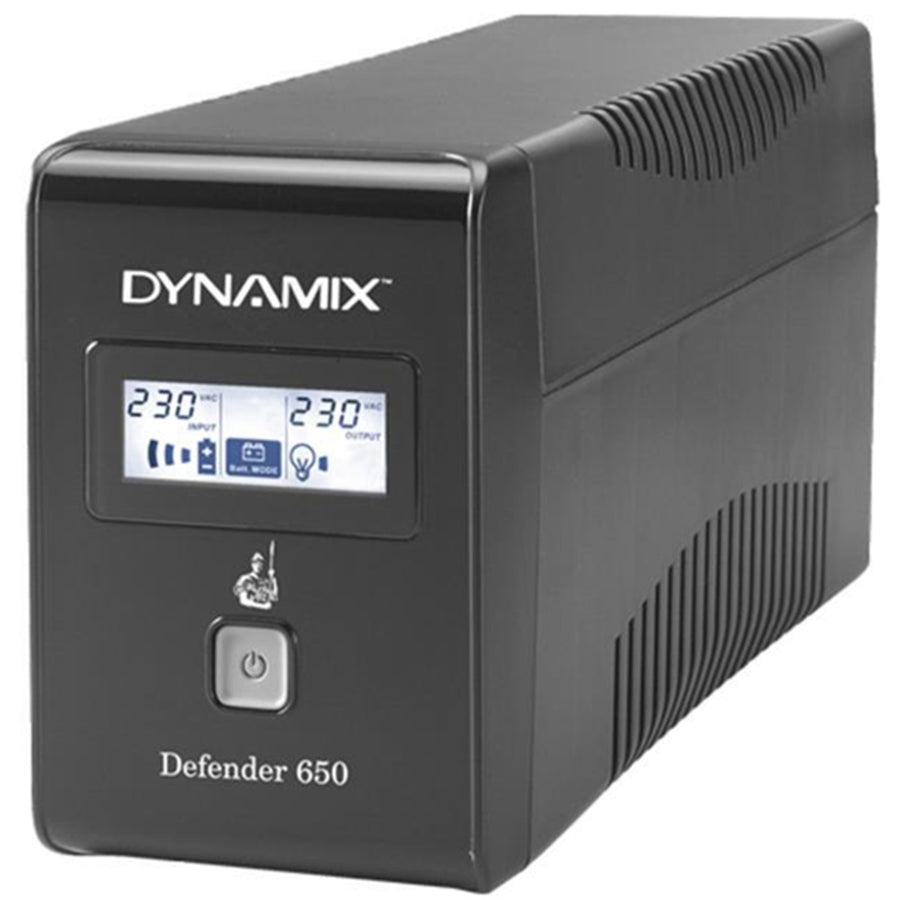

Dynamix Defender UPSD650 650VA (390W) Line Interactive UPS, 312 Joules Surge Protection, 2x NZ Power Sockets, Netguard Smart Monitoring Software, USB Cable Included - 2 Year Warranty
Features
DYNAMIX Defender 650VA (390W) Line Interactive UPS, Supports up to 312 Joules Surge Protection, 2x NZ Power Sockets, Netguard Smart Monitoring

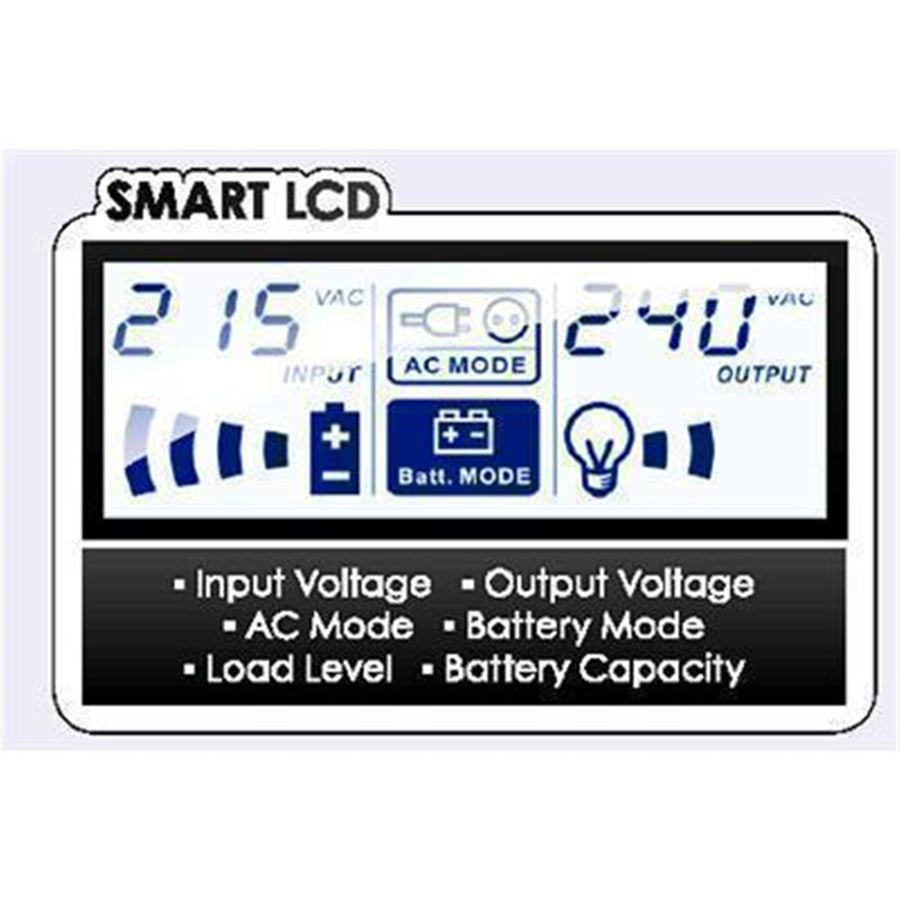

The Defender range uses Automatic Voltage Regulation (AVR) to minimise the effects of fluctuations in input voltage protecting your valuable equipment from power line disturbances. The stylish LCD display, user replaceable battery and two Australia/NZ sockets make the Defender the complete package at this level. The Defender USB communication port is compatible with Synology NAS products. NetGuard™ UPS management software included.

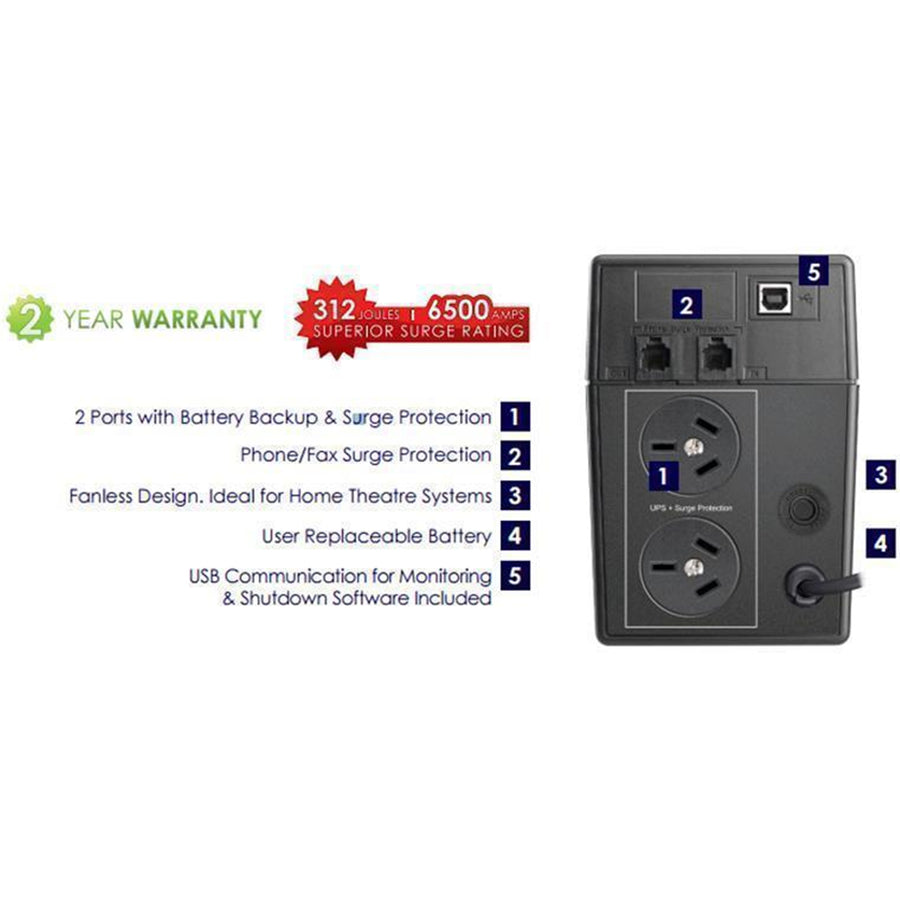

- Surge Protection, Best in its Class
- Australian/NZ outlets for UPS and Surge protection (x2)
- Buck and boost AVR for voltage stabilisation
- User replaceable battery
- Silent Operation (No fans included)
- Auto restart when AC returns
- Off-mode charging
- Cold start function
- USB communication with sophisticated NetGuard® software
| aka PowerShield PSD650 Defender UPS 650VA 390W |
(please note:as the software is always being updated, the CD had been removed form the package in case it is causing problem, please download the latest NetGuard software from https://powershield.com.au/ refer to user manual for password)
Specifications
Technical Specifications
| Capacity | 650VA / 390 W |
|---|---|
| Topology | Line Interactive |
| Voltage | 240Vac (Nominal) |
| Voltage Range | 177-290Vac |
| Frequency Range | 50/60Hz±5Hz (Auto Sensing) |
| Output Voltage | 240Vac±10% |
| Frequency | AC mode tracks utility. |
| Battery mode | 50Hz±1% |
| Frequency Range | 50Hz or 60Hz±1Hz |
| Transfer Time | 6ms (Typical) |
| Waveform (Battery Mode) | Simulated Sine Wave |
| Outlets | 2x Surge Protection + UPS |
| Battery Type & Number | 12Vx9AH (x1) |
| Typical Recharge Time | 6 hours recovery to 90% capacity |
| Backup Time (50% Load) | 6min |
| Full Protection | Overload, discharge, thermal, short circuit and overcharge protection |
| Surge Protection | 312Joules / 6500Amps |
| Interface | USB Interface |
| Software | NetGuard® supports Windows®, Linux, Unix & MAC |
| LCD Alarm | AC Mode, Battery Mode, Low Battery (Batt. Mode), Fault, Overload |
| Audible Alarm | Battery Mode, Low Battery (Batt. Mode), Fault, Overload |
| Dimensions (D x W x H) | 328 x 100 x 145mm |
| Net Weight | 5.2kg |
| Temperature | 0 - 40°C |
| Humidity | 0 - 90% (RH Non-Condensing) |
| Noise Level | <5dB (no fan) |
| Safety | EN62040-1-1 2003. IEC60950-1 : 2001 |
| EMC | EN62040-2 2006 |
| RoHS | Directive 2011 / 65 / EU |
| Brand | DYNAMIX |
|---|---|
| Product Type | Power & Charging > UPS & Power Distribution > UPS |
| Weight | 6.255 kg |
| Warranty |
|---|
