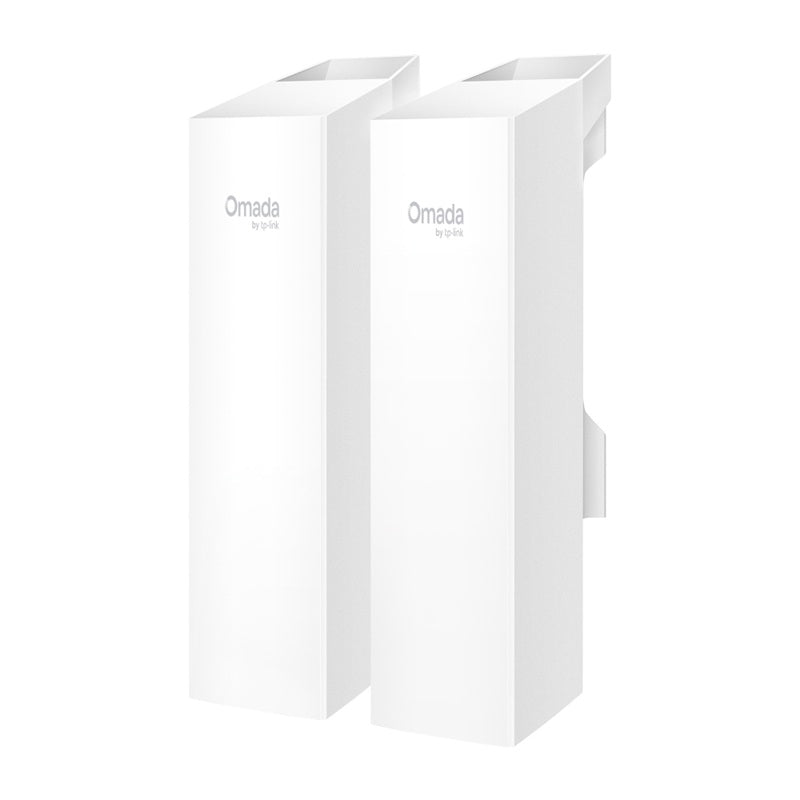

EAP100-Bridge-Kit - Omada EAP100-Bridge-Kit 2.4Ghz Pre-Configured Bridge Kit
Features
Omada 2.4GHz 300Mbps Indoor/Outdoor Wireless Bridge
- Up to 1640 ft (500 m) Wi-Fi transmission*
- Equipped with Omada SmartBridging: Our unique design for the most effortless and easy bridge setup ever.
- Plug-and-Play Preconfigured Kit: Preconfigured for instant auto-pairing, the bridges deliver instant connectivity right out of the box. Simply power on and go. Ideal for quick deployments.
- App-Guided Alignment: Visualized App-Guided Alignment for long-distance setups and Instant Speed Testing for installation verification.
- Flexible Power Supply: 802.3af PoE, 24V Passive PoE, and 12V DC (compatible with TP-Link solar power supply systems).
- 3× Fast Ethernet Ports: Connects more cameras and devices without an extra switch.?
- Built for Tough Outdoor Conditions: Features an IP65 weatherproof enclosure and operating range of -40? to +158 ?.**
- Remote Monitoring & Management: Choose Standalone mode or Omada SDN mode for remote centralized management via Web UI or app.§
Seamless Point-to-Point Connections
Enjoy reliable network performance up to 1640 ft (500 m) transmission distance.
Specifications
Technical Specifications
| Interface | 3x 10/100 Mbps Ethernet Ports |
|---|---|
| Button | Reset |
| Power Supply | 12V DC / 802.3af PoE / 24V Passive PoE / 48V Passive PoE |
| Max. Power Consumption | 4.8 W |
| Dimensions ( W x D x H ) | 3.1 x 2.4 x 8.8 in (79 × 60 × 224 mm) |
| Antenna Internal | 2×2 Dual-polarized directional MIMO antennas2.4 GHz: 8.0 dBiHorizontal:70°, Vertical: 70° |
| Weatherproof Enclosure | IP65 |
| Mounting | Pole and wall mounting ( Pole accessories included) |
| Coverage | 500 m (0.31 mi)* |
| Wireless Standards | IEEE 802.11b/g/n |
| Frequency | 2.4 GHz |
| Signal Rate | 2.4 GHz: Up to 300 Mbps |
| Wireless Functions | - MIMO: 2.4G 2 × 2 MIMO- Mesh- Beamforming- Channel: 1-11 (US); 1-13 (EU)- Multiple SSIDs:8- Wireless Statistics- Wireless Schedule- Reboot Schedule- RADIUS Accounting- Static IP/Dynamic IP- Rate Limit- Guest Network- Enable/Disable Wireless Radio- Enable/Disable SSID Broadcast |
| Wireless Security | - VLAN- Rogue AP Detection- Maximum number of MAC Filter: 4,000- Wireless Encryption |
| Transmission Power | - CE:<20dBm (2.4 GHz, EIRP);- FCC:<22dBm (2.4 GHz) |
| Omada App | Yes |
| Restore & Backup | Yes |
| Firmware update via Web | Yes |
| NTP | Yes |
| Centralized Management | - Omada Hardware Controller- Omada Software Controller- Omada App |
| Email Alerts | Yes |
| LED ON/OFF Control | Yes |
| SNMP | Yes |
| System Logging Local/Remote Syslog | Yes |
| SSH | Yes |
| Web-based Management | Yes |
| Certification | CE, FCC, RoHS |
| Package Content | - EAP100-Bridge KIT- Installation Guide- Pole Mounting Kit |
| Environment | - Operating Temperature: -40 °C-70 °C (-40 °F-158 °F);- Storage Temperature: -40 °C-70 °C (-40 °F-158 °F);- Operating Humidity: 10%-90% non-condensing;- Storage Humidity: 5%-90% non-condensing |
| Brand | Omada |
|---|---|
| Product Type | Networking > Wireless Access Points |
| Weight | 0.76 kg |
