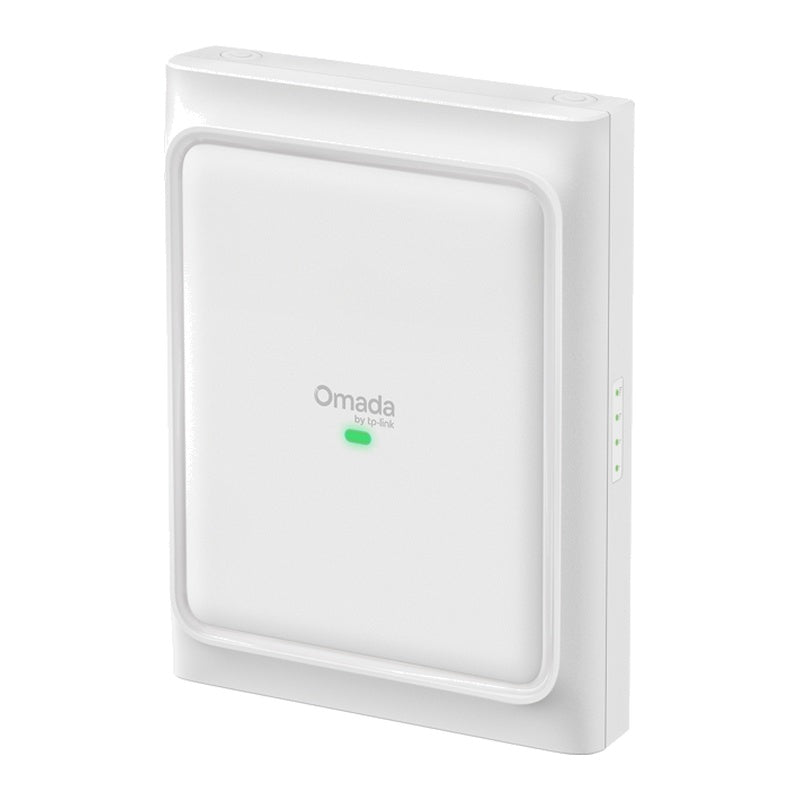

EAP725-OUTDOOR - Omada EAP725-Outdoor BE3600 Indoor / Outdoor WiFi 7 Access Point with Switchable Directional and Omnidirectional Antennas
Features
Omada BE3600 Indoor/Outdoor Wi-Fi 7 Access Point with Directional/Omnidirectional Antennas
- Switchable Directional and Omnidirectional Antennas: Supports focused point coverage or wide-area outdoor coverage by switching antenna modes on software.**
- Plug & Play Automatic Antenna Detection: Automatically detects when external antennas are installed and adjusts the coverage pattern accordingly.
- 4-Stream Outdoor Wi-Fi 7: Delivers high-speed outdoor connectivity up to 3.6 Gbps.†
- True Dual-Band Coverage: 300 m2 omnidirectional and 510 m2 directional recommended coverage.§
- 1× 2.5G PoE Port: Flexible PoE deployment reduces costs by delivering power and data over a single Ethernet cable.
- Outdoor-Ready Durability: Features an IP66-rated weatherproof enclosure and 6kV lightning protection.
- Quick and Easy Setup: Features wall/pole mounting withOmada SDN for one-click setup.
- Advanced Features: Centralised management, mesh, and seamless roaming.Δ
Wi-Fi 7: Swifter, Smoother, Stronger
Versatile Antennas Deployment
Adapt to any environment effortlessly by selecting the antenna type that suits your needs. Whether you require long-distance connectivity or need to cover multiple endpoints, easily switch between external omni, internal directional, or custom antenna configurations with just a few clicks in the software.*
Auto-Sensing Plug & Play-No Expertise Needed
Automatically detects the attachment and removal of antennas (included) in auto mode and seamlessly switches between the internal and external antennas with zero configuration.
Outdoor-Ready IP66 Weatherproof Design
The EAP725-Outdoor features an IP66 weatherproof rating, ensuring reliable protection against heavy rain, dust, and harsh weather conditions.
Easy Installation and Deployment
Seamless Connectivity with Mesh and Roaming
Ensures customers enjoy uninterrupted streaming when moving around by switching clients automatically to the access points with the optimal signal.
Works with Omada SDN for One-Click Setup
Omada SDN allows users to quickly set up the EAP725-Outdoor through automatic device identification and one‑click adoption.
Empowering Businesses with Reliable Omada SDN Solutions
Omada's Software-Defined Networking (SDN) solution seamlessly integrates access points (APs), managed switches, and gateways, enabling 100% centralised cloud management for a highly scalable network.
Specifications
Technical Specifications
| Interface | 1 x 10M/100M/1000M/2.5Gbps Ethernet Port (RJ45) |
|---|---|
| Button | Reset |
| Power Supply | 802.3at PoE |
| Max. Power Consumption | 18.4W (for PoE+) |
| Dimensions ( W x D x H ) | 8.19 x 6.3 x 2.17 in (208 × 160 × 55 mm) |
| Antenna | 2.4 GHz:2 × 4.5 dBi, external omnidirectional antennas2 × 8.3 dBi, internal directional antennas (antenna beamwidth 90°)5 GHz:2 × 5.3 dBi, external omnidirectional antennas2 × 13.2 dBi, internal directional antennas (antenna beamwidth 45°)Note: The gains above are the single-antenna peak gains. |
| Bluetooth | BLE 5.2 |
| Weatherproof Enclosure | IP66 |

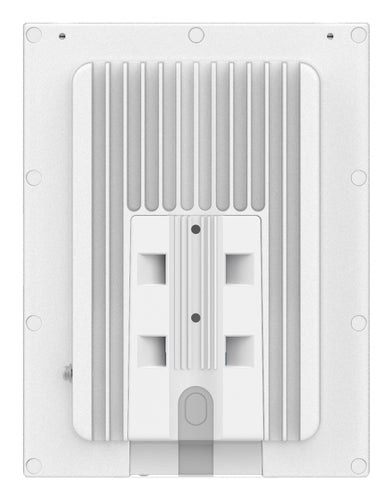

| Mounting | Pole/Wall Mounting (Kits included) |
| Wireless Standards | IEEE 802.11a/g/b/n/ac/ax/be |
| Frequency | 2.4 GHz, 5 GHz |
| Signal Rate | 688 Mbps (2.4 GHz) + 2882 Mbps (5 GHz) |
| Wireless Functions | 4k-QAMOFDMAMultiple SSIDs: 16 (8 for each band)Enable/Disable Wireless RadioAutomatic Channel AssignmentTransmit Power Control (Adjust Transmit Power on dBm)QoS (WMM)MLOOmada Mesh§Seamless Roaming(802.11k/v/r)§Band SteeringLoad BalanceAirtime FairnessBeamformingRate LimitReboot ScheduleWireless ScheduleWireless Statistics based on SSID/AP/ClientStatic IP/Dynamic lP |
| Wireless Security | Captive Portal Authentication§Access ControlWireless Mac Address FilteringWireless Isolation Between ClientsSSID to VLAN MappingRogue AP Detection802.1X SupportWPA-Personal/Enterprise, WPA2-Personal/Enterprise, WPA3-Personal/Enterprise, OWE |
| Transmission Power | CE: (EIRP)2.4 GHz: 20 dBm5 GHz: 23 dBm in U-NII-1, 23 dBm in U-NII-2A, 30 dBm in U-NII-2CFCC: (Conducted Power)2.4 GHz: 25 dBm5 GHz: 26 dBm in U-NII-1, 24 dBm in U-NII-2A, 24 dBm in U-NII-2C, 26 dBm in U-NII-3 |
| Omada App | Yes |
| Centralized Management | Omada Cloud-Based ControllerOmada Hardware ControllerOmada Software Controller |
| Cloud Access | Yes. Require the use of an Omada controller. |
| Email Alerts | Yes |
| Management MAC Access Control | Yes |
| SNMP | v1, v2c, v3 |
| System Logging Local/Remote Syslog | Yes |
| SSH | Yes |
| Web-based Management | Yes |
| L3 Management | Yes |
| Multi-site Management | Yes |
| Management VLAN | Yes |
| Zero-Touch Provisioning | Yes. Requiring the use of Omada Cloud-Based Controller |
| Certification | CE, FCC, RoHS, IC, NCC, VCCI, JRF, BSMI |
| Package Content | Access Point EAP725-OutdoorWaterproof KitMounting KitInstallation Guide |
| System Requirements | Microsoft Windows XP, Vista, Windows 7, Windows 8, Windows10, Windows11, Linux |
| Environment | Operating Temperature: -30 to 70 ℃ (-22 to 158 ℉)Storage Temperature: -40 to 70 ℃ (-40 to 158 ℉)Operating Humidity: 10 to 90% RH non-condensingStorage Humidity: 5 to 90% RH non-condensing |
| Weight | Main Unit: 1.33 kg |
| Brand | Omada |
|---|---|
| Product Type | Networking > Network Accessories > Antennas |
| Weight | 1.5 kg |
| Warranty |
|---|
