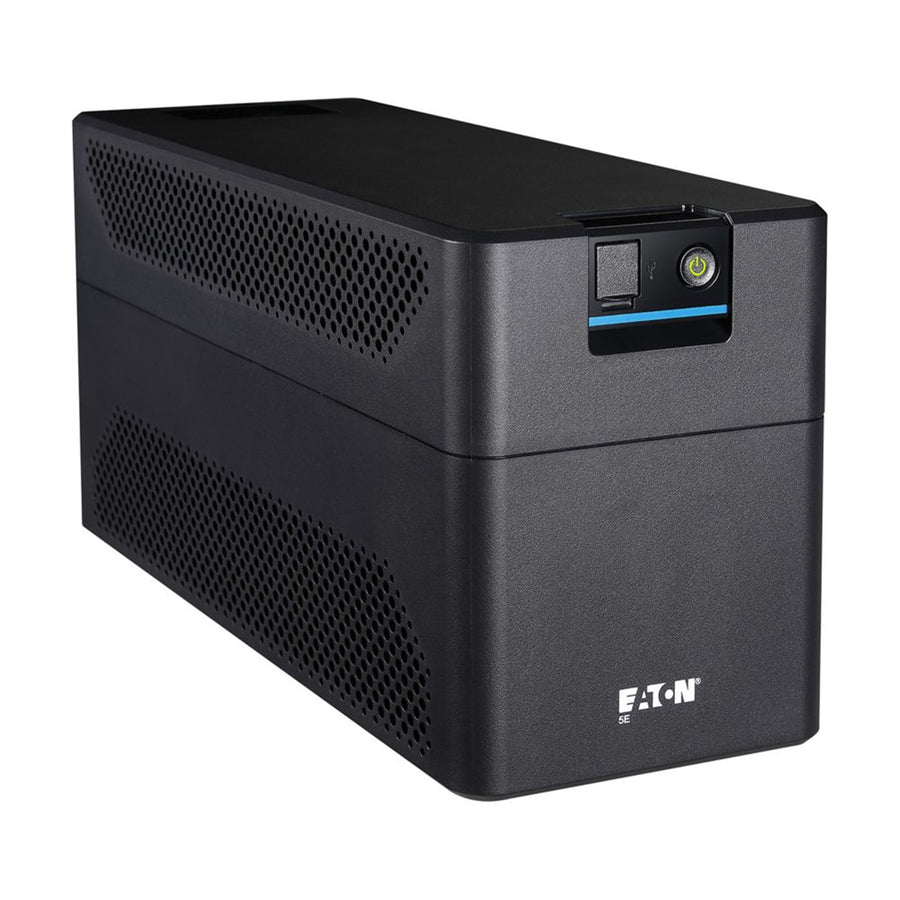

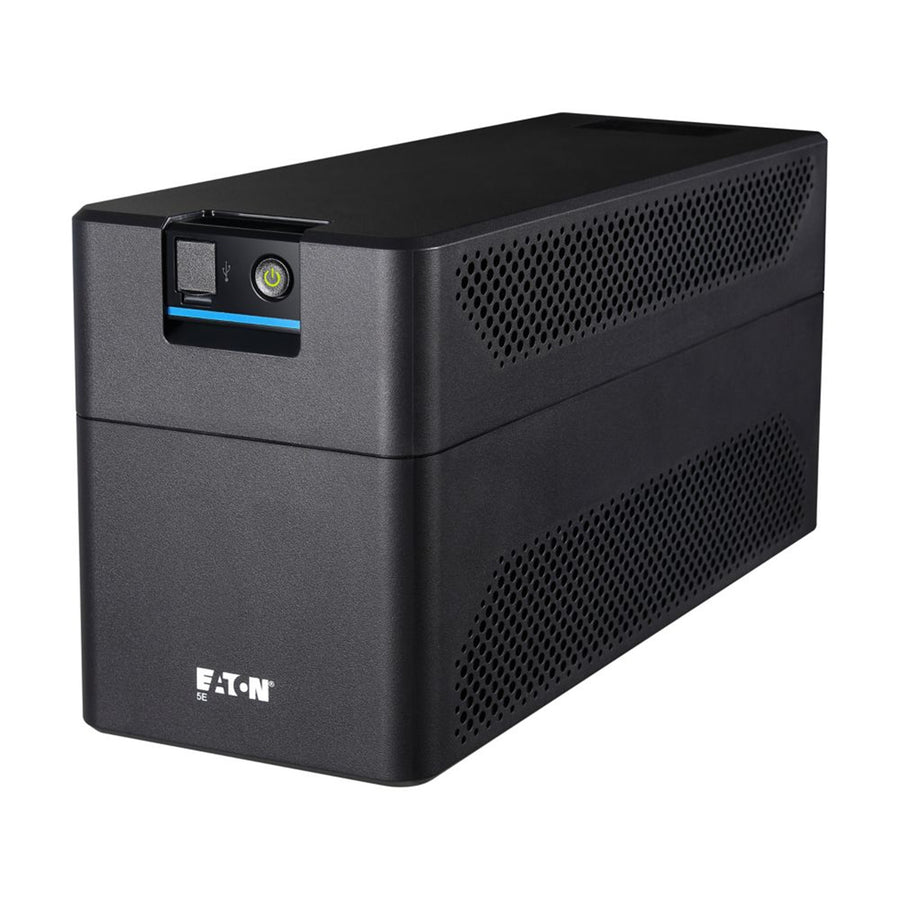

Eaton 5E Gen 2 Tower UPS, 1200VA / 660W, 3 ANZ Outlets, Line Interactive with Automatic Voltage Regulation, Fanless Version
Eaton 5E Gen 2 Tower UPS, 1200VA / 660W, 3 ANZ Outlets, Line Interactive with Automatic Voltage Regulation, Fanless Version
Eaton 5E Gen 2 Tower UPS, 1200VA / 660W, 3 ANZ Outlets, Line Interactive with Automatic Voltage Regulation, Fanless Version
Eaton

Eaton 5E Gen 2 Tower UPS, 1200VA / 660W, 3 ANZ Outlets, Line Interactive with Automatic Voltage Regulation, Fanless Version

SKU: 5E1200UIAU ● In Stock
$225.00
inc GST ▲ +GST
Free shipping over $299 Genuine product 7-day returns

Features

1200VA Eaton 5E Gen 2 1200UI UPS PN 5E1200UIAU

1200VA, Eaton 5E Gen2 UPS protects application and data against power loss, Double-boost Automatic Voltage Regulation (AVR) technology regulates grid fluctuations (under and overvoltage) to save battery power in the event of power outage, A wide product range covers the power requirements of many IT devices, Auto-restart function enables the UPS to restart automatically when mains power recovers after a total battery discharge.

Specifications

Technical Specifications

PRODUCT NAME Eaton 5E Gen2 UPS
CATALOG NUMBER 5E1200UI
EAN 3553340704277
PRODUCT LENGTH/DEPTH 330 mm
PRODUCT HEIGHT 180 mm
PRODUCT WIDTH 133 mm
PRODUCT WEIGHT 8.13 kg
WARRANTY 2 year
COMPLIANCES CBLVD DirectiveEMC DirectiveRoHS DirectivePackaging DirectiveWEEE DirectiveBatteries Directive
CERTIFICATIONS IEC/EN 62040-1IEC/EN 62040-2CEEACUKCACmUkrIEC/EN 62040-3
SECONDARY FREQUENCY - MAX 60 Hz
WATTAGE 660 W
FORM FACTOR Tower
INCLUDES NETWORK CARD No
INPUT CONNECTION C14
INPUT VOLTAGE - MIN 140 V
OUTPUT VOLTAGE - MAX 257 V
SECONDARY FREQUENCY - MIN 50 Hz
SOFTWARE COMPATIBILITY Eaton UPS Companion (enables safe system shutdown, energy usage metering and configuration of UPS settings)
BATTERY TYPE Sealed, lead-acid
EFFICIENCY 95
SPECIAL FEATURES Automatic Voltage Regulation (AVR)Saves space with a compact tower designHID-compliant USB port, for automatic integration with major operating systems (Windows/Mac OS/Linux)
CONSTRUCTION TYPE Free standing model
OUTPUT VOLTAGE - MIN 195 V
COLOR Black
EXTENDED BATTERY CAPABILITY No
OUTPUT VOLTAGE RANGE 195-257 V
TOPOLOGY Line-interactive
SURGE PROTECTION Yes
INPUT NOMINAL VOLTAGE 230V default (220/230/240V)
INPUT FREQUENCY RANGE 45-63 Hz
INTERNAL BYPASS No
INPUT VOLTAGE - MAX 300 V
VOLTAGE TYPE AC
PHASE (OUTPUT) 1
BATTERY MANAGEMENT Automatic battery test, deep-discharge protection, cold-start capable
AUTO SHUTDOWN FUNCTION Yes
NUMBER OF OUTPUTS C13 6
OPERATING TEMPERATURE - MIN 0 °C
VA RATING 1200 VA
POTENTIAL FREE SWITCH CONTACT No
RECEPTACLE (6) C13
PHASE (INPUT) 1
PACKAGE CONTENTS (2) IEC-IEC output cablesQuick startSafety instructions
FEED TYPE 1
RUNTIME GRAPH View runtime graph
USER INTERFACE LEDs
BATTERY QUANTITY 2
OPERATING TEMPERATURE - MAX 40 °C
VOLTAGE 230V
HOT SWAP POWER No
TEMPERATURE RANGE 0° to 40°C (32° to 104°F)
ETHERNET INTERFACE No
COMMUNICATION USB port (HID compliant)
RELATIVE HUMIDITY 0-90% non-condensing
OUTPUT APPARENT POWER 1200 VA
RACK MOUNTING KIT No
OUTPUT FREQUENCY 50/60 Hz
TYPE OF INTERFACE USB
PRIMARY FREQUENCY - MIN 45 Hz
BATTERY RATING 12 V / 7 Ah
TYPE UPS
OUTPUT NOMINAL VOLTAGE 230V
EXPANSION SLOTS No
INPUT VOLTAGE RANGE 140-300 V
NOMINAL FREQUENCY 50/60 Hz
PRIMARY FREQUENCY - MAX 63 Hz
