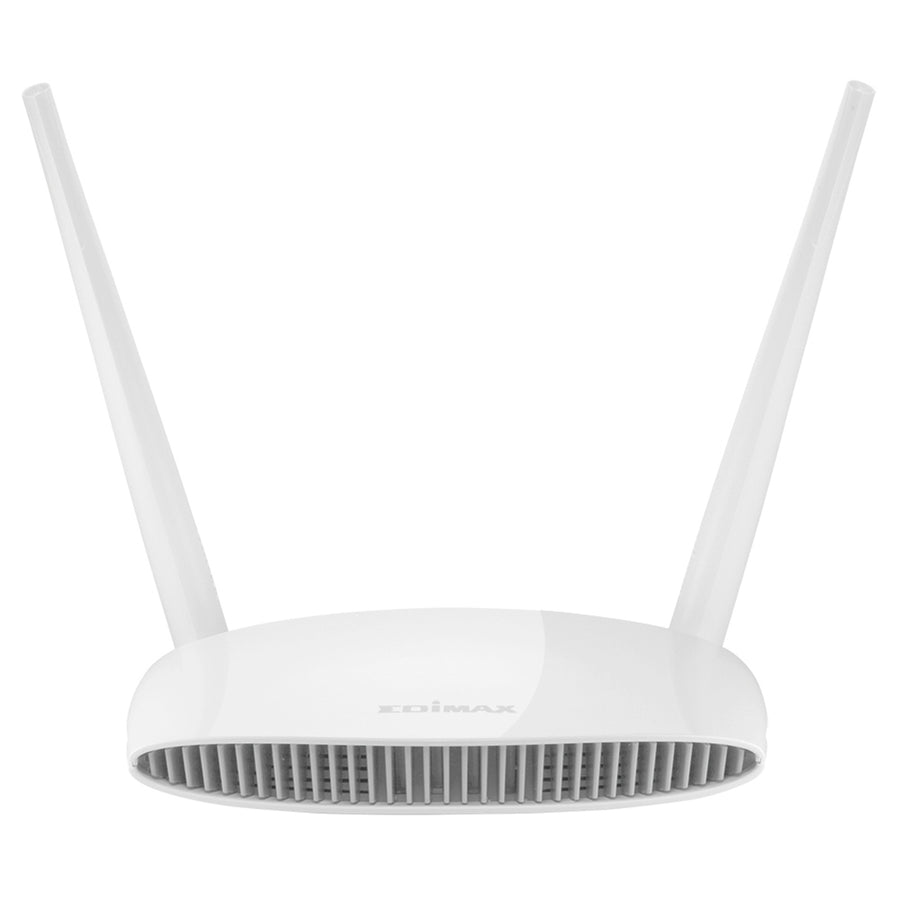

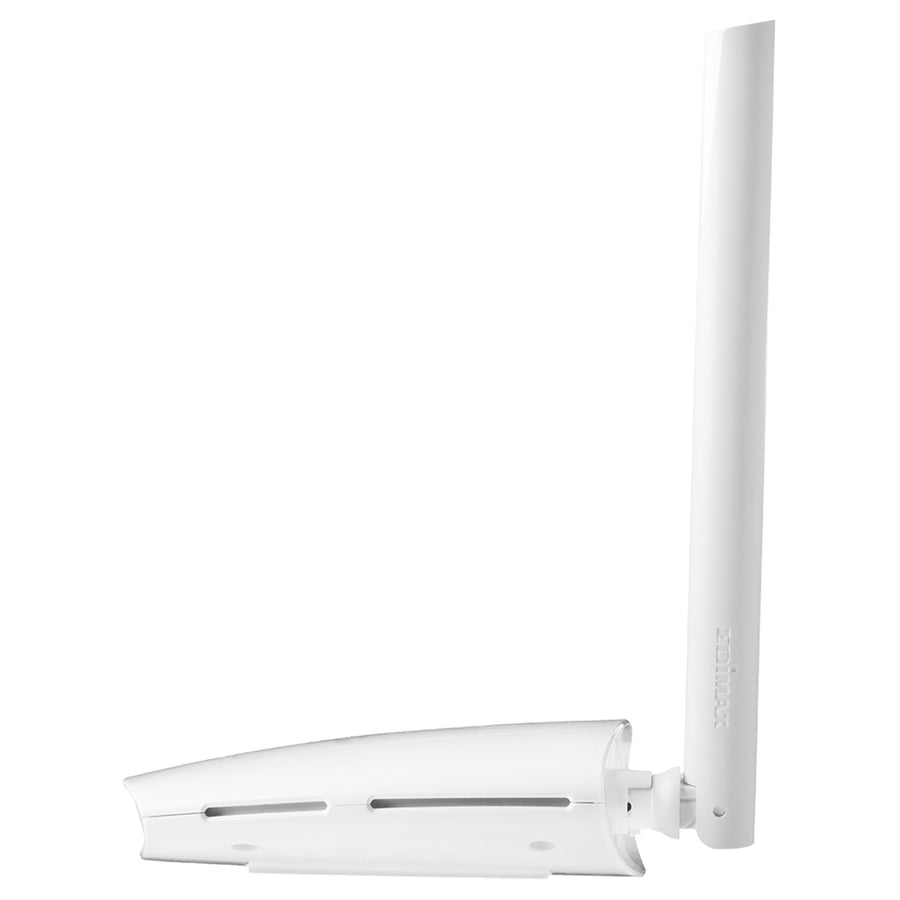

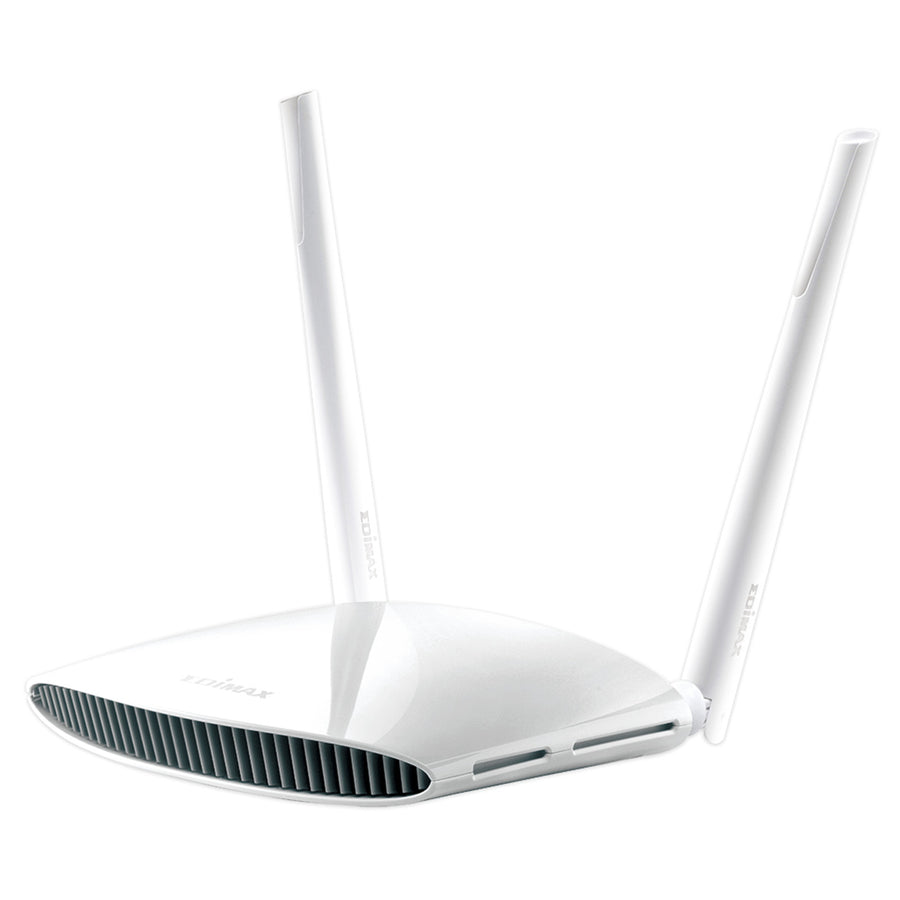

EDIMAX EW-7478APC - AC1200 Gigabit Dual-Band Access Point w/ USB Port
Features
EDIMAX AC1200 Gigabit Dual-Band Access Point w/ USB Port. Multi-Function USB port. Multiple SSIDs and VLANs. 5 in 1 modes. Guest network. iQoS Bandwidth management. Modern homes and businesses need high-performance, reliable and secure Wi-Fi. The EW-7478APC features the latest 11ac standard to upgrade your existing 11n to better, faster Wi-Fi and a USB port for file & printer-sharing on your network. Attach a USB hard-drive for central NAS (Network Attached Storage) access on any device and stream content at lightning fast lag-free 11ac speeds. It's a 5-in-1 device that can function as an access point, range extender, Wi-Fi router, Wi-Fi bridge or WISP and you can easily switch mode for your network environment with the smart iQ Setup wizard.

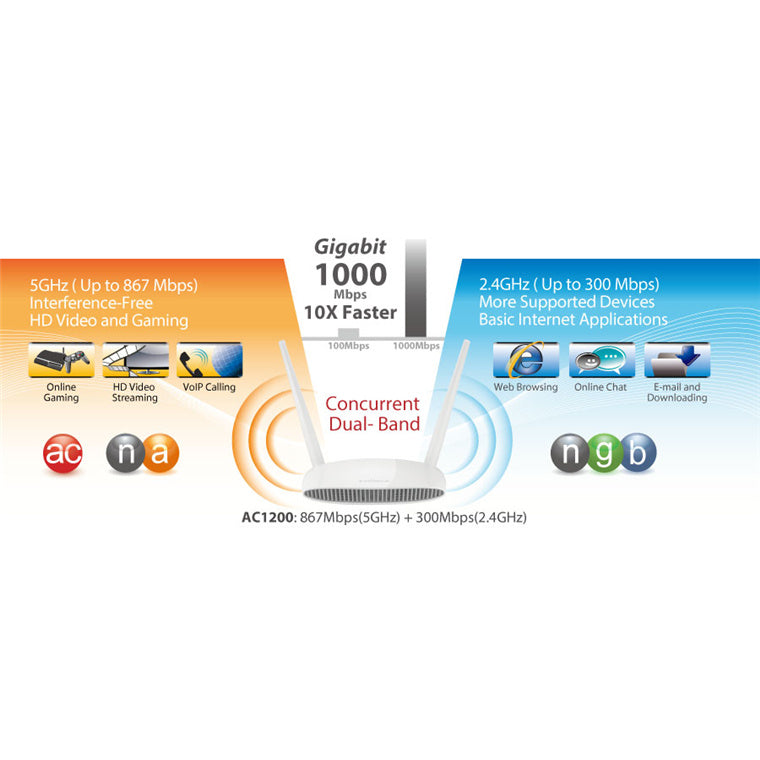

- AC1200 High-Speed Concurrent Dual-Band: Max speed up to 300Mbps (2.4GHz) and 867Mbps (5GHz) with 802.11ac Wi-Fi standard and backward compatible with 802.11a/b/g/n standards.

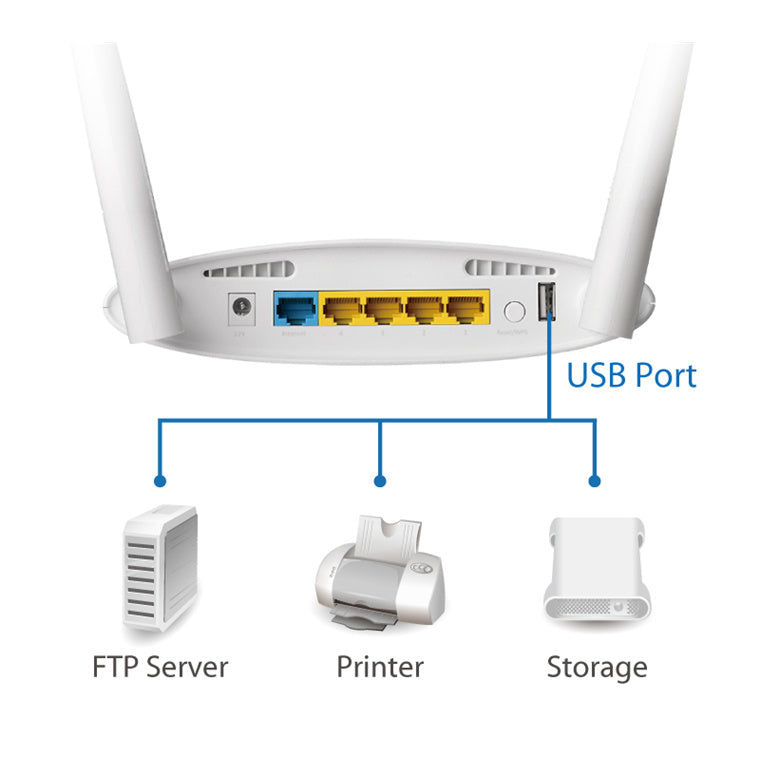

- Multi-Function USB Port: Storage & FTP file or printer sharing as your own private, secure cloud.

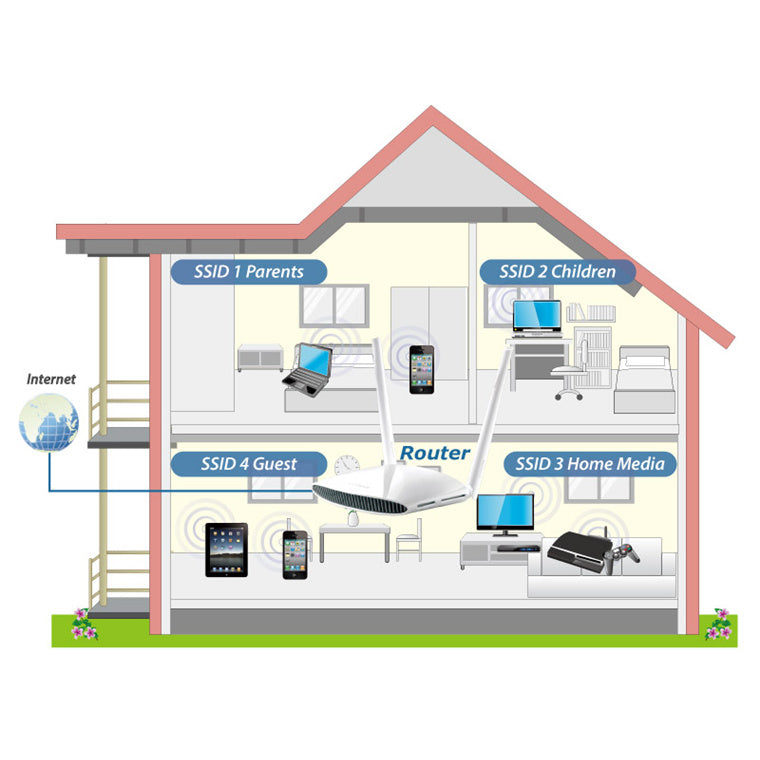

- Multiple SSIDs with VLAN: Supports up to 8 SSIDs (2.4GHz x 4 & 5GHz x 4) and provides security to protect confidential or critical network resources (Access point mode only).

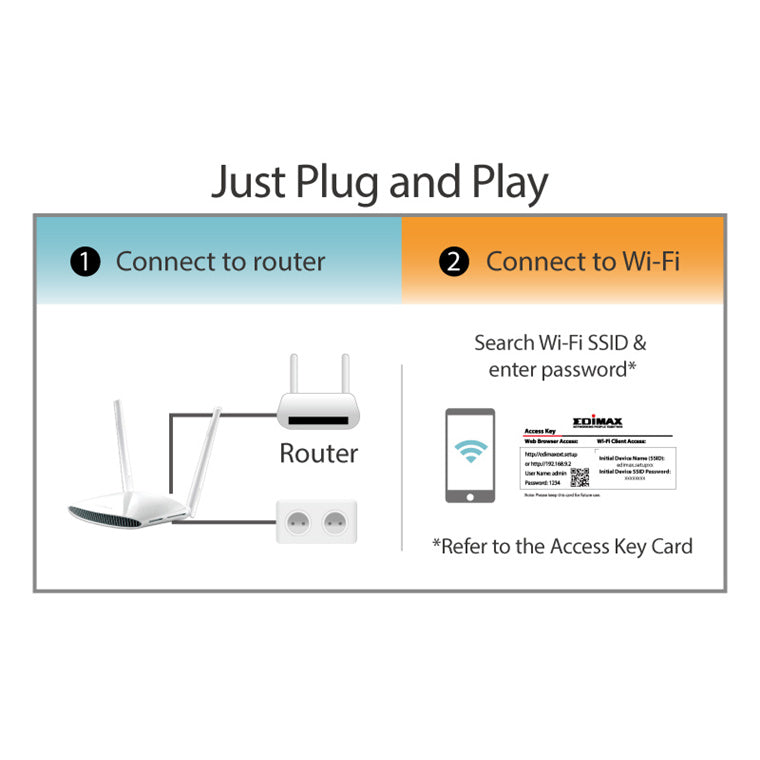

- Plug and Play: Zero configuration setup with no CD required. Just connect the EW-7478APC to your router with an Ethernet cable.
- Easy 11ac Upgrade: Upgrade your single-band 2.4GHz Wi-Fi to 11ac dual-band Wi-Fi for better coverage and faster Wi-Fi speed with zero configuration.

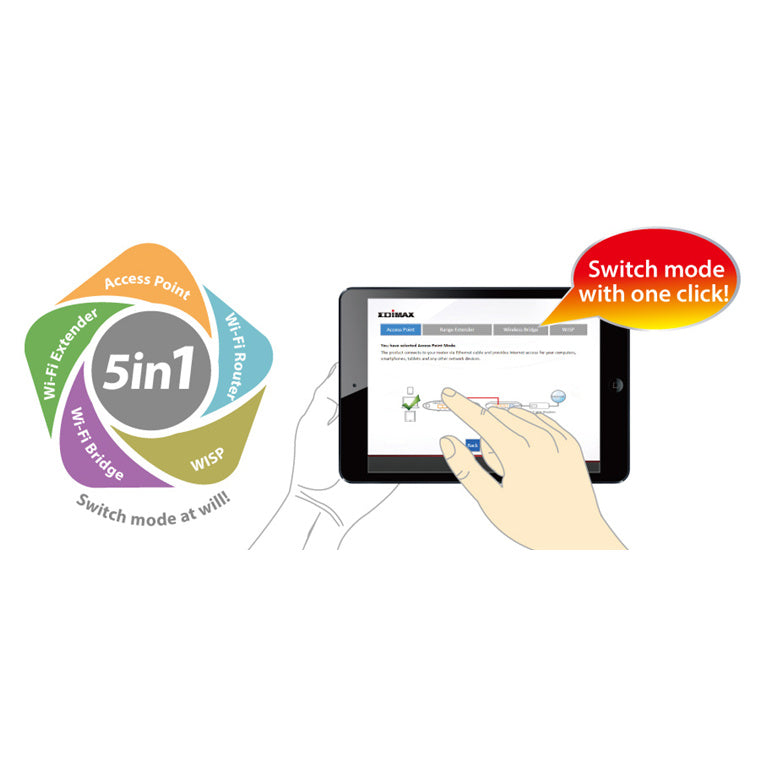

- 5 Modes in 1: Access point, range extender, Wi-Fi router, Wi-Fi bridge and WISP.
- Guest Network: Provides secure, private connectivity while isolating guests from your primary network (Wi-Fi router/range extender/WISP mode only).
- iQoS Bandwidth Management: Efficient Internet bandwidth management
- VPN (Virtual Private Network): Access secure remote networks from anywhere, protect privacy on public Wi-Fi and bypass Internet censorship (Wi-Fi router mode only).
AC1200 High Speed Wi-Fi

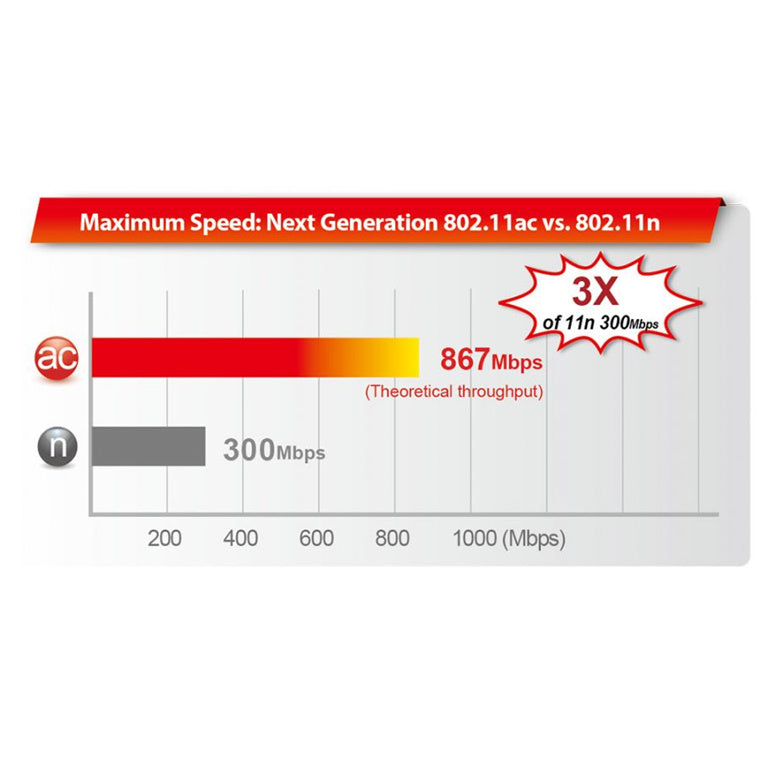

Supports the IEEE 802.11ac wireless standard, meaning much higher data rates on the 5GHz band. With 300Mbps speeds at 2.4GHz and 867Mbps at 5GHz, the EW-7478APC is ideal for HD video streaming and large file transfers.
Specifications
Technical Specifications

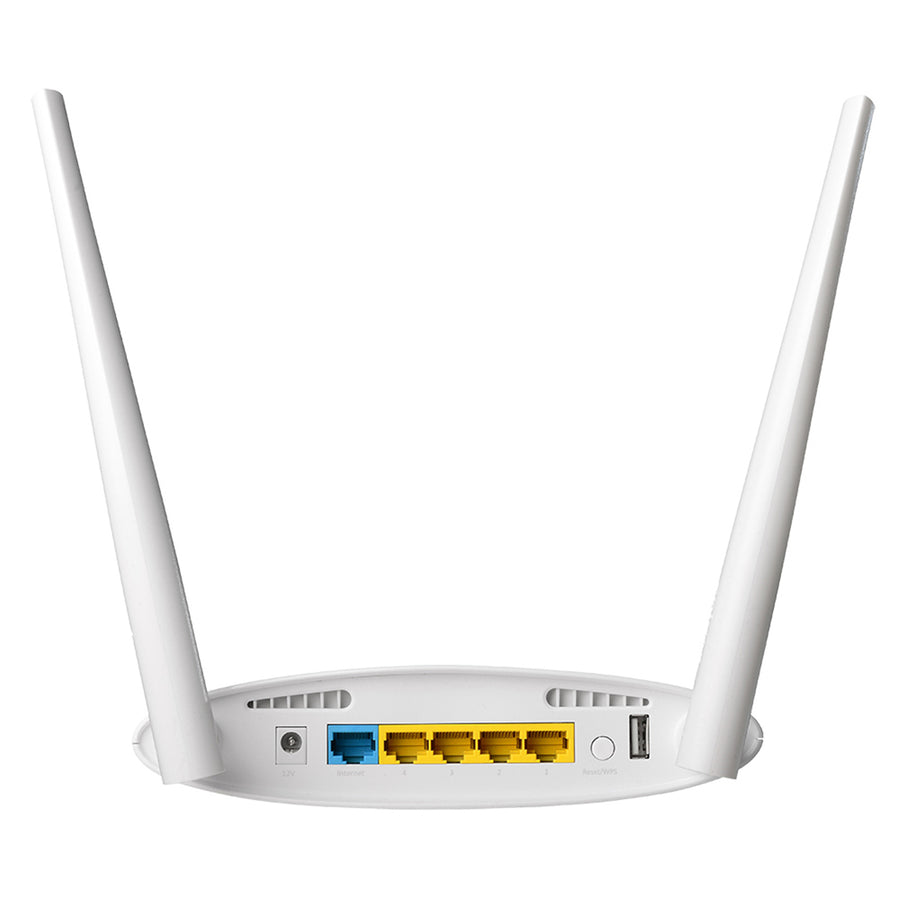

| Port | 1 x RJ-45 10/100/1000Mbps WAN port4 x RJ-45 10/100/1000Mbps LAN port2 x USB 2.0 port |
|---|---|
| Button | WPS/Reset buttons |
| LED Indicator | Power, Internet, WLAN, USB |
| Antenna | 2 x Dual-band antennas |
| Memory | 8MB NOR Flash64MB RAM |
| Power Adapter | DC 12V, 1.5A |
| Dimensions (W x D x H) | 190.2mm x 172mm x 42mm |
| Weight | 322g |
| Standards | 802.11 a/b/g/n/ac |
| Frequency | 5GHz and 2.4GHz concurrent dual-band |
| Maximum Data Speed | 5GHz: 867Mbps2.4GHz: 300Mbps |
| Security | 64/128-bit WEP, WPA and WPA2 securityHardware & software WPS configurationQoS for critical operations, SPI anti-DoS firewall |
| Certification | CE, FCC, RoHS |
| Environmental Condition | Operating humidity: 10-90% (non-condensing)Operating temperature: 32 - 104°F (0 - 40°C) |
| System Requirement | Cable or xDSL Internet connection (RJ-45 cable modem or RJ-45 ADSL modem)Computer (with Fast Ethernet adapter or wireless adapter) running Windows, Mac OS or LinuxSmartphone, tablet or laptop running iOS 4 or Android 4 and aboveWeb browser (Internet Explorer, Google Chrome, Firefox, Opera or Safari) |
| Package Content | EW-7478APC Access pointQuick installation guideCD-ROM (including setup wizard, multi-language quick installation guide and user manual)Power adapterEthernet cable |
| Brand | EDIMAX |
|---|---|
| Product Type | Networking > Wireless Access Points |
| Weight | 4.58 kg |
| Warranty |
|---|
