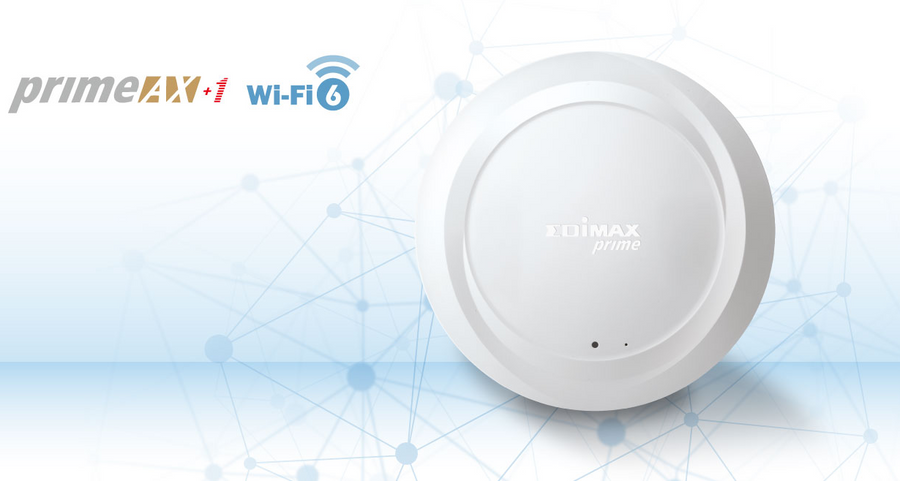

EDIMAX PRIMEAXPLUS1 - Slave AP of PRIMEAX123 AX1800 Smart Managed Wi-Fi System
Features
The Latest and Greatest Wi-Fi 6?
Reap the benefits of the latest Wi-Fi 6 technology that covers high-density areas with steady performance. In addition, the specially designed PrimeAX +1, you will find the setup and management a walk in the park.

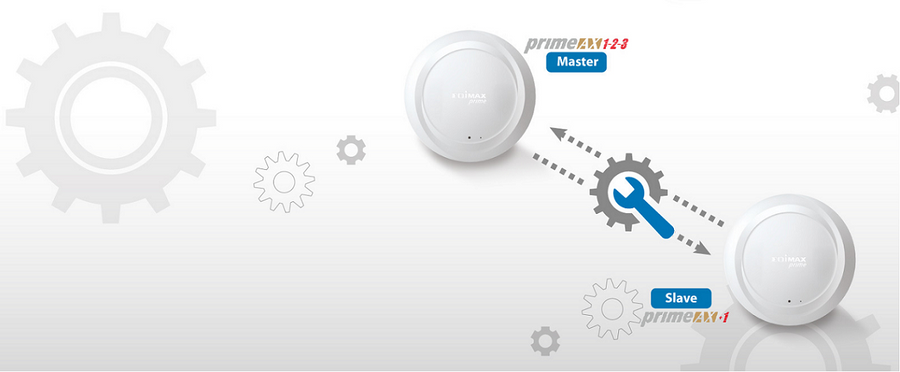

Easy Setup and Management Like Nothing Else
Setting up and managing the master and slave AP's has never been this easy. The PrimeAX +1 is designed from the beginning for users who want to get things done with minimal hassle.

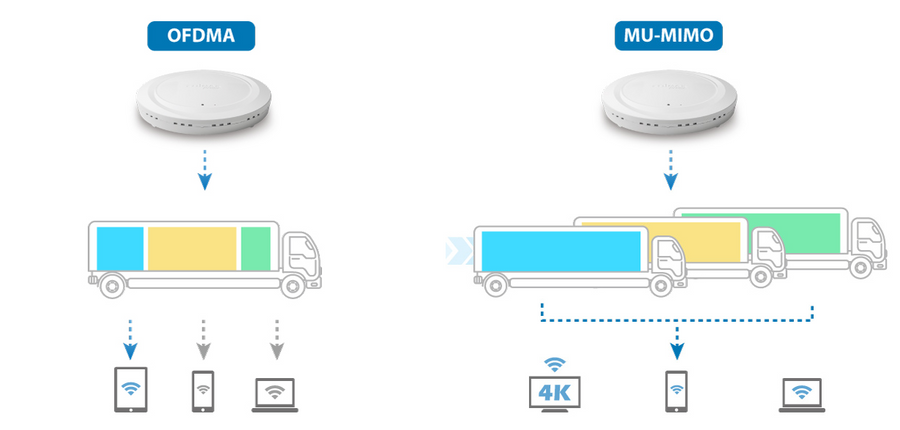

OFDMA and MU-MIMO Technology
Pack your data smartly and send them out to multiple devices at the same time. Have this in your home or office and cut down the complaints about receiving data across the board.

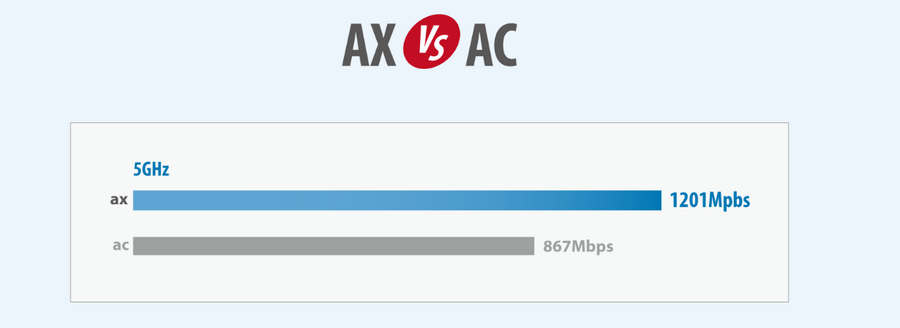

The AX Wi-Fi 6 Speed That Everyone Wants
Want to catch up with the trend? A lot of devices are equipped with the latest AX Wi-Fi technology, enjoy the speed performance boost by upgrading your Wi-Fi with PrimeAX 1-2-3 & PrimeAX +1.

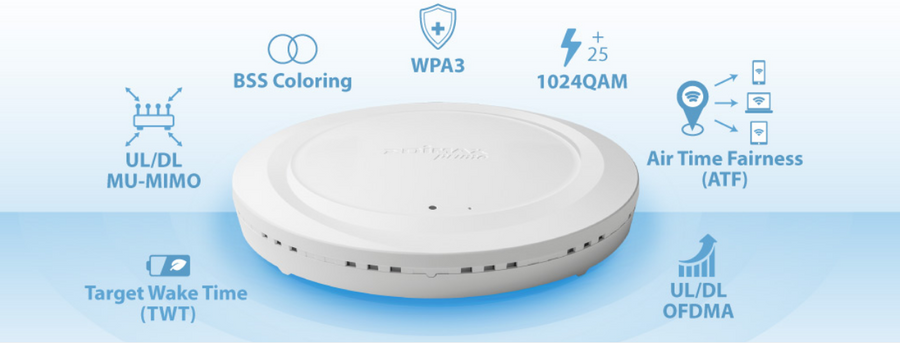

The Latest Tech for a Smooth Connectivity
Device power saving, upgraded security, smart data management and more. All the latest technology sure makes your Wi-Fi environment a high-performance and stable place to be.

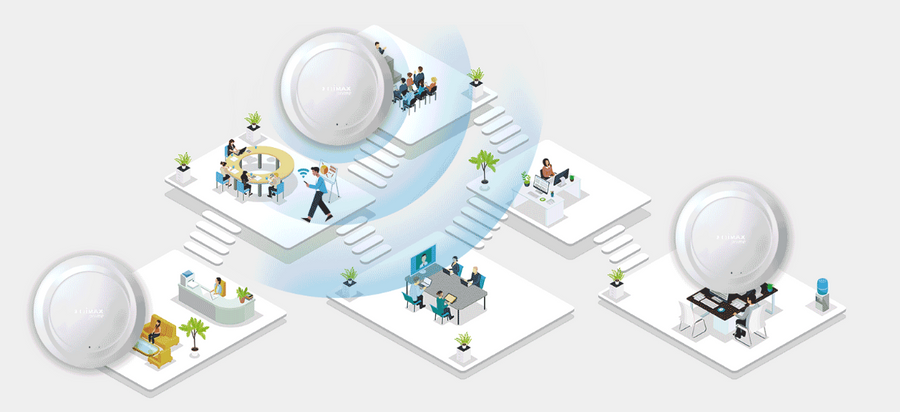

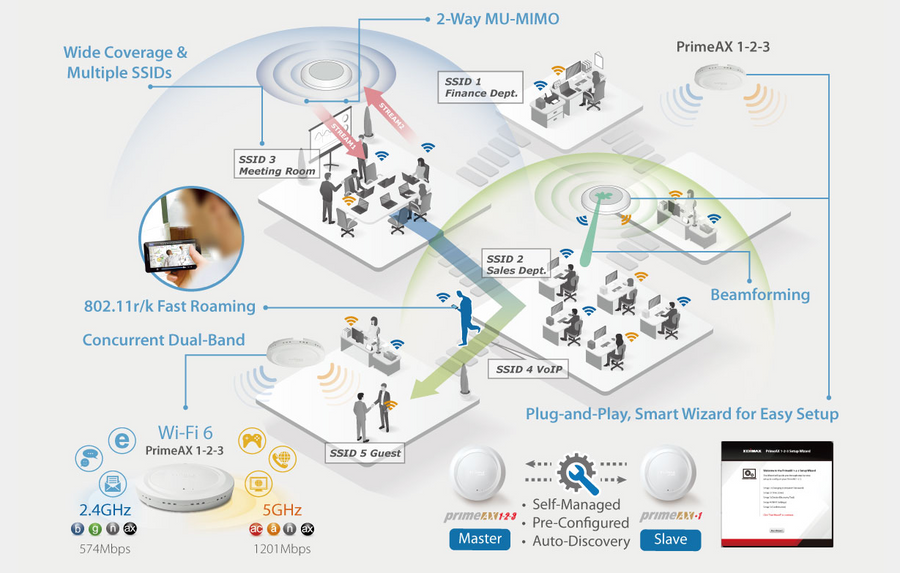

It is OK to Move Around
Experience seamless connectivity while you move around places. Having the PrimeAX +1 gives you the ability to expand and cover every inch of area that you desire, with the addition of providing you data with just a single network.

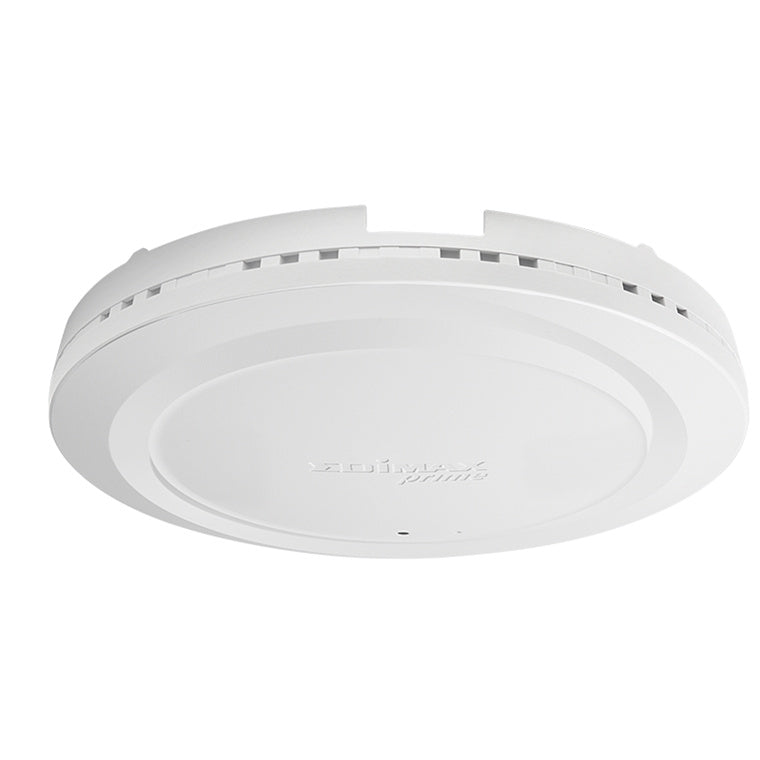

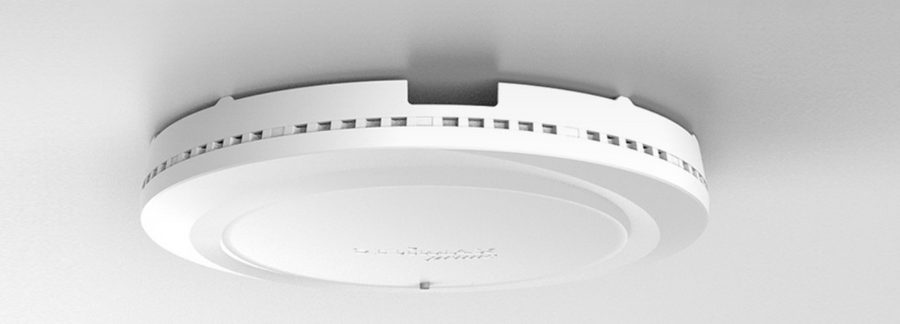

Keep it Clean and Tidy
With the ability to mount onto the ceiling makes it that much easier to install and expand. Furthermore, not having things in the way of weakening the signal is always a plus.
Expand by Purpose
The PrimeAX +1 is designed to expand and meet different demanding environments. Suitable for an array of purposes with a robust connection setup.
Expandable Wi-Fi System
PrimeAX +1 includes 1 AP and is an add-on to PrimeAX 1-2-3, up to a total of 16 APs.
Specifications
Technical Specifications

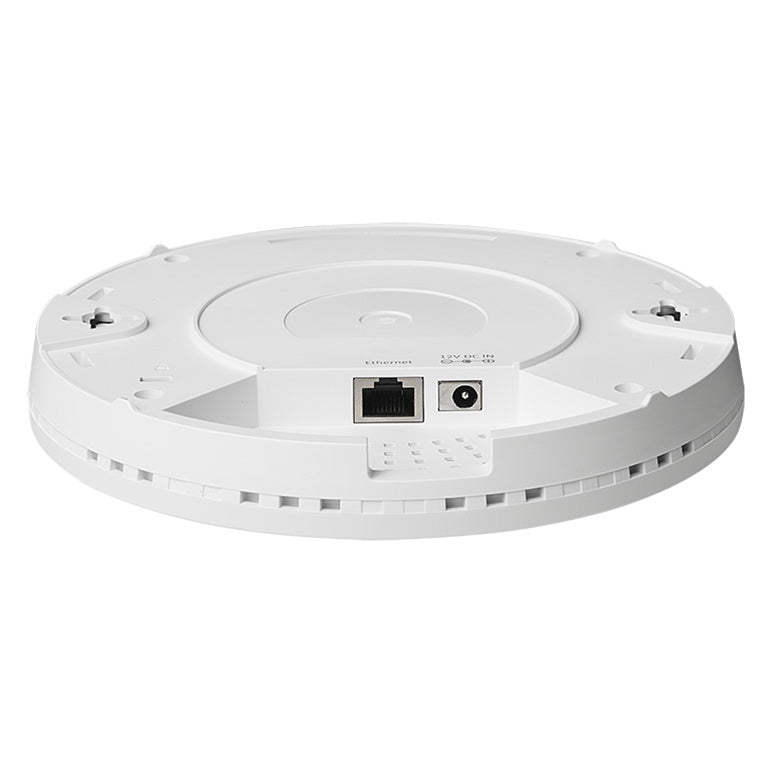

| Interface | 1 x RJ45 10/100/1000Mbps Ethernet Port (PoE in) |
|---|---|
| Button | Reset button |
| LED Indicator | Power LEDDiag LED |
| Antenna | Type: 2 x Built-In PIFA (2 dual-band antenna)Gain: 2.2dBi (2.4GHz), 2.9dBi (5GHz) Max. |
| Power | DC: 12V / 1A802.3af (PoE Injector Optional) |
| Power Consumption | 12W (Full Loading) |
| Power Saving | 802.3az |
| Mounting | Ceiling |
| Housing | UL94-5VB Flammability Rating |
| Dimensions | 176.29 (D) x 32.75 (H) mm |
| Weight | 372g |
| Standard | 802.11 a/b/g/n/ac/ax Concurrent Dual-Band |
| Frequency Band | Radio I: 802.11b/g/n/ax 2.412~2.484(GHz)Radio II: 802.11a/n/ac/ax5.15~5.25(GHz), 5.25~5.35(GHz), 5.470~5.725(GHz)(The supported frequency band is restricted by local regulations.) |
| Maximum Data Speed | 2.4GHz: 574Mbps5GHz: 1201Mbps |
| Concurrent Clients | Up to 128 Per Radio |
| 802.11 r/k Fast Roaming | Yes |
| Band Steering | Yes |
| AirTime Fariness | Yes |
| Beamforming | Yes |
| Wireless Mode | AP / WDS AP / WDS Bridge |
| 802.1q VLAN | Yes (VID = 1-4095) |
| Spanning Tree | RSTP |
| QoS | WMM (802.11e)Max associated station number |
| Pass-Through | IPv6 and VPN (PPTP, L2TP/IPsec) |
| DSCP (802.1p) | Yes |
| Multicast Rate up to 54Mbps | Yes |
| Encryption | WEP / WPA2-AES / WPA3 |
| Wireless L2 Isolation | Yes |
| Station Isolation | Yes |
| IEEE 802.1x Authenticator | Yes |
| EAP Authentication | PEAP |
| Hidden SSID | Yes |
| MAC Address Filter | Yes |
| Wireless Client Isolation | Yes |
| Rogue APDetection (w/NMS) | Yes |
| Deployment | Slave (Managed AP mode): Managed by EDIMAX PrimeAX 1-2-3 Master AP and APC500 |
| Configuration | HTTP/HTTPSSNMP v1, v2c, v3CLI (Telnet, SSH) |
| RADIUS Server | Built-In |
| Auto-Channel | Yes |
| Private MIB | Yes |
| Certification | CE, FCC |
| Environmental Conditions | Operating Temperature: 0°C~40°C (32°F~104°F)Operating Humidity: 90% or Less |
| Brand | EDIMAX |
|---|---|
| Product Type | Networking > Wireless Access Points |
| Weight | 3.537 kg |
