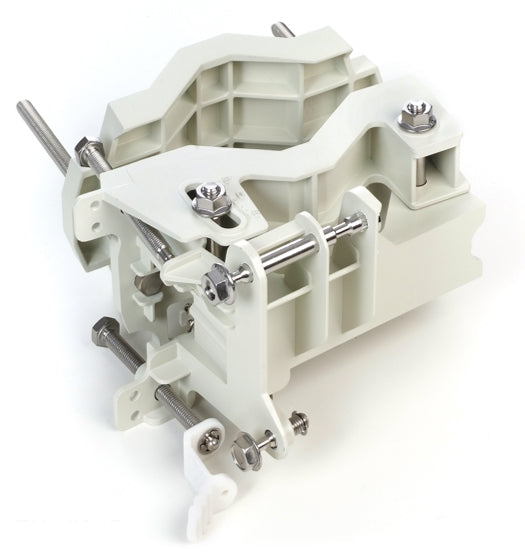

EH-MK-1ft - Siklu EtherHaul Mounting Kit for 70/80GHz 1 foot Dish Antenna
Siklu

EH-MK-1ft - Siklu EtherHaul Mounting Kit for 70/80GHz 1 foot Dish Antenna

SKU: EH-MK-1ft ● In Stock
$85.00
Free shipping over $299 Genuine product 7-day returns

EH-MK-1ft

EH-MK-1ft - Siklu EtherHaul Mounting Kit for 70/80GHz 1 foot Dish Antenna

Description

The EH-MK-1ft is Siklu's mounting hardware designed to attach a Siklu 1 foot antenna to a pole. The EH-MK-1ft is easy to deploy, reliable mounting kit designed for installation of Siklu’s E-band ODU while connected to Siklu’s 1 foot antennas.
Features
  • Works with EH-ANT-1ft-B antenna

Specifications

Details
Product Code EH-MK-1ft
Mounting Type Pole mount (center mount)
Pole Diameter 5 cm – 11 cm ( 2inch – 4½inch)
Azimuth Fine Alignment ±8 deg
Elevation Fine Alignment ±16 deg
Azimuth Resolution Step Continuous
Tilt Resolution Step Continuous
Weight 1.4 Kg (3 lbs.)
Temperature -45°C + 55°C (-49°F + 131°F)
Humidity 0-100%
Ice Loading 30 mm (1.18 inch) radial
Salt Fog IEC 68-2-11 Ka 96 hr
Wind Speed Survival: 200 km/hr (125 mph), Operational: 160 km/hr (100 mph)
Regulatory Compliance RoHS , CE
Compatible products EtherHaul series with 1ft. antennas
