-17%
Omada
ES205GP - Omada ES205GP SDN 5-Port Gigabit PoE Switch with 4-Port PoE+
$85.21$102.75
inc GST ▲
+GST
Free shipping over $299
Genuine product
7-day returns
Features

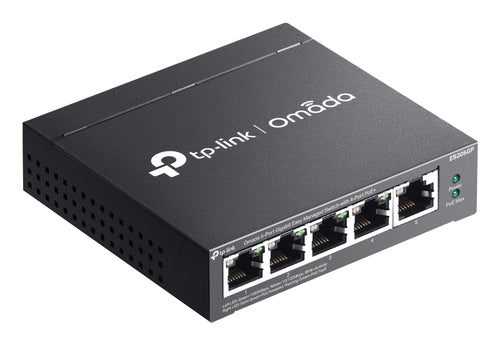

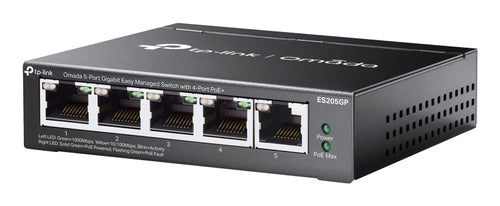

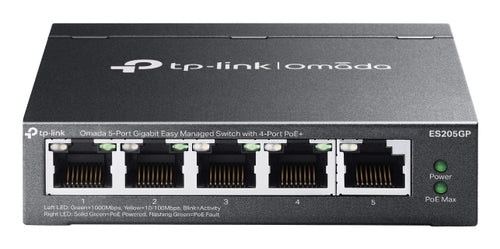

Omada 5-Port Gigabit Easy Managed Switch with 4-Port PoE+
- 5× 10/100/1000Mbps RJ45 ports (4× 802.3at/af-compliant PoE+)
- 65W Power Budget, with up to 30W for each PoE port*
- Easy to Use: Supports plug-and-play for instant connectivity and simple configuration for additional features
- Centralised Cloud Management via the web or the Omada app†
- Up to 250m PoE**, QoS?, PoE Auto Recovery‡, and Port Isolation for reliable surveillance networking
- Automatic Loop Prevention, VLAN, and IGMP Snooping
- Fanless design for silent operation
- Durable metal casing and desktop/wall mounting design
Software Defined Networking (SDN) with Cloud Access
Remotely manage your access points, switches, and gateways across multiple sites all from a single interface.
Abundant Functions for Reliable Surveillance Networking
Multiple Application Scenarios

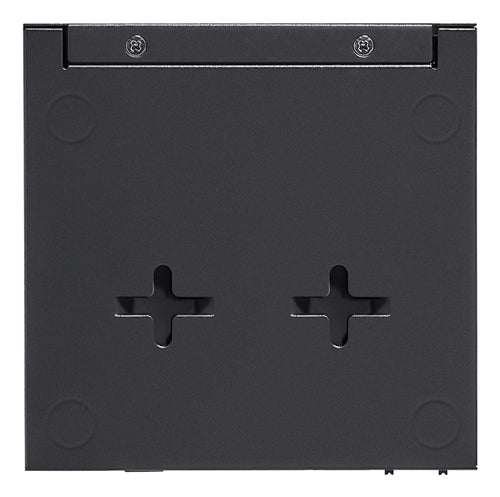

Compact and Durable Metal Casing, Featuring Desktop/Wall Mounting and a Fanless Design
Specifications
Technical Specifications
| Interface | - 5× 10/100/1000 Mbps RJ45 Ports (Ports 1-4 Support 802.3at PoE+ and 802.3af PoE)- Auto-Negotiation/Auto MDI/MDIX |
|---|---|
| Fan Quantity | Fanless |
| Installation | - Desktop- Wall Mount |
| Physical Security Lock | Yes |

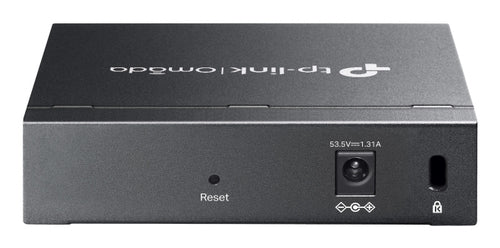

| Power Supply | DC Power Adapter (Output: 53.5 VDC/ 1.31 A) |
| PoE Ports (RJ45) | - Standard: 802.3af PoE and 802.3at PoE+ compliant- PoE Ports: 4 ports- PoE Budget: 65 W available for all PoE+ ports, 30W max per port- PoE Auto Recovery‡- Up to 250m PoE transmission distance** |
| Dimensions ( W x D x H ) | 3.9×3.9×1.0 in (100×98×25 mm) |
| Switching Capacity | 10 Gbps |
| Packet Forwarding Rate | 7.4 Mpps |
| MAC Address Table | 8K |
| Packet Buffer Memory | 4 Mbit |
| Jumbo Frame | 15 KB |
| Quality of Service | - Port-based/802.1p/DSCP QoS- 8 Priority Queues- Priority Schedule Mode- WRR (Weighted Round Robin)- Queue Weight Config- Bandwidth Control- Port-Based Rating Limit- Storm Control- Multiple Control Modes (kbps/pps)- Broadcast/Multicast/Unknown-Unicast Control? |
| L2 Features | - Static Link Aggregation- Loop Prevention / Loopback Detection- Flow Control- 802.3x Flow Control- Mirroring- Port Mirroring- One-to-One- Many-to-One- Ingress/Egress/Both- Port Statistics- Port Mirror Status- Traffic Statistics- 802.1ab LLDP |
| L2 Multicast | - IGMP Snooping- IGMP v1/v2/v3 Snooping- Fast Leave |
| VLAN | - MTU VLAN- Port-Based VLAN- 802.1Q Tag VLAN- Max 32 VLAN Groups- 4K VID |
| Transmission Method | Store-And-Forward |
| Omada App | Yes. Requires the use of Omada Hardware Controller, Omada Cloud-Based Controller, or Omada Software Controller. |
| Centralized Management | - Omada Cloud-Based Controller- Omada Hardware Controller- Omada Software Controller |
| Cloud Access | Yes. Requires the use of Omada Hardware Controller, Omada Cloud-Based Controller, or Omada Software Controller. |
| Zero-Touch Provisioning | Yes. Requires the use of Omada Cloud-Based Controller |
| Management Features | - Web-based GUI- DHCP Client- Cable Diagnostics- Automatic Device Discovery†- Batch Configuration†- Batch Firmware Upgrading†- Unified Configuration† |
| Certification | FCC, CE, RoHS |
| Package Contents | - ES205GP- Power Adapter- Installation Guide- Rubber Feet |
| Environment | - Operating Temperature: 0?~40? (32?~104?)- Storage Temperature: -40?~70? (-40?~158?)- Operating Humidity: 10%~90% non-condensing- Storage Humidity: 5%~90% non-condensing |
| Brand | Omada |
|---|---|
| Product Type | Networking > Switches |
| Weight | 0.75 kg |
| Warranty |
|---|
Note:
Warranty period is as stated above unless the manufacturer has chosen to specify a longer period.
All warranties are return to base unless otherwise specified.
