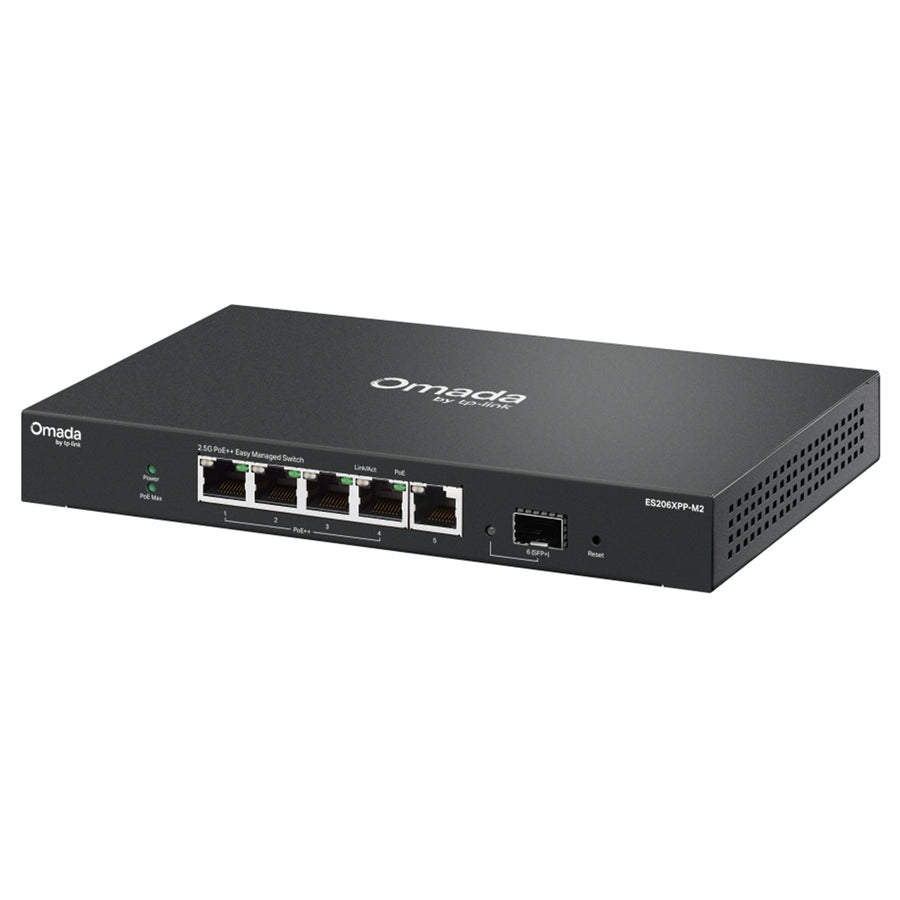

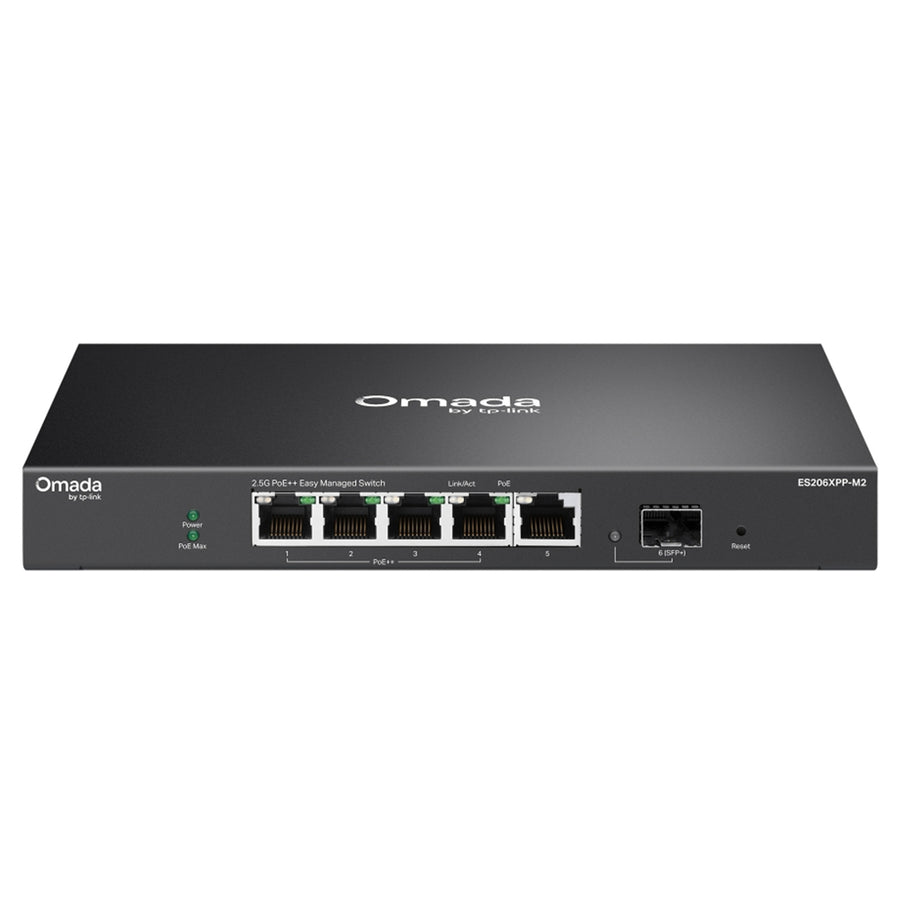

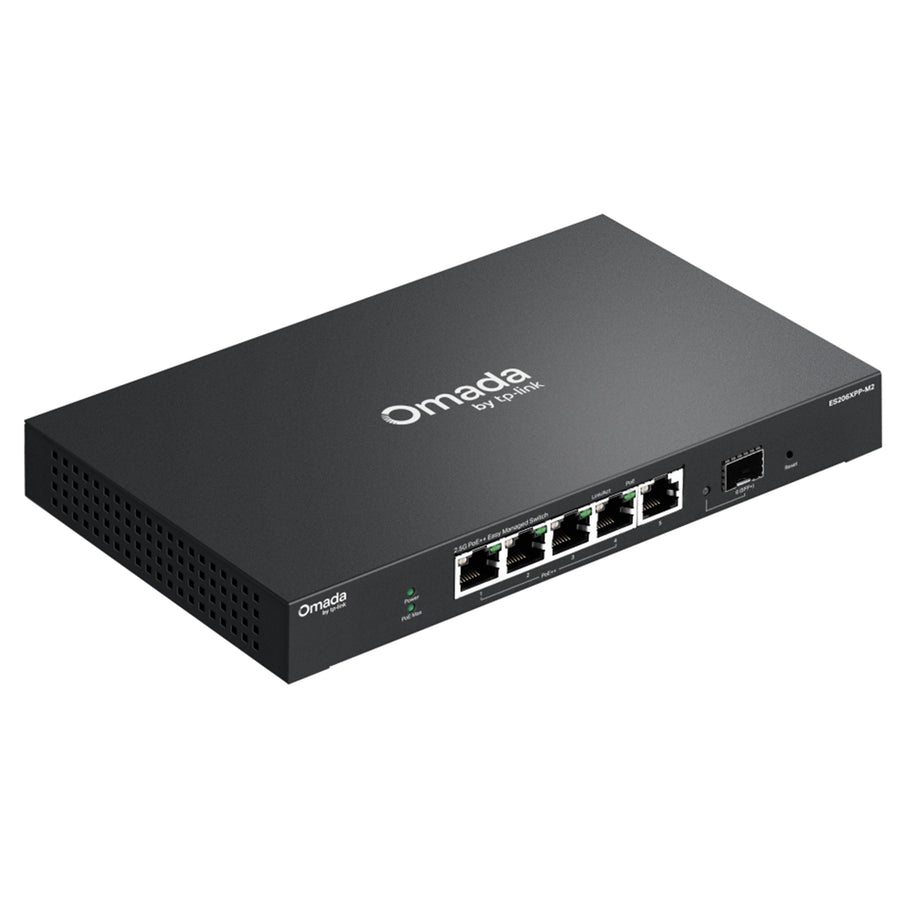

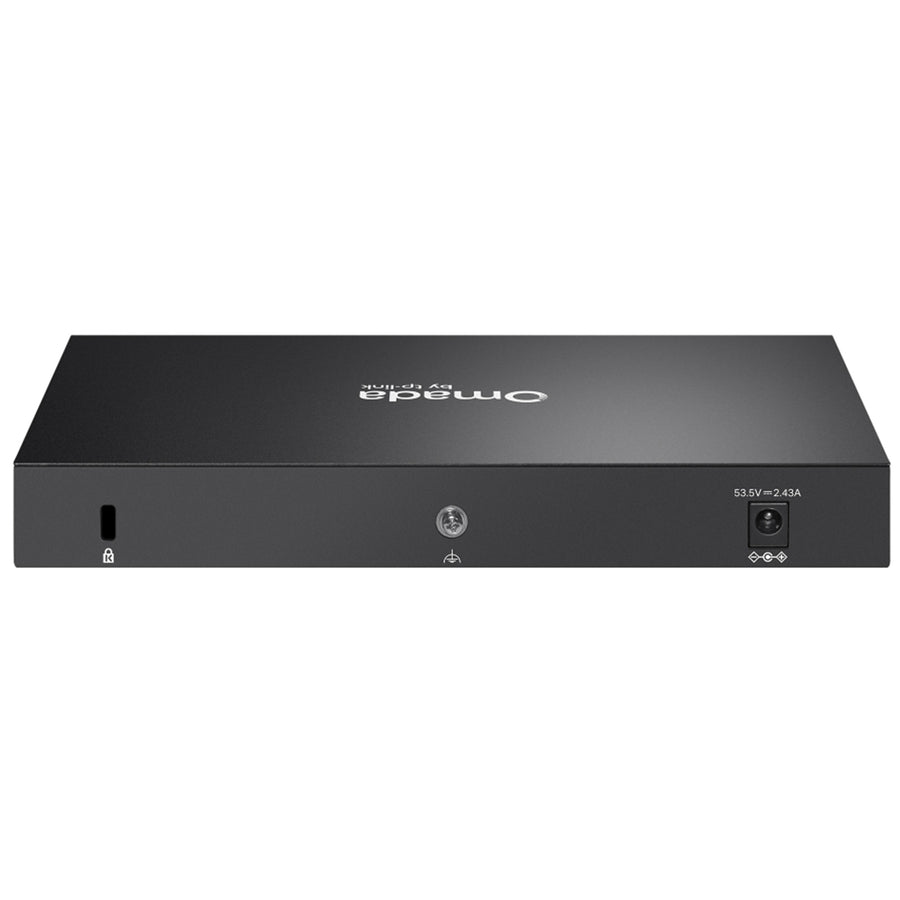

ES206XPP-M2 - Omada ES206XPP-M2 5-Port 2.5GBASE-T and 1-Port 10GE SFP+ Easy Managed Switch with 4-Port PoE++
Features
Omada 5-Port 2.5GBASE-T and 1-Port 10GE SFP+ Easy Managed Switch with 4-Port PoE++
- 5× 2.5 Gbps RJ45 Ports (4× 802.3af/at/bt-compliant PoE++)
- 1× 10 Gbps SFP+ Slot
- 120W PoE Budget, with up to 90W for each PoE port*
- Easy to Use: Supports plug-and-play for instant connectivity and simple configuration for additional features
- Centralised Cloud Management via the web or the Omada app†
- Automatic Loop Prevention, VLAN, Port Isolation, QoS△, and IGMP Snooping
- Fanless design for silent operation
- Durable metal casing and desktop/wall mounting design
Power over Ethernet, Flexible Network Deployment
Transmit both data and power via a single cable to other PoE++ devices, without the hassle and cost of installing power cabling. Automatically detect and supply the required power to PoE-enabled devices.
Unlock the Highest Performance of 2.5G Multi-Gig Bandwidth and Devices
Works with Omada Central Essentials for Free and Easy Cloud Management
Omada Central Essentials provides free and easy-to-use centralised cloud management and monitoring for the Omada networking system, covering access points, switches, and gateways, ideal for surveillance networks and small businesses.
Cost-Performance Solution
Specifications
Technical Specifications
| Interface | 5× 2.5 Gbps RJ45 Ports (4× 802.3af/at/bt-compliant PoE++)1× 10 Gbps SFP+ SlotAuto-Negotiation/Auto MDI/MDIX |
|---|---|
| Fan Quantity | Fanless |

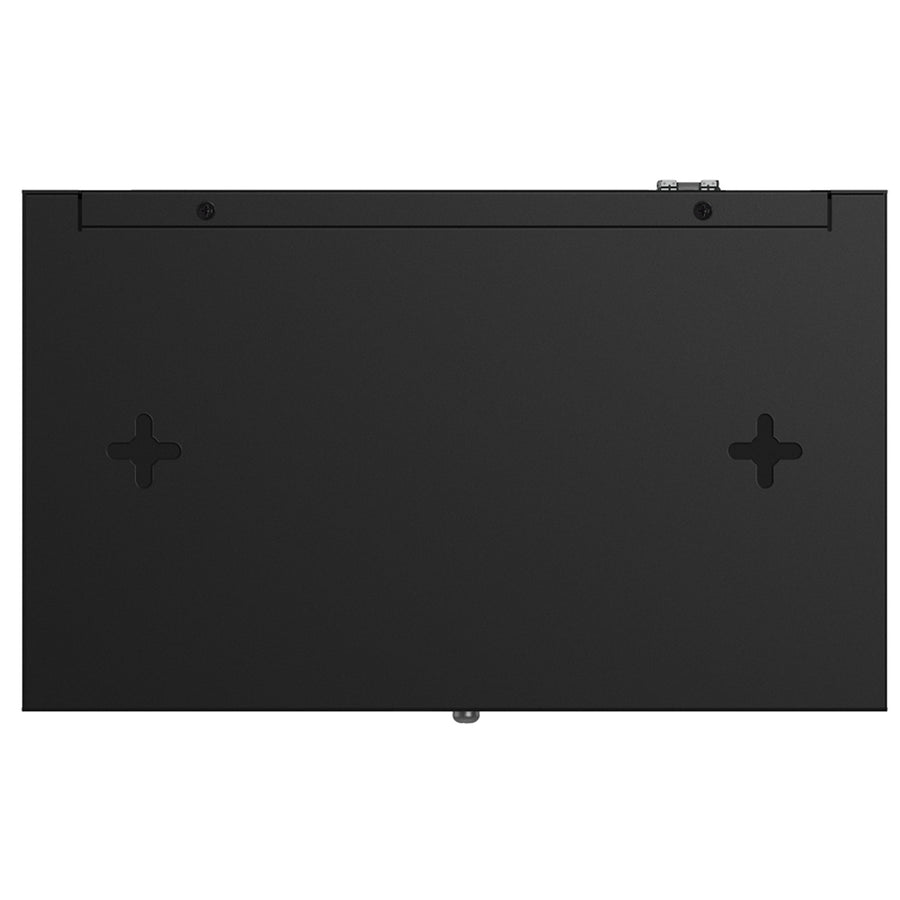

| Installation | DesktopWall Mount |
| Physical Security Lock | √ |
| Power Supply | DC Power Adapter (Output: 53.5 VDC / 2.43 A) |
| PoE Ports (RJ45) | Standard: 802.3af/at/bt PoE++ compliantPoE Ports: 4 PortsPoE Budget: 120W available for all PoE++ ports, 90W max per portFast PoE & Perpetual PoEPoE Auto Recovery‡ |
| Dimensions ( W x D x H ) | 8.2 × 5.0 × 1.0 in (209 × 126 × 26 mm) |
| Surge Protection | ±6 kV |
| Packet Buffer Memory | 640 KB |
| Jumbo Frame | 10 KB |
| Switching Capacity | 45 Gbps |
| Packet Forwarding Rate | 33.48 Mpps |
| MAC Address Table | 16K |
| Quality of Service | Port-based/802.1p/DSCP QoS8 Priority QueuesPriority Schedule Mode- WRR (Weighted Round Robin)Queue Weight ConfigBandwidth Control- Port-Based Rating LimitStorm Control- Multiple Control Modes (kbps/pps)- Broadcast/Multicast/Unknown-Unicast Control△ |
| L2 Features | Static Link AggregationLoop Prevention / Loopback DetectionFlow Control- 802.3x Flow ControlMirroring- Port Mirroring- One-to-One- Many-to-One- Ingress/Egress/BothPort Statistics- Port Mirror Status- Traffic Statistics802.1ab LLDP |
| L2 Multicast | IGMP Snooping- IGMP v1/v2/v3 Snooping- Fast Leave |
| VLAN | MTU VLANPort-Based VLAN802.1Q Tag VLAN- Max 32 VLAN Groups- 4K VID |
| Transmission Method | Store-And-Forward |
| Omada App | Yes. Requires the use of Omada Hardware Controller, Omada Cloud-Based Controller, or Omada Software Controller. |
| Centralized Management | Omada Cloud-Based ControllerOmada Hardware ControllerOmada Software Controller |
| Cloud Access | Yes. Requires the use of Omada Hardware Controller, Omada Cloud-Based Controller, or Omada Software Controller. |
| Zero-Touch Provisioning | Yes. Requires the use of Omada Cloud-Based Controller |
| Management Features | Web-based GUIDHCP ClientCable DiagnosticsAutomatic Device Discovery†Batch Configuration†Batch Firmware Upgrading†Unified Configuration† |
| Certification | FCC, CE, RoHS |
| Package Content | ES206XPP-M2Power AdapterPower CordRubber FeetInstallation Guide |
| Environment | Operating Temperature: -5℃~40℃ (23℉~104℉)Storage Temperature: -40℃~70℃ (-40℉~158℉)Operating Humidity: 10%~90% non-condensingStorage Humidity: 5%~90% non-condensing |
| Brand | Omada |
|---|---|
| Product Type | Networking > Switches |
| Weight | 0.2 kg |
| Warranty |
|---|
