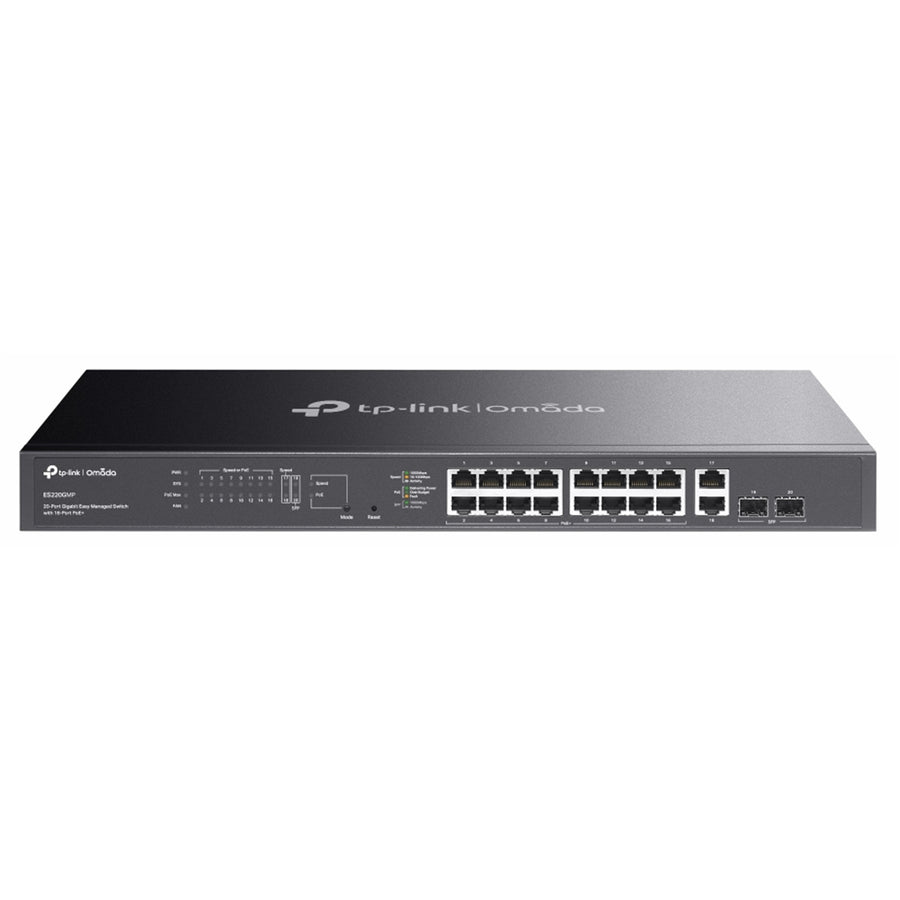

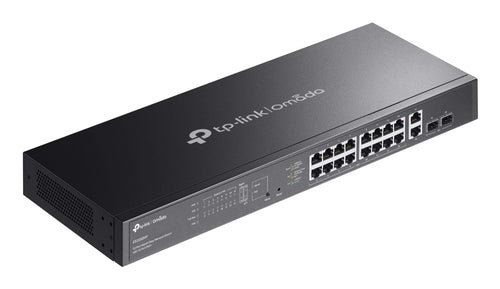

ES220GMP - Omada ES220GMP 20-Port Gigabit Easy Managed Switch with 16-Port PoE+
Features
mada 20-Port Gigabit Easy Managed Switch with 16-Port PoE+
- 16× Gigabit 802.3af/at-compliant PoE+ RJ45 ports
- 2× Gigabit RJ45 port, 2× Gigabit SFP port
- 250W Power Budget, with up to 30W for each PoE port*
- Easy to Use: Supports plug-and-play for instant connectivity and simple configuration for additional features
- Centralised Cloud Management via the web or the Omada app†
- Up to 250m PoE**, QoS?, PoE Auto Recovery‡, and Port Isolation for reliable surveillance networking
- Automatic Loop Prevention, VLAN, and IGMP Snooping
- Durable metal casing and rack-mountable design
Omada Cloud Essentials - A Free and Easy Cloud-Based Network Management
Omada Cloud Essentials is a free, easy-to-use cloud-based management option for the Omada networking system§, covering access points, switches, and gateways. It enables simple, centralised network management and monitoring with essential features, making it ideal for surveillance networks and small businesses that don't require the complexity of larger operations.
Specifications
Technical Specifications
| Interface | - 16× 10/100/1000 Mbps PoE+ RJ45 Ports (support 802.3af PoE and 802.3at PoE+)- 2× 10/100/1000 Mbps RJ45 Port- 2× Gigabit SFP Slot- Auto-Negotiation/Auto MDI/MDIX |
|---|---|
| Fan Quantity | 2 |
| Installation | Rackmountable |
| Physical Security Lock | Yes |
| Power Supply | 100-240V AC, 50/60Hz |
| PoE Ports (RJ45) | - Standard: 802.3af PoE and 802.3at PoE+ compliant- PoE Ports: 16 ports- PoE Budget: 250W available for all PoE+ ports, 30W max per port- Fast PoE & Perpetual PoE- PoE Auto Recovery‡- Up to 250m PoE transmission distance** |
| Dimensions ( W x D x H ) | 17.3 × 7.1 × 1.7 in.(440 × 180 × 44 mm) |
| Surge Protection | ±6kV |
| Switching Capacity | 40 Gbps |
| Packet Forwarding Rate | 29.76 Mpps |
| MAC Address Table | 8K |
| Packet Buffer Memory | 4 Mbit |
| Jumbo Frame | 15 KB |
| Quality of Service | - Port-based/802.1p/DSCP QoS- 8 Priority Queues- Priority Schedule Mode- WRR (Weighted Round Robin)- Queue Weight Config- Bandwidth Control- Port-Based Rating Limit- Storm Control- Multiple Control Modes (kbps/pps)- Broadcast/Multicast/Unknown-Unicast Control |
| L2 Features | - Static Link Aggregation- Loop Prevention / Loopback Detection- Flow Control- 802.3x Flow Control- Mirroring- Port Mirroring- One-to-One- Many-to-One- Ingress/Egress/Both- Port Statistics- Port Mirror Status- Traffic Statistics- 802.1ab LLDP |
| L2 Multicast | - IGMP Snooping- IGMP v1/v2/v3 Snooping- Fast Leave |
| VLAN | - MTU VLAN- Port-Based VLAN- 802.1Q Tag VLAN- Max 32 VLAN Groups- 4K VID |
| Transmission Method | Store-And-Forward |
| Omada App | Yes. Requires the use of Omada Hardware Controller, Omada Cloud-Based Controller, or Omada Software Controller. |
| Centralized Management | - Omada Cloud-Based Controller- Omada Hardware Controller- Omada Software Controller |
| Cloud Access | Yes. Requires the use of Omada Hardware Controller, Omada Cloud-Based Controller, or Omada Software Controller.Zero-Touch Provisioning Yes. Requires the use of Omada Cloud-Based Controller |
| Management Features | - Web-based GUI- DHCP Client- Cable Diagnostics- Automatic Device Discovery†- Batch Configuration†- Batch Firmware Upgrading†- Unified Configuration† |
| Certification | FCC, CE, RoHS |
| Package Content | - ES220GMP- Power Cord- Mounting Brackets- Rubber Feet- Screws- Installation Guide |
| Environment | - Operating Temperature: -5?~50? (23?~122?)- Storage Temperature: -40?~70? (-40?~158?)- Operating Humidity: 10%~90% non-condensing- Storage Humidity: 5%~90% non-condensing |
| Brand | Omada |
|---|---|
| Product Type | Networking > Switches |
| Weight | 3.14 kg |
| Warranty |
|---|
