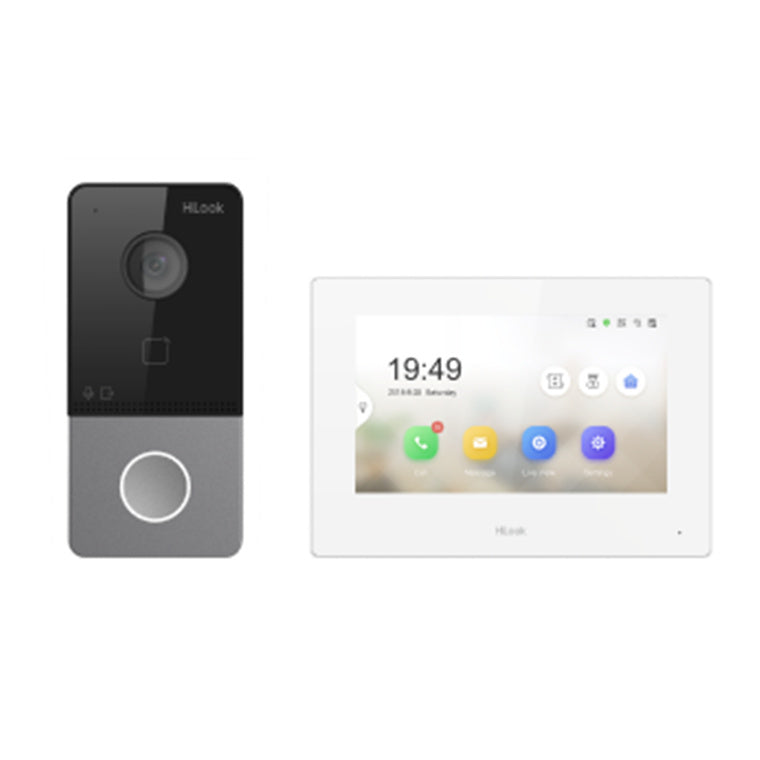

HA-KIT-IP1 - HILOOK HA-KIT-IP1 2MP INTERCOM KIT, 7"TOUCH, WIFI, SURFACE MOUNT, 2YR
HA-KIT-IP1 - HILOOK HA-KIT-IP1 2MP INTERCOM KIT, 7"TOUCH, WIFI, SURFACE MOUNT, 2YR
Features

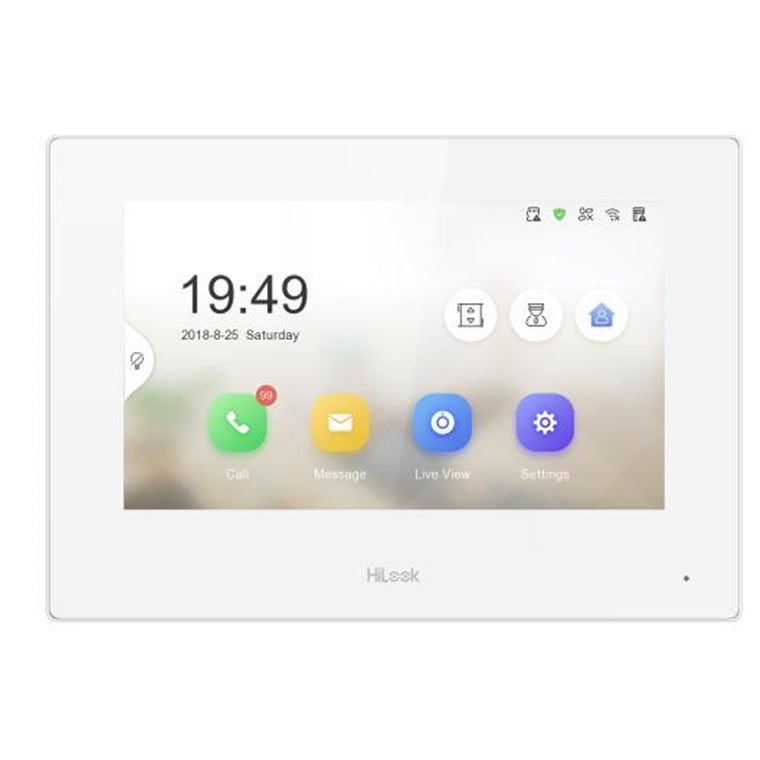

Indoor Station
- 7-inch touch screen, user-friendly interface, Plug & Play
- Easy, cost-efficient installation, Wifi & POE Supported
- Receives video call and unlocks on mobile App anywhere, any time
- Supports live view of up to 16 IP cameras

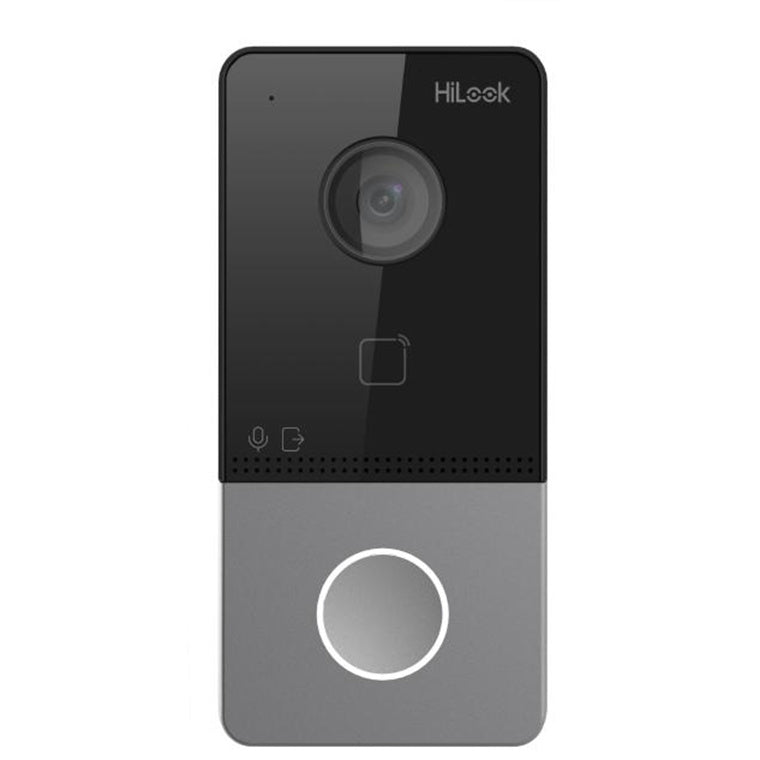

Door Station
- High-quality imaging with 2MP resolution
- Easy, cost-efficient installation, Wifi & POE Supported
- Easy configuration through WEB interface
- IP65 water resistant, preventing water ingress for outdoor use
Video footage viewable
- Via FREE mobile app
- On local monitor
- Over local network
* Both the indoor monitor & door station can be powered using either PoE (Power over Ethernet) or 12V DC-not mains power
* Outdoor station must connect to the internet via a wired Ethernet cable
* Indoor monitor can connect via either Wi-Fi or a wired connection. However, both devices must be on the same network in order to communicate with each other
Specifications
Technical Specifications
| Operation system | Embedded Linux operation system |
|---|---|
| Flash | 32 MB |
| RAM | 256MB |
| Camera | 2MP HD camera |
| Night vision | Low illumination IR supplement mode:3 m |
| Backlight compensation | Support |
| Digital noise reduction | Support |
| WDR | True WDR |
| Field of view | Horizontal: 131° Vertical: 78° |
| Video Compression Standard | H.264 |
| Stream | Main stream: 1080p@ 30fps, 720p@ 25fps Sub stream: D1@ 25fps |
| Motion detection | Support |
| Flash-avoid frequency | 50 Hz, 60 Hz |
| Audio input | Built-in omnidirectional microphone |
| Audio output | Built-in loudspeaker |
| Audio quality | Noise suppression and echo cancellation |
| Audio compression standard | G.711 U |
| Audio compression Rate | 64 Kbps |
| Audio intercom | Two-way audio communication |
| Network protocol | TCP/IP, RSTP |
| Wired network | 10/100 Mbps Ethernet |
| RS-485 | 1 |
| Alarm input | 4 |
| Debugging port | 1 |
| Grounding | 1 |
| TAMPER switch | 1 |
| Power consumption | ＜ 10 W |
| Working temperature | -40° C to 53° C(-40° F to 127.4° F) |
| Working humidity | 10% to 95% |
| Dimension | 138 mm × 65 mm × 27 mm |
| Installation | Surface mounting |
| Protection level | IP65 |
| Indicator | 2 |
| Power supply | IEEE802.3af, standard PoE |
| Operation system | Embedded Linux operation system |
| Memory | 128 MB |
| Flash | 32 MB |
| Display screen | 7-inch colorful TFT screen |
| Display resolution | 1024 × 600 |
| Operation method | Capacitive touch screen |
| Audio input | Built-in omnidirectional microphone |
| Audio output | Built-in loudspeaker |
| Audio quality | Noise suppression and echo cancellation |
| Audio compression standard | G.711 U |
| Audio compression Rate | 64 Kbps |
| Wired network | 10/100 Mbps self-adaptive |
| Wireless network | Wi-Fi 802.11 b/g/n |
| Protocol | TCP/IP, SIP, RTSP |
| RS-485 | 1 RJ-45 10/100 Mbps self-adaptive |
| RS-485 | 1 |
| Alarm input | 8-ch alarm inputs |
| Relay output | 2 |
| TF card | Max to 32 G, SD 2.0 or lower version |
| Power consumption | ≤ 6 W |
| Working temperature | -10 °C to 55 °C (14 °F to 131 °F) |
| Working humidity | 10% to 90% |
| Dimension (L x W x H) | 200 mm × 140 mm × 15.1 mm (7.9" × 5.5" × 0.6") |
Not happy? Return within 7 days of delivery for a full refund or exchange. Items must be unused and in original packaging. Contact contact@kwtech.co.nz to arrange.
| Brand | HiLook |
|---|---|
| Product Type | B2B - Security & Surveillance |
| Weight | 0.5 kg |
