HiLook
HA-KIT-IP2 - HILOOK HA-KIT-IP1 2MP INTERCOM KIT, 7"TOUCH, WIFI, SURFACE MOUNT, 2YR
$357.78
Free shipping over $299
Genuine product
7-day returns

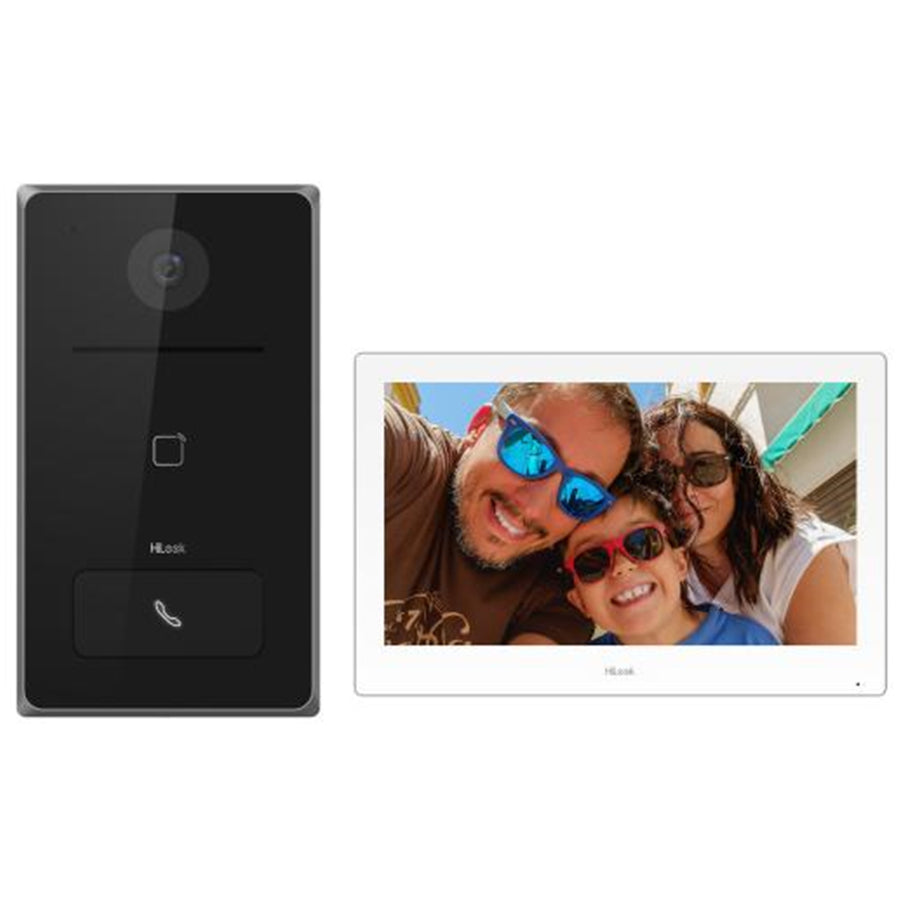

HA-KIT-IP2 - HILOOK HA-KIT-IP1 2MP INTERCOM KIT, 7"TOUCH, WIFI, SURFACE MOUNT, 2YR
Features
IP Video Intercom Kit
- Convenient Hik-Connect APP Mobile Control
- One call button for easier calls
- Standard PoE power supply
- Including: Door station x1, Indoor station x1, PSU × 2, 32GB TF card x1
- Power adapter included in the package
Specifications
Technical Specifications
| Operation system | LINUX |
|---|---|
| Flash | 32 MB |
| RAM | 256MB |
| Camera | 2MP HD camera |
| Night vision | Low illumination IR supplement mode:2.5m |
| Backlight compensation | Support |
| Digital noise reduction | Support |
| WDR | True WDR |
| Field of view | Horizontal: 129° Vertical: 75° |
| Video Compression Standard | H.264 |
| Stream | PAL：Main stream:1080p@25fps,720p@25fpsSub stream:720p@25fps，480p@25fpsNTSC：Main stream:1080p@30fps,720p@30fpsSub stream:720p@30fps，480p@30fps |
| Motion detection | Support |
| Flash-avoid frequency | 50 Hz, 60 Hz |
| Audio input | 1 built-in omnidirectional microphone |
| Audio output | 1 built-in loudspeaker |
| Audio quality | Noise suppression and echo cancellation |
| Audio compression standard | G722.1、OPUS、G711U、G711A、G726 、AAC_LC、 AAC_LD |
| Audio compression Rate | 16/32/64 Kbps |
| Audio intercom | Two-way audio communication |
| Network protocol | TCP/IP, SIP, RSTP |
| Wi-Fi | 2.4GHz, IEEE802.11b, IEEE802.11g, IEEE802.11n |
| Network interface | 1 RJ-45, 10/100 Mbps self-adaptive |
| RS-485 | 1 |
| Alarm input | 4 |
| Lock control | 1 relay, Max. 30 VDC 2 A |
| Door contact input | 1 |
| TAMPER | 1 |
| TF card | 1(Reserved) |
| Audio output | 1 external loudspeaker(Reversed) |
| Power consumption | ＜ 10 W |
| Working temperature | -40° C to 53° C(-40° F to 127.4° F) |
| Working humidity | 10% to 95% |
| Dimension | 181.6 mm × 103.6 mm × 29.5 mm |
| Installation | Surface mounting, Flush mounting |
| Protection level | IP65 |
| Indicator | 2 |
| Power supply | IEEE802.3af, standard PoE12 VDC |
| Operation system | Linux |
| Memory | 128 MB |
| Flash | 32 MB |
| Display screen | 7-inch colorful TFT screen |
| Display resolution | 1024 × 600 |
| Operation method | Capacitive touch screen |
| Audio input | 1 built-in omnidirectional microphone |
| Audio output | 1 built-in loudspeaker |
| Audio quality | Noise suppression and echo cancellation |
| Audio compression standard | G.711 U |
| Audio compression Rate | 64 Kbps |
| Wired network | 1 RJ-45, 10/100 Mbps self-adaptive |
| Wireless network | 2.4 GHz, IEEE802.11b, IEEE802.11g, IEEE802.11n |
| Protocol | TCP/IP, SIP, RTSP |
| RS-485 | 1 RS-485 (Half duplex) |
| Alarm input | 8-ch alarm inputs |
| Relay output | 2 |
| TF card | Support TF card, up to 128 G |
| Power consumption | ≤ 5 W |
| Power supply | 12 VDC, 1 A,IEEE802.3af, Standard PoE |
| Working temperature | -10 °C to 50 °C (14 °F to 122 °F) |
| Working humidity | 10% to 90% |
| Dimension (L x W x H) | 175 mm × 113.5 mm × 21 mm (6.9" × 4.5" × 0.83") |
