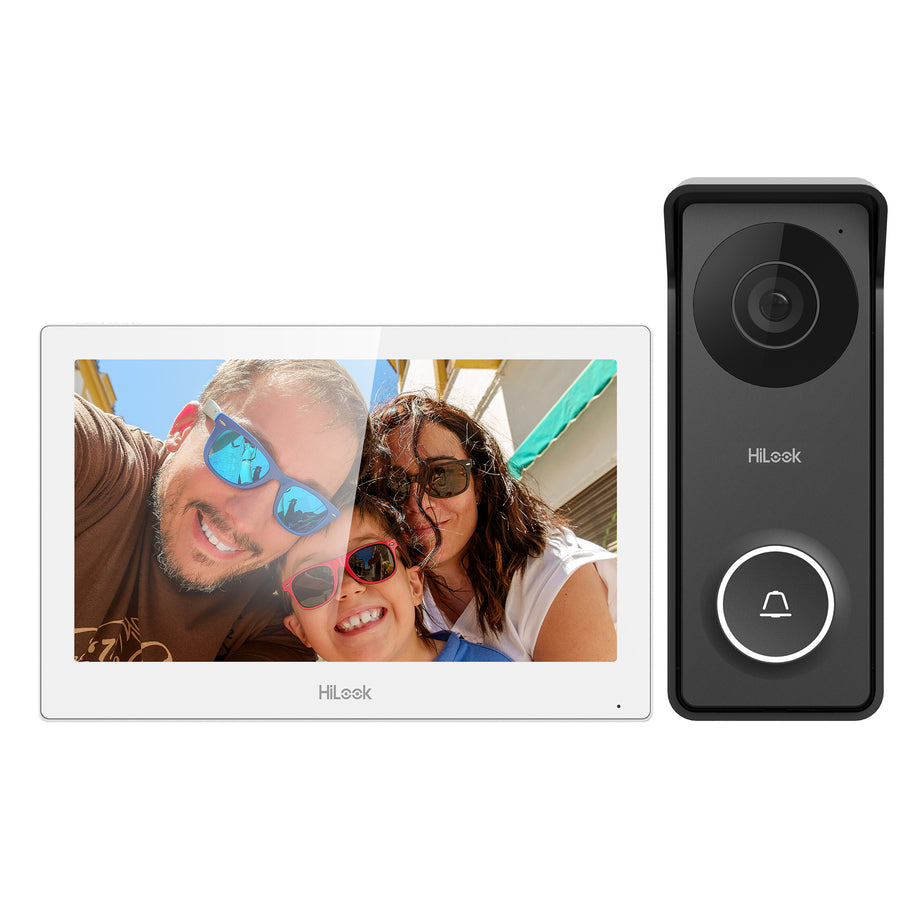

HiLook HA-KIT-H1 - Hybrid Intercom Kit w/ 7'' Colour Touch Screen & 2MP IP Indoor Station Analog Door
Features
HILOOK Hybrid Intercom Kit with 7" Colour Touch Screen & 2MP Camera. IP Indoor Station & Analog Door Recieve Video Calls, Unlock on Mobile APP, Anywhere, Any Time, IP65, Includes Rain Cover.
- Hik-Connect Mobile Control for remote access and monitoring
- HD TVI Video Quality with a 1280 × 720 resolution at 60fps

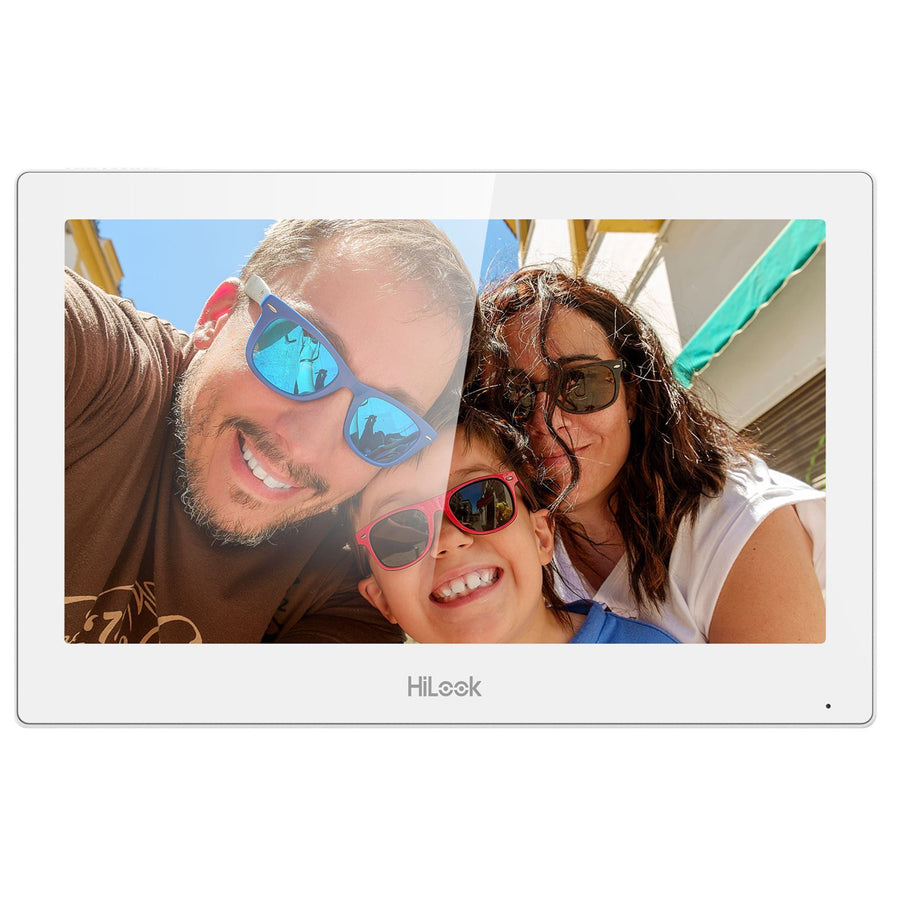

- 7-Inch Touch Screen with capacitive operation and 1024 × 600 resolution
- Wide Field of View (Horizontal: 117°, Vertical: 70°, Diagonal: 141°)
- Infrared Supplement Light for night vision up to 3 meters
- Built-in Omnidirectional Microphone & Loudspeaker for clear two-way audio
- Noise Suppression & Echo Cancellation for improved audio clarity
- Lock Control with 1 relay (max 30V 1A) for secure access
- Supports Up to 3 Indoor Stations & 1 Sub Door Station
- Wi-Fi 802.11 b/g/n Support for wireless connectivity
- TF Card Support Up to 128GB for local storage
- Wide Operating Temperature Range (-30°C to 60°C for door station, -10°C to 50°C for indoor station)

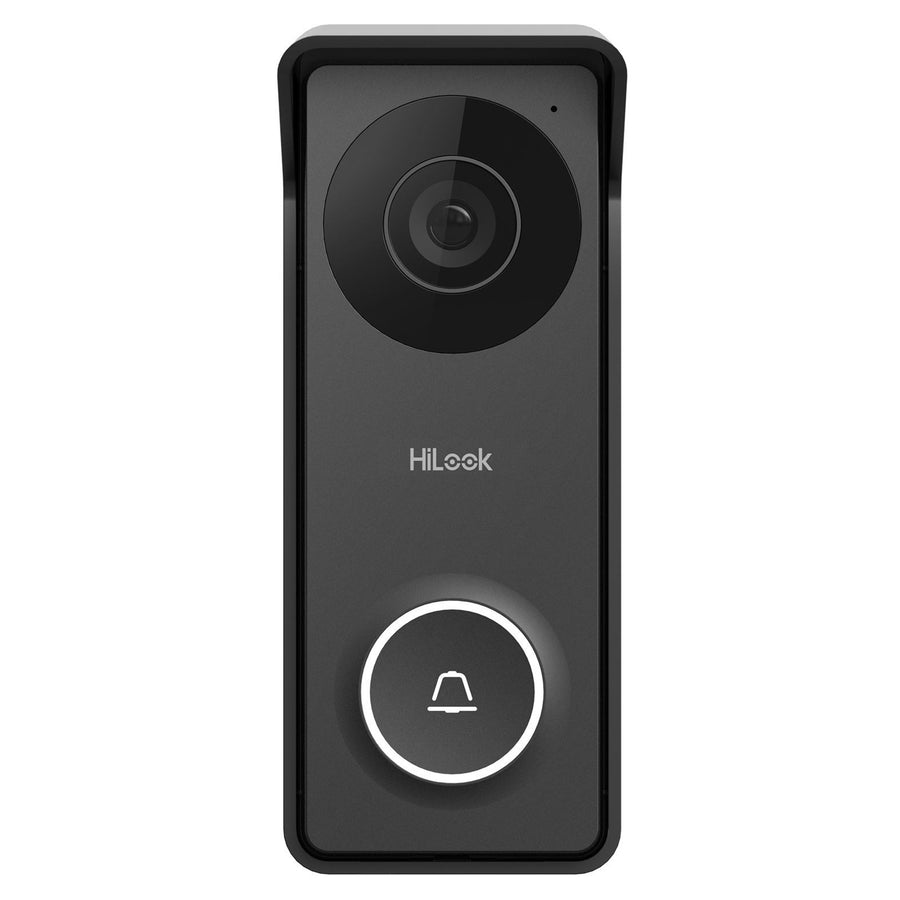

- Durable & Weather-Resistant Design (IP65, IK08 protection level for outdoor unit)
- Surface Mount Installation for both indoor and outdoor units
- Multi-Language Support including English, Spanish, French, German, Italian, Arabic, and more
Video footage viewable
- Via FREE mobile app
- On local monitor
- Over local network

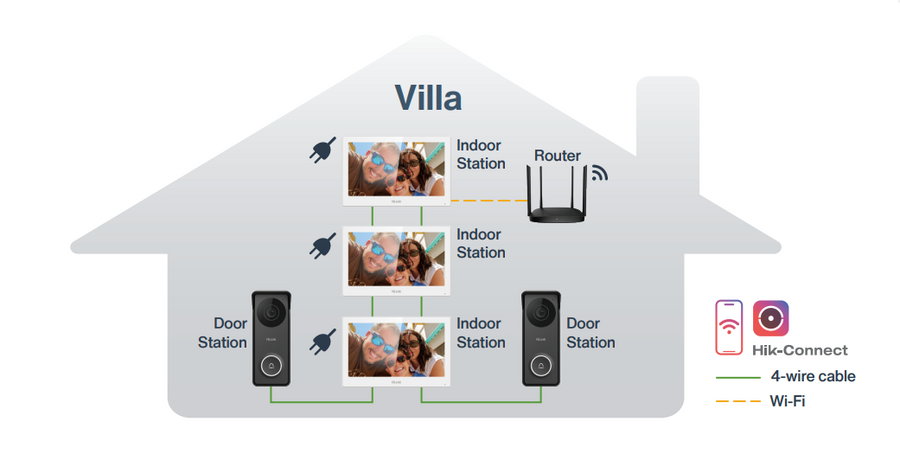

Topology
Specifications
Technical Specifications
| Supplement light | IR light, up to 3 m |
|---|---|
| Resolution | Stream resolution:1280 * 720@ 60fps |
| FOV | Horizontal: 117°, Vertical: 70°, Diagonal: 141° |
| Audio input | 1 built-in omnidirectional microphone |
| Audio output | 1 built-in loudspeaker |
| Linked indoor station capacity | 3 |
| Sub door station capacity | 1 |
| Card capacity | / |
| Lock control | 1 relay, max 30 V 1 A |
| Power supply input | 12 VDC |
| Debugging port | 1 |
| Four-Wire interface | 1 |
| Button | 1 physical button(s) |
| Indicator | / |
| Power supply | 12 VDC |
| Power consumption | ≤ 4 W |
| Working temperature | -30 °C to 60 °C (-22 °F to 140 °F) |
| Working humidity | 10% to 90% (no-condensing) |
| Application environment | Outdoor |
| Dimension (W × H × D) | 55 mm × 145 mm × 24 mm (2.17" × 5.71" × 0.94") |
| Installation | Surface mounting |
| Protective level | IP65, IK08 |
| Material | Aluminum alloy and Plastic |
| Operation system | Embedded Linux operation system |
| RAM | 128 MB |
| ROM | 32 MB |
| Processor | Embedded high performance processor |
| Type | Colorful TFT |
| Resolution | 1024 × 600 |
| Viewing Angle | Horizontal 160°, vertical 130° |
| Contrast | 700 (Typ) |
| Luminance | 250 cd/m² （Typ） |
| Operatiing method | Capacitive touch screen |
| Screen size | 7-inch |
| Audio input | 1 built-in omnidirectional microphone |
| Audio output | 1 built-in loudspeaker |
| Audio compression bitrate | 64 Kps |
| Audio compression standard | G.711U, G.711A |
| Audio quality | Noise suppression and echo cancellation |
| Linked network camera capacity | / |
| Linked indoor extensions capacity | 2 |
| Linked doorphone capacity | 2 |
| Linked analog camera | 1 |
| Wi-Fi | Wi-Fi 802.11 b/g/n |
| Network interface | / |
| RS-485 | / |
| Alarm input | 2 |
| Alarm output | / |
| Power supply input | 12 VDC |
| TF card | Support TF card, up to 128 G |
| Debugging port | 2 |
| Four-Wire interface | 4 |
| Relay | / |
| Button | 0 physical button |
| Power supply | 12 VDC |
| Power consumption | ≤ 5 W |
| Working temperature | -10 °C to 50 °C (14 °F to 122 °F) |
| Working humidity | 10% to 90% (no-condensing) |
| Dimension (W × H × D) | 175 mm × 113.5 mm × 18.1 mm (6.89" × 4.47" × 0.71") |
| Installation | Surface mounting |
| Application environment | Indoor |
| Weight | Without package: 260 g (0.573 lb) |
| Language | English, Russian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese (Brazil), Spanish, Hebrew, Romanian, Turkish, Estonian, Danish, Swedish, Norwegian, Finnish, Vietnamese, Croatian, Slovenian, Serbian, Arabic, Portuguese (Portugal), Lithuanian, UzbekKazakh, Mongolian, Ukrainian, Latvian, Traditional Chinese |
| Brand | HiLook |
|---|---|
| Product Type | Smart Home & Security > Surveillance Accessories |
| Weight | 0.454 kg |
