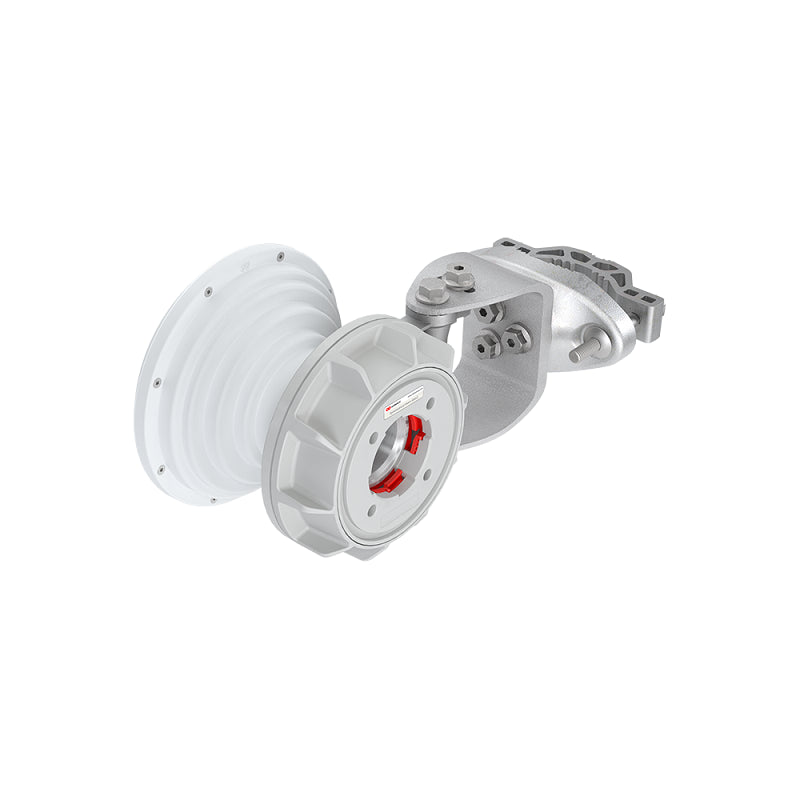

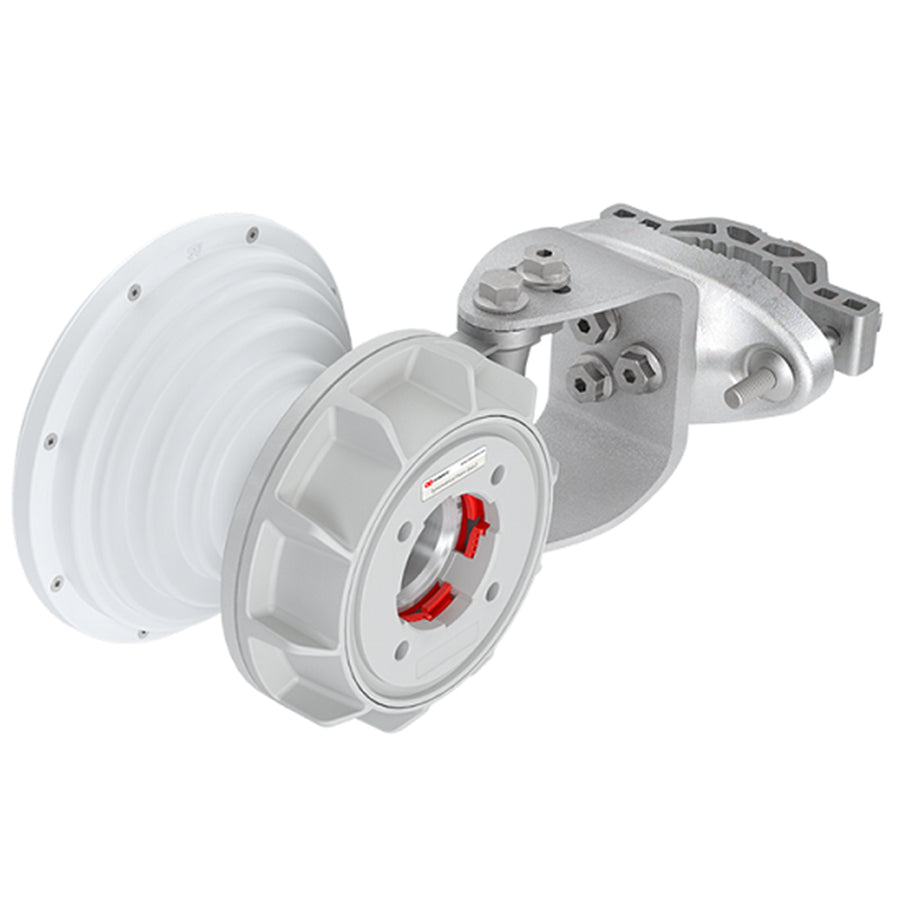

HG3-TP-S50 - RF Elements 5GHz Gen2 Symmetrical Horn 50 Degree Sector Antenna

RF Elements 5GHz Gen2 Symmetrical Horn 50 Degree Sector Antenna

- Compatible with RF Elements TwistPort Adaptors for many makes of Radio
- Unique Symmetrical Beam Performance
- No Side Lobes
- Wideband Performance
- Excellent Gain Across Spectrum
- Coverage Without Null
- Excellent Co-Location performance
- Ultimate Spectrum Efficiency For Everyone
- Compact Size

Symmetrical Horn TP Antennas Gen2

Game changing beam performance. Market leading system scalability. Superb build & ergonomics.

Game Changing Sector Antenna

Symmetrical Horn TP Antennas are scalar horn antennas with a symmetrical beam radiation pattern and game-changing TwistPortTM (TP) connector.

Deployed in field since 2014, they solve major weak points of mainstream sector antenna technologies and provide excellent noise rejection, network scalability and throughput increase. Approved by tens of thousands installations all around the globe, Symmetrical Horn TP Antennas are the new standard for fast and sustainable wireless.

Unique Beam Performance

Symmetrical Horn TP Antennas have a unique beam shape and characteristics. The beam section is circular: azimuth and elevation radiation angles are identical.

No Side Lobe

Symmetrical Horn TP Antennas have no side lobes, they literally focus energy into one main signal beam. Such behavior saves the most important resource in wireless - the spectrum. Thanks to these unique radiating properties, the radio collects and propagates significantly less noise in comparison to current mainstream sector antennas. The problem of noise is directly connected to antenna side lobes - basically an unavoidable feature in most competitive products. Symmetrical Horn TP Antennas behave differently, being basically "deaf" outside their main beam.

Wideband Performance

The beam pattern does not vary with frequency and the antenna gain is balanced over a very wide frequency range. These features make Symmetrical Horns TP antennas excellent sector antennas.

Excellent Gain Across 5 and 6 GHz Spectrum

Symmetrical Horn TP Gen2 Antennas cover an ultra-wideband spectrum: 5180-6775 MHz!

Coverage Without Null

Mainstream sector antennas have a radiation pattern that is very wide in azimuth cut but very flat in elevation cut. If an AP is too high, the customers that are too close will suffer from low AP signal.

Breakthrough Scalability

Symmetrical Horn TP Antennas offer breakthrough scalability of wireless systems. Unique beam performance and great co-location characteristics allow for a higher density of sectors than a traditional sector technology.

Co-Location Miracle

Symmetrical Horn TP Antennas have naturally attenuated side lobes and extremely low back radiation. Symmetrical Horn TP Antennas are perfect for high density cluster sector installations with high co-location requirements. Wide selection of beam angles allows for a wide range of deployment scenarios, covering high distance sectors as well as MicroPoPs.

TwistPort™ Connector

Symmetrical Horn TP Antennas feature the industry-changing TwistPortTM connector, a patent-pending quick-locking waveguide port. TwistPortTM is virtually lossless: with radios built according to RF Elements' Reference design, there are no coaxial RF connectors or RF cables that cause signal loss. Connecting radios is brilliantly simple - "twist and lock" - all done with one hand!

Easy Installation

Symmetrical Horn TP Antennas come pre-assembled from the factory and ready for immediate deployment. The installation is very easy and requires only a single tool.

Robust and Durable

Symmetrical Horn TP Antennas are solid aluminium bodies that are built to last and to resist any weather conditions. Use only the best materials: die cast, stamped and extruded aluminium; high quality ABS plastic, high density polyethylene; and stainless steel hardware.
