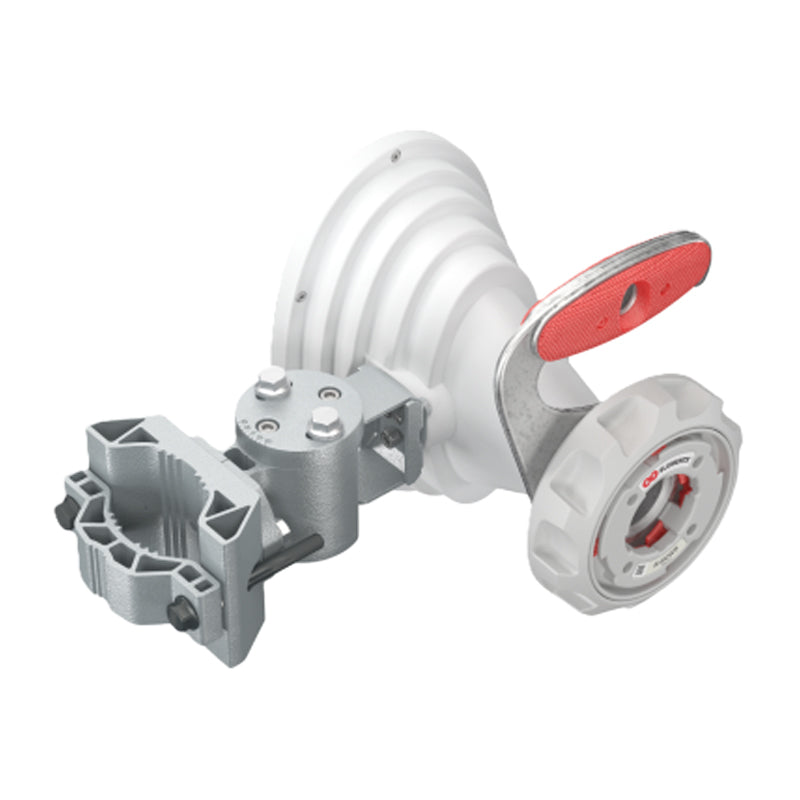

RF Elements Compact 5 GHz HG4 45 Degree Asymmetrical Horn Antenna

The new RF Elements 45° Asymmetrical Horn HG4 Antenna delivers an asymmetrical beam pattern and the game-changing TwistPort (TP) connector in a compact form factor of the HG4 Series. Together with 30° Symmetrical Horn HG4, it is a powerful tool for optimizing and splitting traditionally designed networks with 90° sectors. The combination of 30° and 45° HG4 Horns offers flexible coverage options, high antenna gain, and class-leading noise rejection for easy and cost-effective network scalability.

Unique Asymmetrical Beam

The 45° Asymmetrical Horn HG4 features a distinctive elliptical beam shape — 45° wide in azimuth and 30° in elevation. This asymmetrical pattern is ideal for deployments where a wider azimuth and narrower elevation provide better coverage, higher gain, and optimized RF performance.

Attenuated Side Lobes

The antenna’s design naturally suppresses side lobes, focusing energy into a single main beam. The functional absence of side lobes ensures excellent noise immunity and a high Signal-to-Noise Ratio (SNR) — critical for achieving superior throughput and link stability in modern wireless networks.

Stable H + V Patterns and Gain

The 45° Asymmetrical Horn HG4 maintains stable radiation patterns across a wide frequency range. It is optimized for balanced horizontal and vertical beam patterns, a true challenge for most dual-polarized asymmetrical antennas.

Balanced H+V performance ensures consistent link quality and stable operation in all conditions. The antenna covers a 1250 MHz bandwidth (5150–6400 MHz) with highly stable gain and beam pattern.

Breakthrough Scalability

RF elements® Horn Antennas are designed for exceptional network scalability. The compact HG4 Series now includes the 45° Asymmetrical Horn HG4, perfect for dense co-location environments.

By replacing a single 90° sector with two 45° HG4 sectors, operators can increase capacity, deliver higher throughput packages, and improve service stability — all with smaller, lighter antennas.

TwistPort Connector

The 45° Asymmetrical Horn HG4 features our proprietary TwistPort connector — a quick-locking waveguide port with virtually lossless performance.

Connecting a radio is brilliantly simple: “twist and lock” — done in seconds, even with one hand.

Cross-Platform Compatibility

Wide range of TwistPort Adaptors allows easy integration with the most popular connectorized radios from third-party vendors such as Ubiquiti®, Cambium Networks®, Mimosa®, and MikroTik®. All coaxial cabling and connectors are enclosed and protected inside the adaptor, ensuring reliable operation and weather resistance.

Details
Manufacturer's Code	HG4-TP-A45
Frequency Range	5150 - 6400 MHz
Gain	17 dBi
Azimuth Beam Width -3 dB	H 31° / V 30°
Elevation Beam Width -3 dB	H 21° / V 20°
Azimuth Beam Width -6 dB	H 44° / V 45°
Elevation Beam Width -6 dB	H 30° / V 29°
Beam Efficiency	90 %
Front-to-Back Ratio	30 dB
Antenna Connection	TwistPort™ Waveguide Port
Antenna Type	Asymmetrical Horn
Materials	UV Resistant ABS Plastic, Polyethylene, Aluminum, Stainless Steel
Environmental	IP55
Flame Rating	UL 94 HB
Pole Mounting Diameter	30-80 mm
Temperature	-30°C to +55°C
Wind Survival	180 km/h
Wind Load	30/41 N - Front/Side at 160 km/h
Effective Projected Area	247/335 cm² - Front/Side
Mechanical Tilt	± 25°
Dimensions	Single Unit Retail Box: 280 × 255 × 255 mm; 5 Units Carton Box: 1290 × 300 × 285 mm
Weight	Product: 2.53 kg; Product in Retail Box: 3.40 kg; Carton: 18.50 kg
Compatible Wireless Platforms	Any TwistPort™ compatible TPA or radio unit operating in dedicated frequency band
