-2%
Ubiquiti

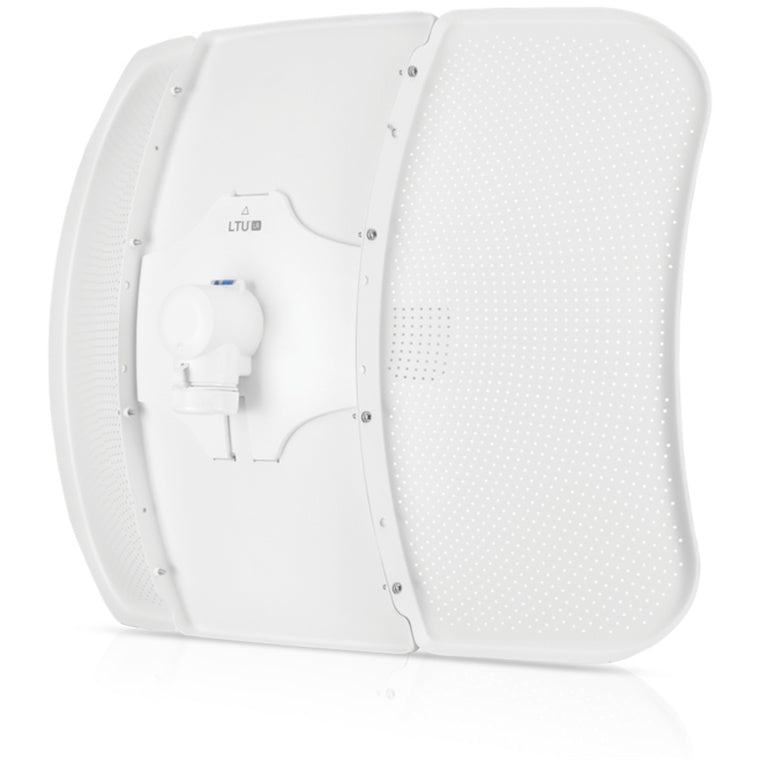

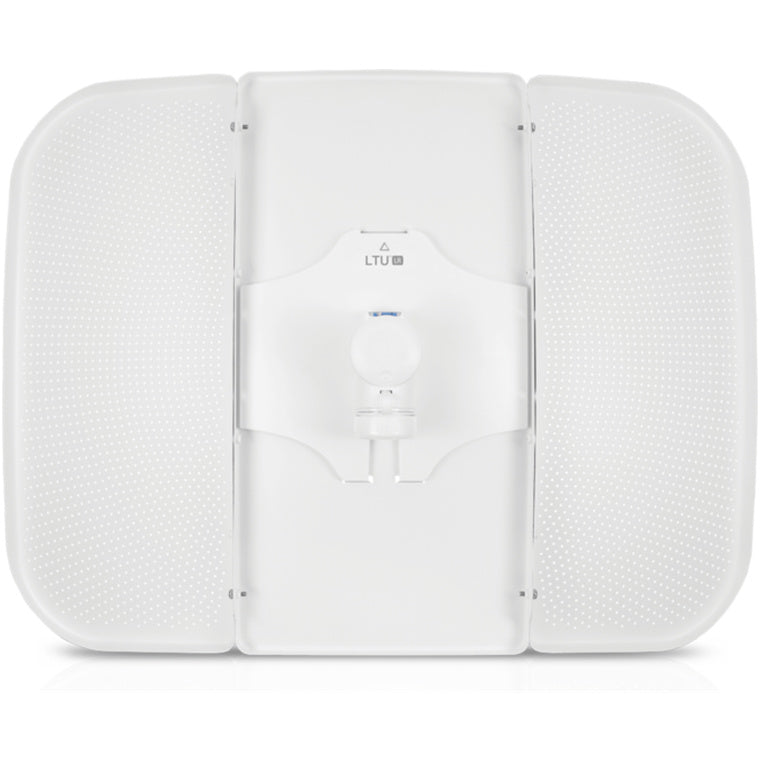

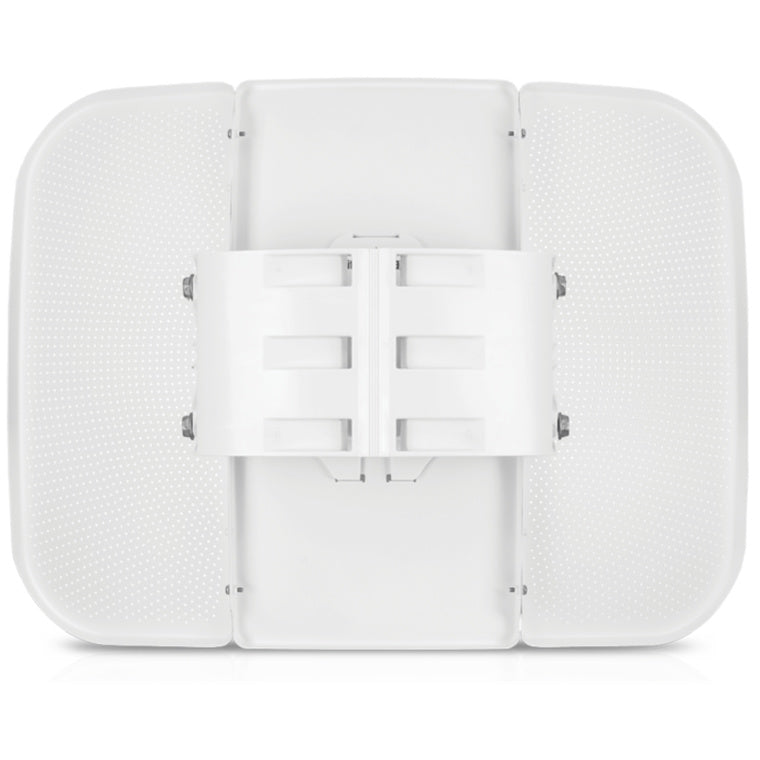

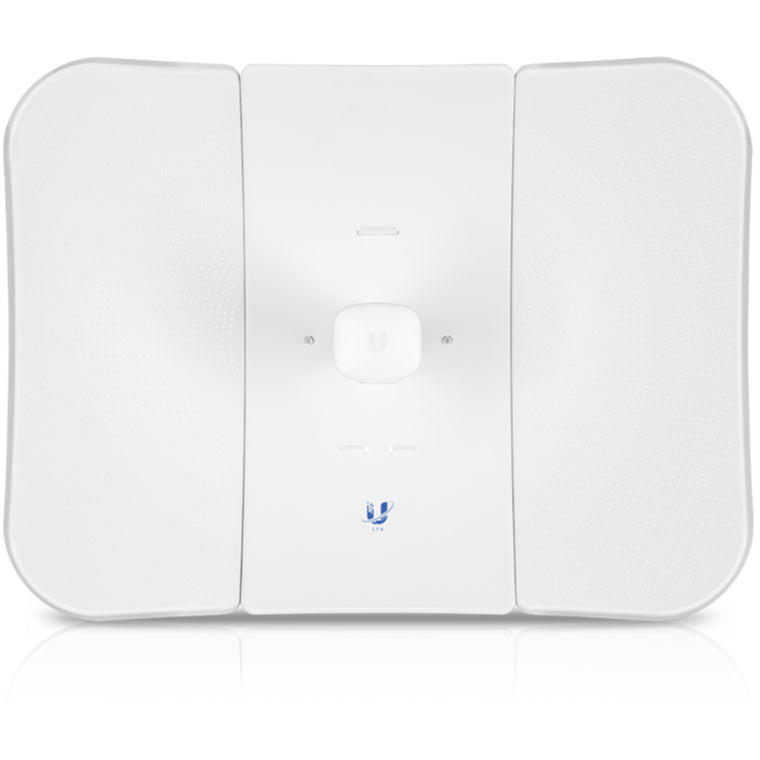

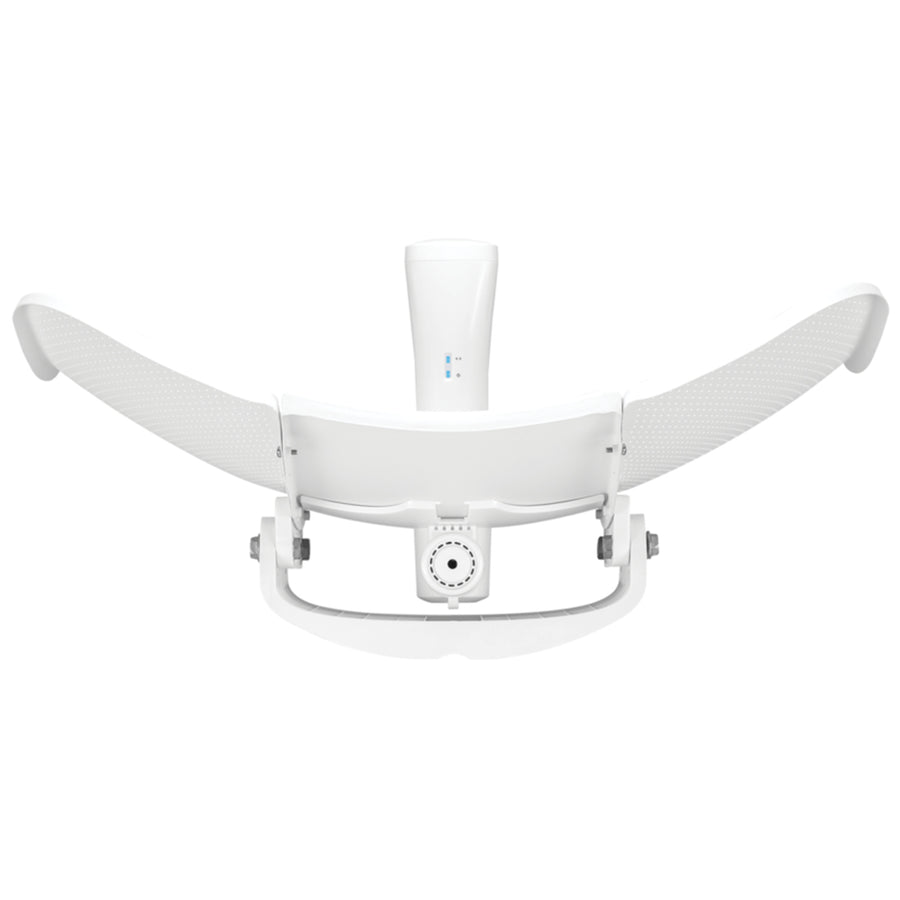

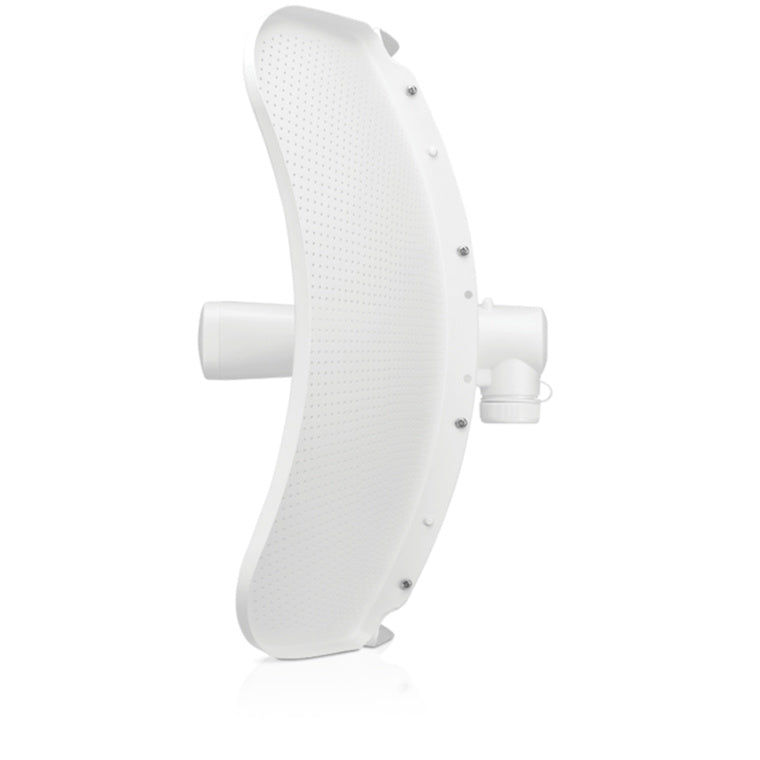

LTU-LR - Ubiquiti LTU-LR 5GHz LTU PTP/Client Radio with High Gain Antenna
$304.34$310.38
inc GST ▲
+GST
Free shipping over $299
Genuine product
7-day returns
Features
Incorporating innovative industrial design with advanced technology, the LTU LR is a Point-to-MultiPoint (PtMP) 5 GHz Radio with an integrated antenna designed for use as a PtMP CPE. LTU technology that breaks through the limitations of 802.11 Wi-Fi technology and supports 1024QAM for high performance and flexible bandwidth (10/20/30/40/50 MHz).
- PtMP CPE
- 1024 QAM
- 10/20/30/40/50 MHz channel bandwidth
- Central configuration management from AP side
- Frequency split
- Auto power adjustments
- Router mode support
- Range up to 30km
Specifications
Technical Specifications
| Dimensions | 512.5 x 385.75 x 258.3 mm(20.18 x 15.19 x 10.17") |
|---|---|
| Weight | 1.360 kg (2.998 lb)1.735 kg (3.825 lb) with Mount |
| Networking Interface | 1x 10/100/1000 Ethernet Port |
| Enclosure | Outdoor UV Stabilized Plastic |
| Max. Power Consumption | 8.5W |
| Power Supply | 24V, 0.5A Gigabit PoE Adapter (Included) |
| Power Method | 24V Passive PoE (Pairs 4, 5+; 7, 8-) |
| Voltage Range | 22 - 26V |
| Max. Conducted TX Power | 22 dBm (per Chain) |
| Gain | 26 dBi |
| Mounting | Pole-Mount (Kit Included) |
| Wind Loading | 550 N @ 200 km/h(123.6 lbf @ 125 mph) |
| Wind Survivability | 200 km/h(125 mph) |
| ESD/EMP Protection | ± 24kV Contact/Air |
| Operating Temperature | -40 to 60° C (-40 to 140° F) |
| Operating Humidity | 5 to 95% Noncondensing |
| Certifications | CE, FCC, IC |
| Brand | Ubiquiti |
|---|---|
| Product Type | Networking > Network Accessories > Antennas |
| Weight | 2.5 kg |
| Warranty |
|---|
Note:
Warranty period is as stated above unless the manufacturer has chosen to specify a longer period.
All warranties are return to base unless otherwise specified.
Shipping Information
- Free NZ-wide shipping on orders over $299
- Standard delivery 2–5 business days
- Rural delivery may take an additional 1–2 days
- Same-day dispatch for orders placed before 2pm (weekdays)
Returns Policy
- 7-day returns on unused items in original packaging
- Faulty or damaged products covered under warranty
- Contact our support team to initiate a return
