Mars Antennas
Mars Antennas ANT-265 - MARS 5dBi 480-580 MHz Omni Directional Antenna
$107.00
Free shipping over $299
Genuine product
7-day returns
ANT-265

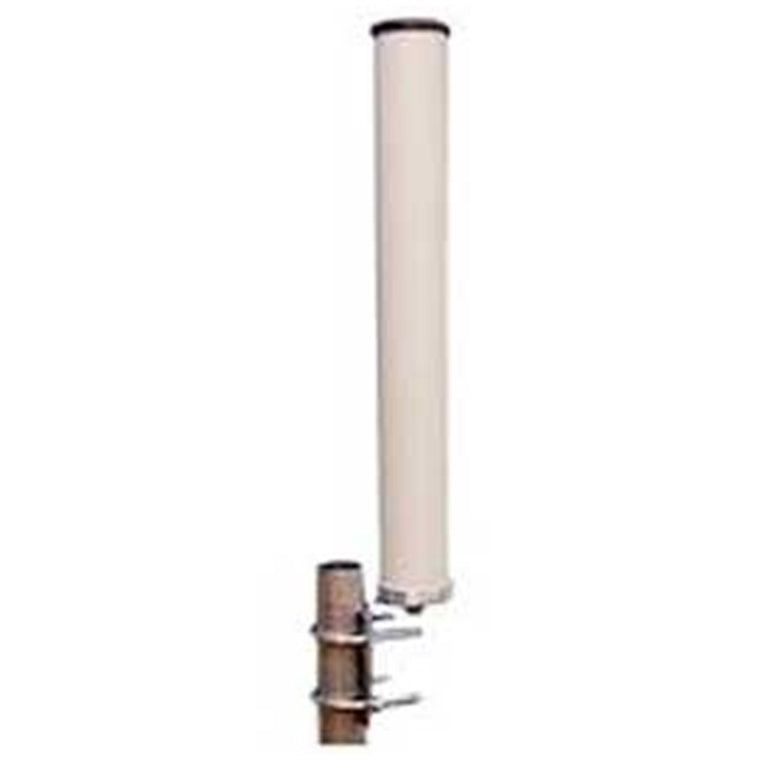

Mars Antennas ANT-265 - MARS 5dBi 480-580 MHz Omni Directional Antenna
Description
MARS 5dBi 480-580 MHz Omni Directional Antenna. The MARS MA-WO530-5 is an OMNI Directional Antenna covering 480-580 MHz providing a stable and efficient performance with 5dBi of gain. This antenna is a highly suitable for TV White Space (TVWS) among many other applications.
Features
- Suitable for TV White Space
- NB-IoT
Specifications
| Details | |
|---|---|
| Manufacturer's Product Code | MA-WO530-5 |
| Frequency Range | 480-580 MHz |
| GAIN, typ | 5 dBi |
| VSWR, max | 2 : 1 |
| Polarization | Linear, Vertical |
| 3 dB Beam-Width, H-Plane, typ | Omni Directional 360 degrees |
| 3 dB Beam-Width, E-Plane, typ | 35 degrees |
| Input power, max | 50 Watt |
| Input Impedance | 50 Ohm |
| Anti Static Protection | DC Grounded |
| Dimensions (ØxH) | 760 x 60 mm |
| Weight | 550 grams |
| Connector | N-Type, Female |
| Radome | UV Protected Plastic |
| Mount | Aluminum Protected Through Chemical Passivation |
| Operating Temp Range | -30°C to +70°C |
| Wind Load | 200 km/h (survival) |
| Vibration | According to IEC 60721-3-4 |
| Flammability | UL94 |
| Water Proofing | IP-65 |
| Humidity | ETS 300 019-1-4, EN 302 085 (annex A.1.1) |
| Brand | Mars Antennas |
|---|---|
| Product Type | Networking & Wireless |
| Weight | 0.5 kg |
