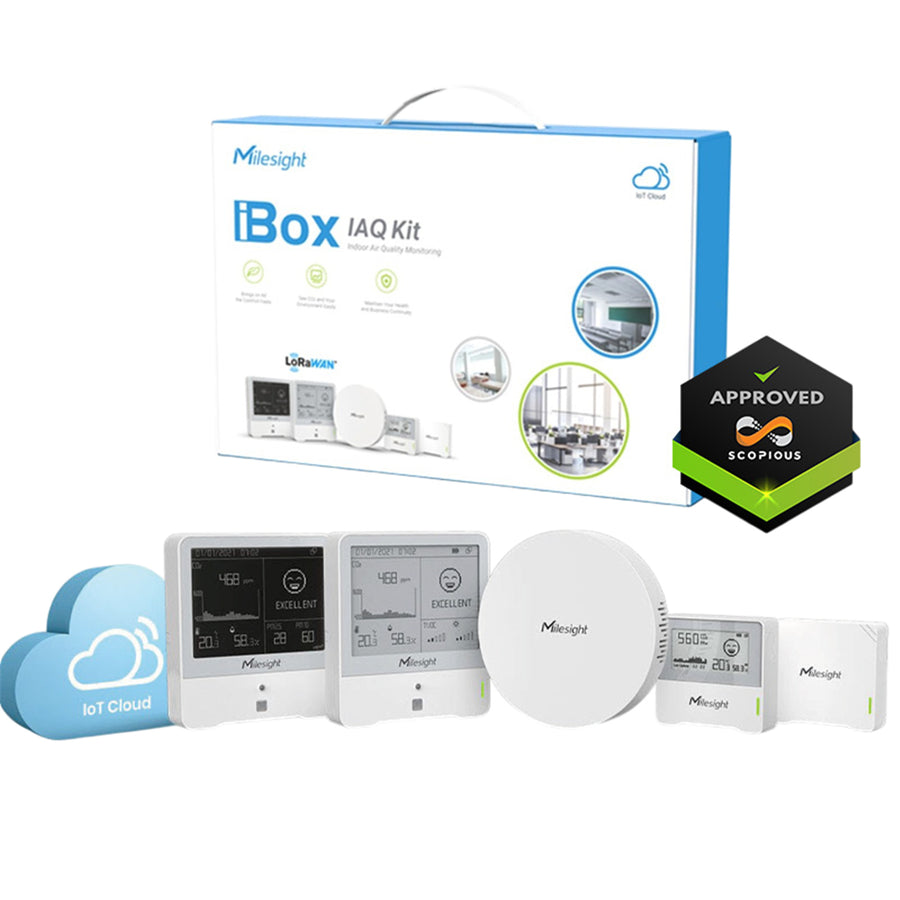

Milesight IAQ iBox Kit - LoRaWAN AU915/AS923 IoT Starter Kit

This kit includes:

UG63-915M - Milesight UG63 Indoor AS923 LoRaWAN gateway
2 x AM103-915M - Milesight LoRaWAN IoT AM103 Indoor Ambience Monitoring Sensor - Temp, Humidity and CO2
2 x AM307-915M - Milesight AM307-915M LoRaWAN 7 in 1 Indoor Ambience Monitoring IoT Sensor - Temp, Humidity, PIR, Light, TVOC, Barometric Pressure and CO2

Milesight iBox IAQ Starter Kit offers an easy-to-install AU915/AS923 LoRaWAN IoT indoor air quality monitoring solution including ambience monitoring sensors, gateway and cloud platform. This kit can definitely bring comfort feels to your indoor space by monitoring the temperature, humidity, concentration of CO2, Volatile Organic Compounds and many more environment conditions.

The Air Quality kit is ideal for monitoring conditions inside a Warehouse, Office space, Living Space or Workshop allowing for safer living and working space for both your staff and customers by providing all the data you need to a dashboard and providing alerts as soon as the conditions are unsafe allowing you to protect yourself and workers.

- Robust IP66 rated enclosures
- Configuration via NFC
- Free access to Milesight Pro Cloud for 1 year
- Low power consumption
- IoT for next-generation environmental monitoring
- Easy to use

UG63 Mini LoRaWAN® Gateway

Milesight UG63 Indoor AU915/AS923 LoRaWAN IoT gateway with PoE support. The Milesight UG63 is a 8-channel lightweight indoor LoRaWAN IoT gateway. Adopting the SX1302 LoRa chip and a high-performance CPU, The UG63 supports connections with more than 2000 nodes and can cover 15 km in sight and about 2 km in an urbanized environment. With its compact size, it is ideally suited for offices, parking lots, campuses, hotels, exhibition centers and many other indoor areas. It also can be used to provide coverage for indoor blindspots. UG63 has both integrated mainstream network servers(such as TTN, ChirpStack, etc.).

- High performance NXP industrial processor with big memory
- NXP Quad-Core Processor
- Semtech SX1302 LoRa Chip
- Multiple Backhaul Connectivity options
- Embedded Network Server
- Compatible with Multiple Network Servers
- Supports Listen Before Talk (LBT)
- Supports 2000+ end devices

AM103 IAQ Sensor

The Milesight AM103 is a compact indoor ambience monitoring IoT sensor for measurement of temperature, humidity and CO2. These data will be shown on the E-ink screen in real-time, which allow to quantify the indoor environment and comfort. AM103 is widely used for office, store, classroom, hospital, etc. Apart from screen display, sensor data can also be transmitted using LoRaWAN®. With this low-power technology, AM103 can work for more than 3 years with 2 replaceable batteries. Combining with Milesight LoRaWAN® gateway and Milesight IoT Cloud solution, users can manage all sensor data remotely

- Integrated with multiple sensors: humidity, temperature, CO2
- Visual data and clear emoticons to understand the comfort level easily via E-Ink Screen
- Equipped with traffic light LED to indicate device status and threshold alarms
- More than 3 years battery life
- Compliant with standard LoRaWAN® gateways and network servers
- Built-in NFC for easy configuration
- Perfect device for Environmental Monitoring for Business, Education and Homes

AM307 IAQ Sensor

The Milesight AM307 is a compact indoor ambience monitoring IoT sensor for measurement of temperature, humidity, light, CO2 concentration, TVOC, barometric pressure, and motion. The data will be shown on the E-ink screen in real-time, which helps to measure the indoor environment and comfort. The AM307 series is widely used for business offices, stores, classrooms, hospitals, homes, etc.

- Integrated with multiple sensors: humidity, temperature, CO2, light, barometric pressure,
- Multiple display modes and clear emoticon to easily understand the comfort levels via screen
- Equipped with traffic LED and buzzer to indicate device status and threshold alarms
- Support more than 20,000 data records store locally
- Compliant with standard LoRaWAN® gateways and network servers
- Perfect device for Environmental Monitoring for Business, Education and Homes

Application Topology
