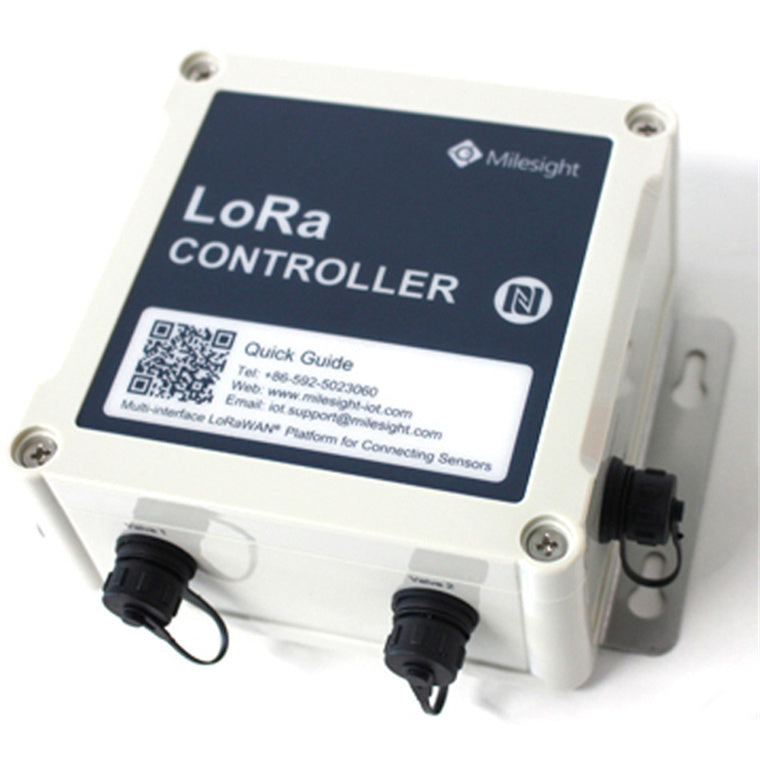

Milesight UC512 AU915/AS923 LoRaWan IoT Controller with Latching Solenoids and Pulse Meter support

The UC512 Battery Powered LoRaWAN® wireless IoT controller is a device used to control the status of DC latching solenoids. It contains 2 solenoid interfaces and 1 pulse interface, which supports 2 pulse meters. The UC512 is perfect for multiple use cases including Golf Course/Farm/Lifestyle irrigation, Dust suppression, frost suppression, etc.

- Compatible with standard DC latching solenoids
- Transmission distance up to 11km with line of sight
- Waterproof design including IP67 case and M12 connectors
- Solar powered
- Quick wireless configuration via NFC
- Data visualization and remote management via Milesight IoT Cloud

Up to 16 Schedule Events

Supporting different typs of control mode
You can determine the valve, irrigation timing, and water usage in each rule engine.

Programmable Unit per Pulse

- One-time scheduled irrigation
- Periodic Irrigation within Pre-determined Period
- Trigger through Milesight D2D
- Trigger through pre-determined conditions

Real-time Alarming

- Every increase of water volume over threshold
- Accumulated Water volume within pre-detemined period over Threshold

Water Flow Monitoring

Equipped with 2 Digital Inputs for Connecting Pulse Water Meters

- Programmable Unit per Pulse
- Enable Precise Irrigation

Ultra-Rugged Enclosure for Harsh Environment

The UC51x Series features an IP67 rated enclosure and an M12 connector that offer robust protection against water ingress, corrosion, and vibrations. This combination of features ensures long-term, dependable operation in challenging all-weather environments.

Autonomous Operation

The UC51x Series can execute the preset commands autonomously even when the network is unavailable.

Multicast for Control in Bulk

By utilizing multicast, users can efficiently configure a group of devices in bulk. This feature streamlines the setup process, making it effortless to simultaneously manage multiple UC51x Controllers and enabling batch solenoid valve control, ultimately saving time and effort.

Internal and External Antenna Versions

The UC51x Series provides flexibility in antenna placement, ensuring optimal signal strength and range, even in environments with obstacles or challenging RF conditions.

LoRaWAN® Based

- Penetrating Signals: data transmission range up to 2 km in urban areas and 15 km in rural areas
- High Compatibility: compliant with standard LoRaWAN® gateways and network servers
