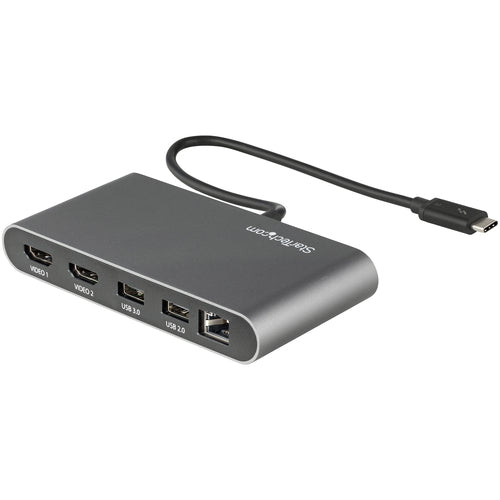

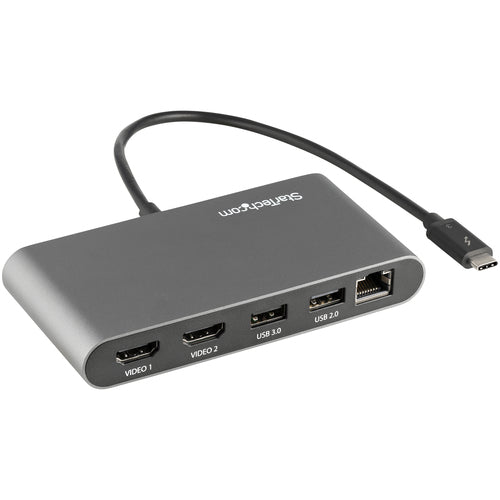

StarTech.com TB3DKM2HDL - MINI TB 3 WITH 30CM+ TETHER CABLE

SKU: TB3DKM2HDL ● In Stock
$153.90$175.16
inc GST ▲ +GST
Free shipping over $299 Genuine product 7-day returns

Features

REPLACEMENT FOR TB3DKM2HD

New version offers same functionality as TB3DKM2HD, with addition of extra-long 11" (28cm) attached cable provides extended reach to reduce port/connector strain on MacBooks and laptops on riser stands

THUNDERBOLT 3 CERTIFIED MINI DOCK

40 Gbps video & data throughput, dual monitor 4K 60Hz HDMI output, 2-Port USB-A Hub (1x USB 3.1 Gen 1 5Gbps & 1x USB 2.0) & Gigabit Ethernet port w/ PXE boot and WoL

COMPACT SIZE

This bus-powered, portable thunderbolt 3 mini dock is designed for shared and small workspaces; Use this Thunderbolt 3 multiport adapter for work from home or on-the-go/travel use

BROAD LAPTOP COMPATIBILITY

No drivers; TB3 dock works w/ MacBook Pro 13, 16 and Air (extended dual displays on MacBook Pro/Air w/ Intel processor & single display w/ Apple M1 Chip), Windows-based TB3 laptops like Dell XPS, HP EliteBook, Lenovo X1 Carbon

FOR HIGH POWERED LAPTOPS

For users who need to use their laptop power adapter as they require 100W or more to keep their laptop charged; but still want Thunderbolt 3 dock performance & functionality



This certified Thunderbolt™ 3 docking station is a compact mini dock, delivering essential connections for productivity. The bus-powered dock connects dual 4K HDMI displays, Gigabit Ethernet, and two USB-A (USB 3.2 / 2.0) ports and for flexible set up, the attached Thunderbolt 3 cable has an extended length of (11 in./ 28 cm).

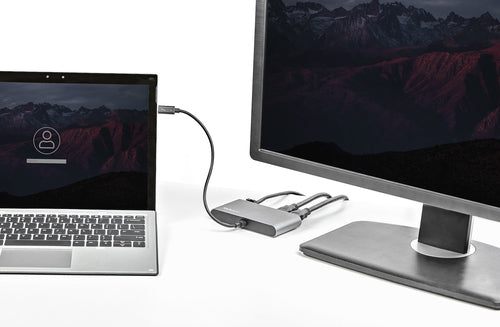

Create a Dual-4K 60Hz Workstation

Great for editing 4K video or other Ultra HD tasks, this portable Thunderbolt™ 3 to HDMI dock supports 40 Gbps of throughput and 4K resolution at 60Hz on dual HDMI monitors, through a single Thunderbolt™ 3 port. Run resource-demanding applications on two independent displays without draining system resources.

Connect your laptop to: 2x 4K HDMI displays (up to 4096 x 2160p @ 60Hz)

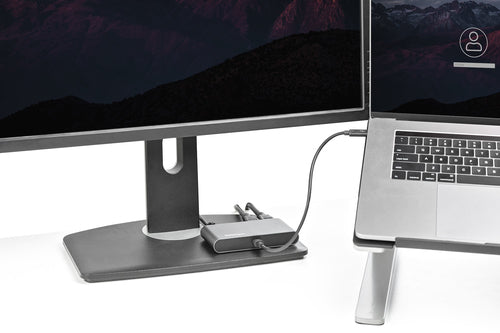

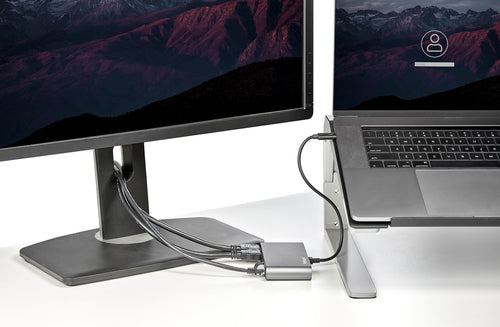

Compact Size & 11-Inch Attached Host Cable

At just 2.4" x 4.9" (6.1 cm x 12.4 cm), this dock takes up minimal room on your desk and in your laptop case. The dock's 28 cm (11 inches) attached cable provides extended reach to reduce port/connector strain on MacBooks and laptops on riser stands, or if needed, offers the flexibility to position dock further away from the laptop on your desk.

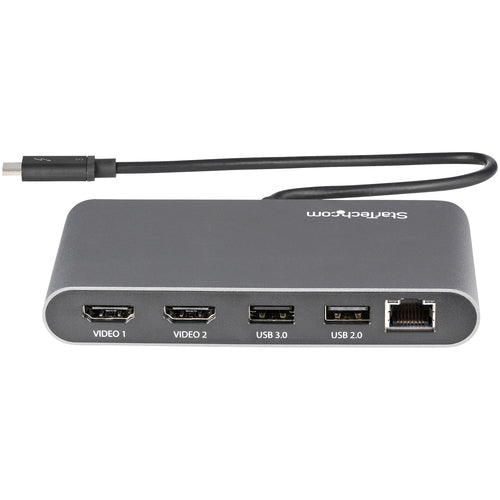

The Ports You Need Most

- 1x USB 3.2 Gen 1 Type-A port (5Gbps)
- 1x USB 2.0 Type-A port
- 1x Gigabit Ethernet port (with PXE Boot and Wake-on-LAN support)

Ideal for Power-Demanding Workstation Setups

As many high powered, later generation laptops optimally require more than 100W of power to stay charged, some users prefer to use their laptop's power adapter vs. using their docking stations to keep laptops charged.

This bus-powered TB3 mini dock is ideally suited for those users, providing full Thunderbolt™ 3 docking station performance and functionality, while their workstation laptops are separately charged.

Specifications

Technical Specifications

Operating Temperature 5°C to 40°C
Storage Temperature -20°C to 70°C
Humidity 0% to 95% (non-condensing) at 25°C
Displays Supported 2
Fast-Charge Port(s) No
4K Support Yes
Industry Standards 1Gb connectivity to any 1000Base-T device (IEEE802.3ab Compliant)100Mb connectivity to any 100Base-TX device (IEEE802.3u Compliant)10Mb connectivity to any 10Base-T device (IEEE802.3i Compliant)
Audio No
Interface Thunderbolt 3
Bus Type Thunderbolt 3
Chipset ID Intel JHL6540 (Alpine Ridge)Texas Instruments TPS65983AParade PS176ASMedia ASM1042AIntel WGI210
Maximum Cable Length 11.0 in [28 cm]
Maximum Digital Resolutions 4K 60Hz
PXE Yes
Color Black & Silver
Form Factor Compact
Product Height 1.1 in [27.0 mm]
Product Length 4.9 in [12.4 cm]
Weight of Product 5.2 oz [147.8 g]
Product Width 2.7 in [69.0 mm]
Material Aluminum and Plastic
Cable Length 11.0 in [28 cm]
Power Source Bus Powered
OS Compatibility Windows® 10 (32/64 bit), 8.1 (32/64bit), 7 (32/64bit)Windows® Server 2008 R2, 2012(32/64bit)macOS 10.10 -10.15, 11.0
Note MacBook Air and MacBook Pro systems using the new Apple M1 chip support only a single external display over the Thunderbolt 3 ports, even when connected to a Thunderbolt 3 docking station with more than one video output. This single monitor limitation does not affect Intel-based Macs with Thunderbolt 3.
Included in Package Docking StationUser Manual
