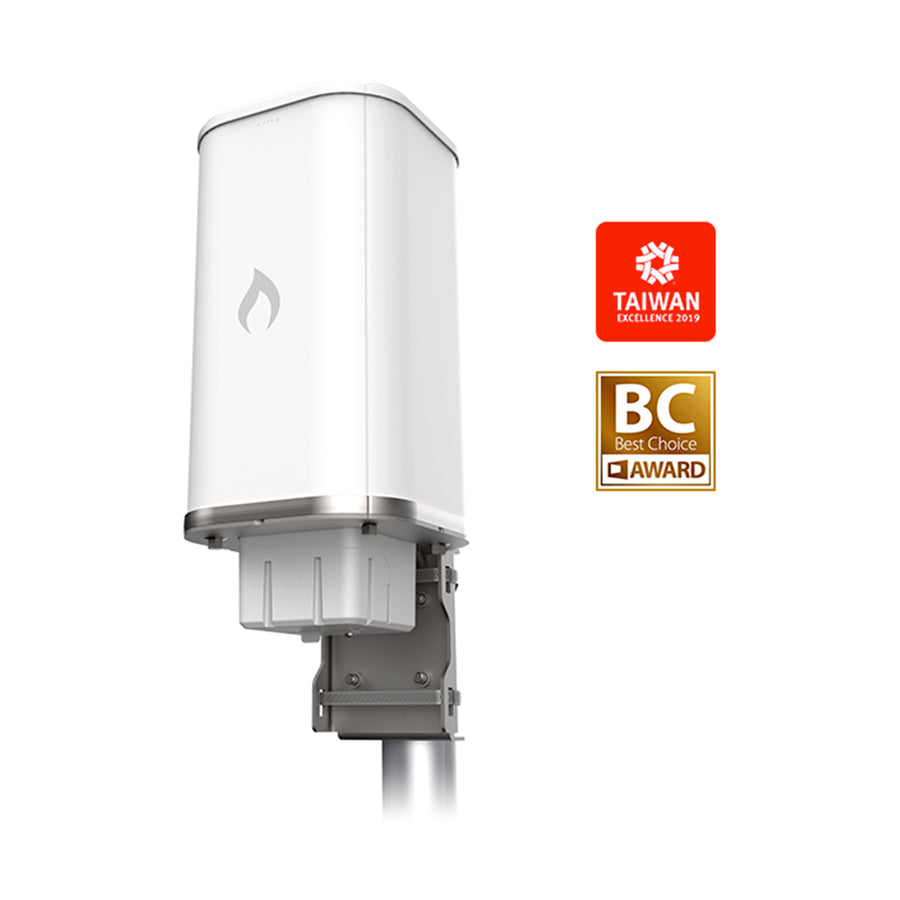

ML-60-10G-360 - IgniteNet MetroLinq 10Gbps mmWave Tri-Band 60GHz/5GHz/2.4Hz PtMP Radio with built in Omnidirectional Antenna
IgniteNet

ML-60-10G-360 - IgniteNet MetroLinq 10Gbps mmWave Tri-Band 60GHz/5GHz/2.4Hz PtMP Radio with built in Omnidirectional Antenna

SKU: ML-60-10G-360 ● In Stock
$419.00
Free shipping over $299 Genuine product 7-day returns

ML-60-10G-360

ML-60-10G-360 - IgniteNet MetroLinq 10Gbps mmWave Tri-Band 60GHz/5GHz/2.4Hz PtMP Radio with built in Omnidirectional Antenna

Description

IgniteNet MetroLinq 10Gbps mmWave Tri-Band 60GHz/5GHz/2.4Hz PtMP Radio with built in Omnidirectional Antenna. MetroLinq Triband (60+5+2.4Ghz) Concurrent Enterprise Omni 10 Gigabit Access Point with internal antenna and 10G SFP+. IgniteNet’s MetroLinq 10G Tri-band Omni is the world’s first cost-effective mmWave 60GHz + 5GHz + 2.4GHz PTMP base station enabling high performance, interference-free connections worldwide up to 10 Gbps. With a total OTA capacity of 16.393Gbps, the MetroLinq 10G is the first AP capable of providing fibre-like connections to many clients simultaneously. It also has an added advantage of being license-free in most markets, allowing ultra-fast deployment and without the hassle of other frequency bands. The MetroLinq 10G also includes both 2.4 & 5GHz 802.11ac Wave 2 radios which can be used to provide access in harder to reach nLOS applications ranging from hotspots to fixed broadband and many more.

Compatible CPE Radios ML2.5-60-19, ML2.5-60-35, ML-60-19, ML-60-35, ML-60-LW and SF-AC1200-2
Features
  • 10 Gbps Wireless throughput!
  • Management VLAN support and VLAN pass-through
  • Supports Service Provider and Enterprise type networks
  • Stand-alone or Cloud-controlled operating modes
  • Base Station mode and up to 96 endpoints (24 endpoints at launch - 60GHz)
  • Link failover/backup (60GHz + 5GHz) Per Client
  • 128bit AES Encryption (standard; 2.4GHz, 5GHz, and 60GHz)
  • SNMP Monitoring with Private MIB
  • Delivers true multi Gigabit access to clients

Specifications

Details
Manufacturer's Code ML-60-10G-360

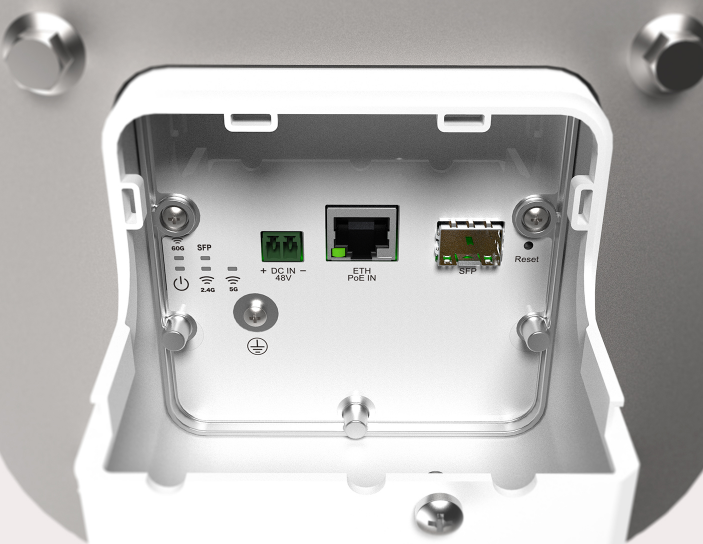

Hardware Features 1x 1Gbps Base-T Ethernet Port (PoE IN), 1x SFP+ (10Gbps) Port, 1x Screw Terminal Block (Power IN), Dual flash image support
Antennas 3 x 17dBi (60GHz) 120º, 4 x 12dBi (5GHz) 90º, 4 x 9dBi (2.4GHz) 90º
LEDs Power, 60GHz, 5GHz, 2.4GHz, SFP
Dimensions (L X W X H ) 217.4 x 179.5 x 455.3mm (8.6 x 7.1 x 17.9in)
Weight 4,060 g (8.95 lb)
Power 44-53V Passive PoE IN or DC
Power Consumption RMS 33 Watts, Peak 55 Watts
POE Pinout Pins 1,2,4,5 (+) Pins 3,6,7,8 (-)
Compliance FCC/IC, CE
Range Up to 150m (Omni to Omni or ML LW, location dependent), Up to 400m (19cm to Omni, location dependent), Up to 700m (35cm to Omni, location dependent), Up to 2km (Omni to ML 5, location dependent)
RF Performance (TX) 60GHz: 14dBm @ 4.62Gbps (x3), 5GHz: 31dBm@6Mbps, [email protected], 2.4GHz: 31dBm@6Mbps, [email protected]
RF Performance (RX) 60GHz: -74dBm @MCS1; -60dBm @ MCS9, 5GHz: -90dBm @MCS0; -60dBm @ MCS9, 2.4GHz: -90dBm @MCS0; -64dBm @ MCS9
Operating Temperature -30Cº to 50Cº (-22 to 122F)
Store Temperature -40Cº to 70Cº (-40 to 158F)
Operating Humidity 10 to 90% non-condensing (RH)
CPE Radios ML2.5-60-19 & ML2.5-60-35
