MS-C5341-X30PE - Milesight 30X AI 5MP High Speed PTZ Dome Network IP Camera - Multi Cable Out
Features

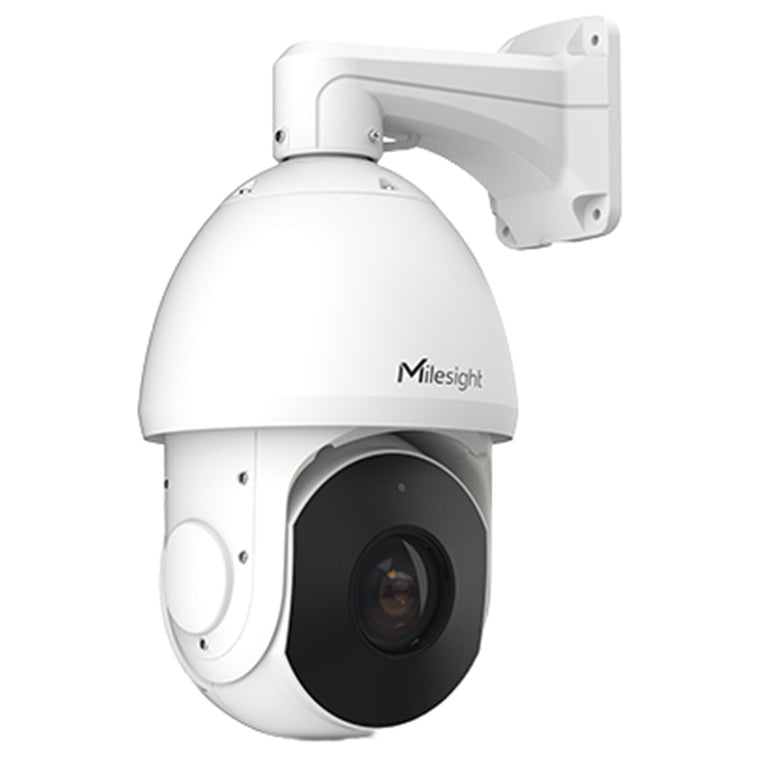

Milesight 30x AI 5MP High Speed PTZ Dome Network IP Camera - Multi Cable Out
The Milesight 30X High speed 5 Mega Pixel dome network IP camera is perfect for mass CCTV deployment. Powered by an advanced AI engine, Milesight's new generation of video analytics boasts higher accuracy with a pre-trained deep learning model and will continuously learn new algorithms automatically. Milesight cameras can intelligently filter objects to focus on detecting humans and vehicles, this feature coupled with multiple event rules (including region entrance, object removed, loitering, etc.) ensures access to diverse deployments, allowing a smarter and safer world.
- ONVIF Profile G & Q & S & T, API Compatible
- Supports 802.3at PoE
- Supports H.265+/H.265/H.264+/H.264
- 30x Optical Zoom
- Automatic Defogging using an inbuilt fan and heater
- 360° endless Pan, 90° auto flip Tilt * Pan Manual Speed: 0.1°~400°/s, Preset Speed: 400°/s
- Tilt Manual Speed: 0.1°~320°/s, Preset Speed: 320°/s
- 255 Preset Points
- 8 Patrols, up to 48 presets each patrol
- 4 Patterns
- Support SD card, up to 256G
- Multi port: RS485, Alarm I/O 4/2, Audio I/O, AC 24V
- 6KV Surge Protection
- Artificial Intelligence
- Support Video Content Analysis
- vGRID SaferCity Platform Compliant
AI Empowers Security
Milesight AI Camera with deep learning AI algorithms can intelligently filter objects to focus on human and vehicle detection, fitting into various situations to help level up the monitoring efficiency and security.

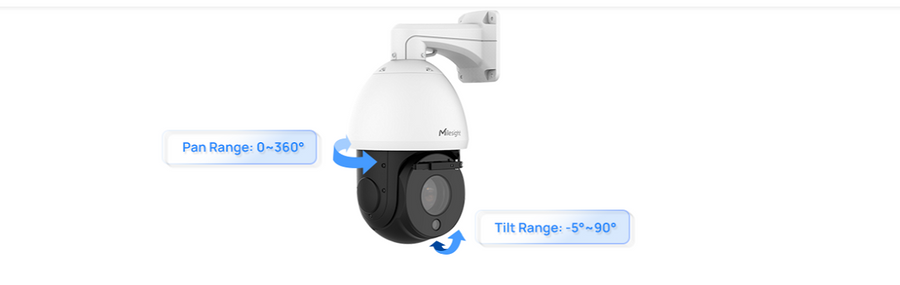

Flexible Pan, Tilt and Zoom Tasks
Milesight PTZ Camera offers the ability to fast and precisely rotate on a 360° pan and 95° tilt to survey a wide range of territory. The user can easily set up to 300 preset positions and up to 8 patrol routes and maximum 4 patterns of the manual operation paths. Moreover, the user is able to schedule specific PTZ tasks by date and time.

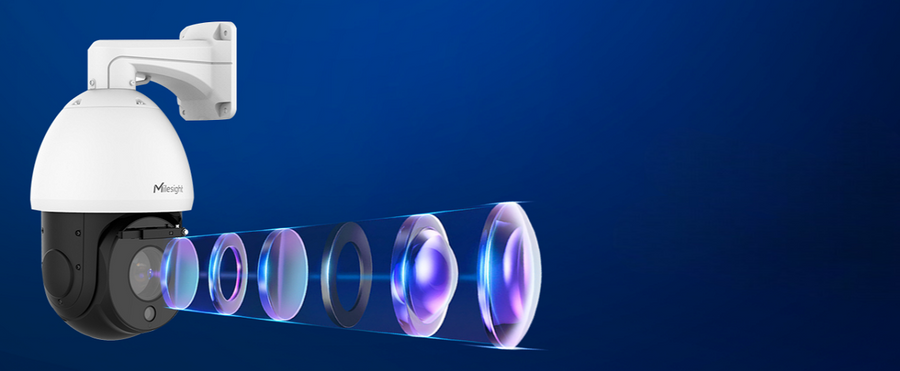

30x Optical Zoom
The 30x Optical Zoom can zoom up to distant objects while still maintaining the clarity, delivering high quality video over the entire zoom image.

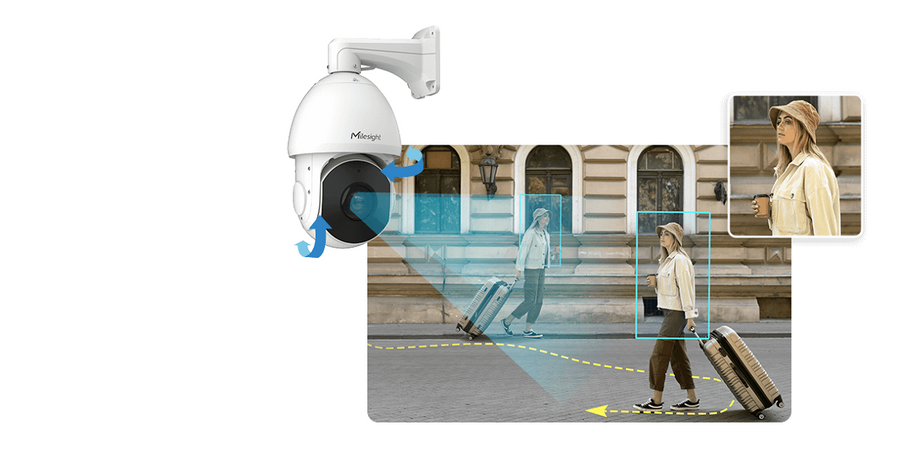

PTZ Auto Tracking
Creating a 3D model within the monitoring range, Milesight PTZ cameras mark and track the object after target detection and selection to ensure that the object maintains a fixed proportion for superb tracking views by automatically controlling the direction and zoom-level.

3D Positioning
With a comprehensive operating system, Milesight PTZ cameras can be easily controlled. To monitor the region of interest for more details, operators can adjust the angle of cameras' view and zoom ratio by just using a mouse.

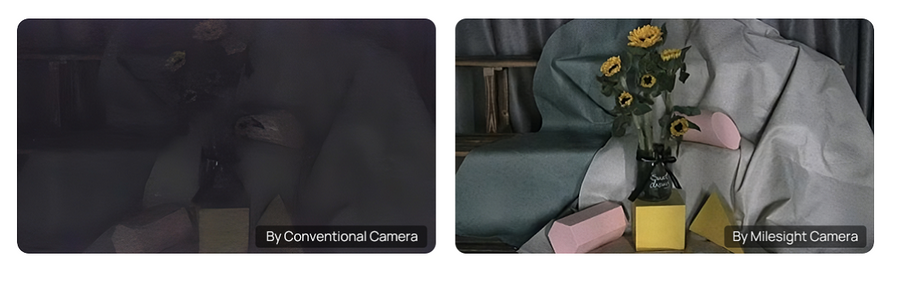

Superior Image Quality
With advanced image processing algorithms and SONY STARVIS sensor, it achieves excellent image performance, even in challenging lighting conditions. Its 0.005Lux Ultra Low-light, Smart IR II Technology, and up to 5MP High Resolution features make it well-suited for various special circumstances.

Specifications
Technical Specifications
| Product Code | MS-C5341-X30PE |
|---|---|
| Product Name | AI 5MP 30X H.265 Speed Dome Network Camera |
| Min. Illumination | Color: 0.008Lux @ F1.5, B/W: 0Lux with IR on |
| WDR | 120dB Super WDR |
| Shutter Time | 1/100000s~1s |
| Digital Zoom | 16X |
| Focal Length | 4.7~141mm, 30X Optical Zoom |
| Zoom Speed | Approx 6s(Optical Wide-Tele) |
| Field of View | H58°~H3°/D71°~D3°/V44°~V2° |
| Focus Control | Auto/Semi-Auto/Manual |
| Minimum Working Distance | 100~1500mm(Wide-Tele) |
| Pan Range/Pan Speed | 360° endless/ Pan Manual Speed: 0.1°~400°/s, Pan Preset Speed: 400°/s |
| Tilt Range/Tilt Speed | -5°~90°(Auto Flip)/ Tilt Manual Speed: 0.5°~160°/s, Tilt Preset Speed: 160°/s |
| Patrol | 8 Patrols, up to 48 presets each patrol |
| Auto Tracking | Supported |
| Other Functions | Auto Scan, Auto Home, Preset Freezing, 3D Positioning, PTZ Limits, Initial Position |
| IR | Up to 200m |
| Max. Image Resolution | 2592x1944 |
| Primary Stream | 60Hz: 30fps @ (2592x1944), 30fps @ (2048x1536), 30fps @ (1920x1080, 1280x960, 1280x720, 704x576) 50Hz: 25fps @ (2592x1944), 25fps @ (2048x1536), 25fps @ (1920x1080, 1280x960, 1280x720, 704x576) |
| Secondary Stream | 60Hz: 30fps @ (704x576, 640x480, 640x360, 352x288, 320x240) 50Hz: 25fps @ (704x576, 640x480, 640x360, 352x288, 320x240) |
| Tertiary Stream | 60Hz: 30fps @ (1920x1080, 1280x720, 704x576, 640x480, 640x360, 320x240) 50Hz: 25fps @ (1920x1080, 1280x720, 704x576, 640x480, 640x360, 320x240) |
| Video Compression | H.265+/H.265(HEVC)/H.264+/H.264/MJPEG |
| Video Bit Rate | 16Kbps~16Mbps (CBR/VBR adjustable) |
| Privacy Masking | Up to 8 areas |
| Region Of Interest | Up to 8 areas |
| Image Settings | Saturation/Brightness/Contrast/Sharpness |
| Interfaces | Ethernet(10/100), Audio I/O(1/1), Alarm I/O(4/2), RS485(1) |
| Audio Compression | G.711/AAC/G.722/G.726 |
| Audio Sampling Rate | 8/16/32/44.1/48KHz |
| Audio Bit Rate | 16~256kbps |
| Two-way Audio | Supported |
| StorageSupport | microSD/SDHC/SDXC Card Local Storage, up to 256G |
| Advanced Function | BLC, HLC, 2D DNR, 3D DNR, Defog, AWB, EIS, IP Address Filtering, AGC, Anti-flicker, Corridor Mode, Deblur, Watermark |
| SIP/VoIP | Supported - Voice&Video-over-IP |
| Event Trigger | Motion Detection, Network Disconnection, External Input, Audio Alarm, etc. |
| Event Action | FTP Upload, SMTP Upload, SD Card Record, External Output, SIP Phone, PTZ Motion, HTTP Notification, etc. |
| Video Analysis | Region Entrance, Region Exiting, Advanced Motion Detection, Tamper Detection, Line Crossing, Loitering, Human Detection, People Counting, Object Left, Object Removed |
| System Compatibility | ONVIF Profile G & Q & S & T, API |
| Working Condition | Temperature: -40?~60? / Humidity: 0~90%(Non-condensing) |
| Power Supply | PoE(802.3at)/ AC 24V/3A ±10% |
| Power Consumption | 12W MAX/ 258W MAX(With IR on) |
| Enclosure | Up to IP66-rated for weather-resistant performance / ***Vandal-proof IK10-rated Metal Housing(***Optional) |
| Surge Protection | 6KV |
| Dimensions/Weight | 205mmx308mm/4Kg |
| Brand | Milesight |
|---|---|
| Product Type | Smart Home & Security > Security Cameras > PTZ Cameras |
| Weight | 0.5 kg |
| Warranty |
|---|
