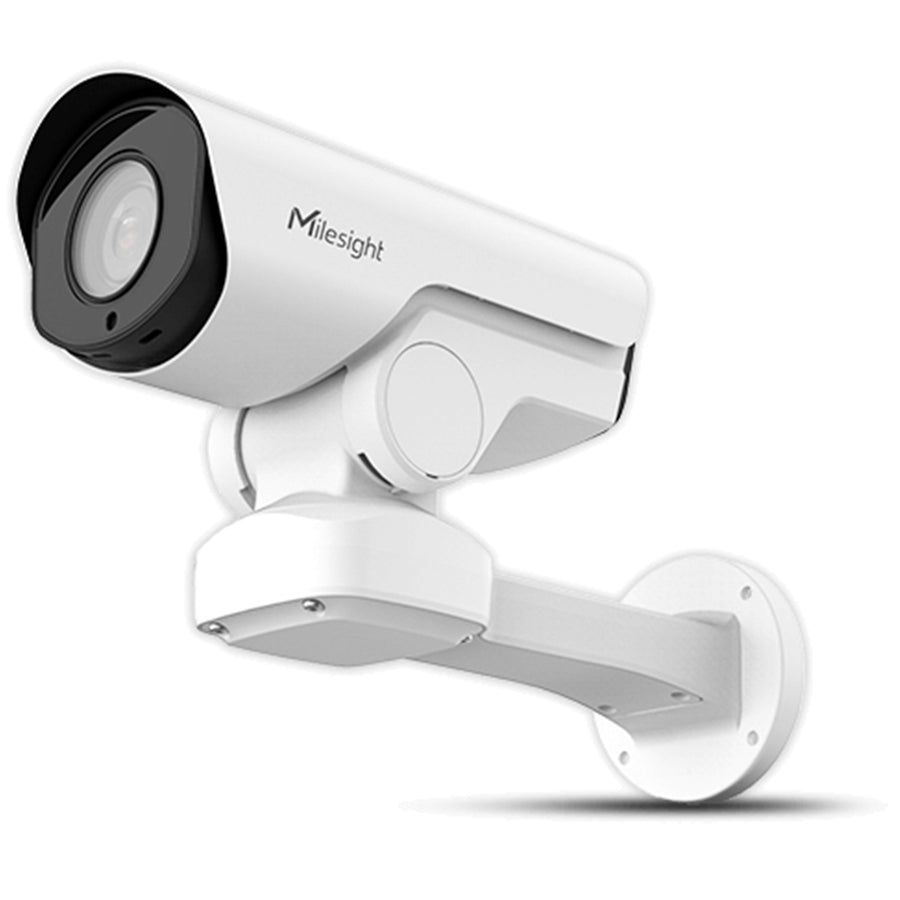

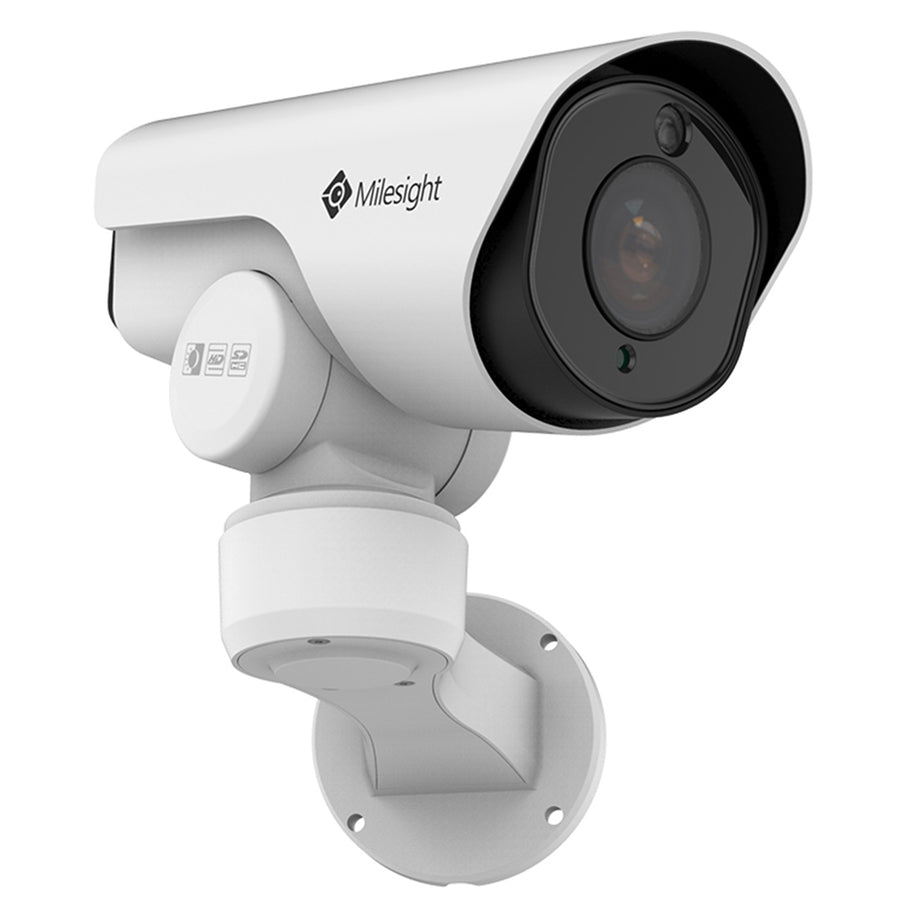

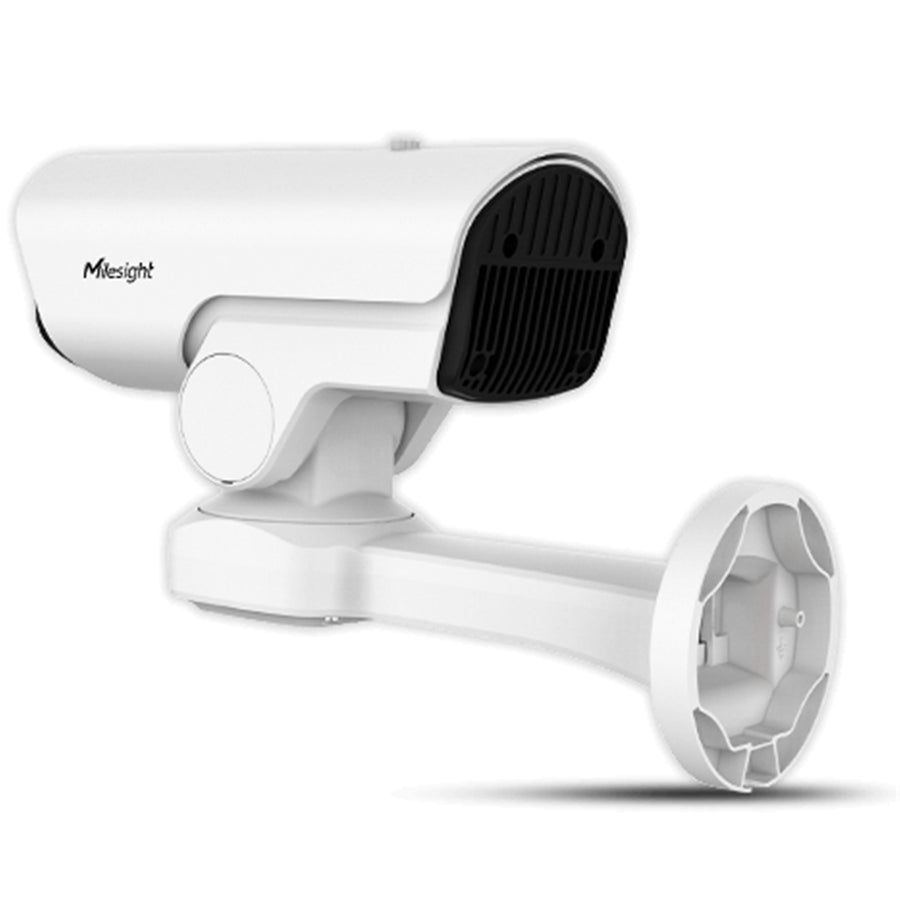

MS-C8267-X20PE - Milesight 4K NDAA AI 20X PTZ Bullet Plus Network Camera - Multi Cable Out
MS-C8267-X20PE - Milesight 4K NDAA AI 20X PTZ Bullet Plus Network Camera - Multi Cable Out
Features
AI Empowers Security
Milesight AI Camera with deep learning AI algorithms can intelligently filter objects to focus on human and vehicle detection, fitting into various situations to help level up the monitoring efficiency and security.

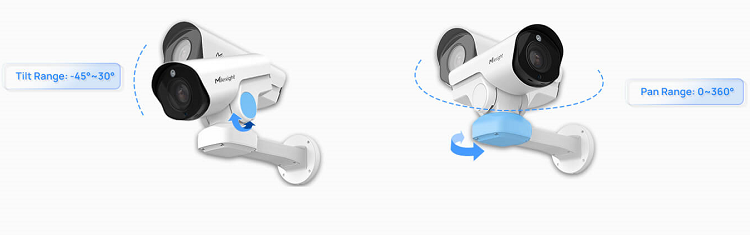

Flexible Pan, Tilt and Zoom Tasks
Milesight PTZ Camera offers the ability to fast and precisely rotate on a 360° pan and 75° tilt to survey a wide range of territory. The user can easily set up to 300 preset positions and up to 8 patrol routes and maximum 4 patterns of the manual operation paths. Moreover, the user is able to schedule specific PTZ tasks by date and time.

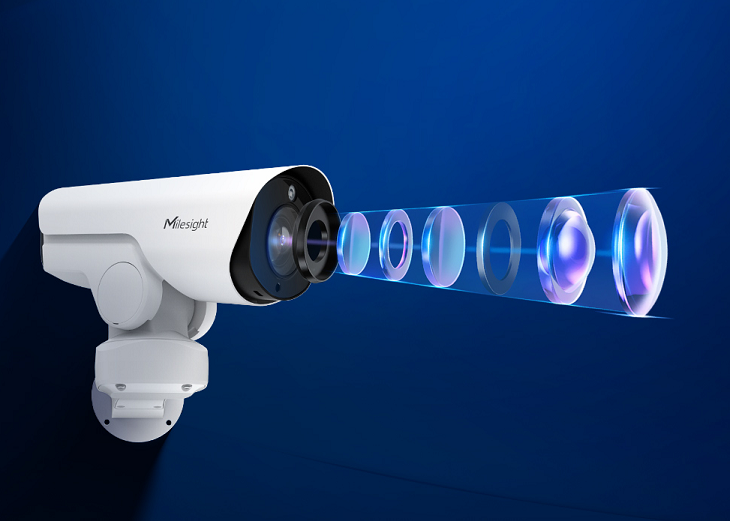

20x Optical Zoom
The 20x Optical Zoom can zoom up to distant objects while still maintaining the clarity, delivering high quality video over the entire zoom image.

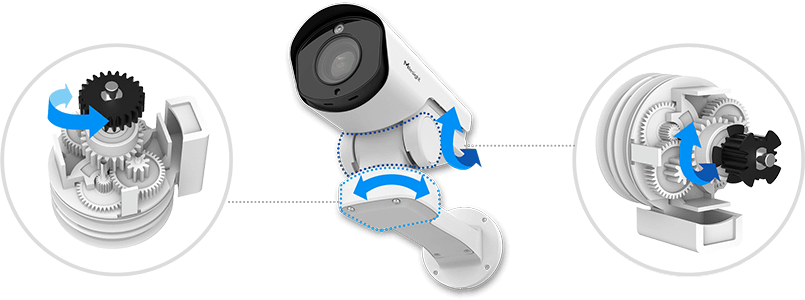

New-generation PTZ Motor
New generation motor with sophisticate planetary gear drive design is adopted to ensure a steady turn, which guarantees its robust performance, providing a reliable pan & tilt operation.

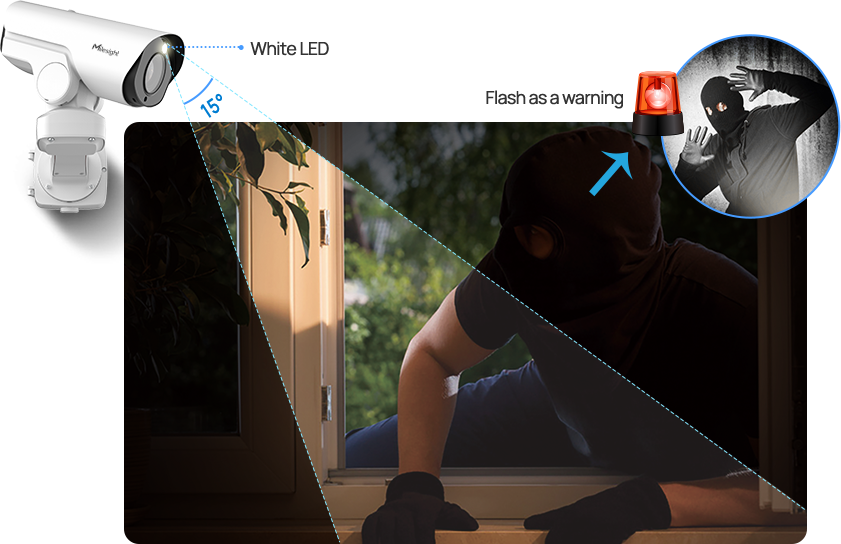

Intelligent White LED
With the 15° viewing angle, the White LED can be turned on as a supplementary light source and warning signal at night. Its brightness can be adjusted on the basis of the zoom level to satisfy the actual project requirement.

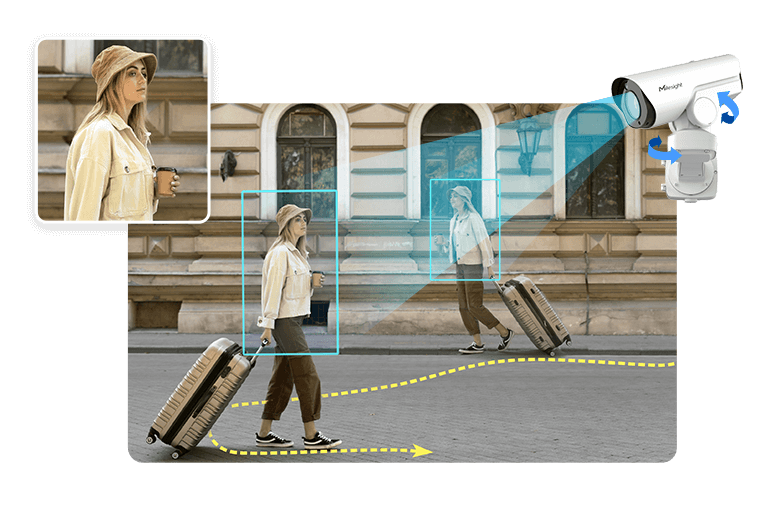

PTZ Auto Tracking
Creating a 3D model within the monitoring range, Milesight PTZ cameras mark and track the object after target detection and selection to ensure that the object maintains a fixed proportion for superb tracking views by automatically controlling the direction and zoom-level.
3D Positioning
With a comprehensive operating system, Milesight PTZ cameras can be easily controlled. To monitor the region of interest for more details, operators can adjust the angle of cameras' view and zoom ratio by just using a mouse.
PTZ Privacy Mask
Adopting anonymization and limitation functionality for further privacy protection, Milesight supports 3D Privacy Mask in all Al PTZ cameras with their coordinate system, which keeps the specified area masked from monitoring through manual operations no matter how cameras pan/tilt/zoom.
SIP/VoIP Support
Milesight Network Camera features industry leading SIP/VoIP function and video streaming for mobile phones and video phones.
Specifications
Technical Specifications
| Model | MS-C8267-X20PE |
|---|---|
| Image Sensor | 1/1.8" Progressive Scan CMOS |
| Min. Illumination | Color: 0.009Lux@ F1.6B/W: 0Lux with IR on |
| WDR | 120dB Super WDR |
| Shutter Time | 1/100000s~1s |
| DORI Distance | D: 152~2670m O: 59.5~1050m R: 30~526m l: 15~263m |
| IR Distance | Up to 180m |
| Digital Zoom | 16x |
| Day/Night Mode | Day/Night/Auto/Customize/Schedule |
| S/N | >55dB |
| Focal Length | 6.4~128mm, 20x Optical Zoom |
| Zoom Speed | Approx 5s (Wide-Tele) |
| Field of View | H60°~H3°/D67°~D4°/V37°~V1° |
| Focus Control | Auto/Semi-Auto/Manual |
| Minimum Working Distance | 1000/2000mm (Wide/Tele) |
| Aperture | F1.6~F4.0 |
| Iris Control | Auto |
| Pan Range/Pan Speed | 360°endless / Pan Manual Speed: 0.1°~50°/s, Pan Preset Speed: 50°/s |
| Tilt Range/Tilt Speed | -45°~30° / Tilt Manual Speed: 0.1°~30°/s, Tilt Preset Speed: 30°/s |
| Proportional Zoom | Support |
| Preset Quantity | 300 |
| Patrol | 8 Patrols, up to 48 presets each patrol |
| Pattern | 4 Patterns |
| Auto Tracking | Support |
| Power Off Memory | Support |
| Other Function | Auto Scan, Auto Home, Preset Freezing, 3D Positioning, PTZ Limits, Initial Position |
| Max. Image Resolution | 3840x2160 |
| Primary Stream | 60Hz: 30fps@ (3840x2160,3072x2048, 2592x1944,2592x1520, 2048x1536,1920x1080, 1280x960,1280x720, 704x576)50Hz: 25fps@ (3840x2160,3072x2048, 2592x1944,2592x1520, 2048x1536,1920x1080, 1280x960,1280x720, 704x576) |
| Secondary Stream | 60Hz: 30fps@ (704x576, 640x480, 640x360, 352x288, 320x240)50Hz: 25fps@ (704x576, 640x480, 640x360, 352x288, 320x240) |
| Tertiary Stream | 60Hz: 30fps@ (1920x1080, 1280x720, 704x576, 640x480, 640x360, 320x240)50Hz: 25fps@ (1920x1080, 1280x720, 704x576, 640x480, 640x360, 320x240) |
| Video Compression | H.265+/H.265(HEVC)/H.264+/H.264/MJPEG |
| Video Bit Rate | 16Kbps~16Mbps(CBR/VBR Adjustable) |
| Privacy Masking | Up to 8 Areas (Mask Area and Mosaic Area are optional) |
| ROI | Up to 8 areas |
| Image Setting | Brightness/Contrast/Saturation/Sharpness |
| Image Enhancement | BLC, HLC, 2D DNR, 3D DNR, AGC, Defog, AWB, Deblur, Anti-flicker, Corridor Mode |
| Ethernet | 1*RJ45 10M/100M Ethernet Port |
| Audio I/O | 1/1 |
| Alarm I/O | 1/1 |
| Network Storage | NAS(Support NFS, SMB/CIFS), ANR |
| Protocol | IPv4/IPv6, ARP, TCP, UDP, RTCP, RTP, RTSP, RTMP, HTTP, HTTPS, DNS, DDNS, DHCP, FTP, NTP, SMTP, SNMP, UPnP, Bonjour, SIP, PPPoE, VLAN, 802.1x, QoS, IGMP, ICMP, SSL, TLS 1.2 |
| Audio Compression | G.711/AAC/G.722/G.726 |
| Audio Sampling Rate | 8/16/32/44.1/48KHz |
| Audio Bit Rate | 16~256kbps |
| Video Analysis | VCA 2.0: Intrusion Detection, Region Entrance, Region Exiting, Advanced Motion Detection, Line Crossing, Loitering, Object Left, Object Removed |
| Attribute Extraction | Simultaneously detect up to 50 targets and capture humans and vehicles in real time.Recognize attributes including Upper and Lower Clothing Color, Hat, and Vehicle Types (Bicycle, Car, Motorcycle, Bus, Truck, E-scooter). |
| Face Detection&Face Attribute Recognition | Detect and capture faces, get real-time snapshots; The attributes include Age, Gender, Glasses, Mask and Cap; Support Faces Privacy Mode, the detected faces in the face detection area will be mosaic automatically. |
| Object Counting & Report | Count the number of objects crossing the line, optionally human and vehicle, Support regional people counting for up to 4 detection areas |
| Basic Event | Motion Detection, Tamper Detection, Network Disconnection, External Input, Audio Alarm, etc. |
| Exception | Network Disconnection, IP Address Filtering, Record Failed, SD Card Full, SD Card Uninitialized, SD Card Error, No SD Card, Watermark |
| Event Action | FTP Upload, SMTP Upload, SD Card Record, External Output, SIP Phone, White LED, PTZ Motion, HTTP Notification, etc. |
| Storage | Support microSD/SDHC/SDXC Card Local Storage, up to 1TB |
| SIP/VoIP Support | Yes, Voice & Video-over-IP |
| System Compatibility | ONVIF Profile G & M & S & T, API |
| Working Temperature | -40°C~60°C |
| Working Humidity | 0~90%(Non-condensing) |
| Power Supply | PoE (802.3at) / DC 12V/3A±10% |
| Power Consumption | Min.: 12.5W (DC 12V), 15W(PoE)Max.: 21W (DC 12V), 25W(PoE) |
| Weight | 2.9Kg |
| Dimensions | 110mmX337mmX220mm |
| EMC | CE-EMC (EN 55032, EN 55035), FCC (PART 15B) |
| Safety | CE-LVD (EN IEC 62368-1) |
| Environment | CE-ROHS (Directive (EU) 2015/863 amending 2011/65/EU) |
| Protection | IP66 |
