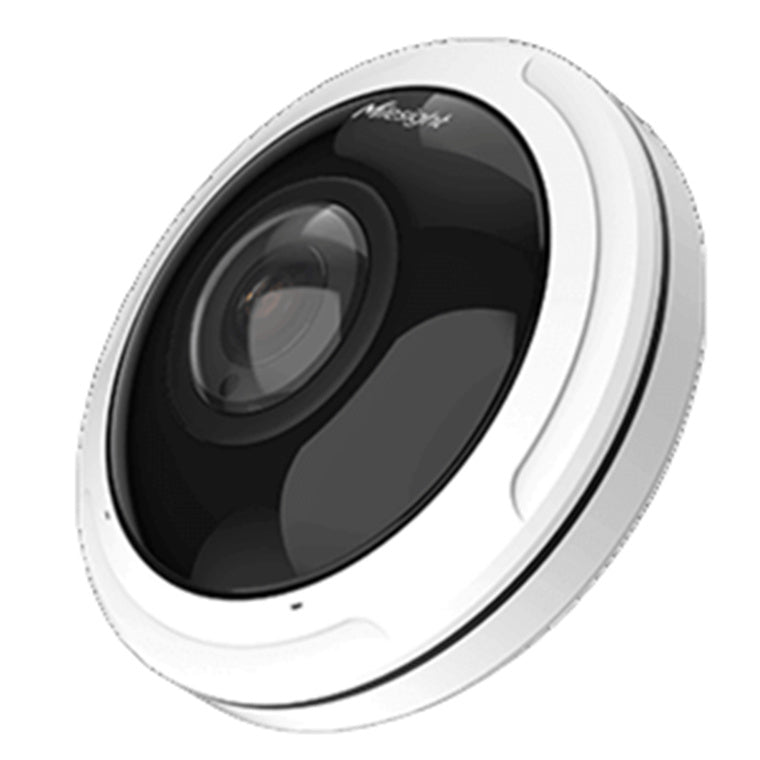

MS-C9674-PA - Milesight 12MP NDAA AI 360° Fisheye Network Camera - Multi Cable Out
MS-C9674-PA - Milesight 12MP NDAA AI 360° Fisheye Network Camera - Multi Cable Out
Features
The Milesight 360° Panoramic H.265+ Fisheye Network Camera Powered by advanced AI engine, Milesight new generation video analytics boasts with higher accuracy via a pre-trained deep learning model and continuously training to algorithms automatically. Milesight cameras can intelligently filter objects to focus on human and vehicle detection, together with multiple event rules including region entrance, object removed, loitering, etc., to meet diverse scenarios for building a smarter and safer world.
- 12 Mega Pixel
- Ultra High Resolution
- 360° Panoramic View
- Heat Mapping
- Auto Tracking
- 120dB Super Wide Dynamic Range (WDR)
- IP67 & IK10 rated Housing
- 15m Infrared Distance
- ONVIF Profile G & Q & S & T, API Compatibility
- vGRID SaferCity Platform Compliant
Revolutionary IR Performance
The upgraded Smart IR II Technology extends the viewing range to 15m, using three High Beams and three Low Beams LEDs for improved image clarity. It ensures even IR light distribution in different situations, with adjustable brightness. The IR anti-reflection panel greatly enhances infrared light transmittance.

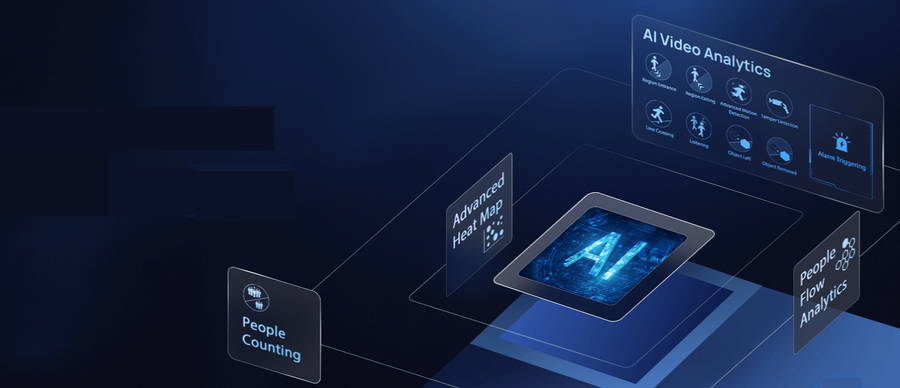

Genius AI Deep Learning
Equipped with a bunch of cutting-edge smart functions like Al Video Analytics, People Counting, Heat Map and People Flow Analytics, it offers more powerful and accurate surveillance solutions to help level up the monitoring efficiency and security.

360° Panoramic View
Offers a panoramic experience equivalent to over 4 regular network cameras but with higher efficiency. It provides a 360° surround view with no blind spots.

12MP Ultra High Definition
It features with 12MP ultra high definition which better restores the images to guarantee superb image quality. Introducing 360° ultra-wide angle lens, the camera realizes the whole scene monitoring without any details missing.

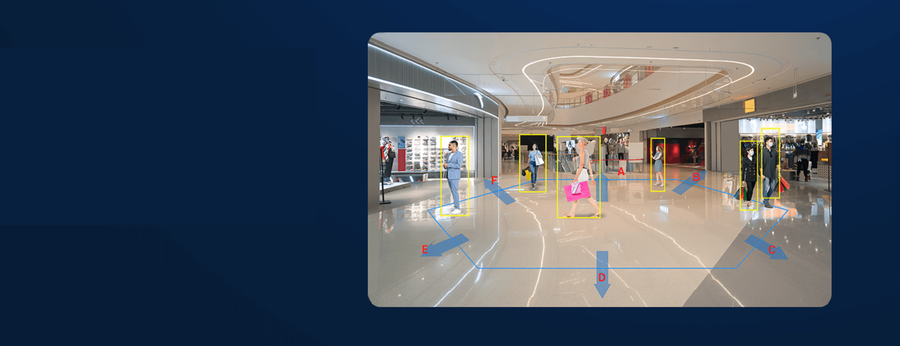

People Flow Analytics
Milesight People Flow Analytics function can analyze up to 6 different directions of people flow based on real-time tracking for space planning and business decisions making.

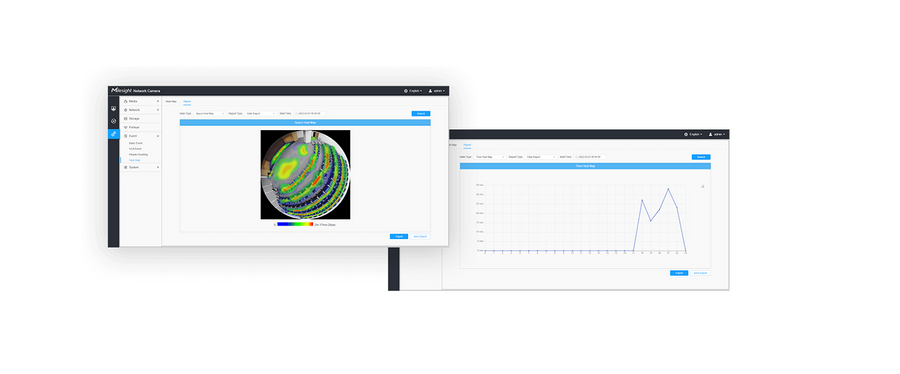

Advanced Heat Map
Milesight Heat Map function empowers beyond security, which can analyze customers' movement to reveal insights for better business management with the intuitive and accurate statistical analysis results in time or space pattern as needed.

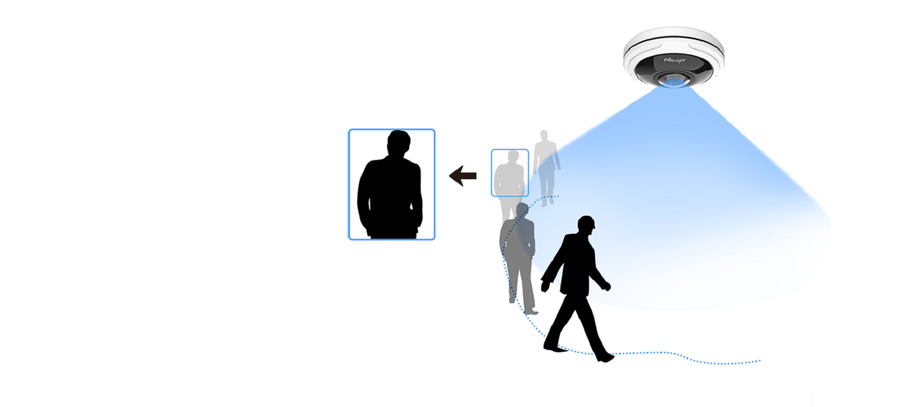

Fisheye Auto Tracking
With Fisheye Auto Tracking, Milesight Fisheye Camera enables automatic tracking of moving objects in the 360° Panoramic View. This ensures comprehensive security by digitally panning, tilting, and zooming within specific areas to avoid missing any details.

Superior Image Quality
With advanced image processing algorithms and SONY STARVIS sensor, it achieves excellent image performance, even in challenging lighting conditions.

IP67 & IK10
Equipped with industry-leading IP67-rated weather-proofing and IK10-rated vandal-proofing, the camera is well protected against adverse impacts to ensure the robust performance.

Specifications
Technical Specifications
| Product Code | MS-C9674-PA |
|---|---|
| Name | 12MP AI 360° Fisheye Network Camera |
| Image Sensor | 1/1.7" Progressive Scan CMOS |
| Min. Illumination | Color: 0.01Lux @F1.2, Color: 0.05Lux @F2.8, B/W: 0Lux with IR on |
| WDR | 120dB Super WDR |
| Lens | 1.98mm @ F2.8 |
| Mount | M12 |
| Field of View | Ceiling Mount:360°; Wall Mount:180°; Flat Mount:360° |
| Shutter Time | 1/100000s~1s |
| Day/Night Mode | Day/Night/Auto/Customize/Schedule |
| IR Distance | Up to 15m |
| Mount Mode | Ceiling Mount/Wall Mount/Flat Mount |
| Decoding Mode | On-board Dewarping/Client-side Dewarping |
| Max. Image Resolution | 4000x3000 |
| Primary Stream | Fisheye View: 60Hz: 30fps @ (3000x3000, 2560x2560, 1920x1920, 1280x1280)50Hz: 25fps @ (3000x3000, 2560x2560, 1920x1920, 1280x1280) |
| Secondary Stream | Fisheye View: 60Hz: 30fps @ (1280x960, 1024x1024, 736x736, 576x576)50Hz: 25fps @ (1280x960, 1024x1024, 736x736, 576x576) |
| Video Compression | H.265+/H.265(HEVC)/H.264+/H.264 |
| Video Bit Rate | 16Kbps~16Mbps (CBR/VBR adjustable) |
| Privacy Masking | Up to 24 areas |
| ROI | Up to 8 areas |
| Image Settings | Saturation/Brightness/Contrast/Sharpness |
| Audio Compression | G.711/AAC/G.722/G.726 |
| Audio Sampling Rate | 8/16/32/48KHz |
| Audio Bit Rate | 16~256kbps |
| Two-way Audio | Supported |
| Ethernet | 1*RJ45 10M/100M/1000M Ethernet Port |
| Audio I/O | Built-in Microphone and Audio Input/Output interface |
| Alarm I/O | 1/1 |
| Network Storage | NAS(Support NFS, SMB/CIFS), ANR |
| Network Protocols | IPv4/IPv6, ARP, TCP, UDP, RTCP, RTP, RTSP, RTMP, HTTP, HTTPS, DNS, DDNS, DHCP, FTP, NTP, SMTP, UPnP, Bonjour, SIP, SNMP, PPPoE, VLAN, 802.1x, QoS, IGMP, ICMP, SSL |
| Storage | Supports microSD/SDHC/SDXC Card Local Storage, up to 256G |
| Advanced Function | Auto Tracking, Heat Map, BLC, HLC, 2D DNR, 3D DNR, Defog, AWB, EIS, IP Address Filtering, AGC, Anti-flicker, Corridor Mode, Deblur, Watermark |
| SIP/VoIP Support | Yes, Voice&Video-over-IP |
| Event Trigger | Motion Detection, Network Disconnection, External Input, Audio Alarm, etc. |
| Event Action | FTP upload, SMTP upload, SD card record, External Output, SIP Phone, HTTP Notification, etc. |
| Video Analysis | Region Entrance, Region Exiting, Advanced Motion Detection, Tamper Detection, Line Crossing, Loitering, Human Detection, People Counting, Object Left, Object Removed |
| System Compatibility | ONVIF Profile G & Q & S & T, API |
| Working Temperature | -40?~60? |
| Working Humidity | 0~90%(Non-condensing) |
| Power Supply | PoE(802.3af)/DC 12V±10% |
| Power Consumption | 6W MAX, 11W MAX(With IR on) |
| Weather Proof | Up to IP67-rated for weather-resistant performance |
| Housing | Vandal-proof IK10-rated metal housing |
| Dimensions | F140mm x 5.4mm |
| Weight | 700g |
