MS-N5008-UPC - Milesight 4K 8 Channel IP Camera NVR with PoE Built in
Features

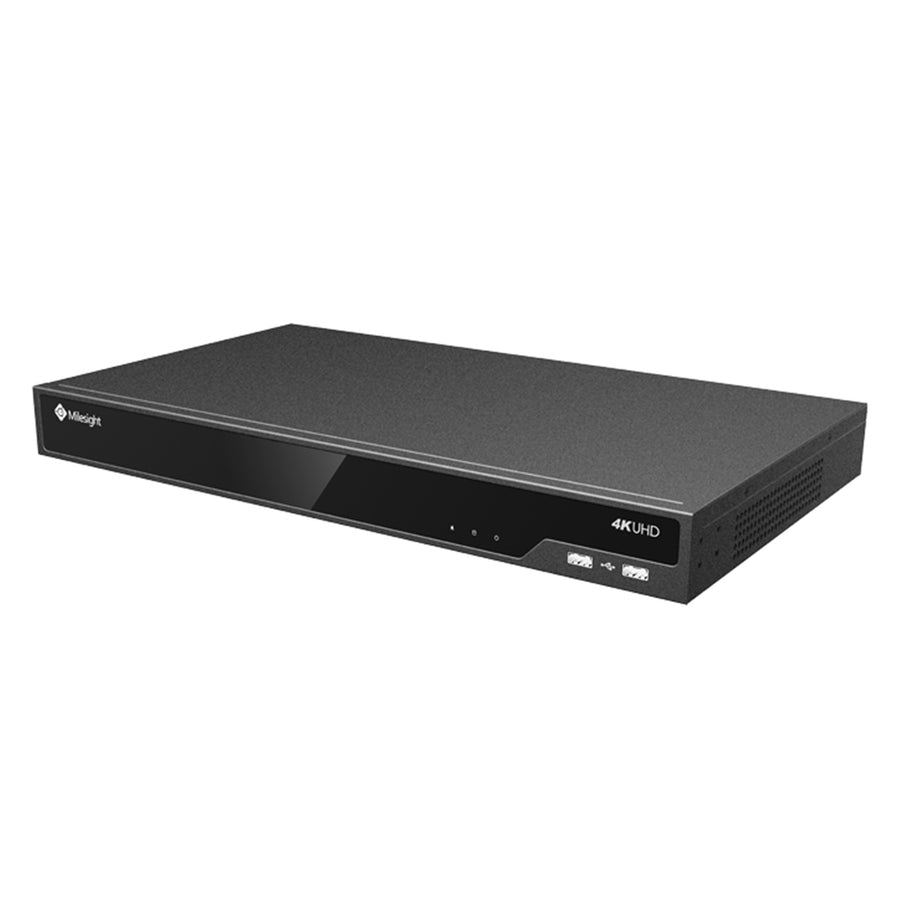

Milesight MS-N5008-UPC 4K 8 Channel IP Camera NVR with PoE Built in
Milesight 8-Channel ONVIF Compatible pro 4K NVR with Ethernet, VGA, Alarm I/O, HDMI and USB out. Equipped with solid 4K decoding and display capabilities, Milesight 4K H.265 Pro NVR 5000 Series can synchronously decode up to 2-CH 4K UHD and 8-CH 1080P with the finest details to guarantee real-time video monitoring.
*Please Note: HDDs need to be purchased separately
- ONVIF Compatible
- Up to 20TB capacity (HDDs purchased separately)
- Supports Dual Streaming
- 4K Streaming
- HDMI Out
- UHD & 8-CH 1080P
- Versatile Interfaces
- P2P
- 8x Poe ports
- Plug&Play
- Audio In/Out
- ANR
- Alarm In/Out
AI VCA Management
Defined as the central management site to manage intelligent VCA, People Counting and Face Detection, it supports alarm and statistic to deliver prompt insight, helping improve video surveillance efficiency.

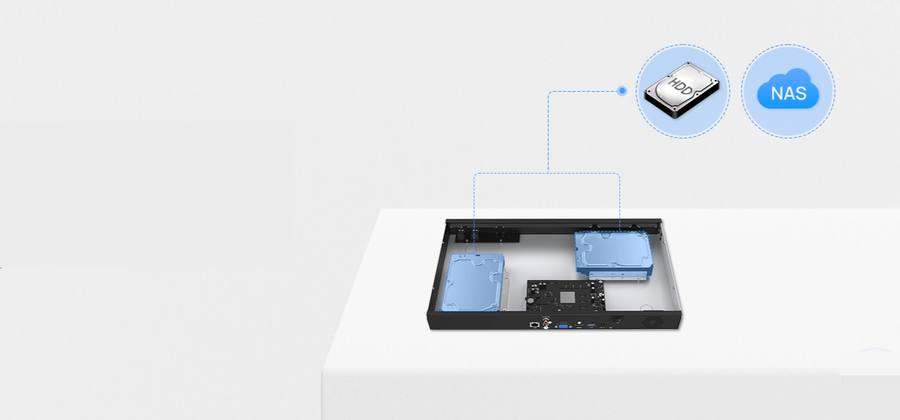

Flexible Storage Options
Flexible storage options including 2*10TB HDD and NAS offer you unparalleled versatility to address the needs for versatile storage and meet the diverse storage needs of projects of any scale.
HTML5 H.265 Streaming
The preview of the multi-channel videos via all major browsers without downloading extra plug-in is realized when Video Codec is set to H.265, making it easy for users to access the NVRs.
Plug and Play
Milesight PoE NVR Series offers a true plug-and-play with the built-in independent PoE switches, where cameras can be easily connected without a lot of network infrastructure work, ensuring you to begin the efficient monitoring in no time.

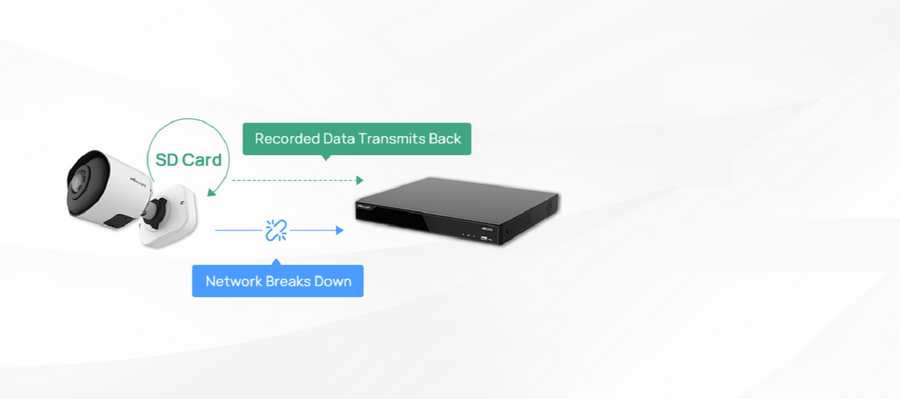

ANR
ANR can store video data on the camera storage card when network between IPC and NVR is disconnected and retransfer the recorded video to NVR after network recovers.

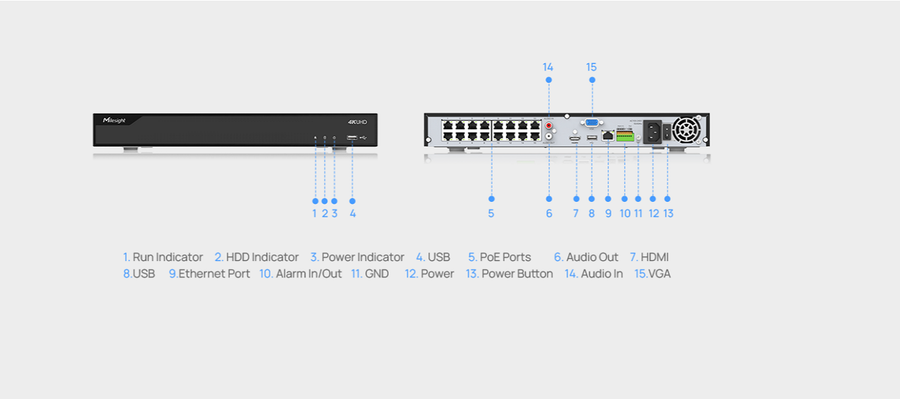

Versatile Interfaces
Milesight 4K H.265 PoE NVR 5000 Series comes with a whole array of ports such as an HDMI port, a VGA port, a USB port, 8/16 PoE ports, Alarm I/O, Audio I/O and a LAN port. The full set of interfaces provides all necessary features for effective surveillance.
Specifications
Technical Specifications
| MPN | MS-N5008-UPC |
|---|---|
| Network Video Input | 8-CH |
| Recording Resolution | 8MP/6MP/5MP/4MP/3MP/1080P/ UXGA/720P/D1/VGA/CIF/QCIF |
| Synchronous Playback | 1*(30fps @8MP), 1*(30fps @6MP), 1*(30fps @5MP),2*(30fps @4MP), 2*(30fps @3MP),4*(30fps @1080P), 8*(30fps @720P) |
| Video Compression | H.265+/H.265(HEVC)/H.264+/H.264 |
| Audio Format | G.711/AAC/G.722/G.726 |
| SATA | 2*SATA HDD (3.5") |
| Capacity | Up to 10TB capacity for each HDD |
| Synchronous Recording | 8*5MP |
| Recording Type | Continuous, Event (Motion Detection, Alarm, VCA, Smart Analysis) |
| Snapshot Type | N/A |
| Playback Type | General Playback, Event Playback, Tag Playback, Split Playback, Picture Playback |
| Network Protocols | IPv4/IPv6, TCP, UDP, RTP, RTSP, RTCP, HTTP, HTTPS, DNS, DDNS, DHCP, NTP, SNTP, SMTP, SNMP, UPnP,NFS |
| Network Interface | 1*RJ45 10/100/1000Mbps |
| USB Interface | 2*USB 2.0 |
| Audio Input/Output | 1*RCA |
| Alarm Input/Output | 4-CH/1-CH |
| Compatibility | ONVIF, API |
| Advanced Function | ANR |
| Video Analysis | Region Entrance, Region Exiting, Advanced Motion Detection, Tamper Detection, Line Crossing, Loitering, Human Detection, People Counting |
| Keyboard Control | Milesight Keyboard(MS-K01) |
| Power Supply | DC 12V 50Hz~60Hz |
| Consumption | =9W(Without HDD, without enabling PoE) |
| Working Conditions | Temperature: -10?~+55? / Humidity: 10%~90% |
| Dimensions | 380mm(W)X317.6mm(D)X51.8mm(H) |
| Rack Mountable | Yes |
| Weight | 2.6Kg |
| Brand | Milesight |
|---|---|
| Product Type | Smart Home & Security > Security Cameras > PoE Cameras |
| Weight | 1.8 kg |
| Warranty |
|---|
