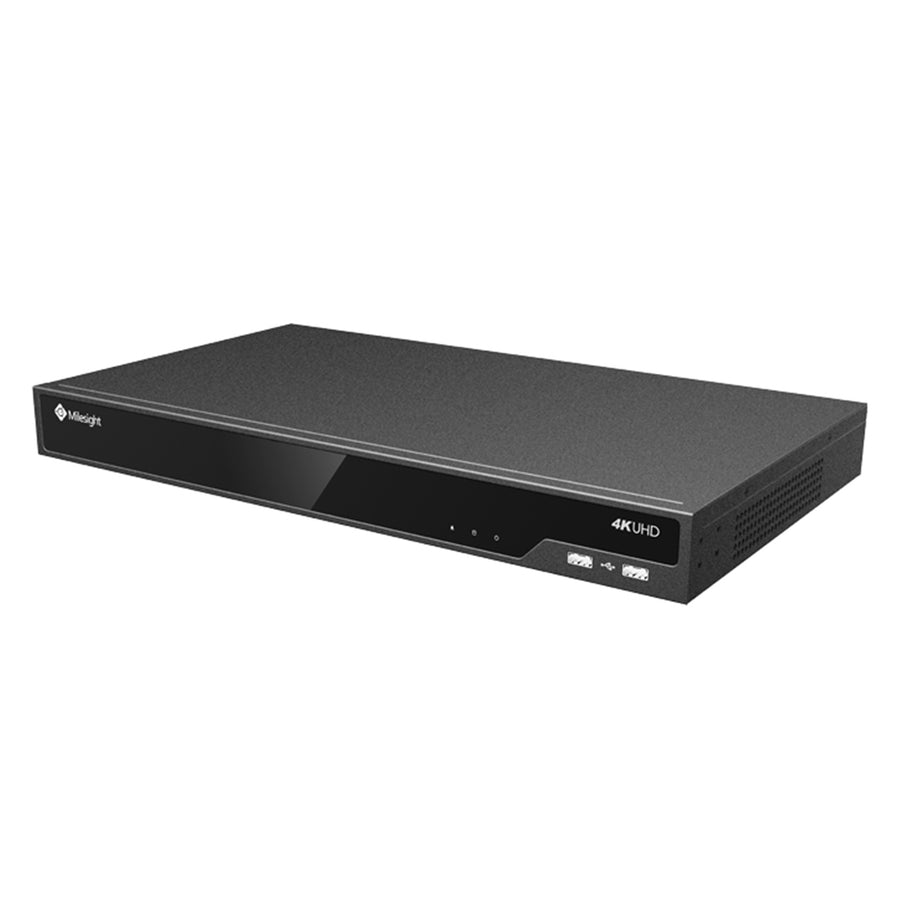

MS-N5016-NE - Milesight 4K H.265 16 Channel NDAA IP Camera NVR LPR Camera Supported
Features
Milesight 16 Channel ONVIF Compatible pro 4K NVR with Ethernet, VGA, Alarm I/O, HDMI and USB out. Equipped with solid 4K decoding and display capabilities, Milesight 4K H.265 Pro NVR 5000 Series can synchronously decode up to 2-CH 4K UHD and 8-CH 1080P with the finest details to guarantee real-time video monitoring.
*Please Note: HDDs need to be purchased separately
- ONVIF Compatible
- Up to 20TB capacity (HDDs purchased separately)
- Supports Dual Streaming
- 4K Streaming
- HDMI Out
- Versatile Interfaces
- P2P
- Plug&Play
- Audio In/Out
- ANR
- Alarm In/Out

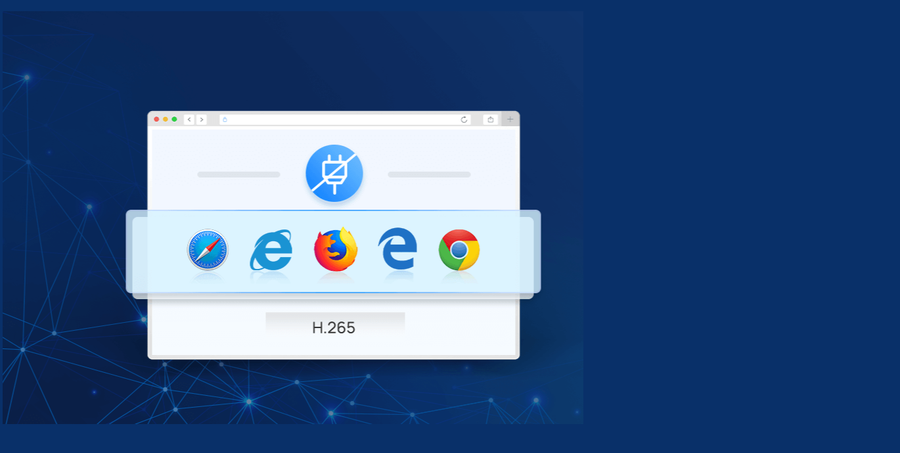

HTML5 H.265 Streaming
The preview of the multi-channel videos via all major browsers without downloading extra plug-in is realized when Video Codec is set to H.265, making it easy for users to access the NVRs.

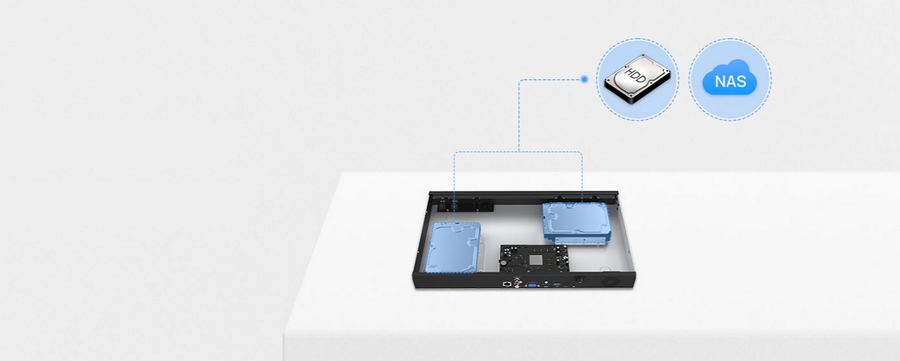

Flexible Storage Options
Flexible storage options including HDD and NAS offer you unparalleled versatility to address the needs for versatile storage and meet the diverse storage needs of projects of any scale.

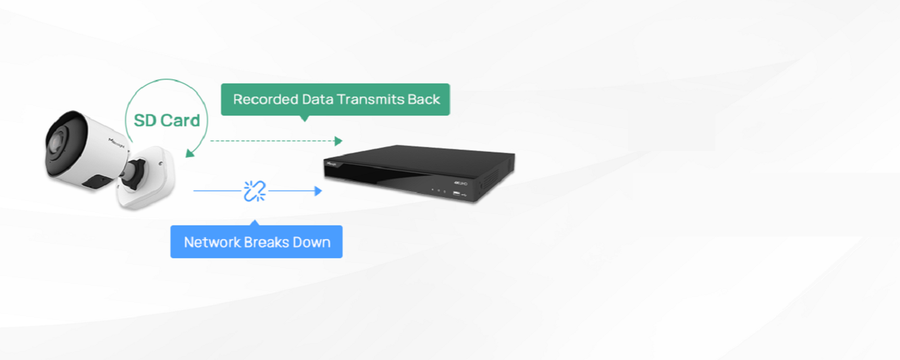

ANR
ANR can store video data on the camera storage card when network between IPC and NVR is disconnected and retransfer the recorded video to NVR after network recovers.

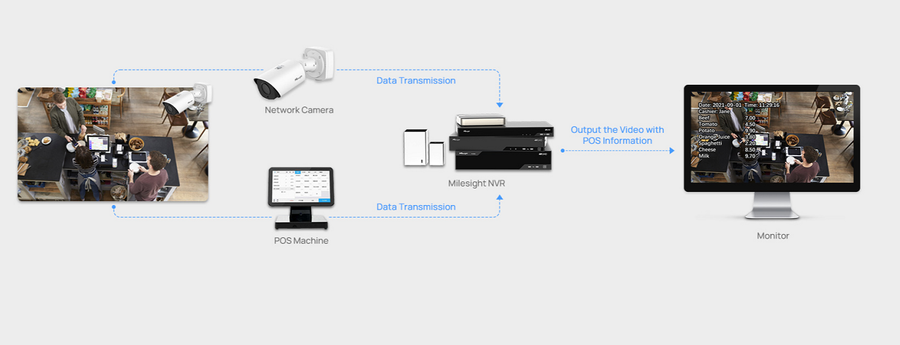

POS Integration
The combination of retail transaction data with surveillance videos makes it easy to check goods settlement, miscalculation and missing calculation, which is helpful to boost customer service and in-store competitive advantage.
Specifications
Technical Specifications
| MPN | MS-N5016-NE |
|---|---|
| Network Video Input | 16-CH |
| Recording Resolution | 8MP/6MP/5MP/4MP/3MP/1080P/ UXGA/720P/D1/VGA/CIF/QCIF |
| Synchronous Playback | 3*(30fps @8MP), 4*(30fps @6MP),4*(30fps @5MP), 5*(30fps @4MP),8*(30fps @3MP), 12*(30fps @1080P),16*(30fps @720P),16*(30fps @D1) |
| Video Compression | H.265+/H.265(HEVC)/H.264+/H.264 |
| Audio Format | G.711/AAC/G.722/G.726 |
| SATA | 2*SATA HDD (3.5") |
| Capacity | Up to 10TB capacity for each HDD |
| ANPR | Support |
| Recording Type | Continuous, Event (Motion Detection, Alarm, VCA, Smart Analysis) |
| Snapshot Type | NContinuous, Event (Motion Detection, Alarm, VCA, Smart Analysis) |
| Playback Type | General Playback, Event Playback, Tag Playback, Split Playback, Picture Playback |
| Network Protocols | IPv4/IPv6, TCP, UDP, RTP, RTSP, RTCP, HTTP, HTTPS, DNS, DDNS, DHCP, NTP, SNTP, SMTP, SNMP, UPnP,NFS |
| Network Interface | 1*RJ45 10/100/1000Mbps |
| USB Interface | 2*USB 2.0 |
| Audio Input/Output | 1*RCA |
| Alarm Input/Output | 4-CH/1-CH |
| Compatibility | ONVIF, API |
| Advanced Function | ANR |
| Video Analysis | Region Entrance, Region Exiting, Advanced Motion Detection, Tamper Detection, Line Crossing, Loitering, Human Detection, People Counting |
| Keyboard Control | Milesight Keyboard(MS-K01) |
| Power Supply | DC 12V 50Hz~60Hz |
| Consumption | =4W(Without HDD) |
| Working Conditions | Temperature: -10?~+55? / Humidity: 10%~90% |
| Dimensions | 380mm(W)X317.6mm(D)X51.8mm(H) |
| Rack Mountable | Yes |
| Weight | 2.6Kg |
| Brand | Milesight |
|---|---|
| Product Type | Smart Home & Security > Security Cameras > PoE Cameras |
| Weight | 0.1 kg |
| Warranty |
|---|
