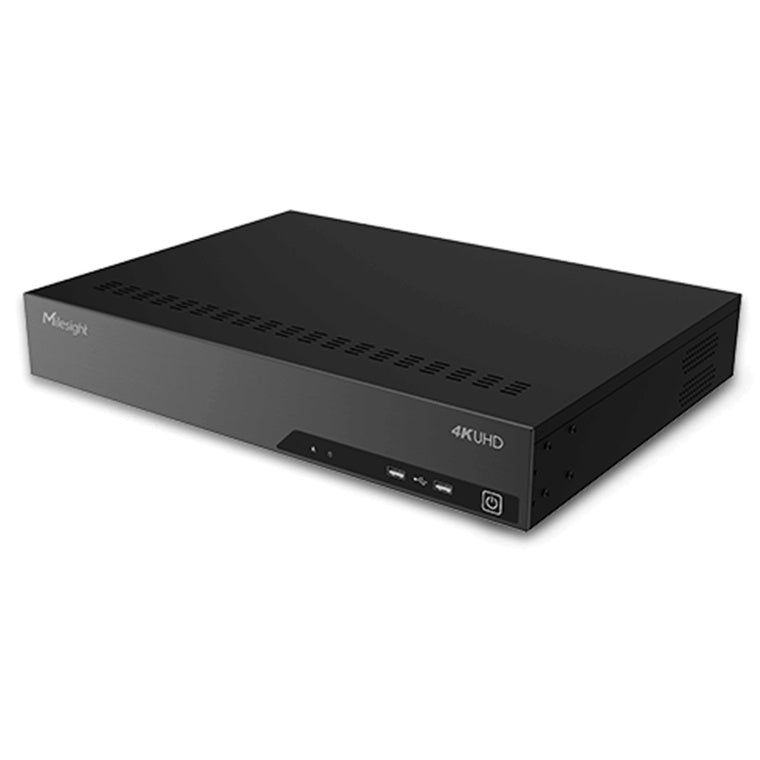

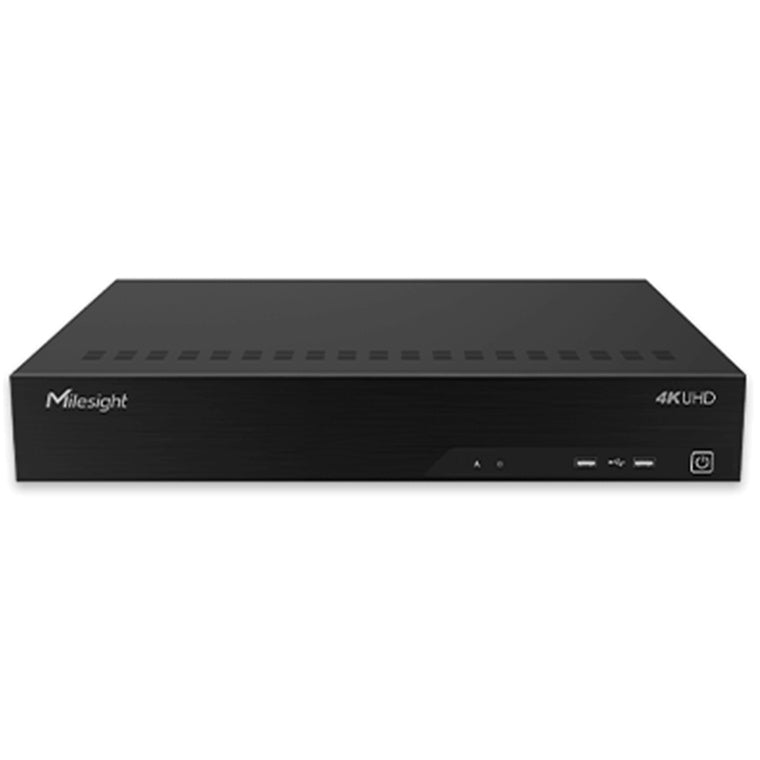

MS-N7016-PG - Milesight 4K 16 Channel IP Camera NVR with built in 16 Port PoE Switch and RAID, LPR Support
MS-N7016-PG - Milesight 4K 16 Channel IP Camera NVR with built in 16 Port PoE Switch and RAID, LPR Support
Features
AI VCA Management
Defined as the central management site to manage intelligent VCA, People Counting and Face Detection, it supports alarm and statistic to deliver prompt insight, helping improve video surveillance efficiency.

Enterprise ANPR Management
Seamlessly integrated with ANPR camera, the NVR manages massive traffic data and excels in diverse traffic management scenarios. It serves as a centralized site, providing real-time license plate previews, intelligent analysis, and comprehensive settings for enhanced functionality and control.

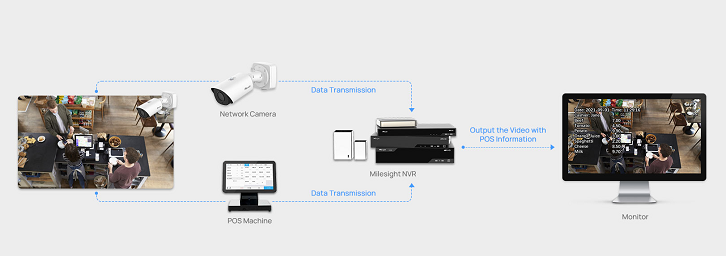

POS Integration
The combination of retail transaction data with surveillance videos makes it easy to check goods settlement, miscalculation and missing calculation, which is helpful to boost customer service and in-store competitive advantage.

UHD Video Display
Equipped with solid 4K decoding and display capabilities, Milesight 4K H.265 Pro NVR 7000 Series can synchronously decode up to 6-CH 4K UHD and 24-CH 1080P with the finest details to guarantee real-time video monitoring.

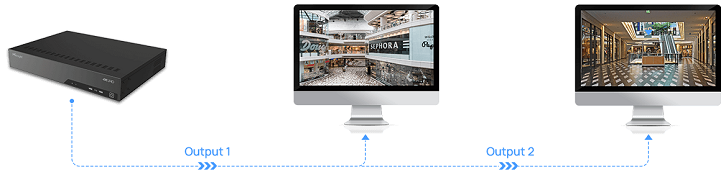

Multi-video Output
Multi-video output can be achieved in two ways: Independent Outputs allow multiple displays to show different channels independently, while Synchronous Outputs synchronize the display of the same channel across different locations.

Plug and Play
Milesight PoE NVR Series offers a true plug-and-play with the built-in independent PoE switches, where cameras can be easily connected without a lot of network infrastructure work, ensuring you to begin the efficient monitoring in no time.

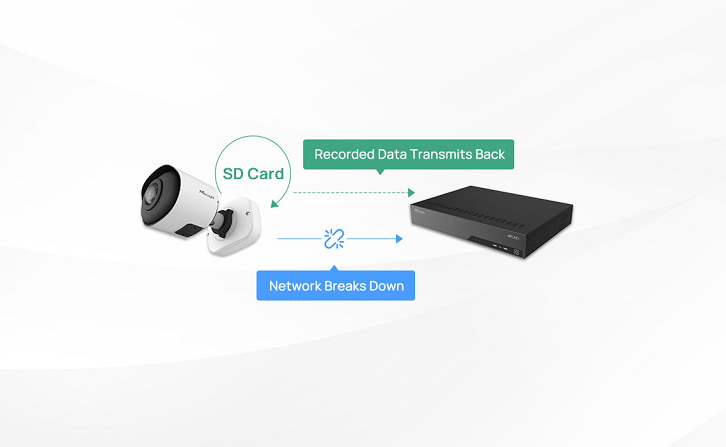

ANR
Enjoy peace of mind knowing that the surveillance footage is safeguarded even in the face of unexpected network interruptions. ANR acts as a failsafe mechanism, enabling uninterrupted recording and storage of critical video data directly on the NVR.

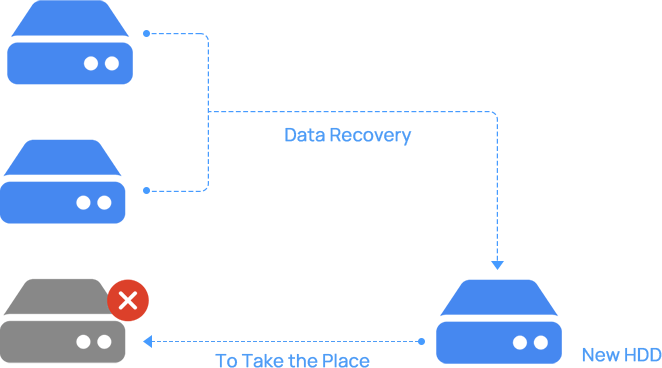

RAID 0/1/5/6/10
RAID, or Redundant Array of Independent Disks, ensures that your data remains intact. When hardware malfunctions, the NVR automatically switches to a redundant drive, eliminating downtime and ensuring continuous recording without disruption.

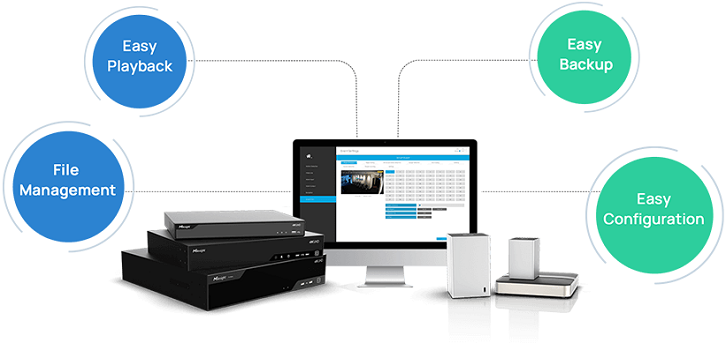

Easy-to-use Design
Featuring a range of functions including Easy Playback, Easy Backup, File Management and Easy Configuration, Milesight's NVR is made to lower the learning costs no matter for a newcomer or trained expert.

Specifications
Technical Specifications
| Network Video Input | 16-CH |
|---|---|
| Bandwidth Requirement | 160Mbps (Incoming)160Mbps (Outgoing) |
| HDMI Output | 1-CH,Resolution: 3840x2160/60Hz, 3840x2160/30Hz, 1920x1080/60Hz, 1920x1080/50Hz, 1280x1024/60Hz,1280x720/60Hz, 1024x768/60Hz HDMI Supports Audio Output |
| VGA Output | 1-CH,Resolution: 1920x1080/60Hz, 1920x1080/50Hz, 1280x1024/60Hz, 1280x720/60Hz, 1024x768/60Hz |
| Dual Stream | Support |
| Recording Resolution | 12MP/8MP/6MP/5MP/4MP/3MP/1080P/ UXGA/720P/D1/VGA/CIF/QCIF |
| Synchronous Playback | 6*(30fps @8MP), 8*(30fps @6MP), 9*(30fps @5MP), 12*(30fps @4MP), 16*(30fps @3MP)16*(30fps @2MP), 16*(30fps @1080P), 16*(30fps @720P)?16*(30fps @D1) |
| Video Compression | H.265+/H.265(HEVC)/H.264+/H.264 |
| Audio Compression | G.711/AAC/G.722/G.726 |
| SATA | 4*SATA HDD (3.5") |
| Capacity | Up to 10TB capacity for each HDD |
| Array Type | RAID0, RAID1, RAID5, RAID6, RAID10 |
| Recording Type | Continuous, Event (Motion Detection, Alarm, VCA, Smart Analysis) |
| Snapshot Type | Continuous, Event (Motion Detection, Alarm, VCA, Smart Analysis) |
| Playback Type | General Playback, Event Playback, Tag Playback, Split Playback, Picture Playback |
| Backup | Video backup, Image Backup |
| Network Protocols | IPv4/IPv6, TCP, UDP, RTP, RTSP, RTCP, HTTP, HTTPS, DNS, DDNS, DHCP, NTP, SNTP, SMTP, SNMP, UPnP, NFS |

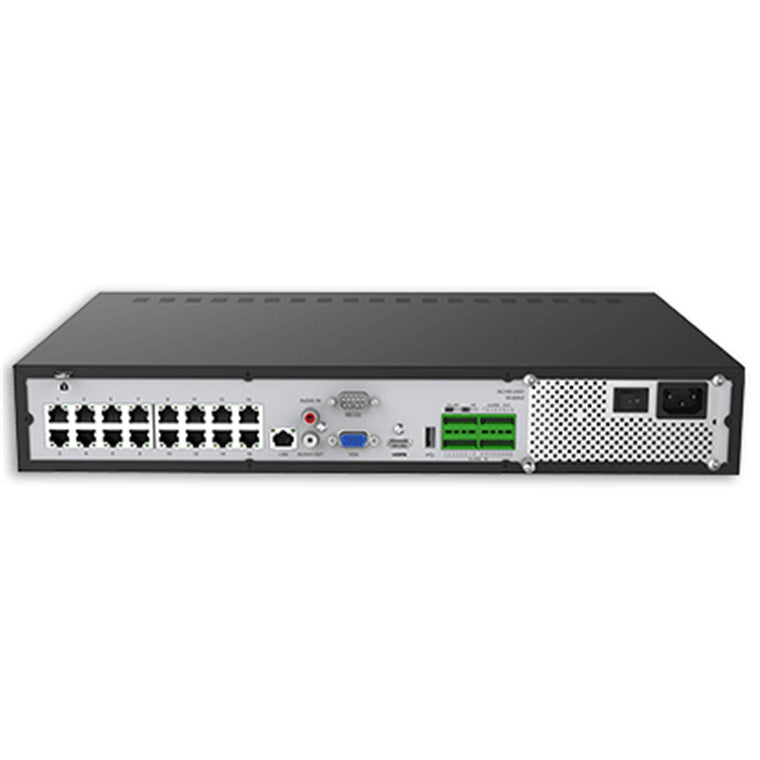

| Network Interface | 1*RJ45 10/100/1000Mbps |
| USB Interface | 1*USB 3.0; 2*USB 2.0 |
| Serial Interface | 1*RS-485 Series Port for PTZ, 1*RS-232 Series Port for Console, 1*RS-485 Series Port for Keyboard |
| Audio Input/Output | 1*RCA/1*RCA |
| Alarm Input | 16-CH |
| Alarm Output | 4-CH |
| Interface | 16*RJ45 10/100Mbps |
| Power Output | =200W |
| Supported Standard | IEEE 802.3af/at |
| Compatibility | ONVIF, API |
| Advanced Function | ANR |
| ANPR | Support |
| Video Analysis | Region Entrance, Region Exiting, Advanced Motion Detection, Tamper Detection, Line Crossing, Loitering, People Counting, Object Left, Object Removed |
| Keyboard Control | Milesight Keyboard(MS-K01) |
| Power Supply | AC 100V~240V 50Hz~60Hz |
| Consumption | =20W(Without HDD, without enabling PoE) |
| Working Conditions | Temperature: -10?~+55? / Humidity: 10%~90% |
| Dimensions | 440mm(W)X320mm(D)X66.8mm(H), Rack Mountable Chassis (1.5U Standard) |
| Weight | 5.0Kg |
