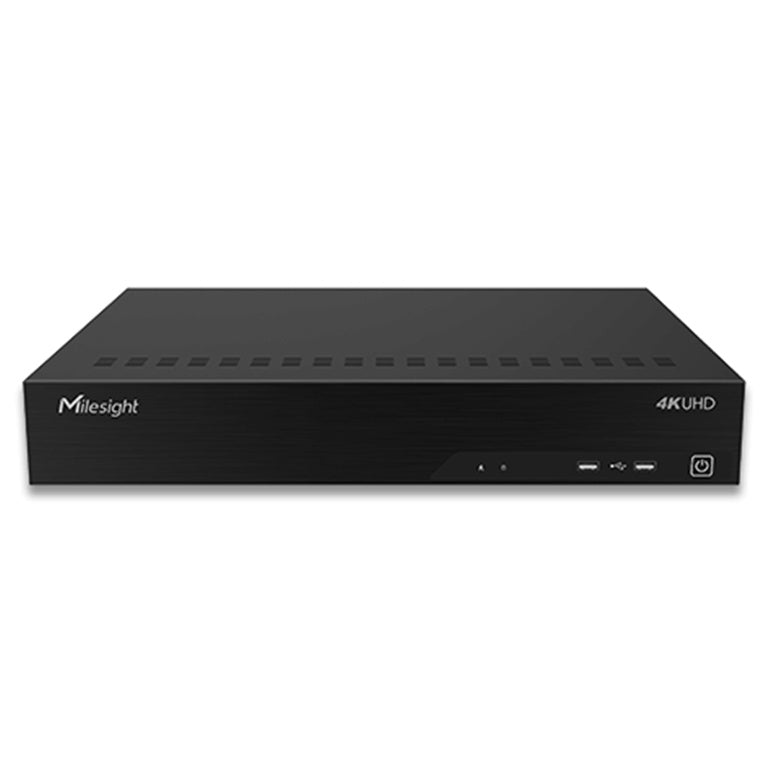

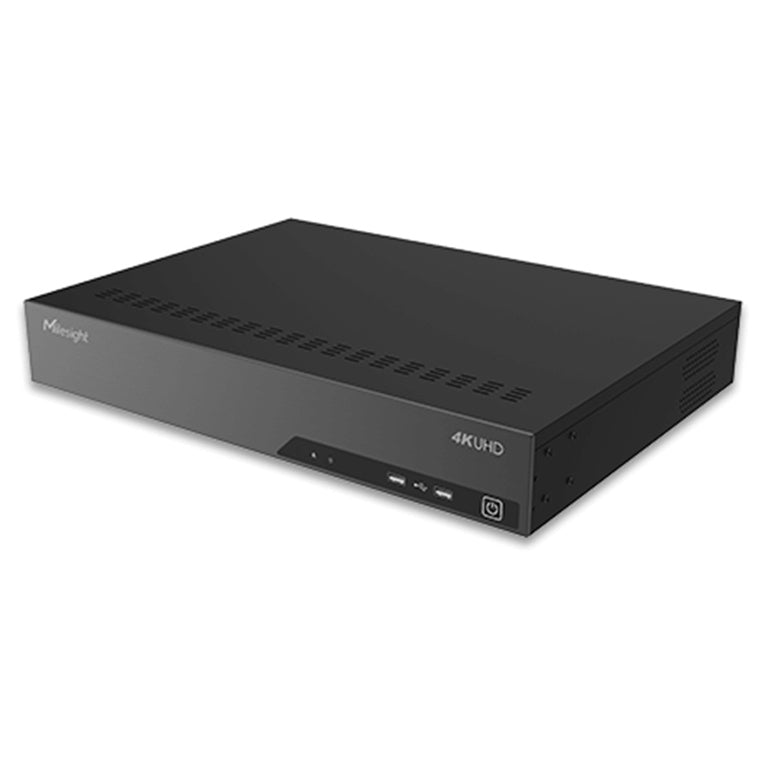

MS-N7032-G - Milesight 4K 32 Channel Pro IP Camera NVR LPR Support

SKU: MS-N7032-G ● In Stock
$1,122.60
inc GST ▲ +GST
Free shipping over $299 Genuine product 7-day returns

Features

AI VCA Management

Defined as the central management site to manage intelligent VCA, People Counting and Face Detection, it supports alarm and statistic to deliver prompt insight, helping improve video surveillance efficiency.



Enterprise ANPR Management

Seamlessly integrated with ANPR camera, the NVR manages massive traffic data and excels in diverse traffic management scenarios. It serves as a centralized site, providing real-time license plate previews, intelligent analysis, and comprehensive settings for enhanced functionality and control.

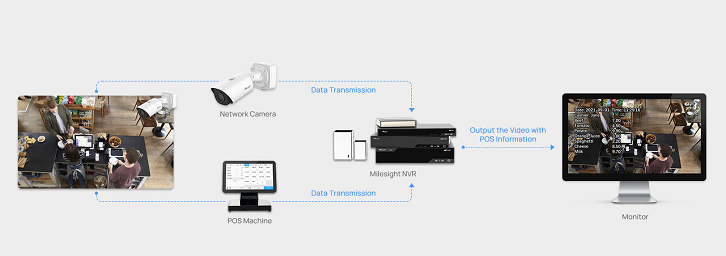

POS Integration

The combination of retail transaction data with surveillance videos makes it easy to check goods settlement, miscalculation and missing calculation, which is helpful to boost customer service and in-store competitive advantage.

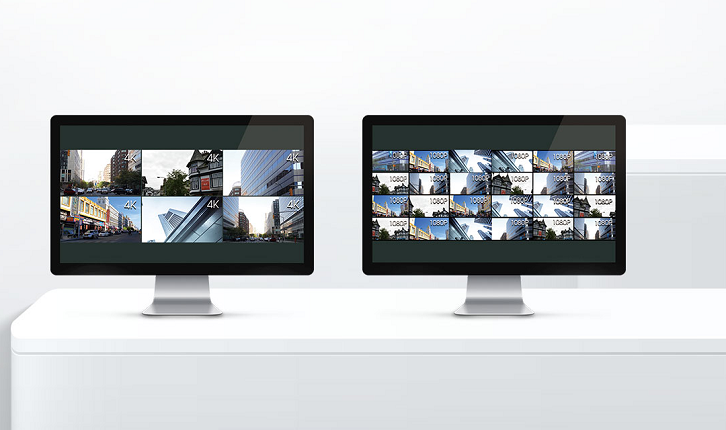

UHD Video Display

Equipped with solid 4K decoding and display capabilities, Milesight 4K H.265 Pro NVR 7000 Series can synchronously decode up to 6-CH 4K UHD and 24-CH 1080P with the finest details to guarantee real-time video monitoring.

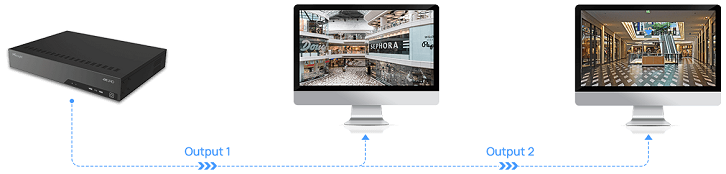

Multi-video Output

Multi-video output can be achieved in two ways: Independent Outputs allow multiple displays to show different channels independently, while Synchronous Outputs synchronize the display of the same channel across different locations.

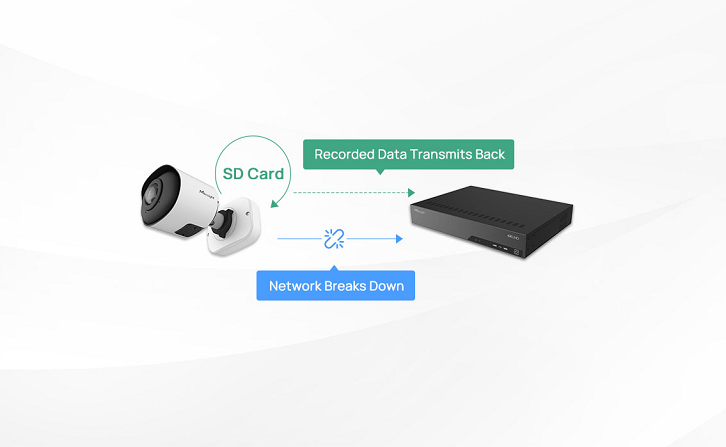

ANR

ANR can store video data on the camera storage card when network between IPC and NVR is disconnected and retransfer the recorded video to NVR after network recovers.

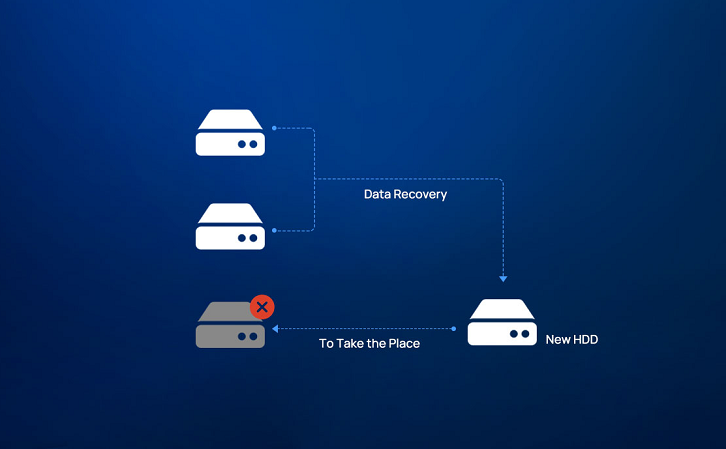

RAID 0/1/5/6/10

RAID, or Redundant Array of Independent Disks, ensures that your data remains intact. When hardware malfunctions, the NVR automatically switches to a redundant drive, eliminating downtime and ensuring continuous recording without disruption.

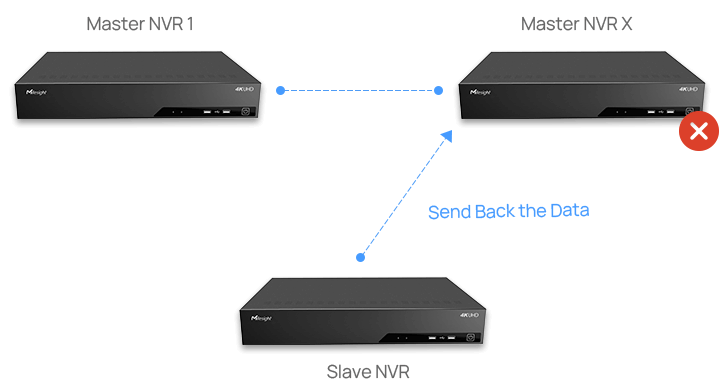

N+1 Hot Spare

N+1 Hot Spare offers a proactive approach to data security by providing an extra layer of redundancy, ensuring uninterrupted recording and eliminating any downtime.

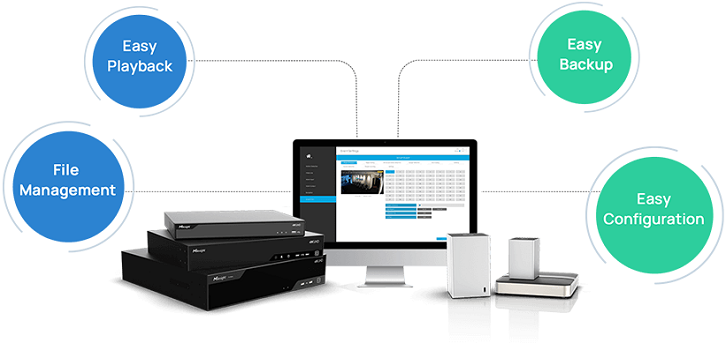

Easy-to-use Design

Featuring a range of functions including Easy Playback, Easy Backup, File Management and Easy Configuration, Milesight's NVR is made to lower the learning costs no matter for a newcomer or trained expert.

Specifications

Technical Specifications

Network Video Input 32-CH
Bandwidth Requirement 256Mbps or 200Mbps(When RAID is enabled) (Incoming)256Mbps or 200Mbps(When RAID is enabled) (Outgoing)
HDMI Output 1-CH,Resolution: 3840x2160/60Hz, 3840x2160/30Hz, 1920x1080/60Hz, 1920x1080/50Hz, 1280x1024/60Hz,1280x720/60Hz, 1024x768/60Hz HDMI Supports Audio Output
VGA Output 1-CH,Resolution: 1920x1080/60Hz, 1920x1080/50Hz, 1280x1024/60Hz, 1280x720/60Hz, 1024x768/60Hz
Dual Stream Support
Recording Resolution 12MP/8MP/6MP/5MP/4MP/3MP/1080P/ UXGA/720P/D1/VGA/CIF/QCIF
Synchronous Playback 6*(30fps @8MP),8*(30fps @6MP), 9*(30fps @5MP), 12*(30fps @4MP), 16*(30fps @3MP), 24*(30fp s @1080P), 32*(30fps @720P),32*(30fps @D1)
Video Compression H.265+/H.265(HEVC)/H.264+/H.264
Audio Compression G.711/AAC/G.722/G.726
SATA 4*SATA HDD (3.5")
Capacity Up to 10TB capacity for each HDD
Array Type RAID0, RAID1, RAID5, RAID6, RAID10
Recording Type Continuous, Event (Motion Detection, Alarm, VCA, Smart Analysis)
Snapshot Type Continuous, Event (Motion Detection, Alarm, VCA, Smart Analysis)
Playback Type General Playback, Event Playback, Tag Playback, Split Playback, Picture Playback
Backup Video backup, Image Backup
Network Protocols IPv4/IPv6, TCP, UDP, RTP, RTSP, RTCP, HTTP, HTTPS, DNS, DDNS, DHCP, NTP, SNTP, SMTP, SNMP, UPnP, NFS

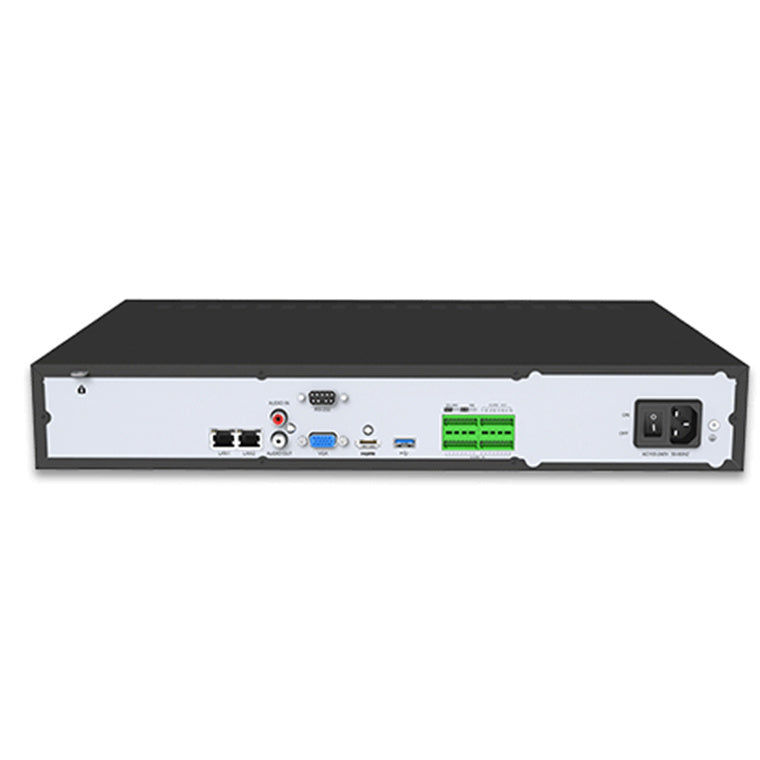

Network Interface 2*RJ45 10/100/1000Mbps
USB Interface 1*USB 3.0; 2*USB 2.0
Serial Interface 1*RS-485 Series Port for PTZ, 1*RS-232 Series Port for Console, 1*RS-485 Series Port for Keyboard
Audio Input/Output 1*RCA/1*RCA
Alarm Input 16-CH
Alarm Output 4-CH
Compatibility ONVIF, API
Advanced Function ANR, N+1 Hot Spare
ANPR Support
Video Analysis Region Entrance, Region Exiting, Advanced Motion Detection, Tamper Detection, Line Crossing, Loitering, People Counting, Object Left, Object Removed
Keyboard Control Milesight Keyboard(MS-K01)
Power Supply AC 100V~240V 50Hz~60Hz
Consumption =15W(Without HDD)
Working Conditions Temperature: -10?~+55? / Humidity: 10%~90%
Dimensions 440mm(W)X320mm(D)X66.8mm(H), Rack Mountable Chassis (1.5U Standard)
Weight 4.1Kg
