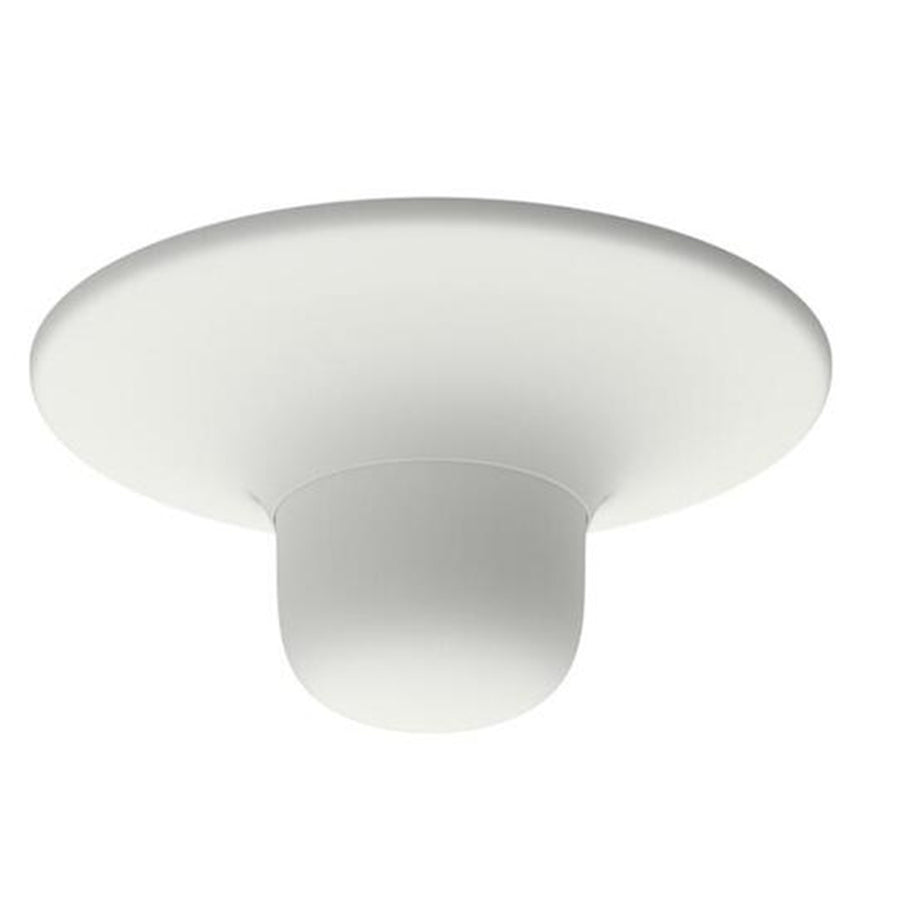

Panorama Antennas CM-7-60-NJ - Wideband Discreet Ceiling Mount Antenna for 3G/4G
Panorama Antennas CM-7-60-NJ - Wideband Discreet Ceiling Mount Antenna for 3G/4G
Features
Panorama CM-7-60-NJ Wideband Discreet Ceiling Mount Antenna for 3G/4G
The CM-7-60-NJ ceiling antenna is a compact and subtle way to provide optimum in-building or DAS coverage for the networks of today and tomorrow.
Concealed beneath the antenna housing is a highly efficient wideband element capable of supporting 2G/3G/4G/WLAN and WIMAX networks from 698-960MHz and 1710-6000MHz.

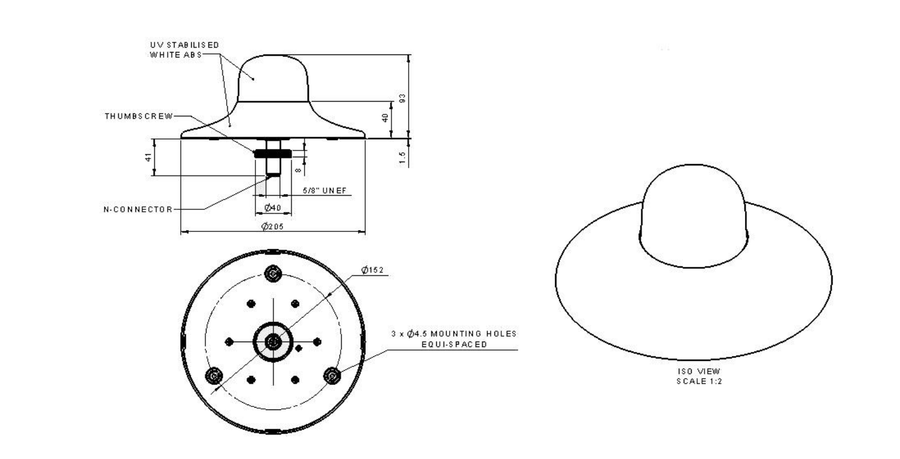

Suitable for indoor or outdoor use the antenna only requires one mounting hole for installation but offers additional screw fixing holes located beneath a rotating valance.
The antenna is ground plane independent and can be fitted onto both thick and thin ceiling tiles.
This product features Panorama Antennas' PIM Guard Technology and will typically meet or exceed a third order intermodulation level of > -150dBC+
Technical Specification
Specifications
Technical Specifications
| LTE Frequencies | 698-960/1710-6000MHz |
|---|---|
| Wifi Frequencies | 2.4/5.0GHz |
| Typical VSWR | <2.5:1 |
| Peak Gain (dBi) | 5 |
| Max Input Power (W) | 50 |
| PIM 3rd order | 2x 20W (dBc) -150 |
| Pattern | Omni-Directional |
| Height (mm) | 93 |
| Diameter (mm) | 205 |
| Operating Temperature | -30 / +70° C |
| Mounting Type | Ceiling Mount |
| Mounting Method | N Bulkhead; Screw Mount (N Female) |
| Flame Retardancy | UL94 V0 |
