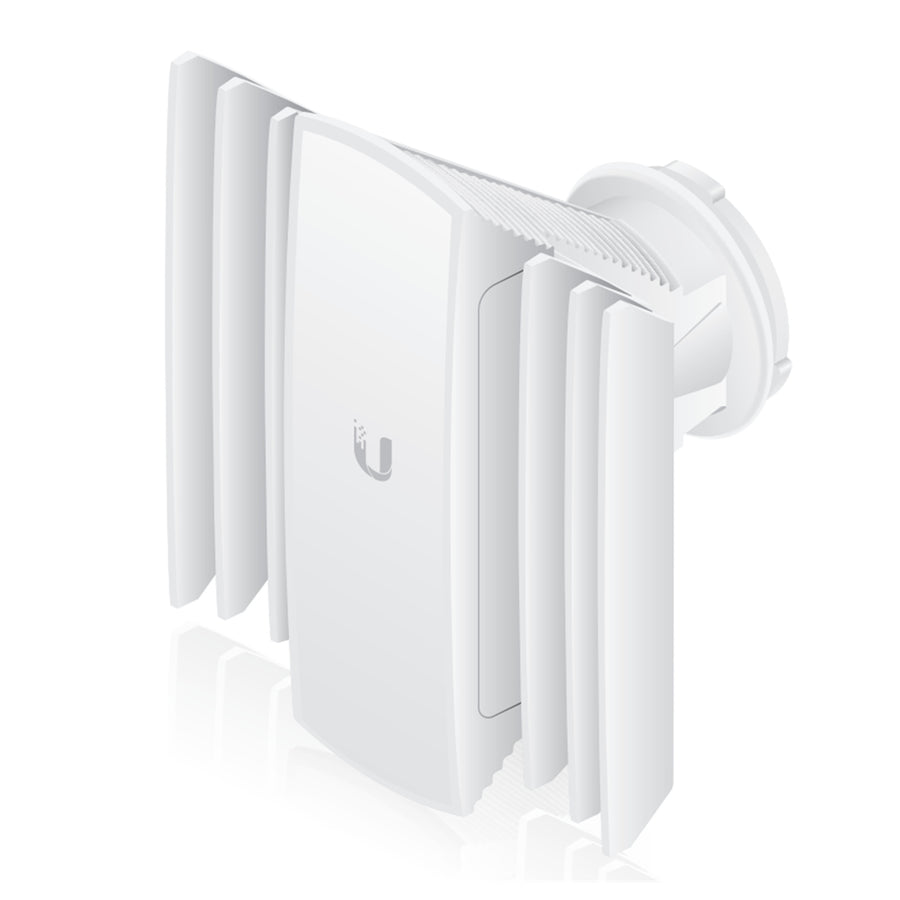

PrismAP-5-90 - Ubiquiti airMAX ac Isolation Antenna Horn 5GHz 90 Degree
Features
Ubiquiti launches a new generation of airMAX ac beamwidth isolation antennas, the PrismAP.
With flexible sectorization for optional antenna beamwidths, the PrismAP antennas are interchangeable and improve beam-shaping for specific deployment and environment needs. The PrismStation 5AC and IsoStations use horn antenna sectors designed for increased co-location performance without sacrificing gain.
Symmetrical horn antennas (30° and 45° versions, models PrismAP-5-30 and PrismAP-5-45, respectively) offer breakthrough scalability options for wireless systems. Unique beam performance and great co-location
characteristics allow for a higher density of sectors than traditional sector technology.
Asymmetrical horn antennas (60° and 90° versions, models PrismAP-5-60 and PrismAP-5-90, respectively) have naturally attenuated side lobes and extremely low back radiation. They offer best front-to-back ratio in the industry and the lowest side lobe radiation. Asymmetrical horn antennas are ideal for cluster sector installations with high co-location requirements.
Specifications
Technical Specifications
| Dimensions | 152.1 x 186.8 x 113.2 mm(5.99 x 7.35 x 4.46") |
|---|---|
| Weight | 920 g(2.03 lb) |
| Frequency Range | 5.15 - 5.85 GHz |
| Compatible Radios | IsoStation/PrismStation |
| Gain | 13 dBi |
| HPOL Beamwidth | 90° |
| VPOL Beamwidth | 90° |
| Elevation Beamwidth | 45° |
| Electrical Downtilt | 0° |
| Polarization | Dual-Linear |
| Cross-Pol Isolation | 17 dB |
| Max. VSWR | 2:1 |
| Wind Loading (with PrismStation) | 46 N @ 200 km/h(10.34 lbf @ 125 mph) |
| Wind Survivability | 200 km/h(125 mph) |
| Brand | Ubiquiti |
|---|---|
| Product Type | Networking > Network Accessories > Antennas |
| Weight | 0.5 kg |
| Warranty |
|---|
