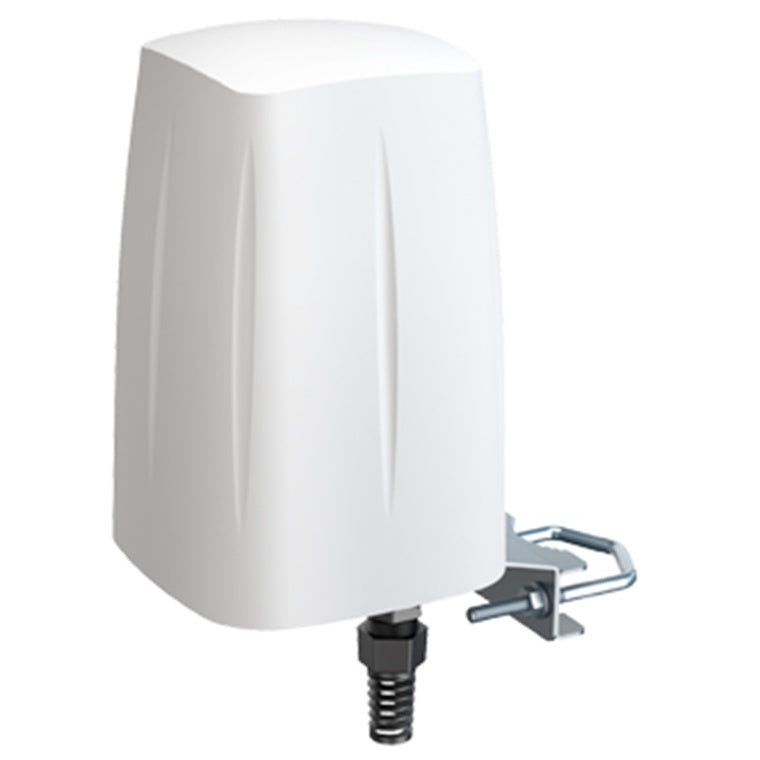

Teltonika QuSpot LTE, WiFi, GPS and Bluetooth Antenna for RUTX11
Features
QuSpot LTE, WiFi, GPS and Bluetooth Antenna for RUTX11
Integrated outdoor multi band high power LTE Omni-directional antennas + WiFi + GPS antenna + place to install Teltonika RUTX11 (All-in-one)
QuSpot omni LTE antenna for Teltonika RUTx11 router is a perfect outdoor device for mobile and fixed installations like industrial, CCTV, hotspots, yachts, boats, campers, RV etc. It has embedded also omni Wi-Fi dualband 2.4 & 5 GHz omni antenna and GPS antenna and Bluetooth antenna. If you use RUTx11 with QuSpot antenna, you get an integrated complete solution with embedded router and multi band antennas in one enclosure.
- IP67 Outdoor antenna
- Passive PoE Support
- Made to fit mount
- Easy to Install
- Easy Integration with Teltonika RUTX1
Specifications
Technical Specifications
| Manufacturer Product Code | AX11S |
|---|---|
| Supported LTE bands | 1, 2, 3, 4, 5, 6, 7, 8, 9, 10, 12, 13, 14, 15, 16, 17, 18, 19, 20, 23, 25, 26, 27, 28, 29, 30, 33, 34, 35, 36, 37, 38, 39, 40, 41, 44, 53, 65, 66, 67, 68, 69, 70, 71, 85 |
| Frequency Gain | 0.694 - 0.96 GHz : 2 dBi, 1.7 - 2.2 GHz : 2 dBi, 2.2 - 2.7 GHz : 4 dBi |
| Beamwidth | 360°/35° +/- 5° |
| Polarization | Vertical |
| Impedance | 50 O |
| WiFi Frequency | 2.40-2.50 GHz (6dbi), 4.70 - 6.00 GHz(7 dbi) |
| Materials | ABS, aluminum, PTFE, Fiberglass |
| Ingress Protection | IP67 |
| Dimensions | 160 x 160 x 240 mm |
| Weight | 1.5 kg |
| Operating Temperature | From -40°C to 75°C |
| Brand | Teltonika |
|---|---|
| Product Type | Networking > Network Accessories > Antennas |
| Weight | 0.5 kg |
| Warranty |
|---|
