Ubiquiti UP-AlarmHub-Kit - UniFi Protect Alarm Hub Kit 32 Input Zone Alarm Control Hub

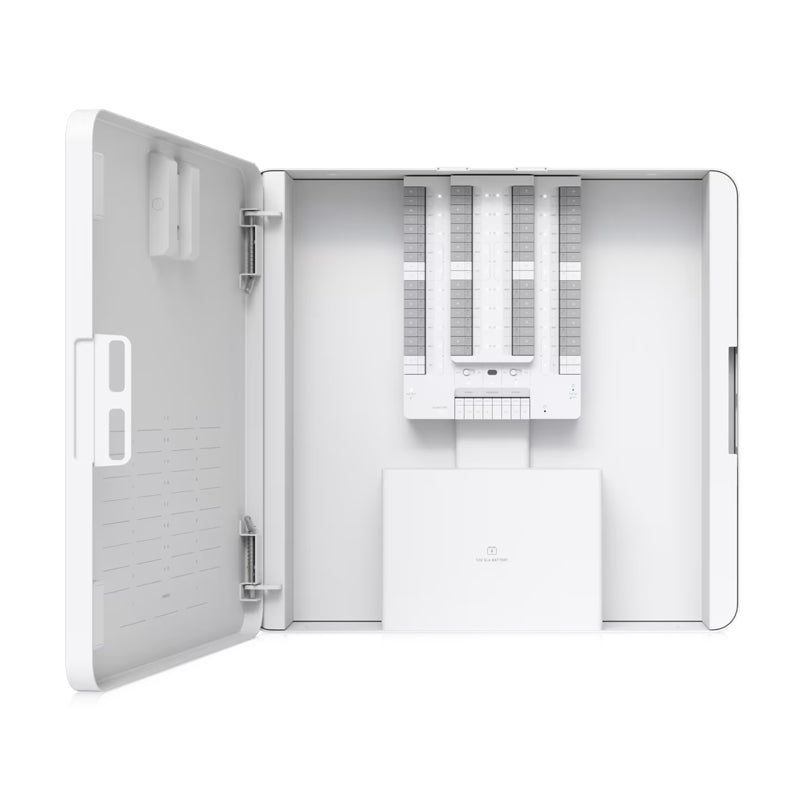

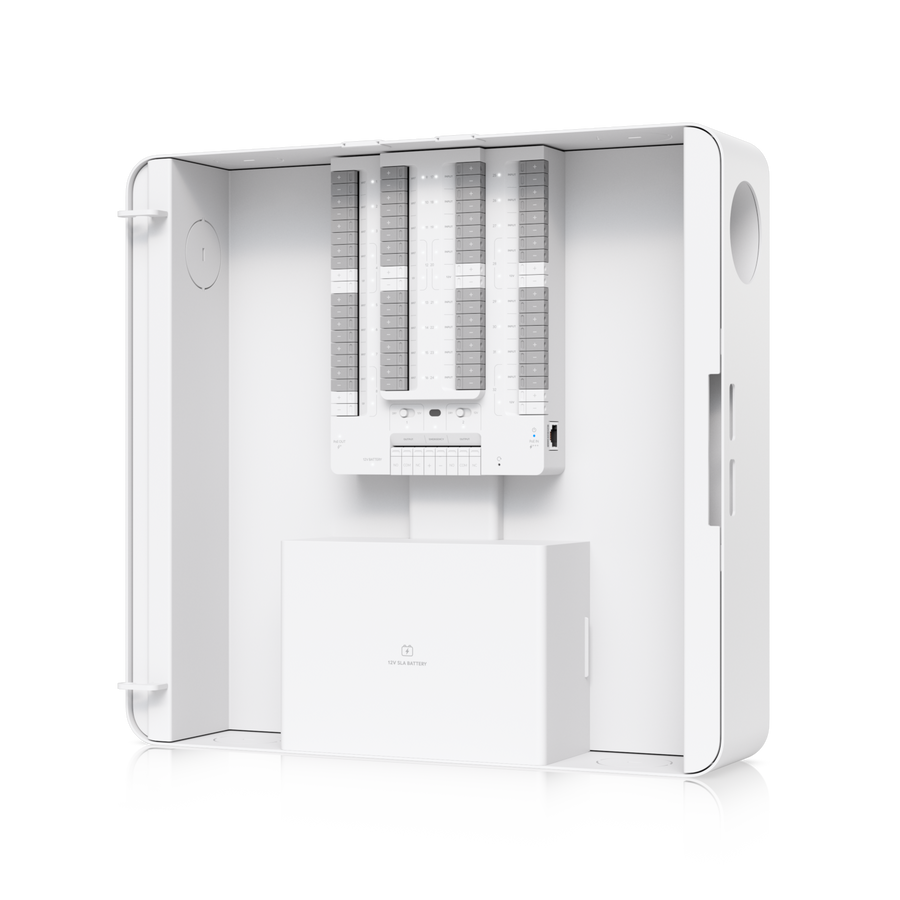

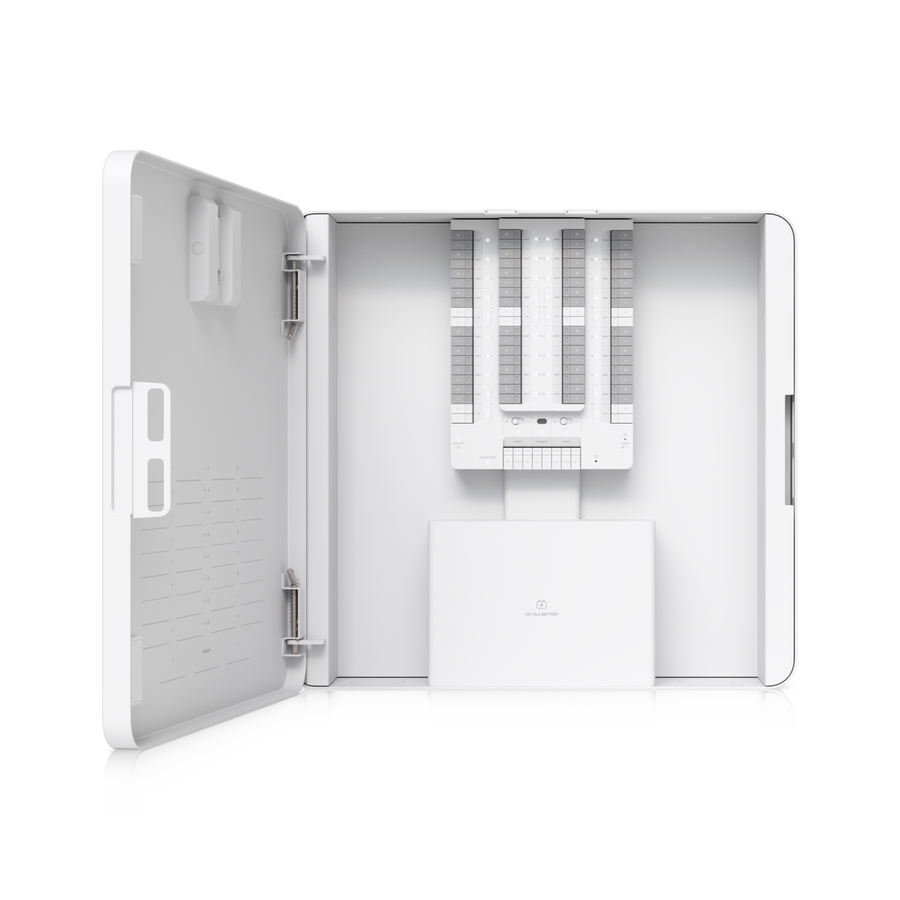

The Ubiquiti UniFi Protect Alarm Hub Kit is an 32 input zone alarm control hub for hardwire intrusion sensors powered using PoE++ input and optional battery backup.
Features32-Zone Alarm Inputs, supports up to 32 wired intrusion zones with EOL resistor compatibility for scalable security deploymentsBattery Backup, supports 12V SLA battery input and charging for uninterrupted operation during power outages2x Output Relays, two configurable relays for sirens, strobes, and other alarm system devicesPoE++/+++ In RJ45 Port, delivers power and data over a single cable, enabling streamlined installation without a separate power adapterTamper Detection, built-in tamper detection triggers alerts if the device is opened
Supplied new by KW Tech, New Zealand. Prices include GST.
Specifications
Technical Specifications
| Brand | Ubiquiti |
|---|---|
| Model | UP-AlarmHub-Kit |
| Manufacturer's Code | UP-AlarmHub-Kit |
| Dimensions | 379 × 355 × 105 mm |
| Input Terminals | (32) Alarm sensor; (1) Emergency |
| Power Method | PoE++/PoE+++; 12V SLA battery |
| Power Output Availability | PoE+++ input: 68W; PoE++ input: 42W (Max. combined power from PoE+ output, 12V aux power outputs, and 12V relay outputs) |
| NDAA Compliant | Yes |
| Weight | Device: 8.3 kg, Mount: 624 g |
| Enclosure Material | SGCC steel housing with polycarbonate cover |
| Mount Material | SGCC steel |
| Mounting | Wall |
| Output Relay | (2) Wet/Dry; Wet: 12V DC, 1A; Dry: 30V DC, 1A |
| Aux Power Output | For sensor: (3) 12V DC, 1A right side total; (3) 12V DC, 1A left side total |
| Indoor and Outdoor Use | Indoor only |
| Ambient Operating Temperature | -10 to 40°C |
| Ambient Operating Humidity | 5 to 95% noncondensing |
| Networking Interface | (1) 10/100 MbE RJ45 port |
| PoE Interface | (1) PoE++/PoE+++ input, 54V DC, 60W/90W; (1) PoE+ output, 54V DC, 30W |
| Max. Power Consumption | 90W |
| Battery Charge | SLA backup battery, 12V, 0.3A |
| LEDs | W/B |
| Buttons | (1) Factory reset; (2) Dry/Wet switch |
| Certifications | CE; FCC; IC |
| Brand | Ubiquiti |
|---|---|
| Product Type | Smart Home & Security > Security Systems > Alarm Kits |
| Weight | 2.0 kg |
