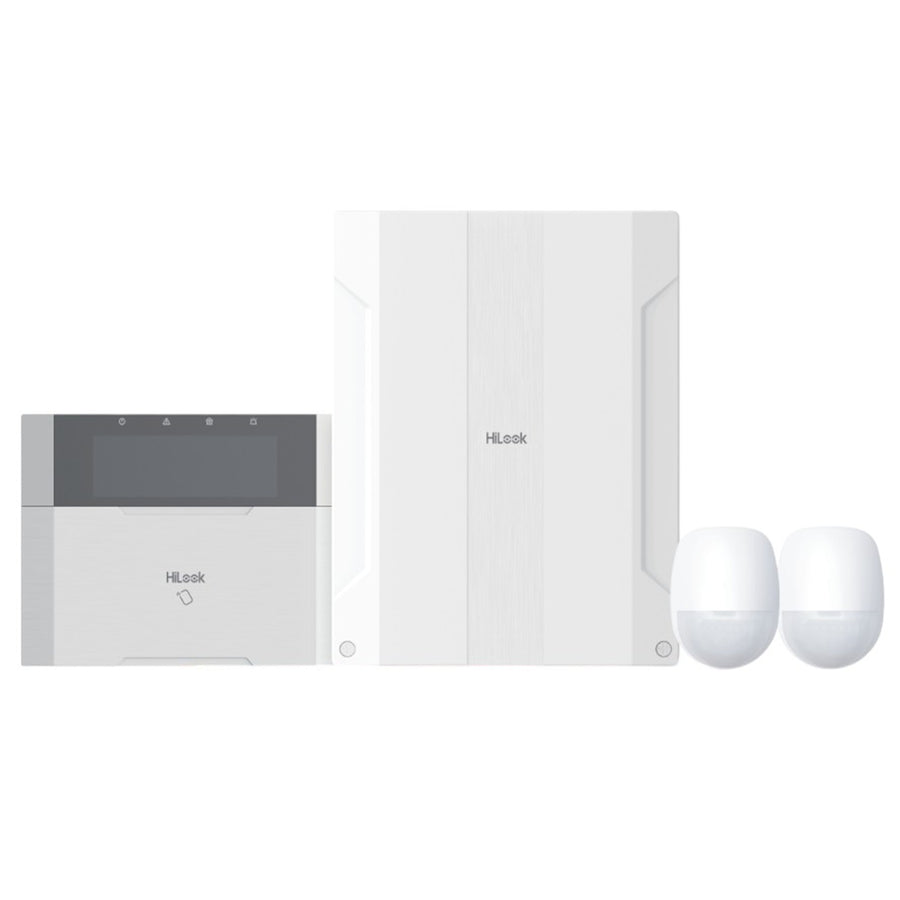

HiLook HA-ALARM-KIT1 - PRO Wired Home Alarm System. 1x Wired Control Panel
Features
HILOOK PRO Wired Home Alarm Kit. Includes 1x Wired Control Panel, 1x Keypad, 2x PiR Sensors, 3x Tags

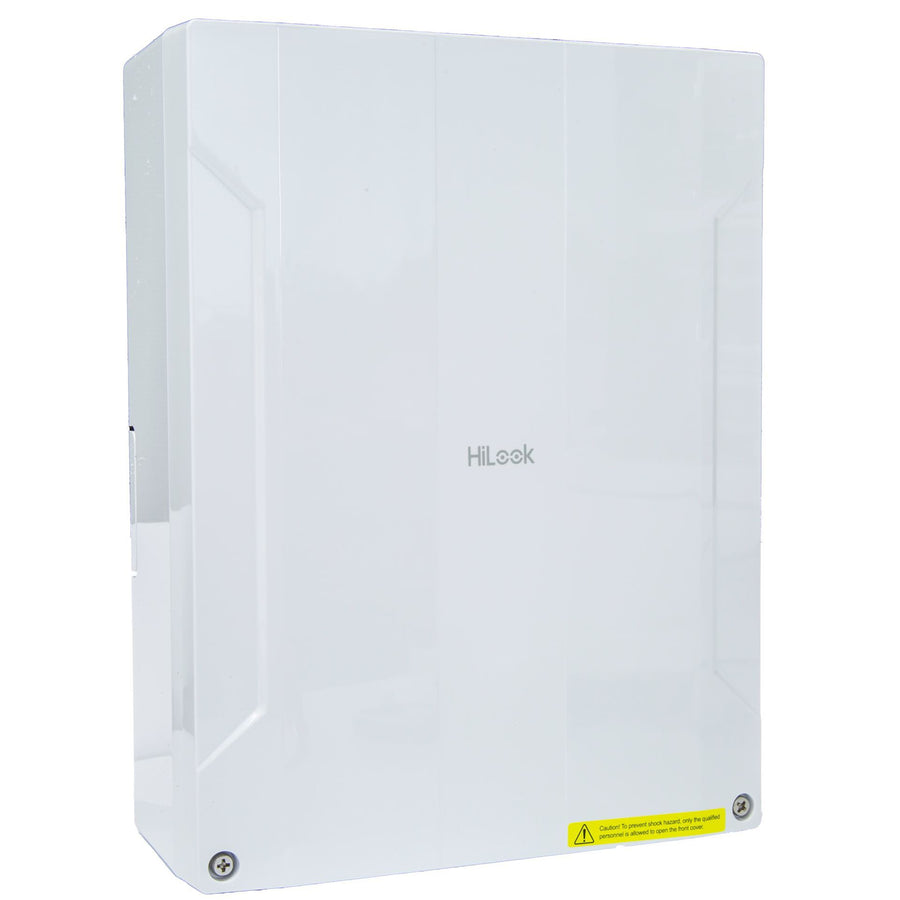

Control Panel
- Hybrid system: 8 on-board zones and 40 wired/wireless zones expandable; 4 on-board outputs (2 relay outputs and 2 I/O outputs), and 44 wired/wireless outputs expandable
- Dual path communication of alarm events and other signals over LAN, PSTN, GPRS or 3G/4G utilizing a main and backup channel with configurable priority
- 2-ch onboard IP camera video verification supports video recording (5s pre-alarm + 2s post-alarm, or 2s pre-alarm + 5s post-alarm) for verification to the alarm receiving email or mobile client
- Supports arming/disarming via keypad, keyfob, mobile client, iVMS-4200, SMS and tag
- Pushes alarm notifications via messages and Hik-Connect
- Supports ISAPI, Cloud P2P, ISUP, CSV-IP and DC-09 protocol
- Supports 1 Speed-X BUS

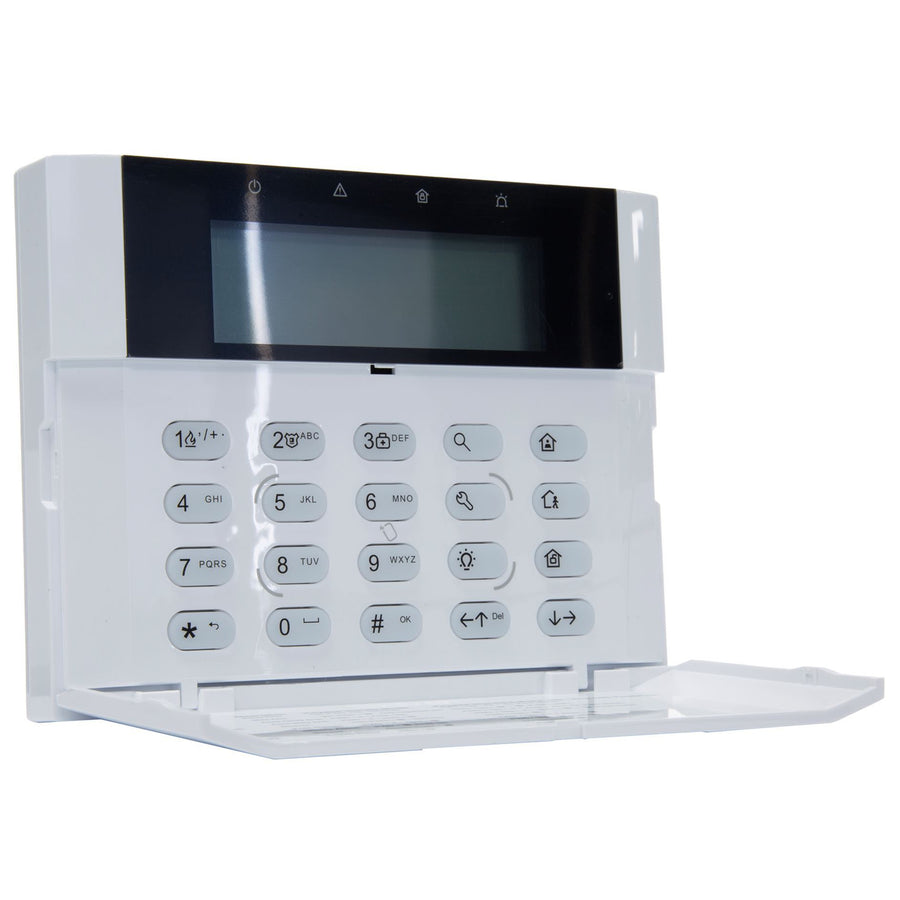

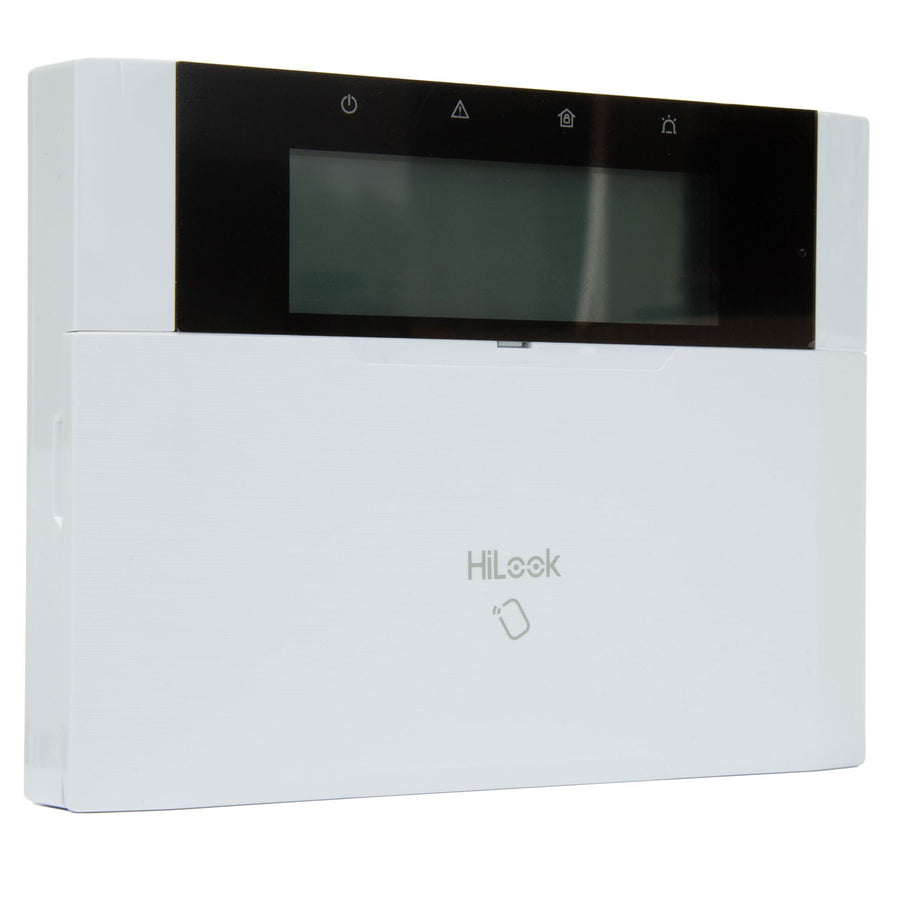

Keypad
- LCD screen display
- Supports one-touch arm(Arming without password)
- Supports Fire/Panic/Medical alarm key
- Supports company name, phone number, time display
- Supports 2 on-board alarm inputs and 1 onboard alarm output
- Supports a maximum of 64 keyfobs

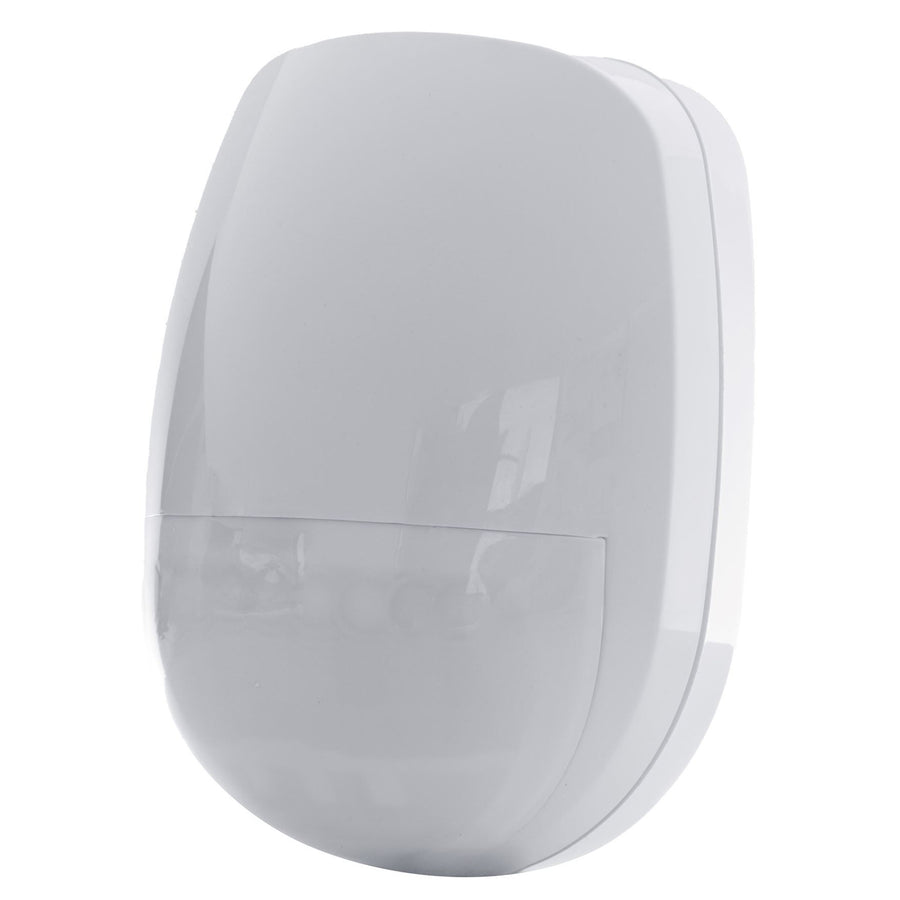

PIR Sensors
- Detection Range: 12m / 85.9°
- Up to 30kg pey immunity
- Automatic sensitivity
- Digital temperature compensation
- 52 zones of 3D optics including creep-zone protection, full coverage without dead angle
- Selectable EOL resistors for alarm and tamper-proof wiring
- Sealed optics preventing insect interference
- 24Ghz microwave
- 9 to 16 V wide voltage adaptation with polarity reverse connection protection
- Wall/Ceiling-mounting brackets available (sold separately)
- IFT technology prevents false alarms
Specifications
Technical Specifications
| Zones | 48(8 on-board zones, max 4 wired PIRCAM) |
|---|---|
| Area | 16 |
| User | Installer: 1Administrator: 1Operator: 46 |
| SMS notification | Supports (with GPRS/3G/4G module) |
| Onboard video clips | 2 |
| ARC protocol | ISAPI: Supports iVMS-4200 client software and web clientCloud P2P: Supports cloud P2P privacy protocolDC-09: ARC accessible (ADM-CID/SIA-DCS)CSV-IP: Supports CSV-IPISUP: Supports ISUP 5.0 |
| Programming tools | Web/iVMS-4200/Hik-ProConnect/Hik-ProConnect |
| Firmware upgrade | Web/iVMS-4200/Hik-ProConnect |
| End of Line Resistance | Support 1K, 2.2K, 4.7K, 5.6K, 6.8K, 8.2K |
| Alarm input | 48 (8 on-board zones) |
| Alarm output | 48(Including 2 on-board relay outputs and 2 I/O outputs) |
| Power Output | 1. Bell: maximum 12V 1.2A2. AUX: maximum 12V 1.5A3. Bell and AUX maximum 12V 2.1A |
| Bus | 1 Speed-X bus |
| Sounder output | 1 Wired on-board sounder output |
| Tamper-Proof | 1 switch to detect removal from mounting1 switch to detect front cover open |
| Netowrk interface | 1 RJ45 10M/100M Ethernet interface |
| Indicator | 4 On-board LEDs:① 1 AC power LED indicator (Green)② 1 System status LED indicator (Green/Red)③ 1 PSTN status LED indicator (Green/Red)④ 1 Mobile communication status LED indicator (Green/Red) |
| Power interface | 15 VDC 2.5A |
| Battery type | Lead acid battery (12V 7Ah, battery is not included by default) |
| Battery life span | Up to 36hrs |
| Operation temperature | -10°C to 40°C |
| Operation humidity | 10% to 90% |
| Shell material | Plastic |
| Color | White |
| Dimension(WxHxD) | 261 mm × 199 mm × 86.4 mm |
| Weight | 997 g |
| Tag | 48 |
| Keyfob | 48 |
| Keypad | 4 |
| Wireless sounder | 8 |
| Brand | HiLook |
|---|---|
| Product Type | Smart Home & Security > Security Systems |
| Weight | 13.605 kg |
| Warranty |
|---|
