UISP-Dish-Mini - Ubiquiti UISP Dish Mini 5-7 GHz Compact Dish with 26 dBi Gain and Radio Direct Connect
Ubiquiti

UISP-Dish-Mini - Ubiquiti UISP Dish Mini 5-7 GHz Compact Dish with 26 dBi Gain and Radio Direct Connect

SKU: UISP-Dish-Mini ● In Stock
$401.84
Free shipping over $299 Genuine product 7-day returns

UISP-Dish-Mini

UISP-Dish-Mini - Ubiquiti UISP Dish Mini 5-7 GHz Compact Dish with 26 dBi Gain and Radio Direct Connect

Description

Ubiquiti UISP Dish Mini 5-7 GHz Compact Dish with 26 dBi Gain and Radio Direct Connect.

Point-to-point (PtP) dish antenna that covers a wide operating frequency range.

Features
  • Compatible with Wave-MLO5, AF-5XHD, or RP-5AC-Gen2
  • 5.15 - 6.875 GHz operating frequency range
  • PtP Dish Antenna
  • WaveGuide radio adapter
  • Precision mounting bracket
  • Weatherproof IPX6 rate

Specifications

Details
Manufacturer's Code UISP-Dish-Mini

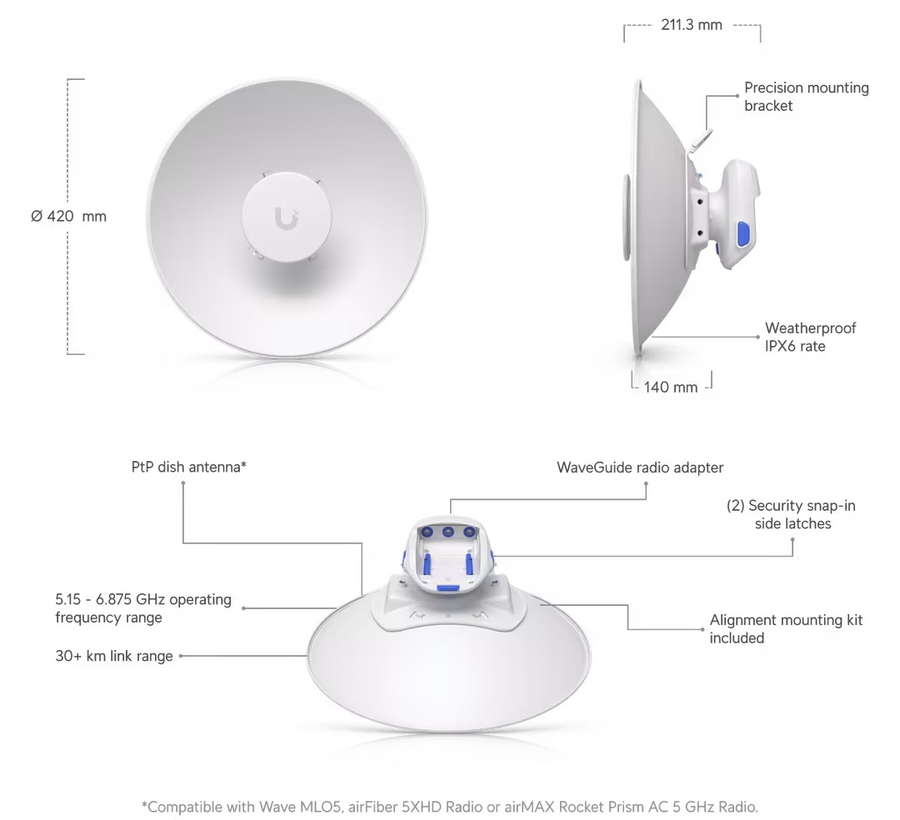

Dimensions Antenna dish: Ø420 x 140 mm (Ø25.6 x 7.9"), Antenna dish with Waveguide: Ø420 x 211.3 mm (Ø25.6 x 8.3")
Weight Antenna dish: 1.95 kg (4.3 lb), Mount: 1 kg (2.2 lb), Waveguide: 0.45 kg (1 lb)
Enclosure Material Antenna dish: Powder-coated galvanized steel, UV-stabilized polycarbonate, Waveguide: Aluminum alloy, UV-stabilized polycarbonate
Mount Material Powder-coated galvanized steel, aluminum alloy
Wind Survivability Up to 200 km/h (124 mph)
Wind Loading 348 N at 200 km/h (78 lbf at 124 mph)

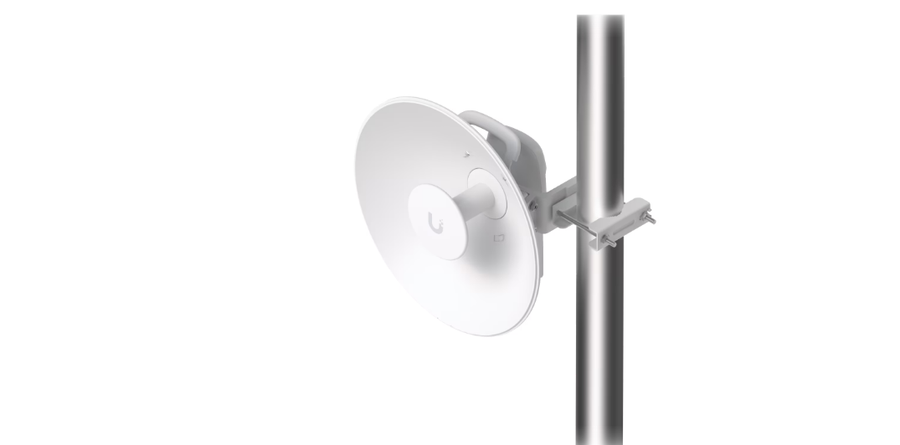

Mounting Pole mount, Alignment mounting kit (Included), Mechanical adjustment: ±20° elevation
Pole Mount Diameter Ø32–76 mm
Weatherproofing IPX6
Frequency Range 5.15 to 6.875 GHz
Antenna Gain 26 dBi
Beamwidth Azimuth: 5.8 to 9° (3 dB) / 7.6 to 12.5° (6 dB), Elevation: 5.8 to 9° (3 dB) / 7.6 to 12.5° (6 dB)
Electrical Downtilt 0°
Max. VSWR 2:1
Polarization Dual-Linear
Compatibility Wave-MLO5, AF-5XHD, or RP-5AC-Gen2
Cross-Pol Isolation 15 dB
NDAA Compliant Yes
