-5%
Ubiquiti

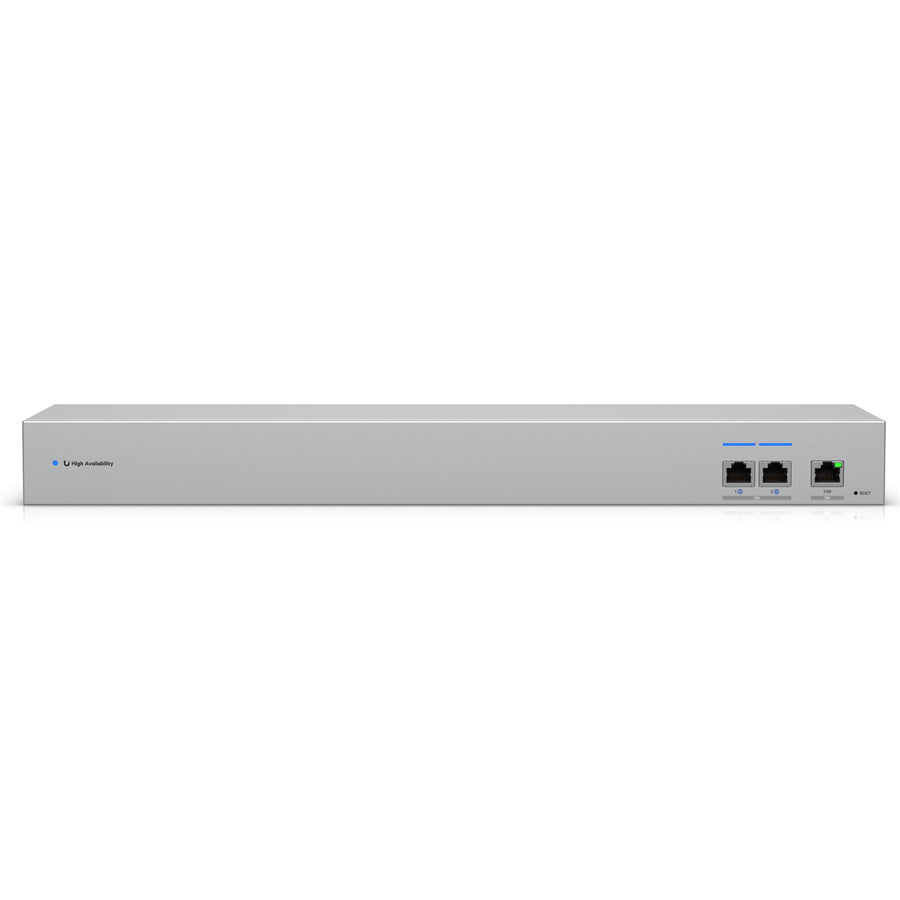

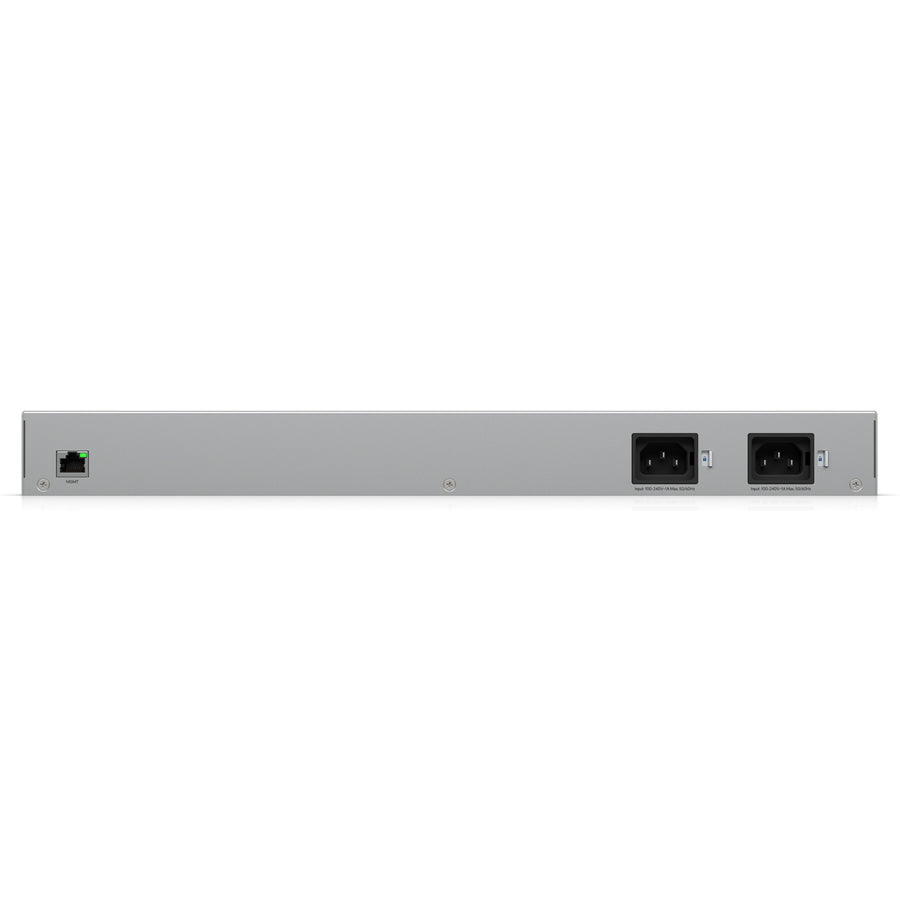

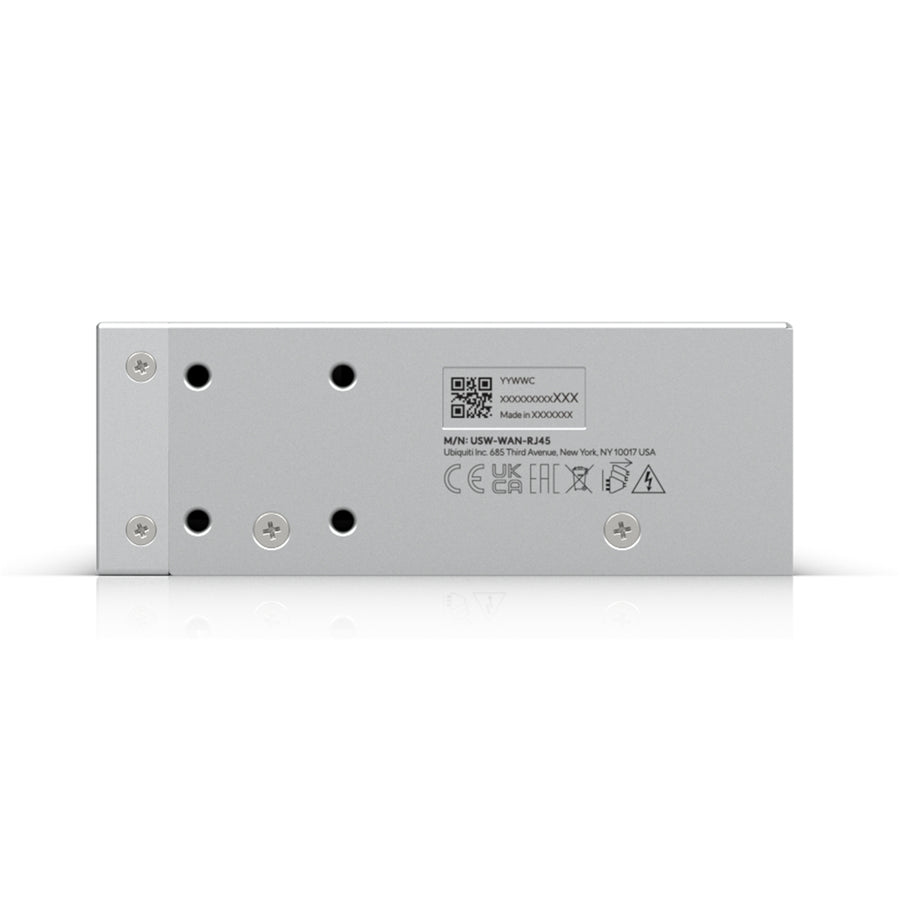

Ubiquiti USW-WAN-RJ45 - WAN relay switch with (1) 10 GbE upl
$545.21$575.48
inc GST ▲
+GST
Free shipping over $299
Genuine product
7-day returns
Features
10 GbE WAN Switch linking two Shadow Mode High Availability UniFi Gateways to a single ISP.
Specifications
Technical Specifications
| Dimensions | 442.4 x 120 x 43.7 mm (17.4 x 4.72 x 1.7") |
|---|---|
| 1 GbE RJ45 | 1(1G/100M/10M) |
| 10 GbE RJ45 | 3(10G/5G/2.5G/1G/100M) |
| Redundancy | (2) AC inputs |
| Form Factor | Rack mount (1U) |
| Switching Capacity | 20 Gbps |
| Total Non-Blocking Throughput | 10 Gbps |
| Forwarding Rate | 15 Mpps |
| Max. Power Consumption | 18W |
| Power Method | (2) Universal input, 100-240V AC, 50/60 Hz |
| Power Input Method | AC input |
| Power Supply | (2) AC/DC, internal, 36W |
| Supported Voltage Range | 100-240V AC |
| Management | Ethernet |
| Weight | Without mounting brackets: 2.3 kg (5.1 lb)With mounting brackets: 2.4 kg (5.3 lb) |
| Enclosure Material | SGCC steel |
| Mount Material | SGCC steel |
| ESD Protection | Air: ± 16kV, contact: ± 10kV |
| Ambient Operating Temperature | -5 to 40° C (23 to 104° F) |
| Ambient Operating Humidity | 10 to 90% noncondensing |
| LEDs | EthernetSystem |
| Certifications | CE, FCC, IC |
| NDAA Compliant | Yes |
| Application Requirements | UniFi NetworkVersion 9.1.120 and later |
| Brand | Ubiquiti |
|---|---|
| Product Type | Networking > Switches |
| Weight | 1.519 kg |
| Warranty |
|---|
